Showing results for: FORD 1464564

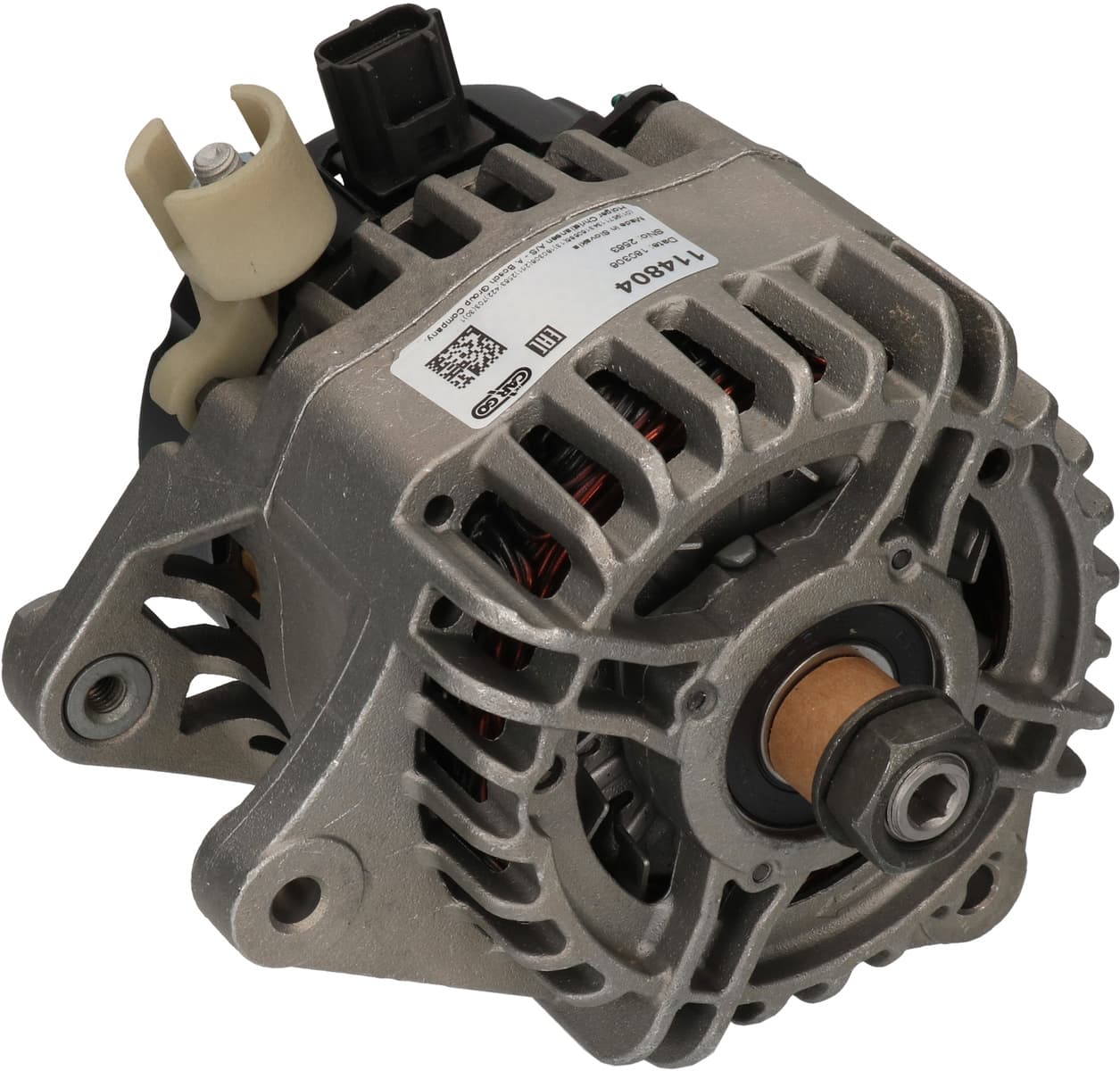

F032114804 - AlternatorTrade number 114804
Voltage 14, Amp 105, Plug no. 1 PL57, Radius 2 86.00, B+ M8, Rotation CW, Regulator type IR, Belt Adjustment Bracket Hole 1 8.00, Mounting Bracket Distance 52.00, Radius 82.00, Bracket Hole Size Rear M8, Pulley w/o, Bracket Hole Size 1 8.00, Holder Arm Width 14.50, Belt Adjustment Bracket Hole Position 50, B+ Position 60
F032132080 - NutTrade number 132080
Lock nut w/, Washer Outer Diameter 27.55, Material Steel, Outer Diameter 23.80, Thread/mm/" M17-1.50, Washer w/, Height 6.80
F032138441 - Parts SetTrade number 138441
Ring Height 1 7.35, Inner Diameter 6.80, Material Copper, Outer Diameter 16.00, Servicing A115I, A127I, Collar w/, Ring Distance 2.15, Ring Height 2 7.85, Total Length 46.50
F032141071 - Ball BearingTrade number 141071
Bearing type Ball bearing, Inner Diameter 16.96, Outer Diameter 35.00, Remarks SKF, Height 10.00
F032191545 - ScrewTrade number 191545
Replacement for:
FORD W500200S437
DIN norm 6921, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 12.00, Spanner Size 8.00

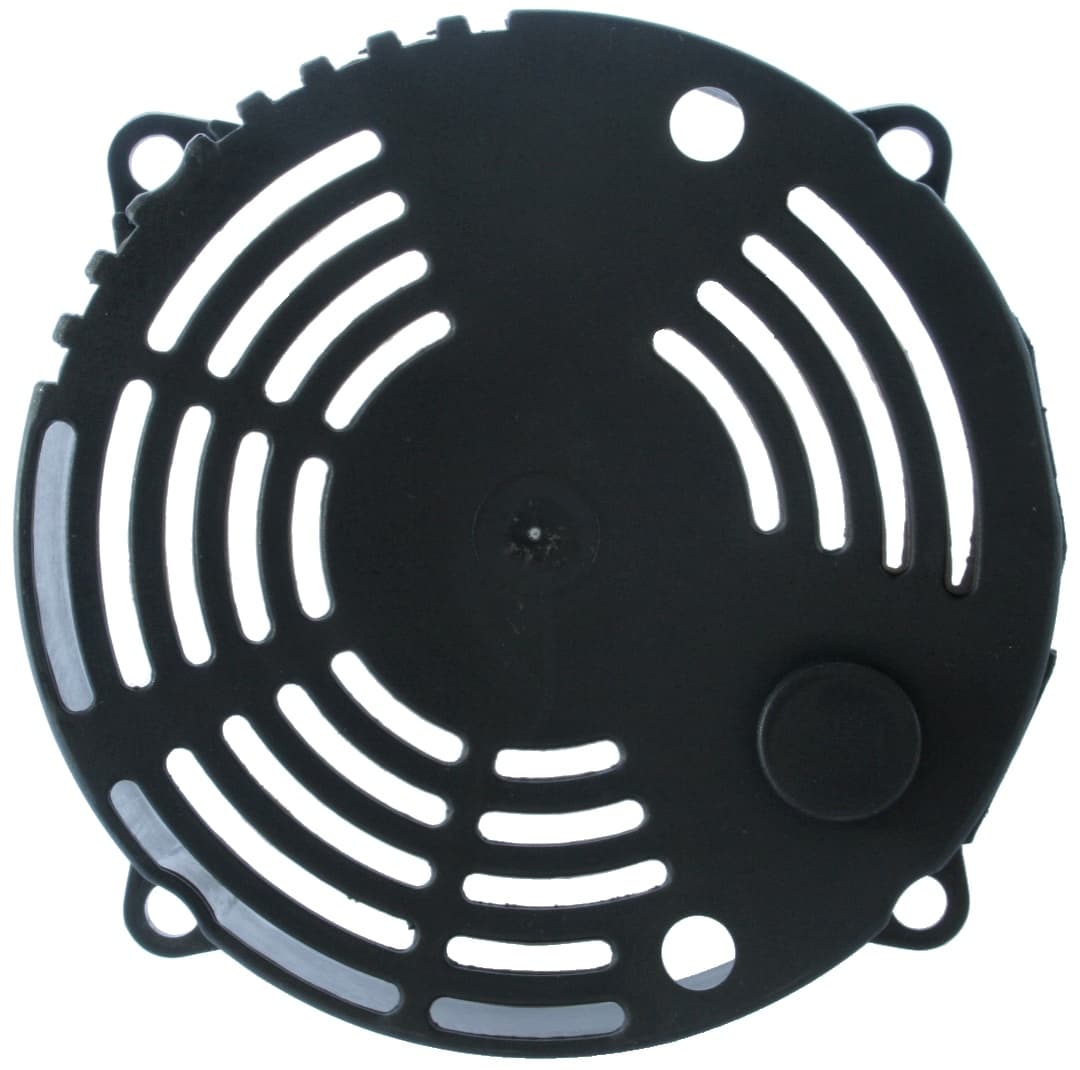

F032230372 - Protective CapTrade number 230372
No./mount. holes 4, Inner Diameter 113.00, Material Plastic, Outer Diameter 116.20, Servicing A127, Amount of Mounting Holes 4, Height 34.00
F032231827 - Fitting RingTrade number 231827
Inner Diameter 35.00/17.80, Outer Diameter 36.80/41.30, Servicing A115IM, Height 18.10
F032232055 - ScrewTrade number 232055
Thread Length Front 10.50, Thread size M4, Servicing A115I, Thread Length Rear 17.50, Thread Size Rear M5, Total Length 56.00
F032232059 - Holding PlateTrade number 232059
Width 1 41.00, Gasket w/o, No./mount. holes 4, Inner Diameter 28.00, Material Steel, Outer Diameter 57.10, Servicing A115I, Thickness 2.00, Amount of Mounting Holes 4

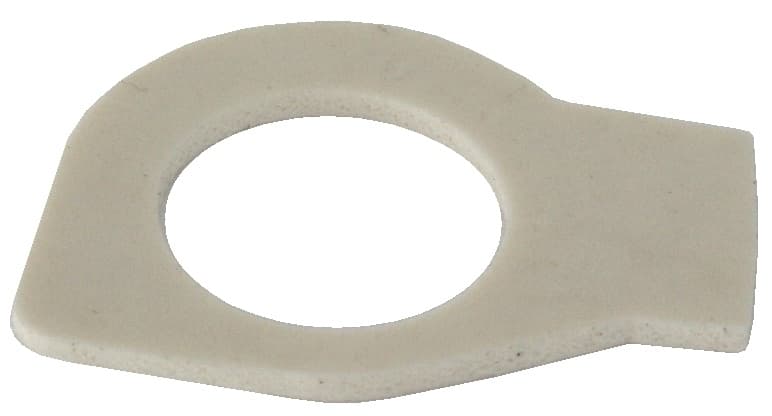

F032234952 - Sealing FrameTrade number 234952
Inner Diameter 18.00, Width 1 26.70, Thickness 2.00, Length 37.00

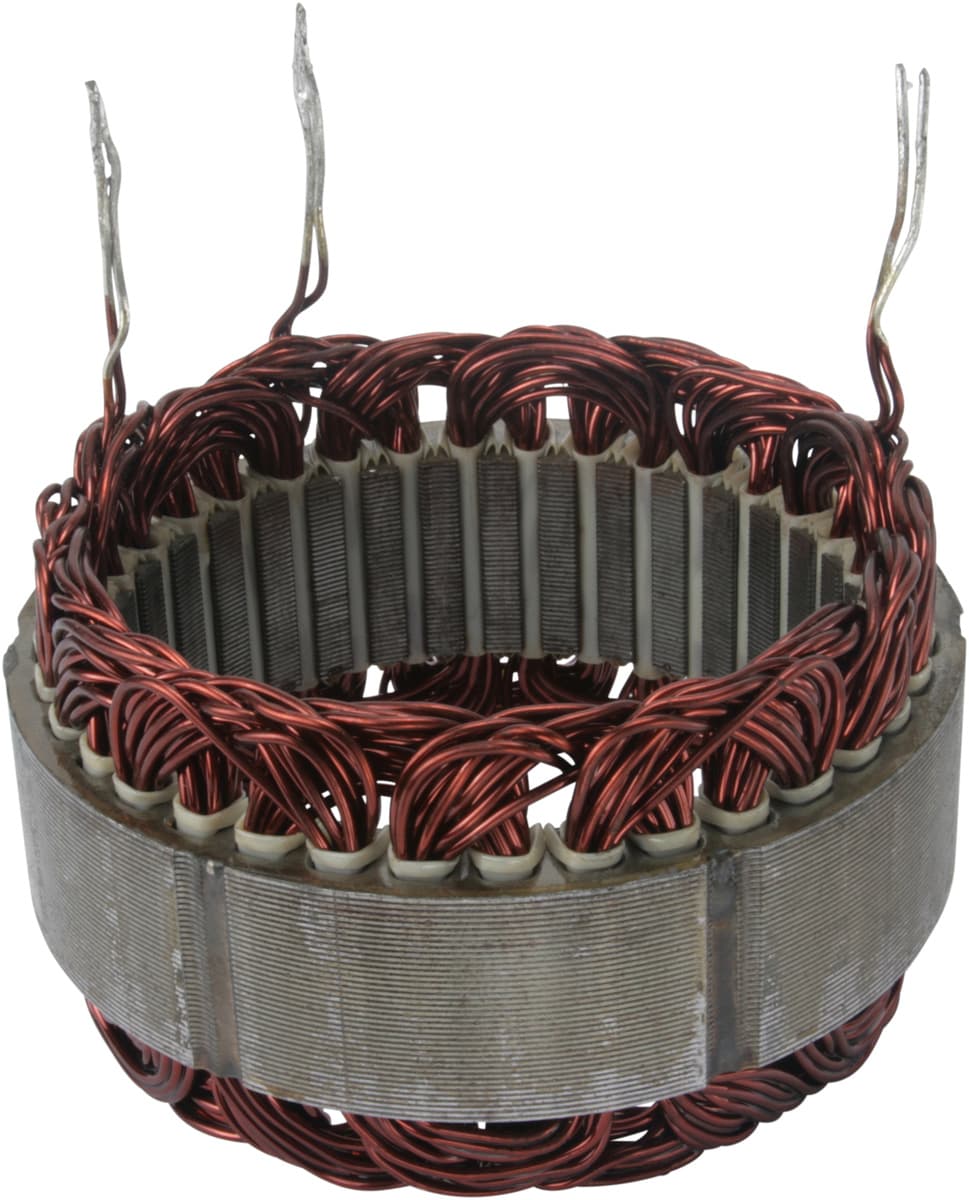

F032235195 - StatorTrade number 235195
Voltage 14, Amp 105, Number of leads 3, Outer Diameter 118.00, Winding Height 64.00, Lead 2 2, Lead 1 2, Wire thickness 1.40, Stator winding Triangle, Lead 3 2, Inner Diameter 92.00, Height 30.00
F032330090 - RotorTrade number 330090
Voltage 14, Drive End Length 48.00, Windings 355, Cooling fan w/, Rotation CW, Thread size M17-1.50, Outer Diameter 91.50, Slip Ring Front 99.50, Wing height 82.00, Slip Ring Outer Diameter 16.00, Ring Height 1 7.30, Wire Diameter 0.80, Slip Ring Rear 109.50, Thread Length 17.00, Ring Distance 2.20, Ring Height 2 7.80, Slip Ring End Length 45.00, Shaft Diameter 17.00, Total Length 152.50, Height 54.00

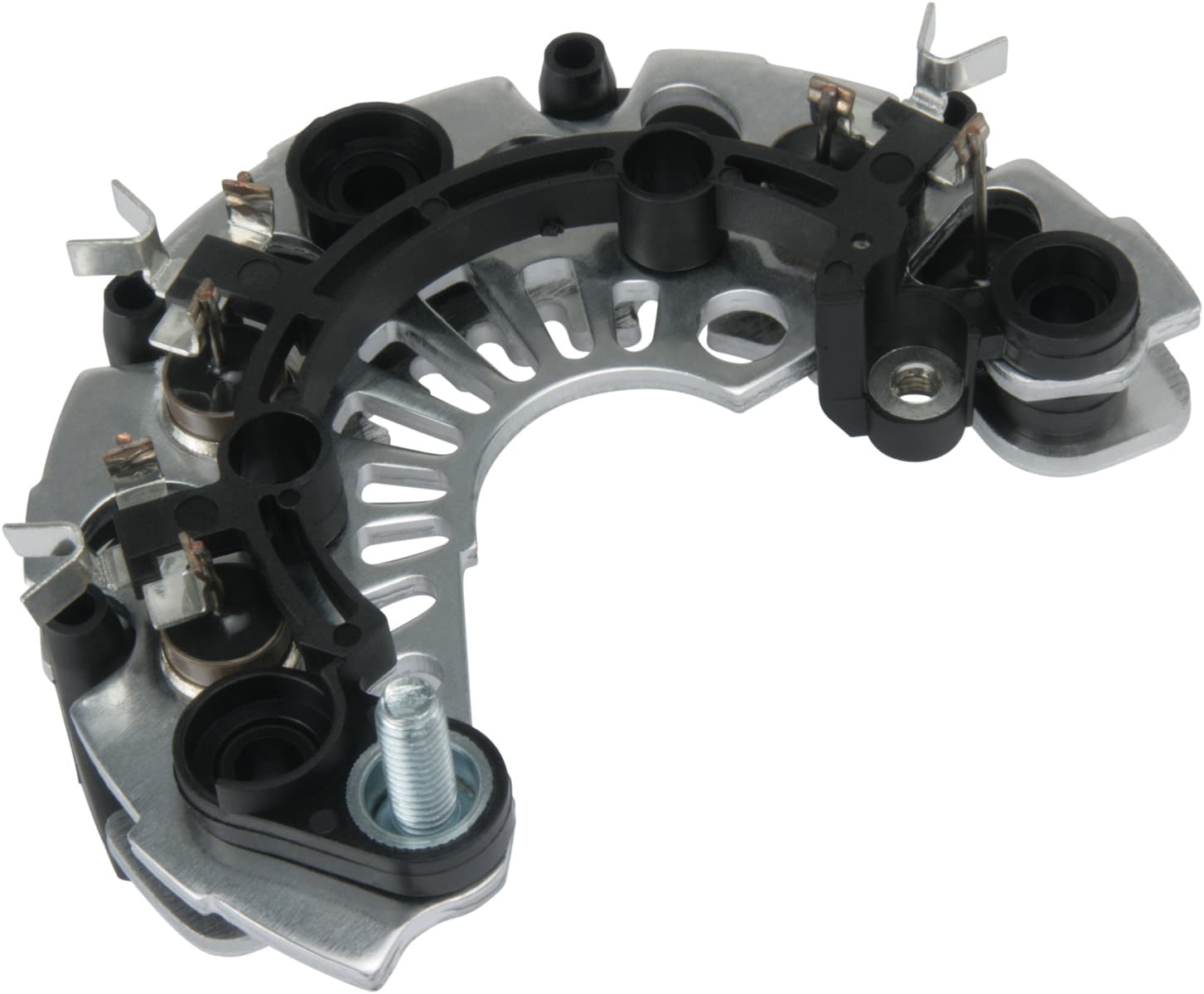

F032330465 - RectifierTrade number 330465
Voltage 14, Zener volt 22, B+ type Bolt, Connections for stator 3, Diode type Zener, B+ size M6, Outer Diameter 111.00, Diode socket Aluminium, B+ Length 13.00

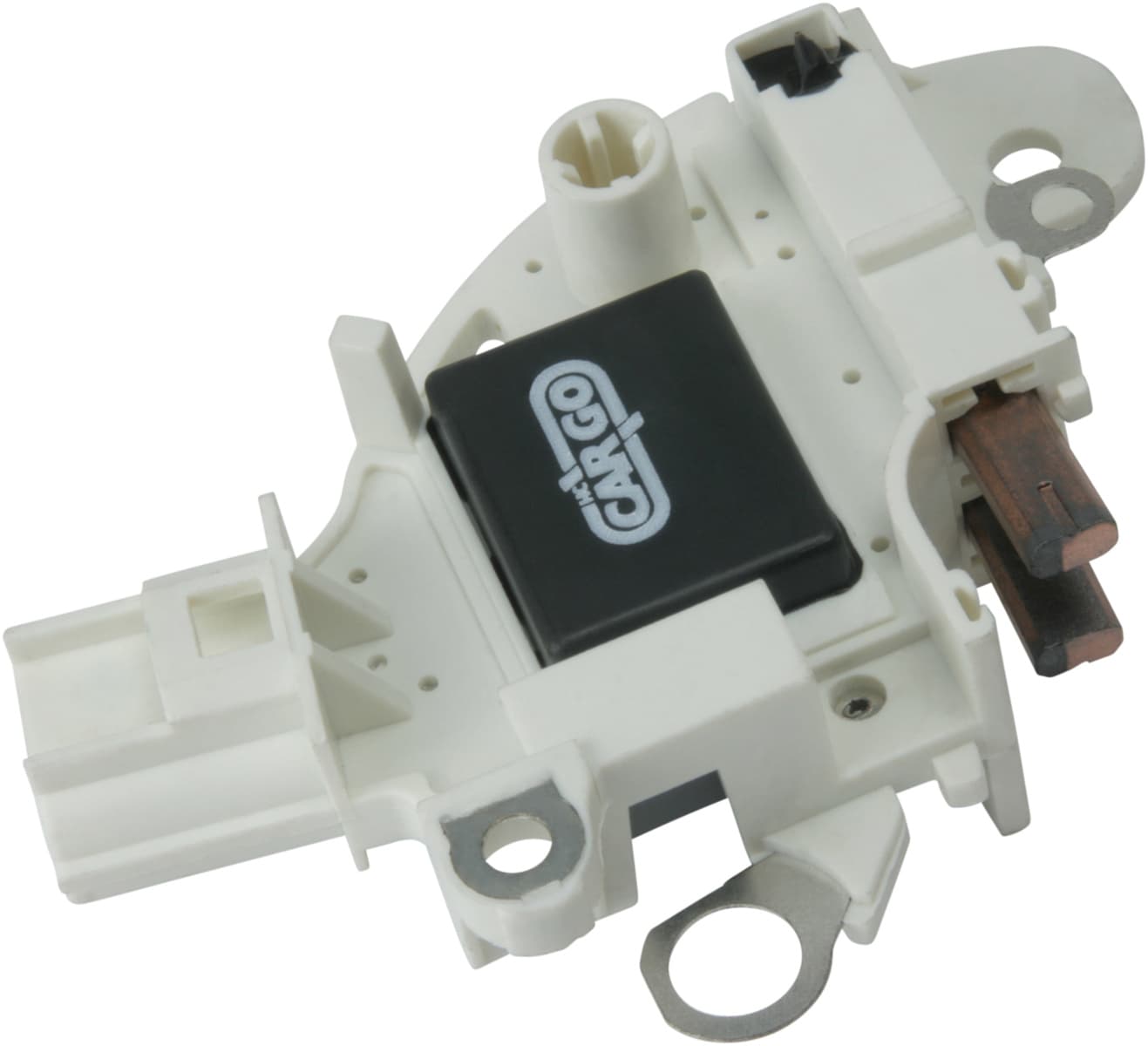

F032330600 - EL Field RegulatorTrade number 330600
Voltage 14, Regulator type Electronic, Plug no. 1 PL57
F032333119 - Ball BearingTrade number 333119
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
F032B40914 - Carbon BrushTrade number B140914
Voltage 14, Conductor w/, Spring w/o, Cable lugs w/o, Lead Length 96.00, Thickness 7.00, Length 19.50, Height 4.00
F032B91306 - Self-locking nutTrade number B191306
Self-locking w/, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Spanner Size 7
F032B91307 - Self-locking nutTrade number B191307
Self-locking w/, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Spanner Size 8
F032B91329 - ScrewTrade number B191329
DIN norm 6921, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 16.00, Spanner Size 7.00, Total Length 20.00
