Showing results for: FORD 1479818

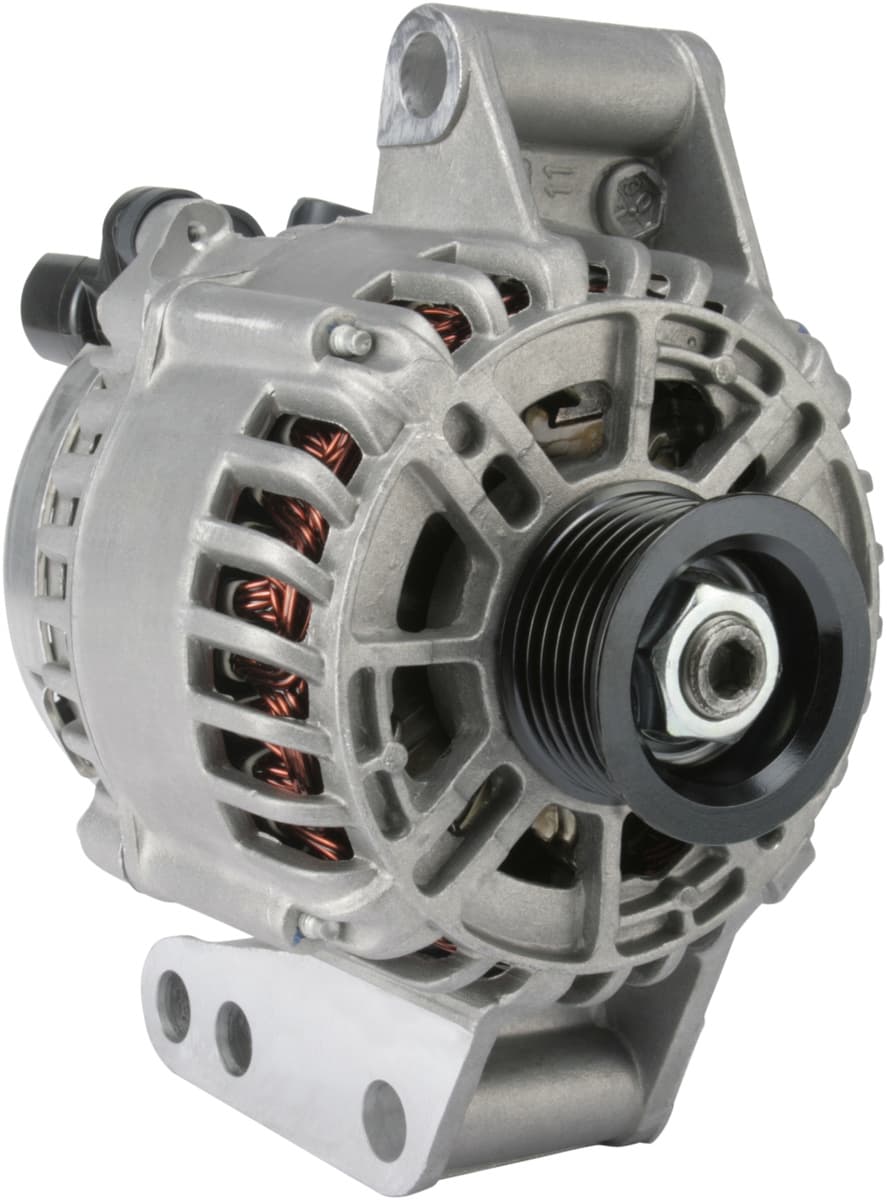

F032113883 - AlternatorTrade number 113883
Voltage 14, Amp 90, Bracket Hole Size 2 10.20, Grooves/pulley 6, Regulator type IR, Belt Adjustment Bracket Hole 1 12.00, Mounting Bracket Distance 74.00, Radius 87.50, Pulley Diameter 48.50, Prod. info BN, Bracket Hole Size Rear 12.00, Pulley SP, Pulley Distance 39.60, Servicing Ford, D+ Position 58, Plug no. 1 PL57, Radius 2 90.00, B+ M6, Rotation CW, Belt Adjustment Bracket Hole 2 10.20, Bracket Hole Size 1 12.00, Holder Arm Width 54.80, D+ Size Plug, Belt Adjustment Bracket Hole Position 60;5, Total Length 165.50, Position 60, B+ Position 8
F032140084 - Ball BearingTrade number 140084
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140093 - Ball BearingTrade number 140093
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032190538 - ScrewTrade number 190538
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 16.00
F032191657 - ScrewTrade number 191657
Replacement for:
FORD N807805S36B
Iso norm 4035, DIN norm 439B, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Coating Electro Galvanized, Spanner Size 24

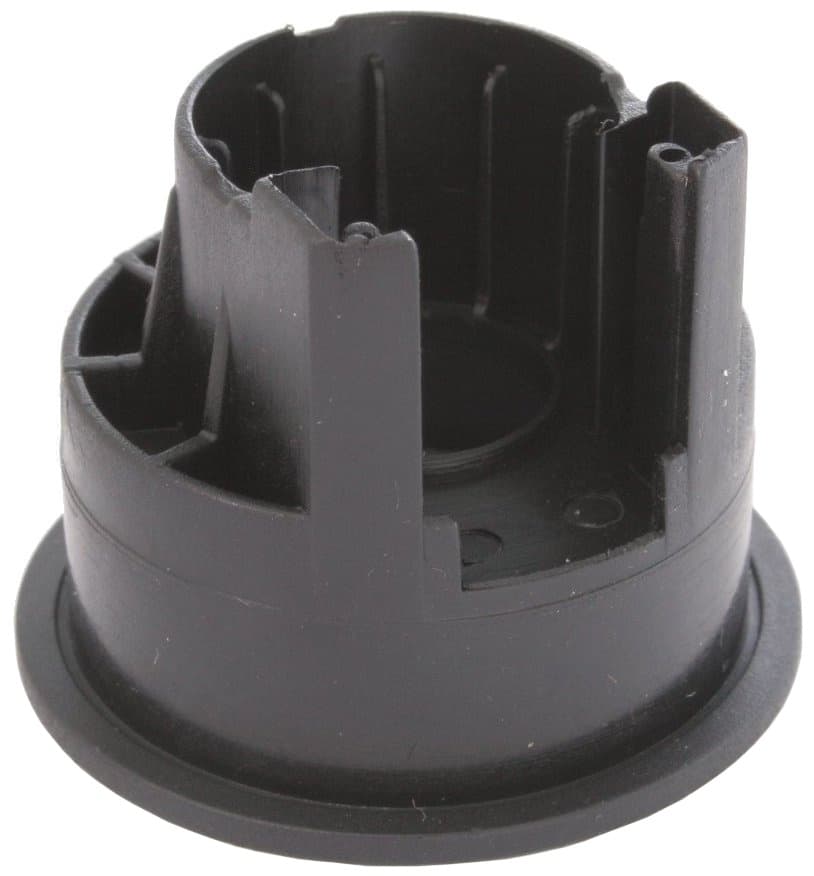

F032234024 - Bearing CapTrade number 234024
Inner Diameter 35.00, Material Rubber, Outer Diameter 37.00, Remarks Bearing cap for 6202.., Height 31.80
F032235601 - EL Field RegulatorTrade number 235601
Replacement for:
FORD 235601
Voltage setting 14, Voltage 14, Regulator type Electronic, Plug no. 1 PL57

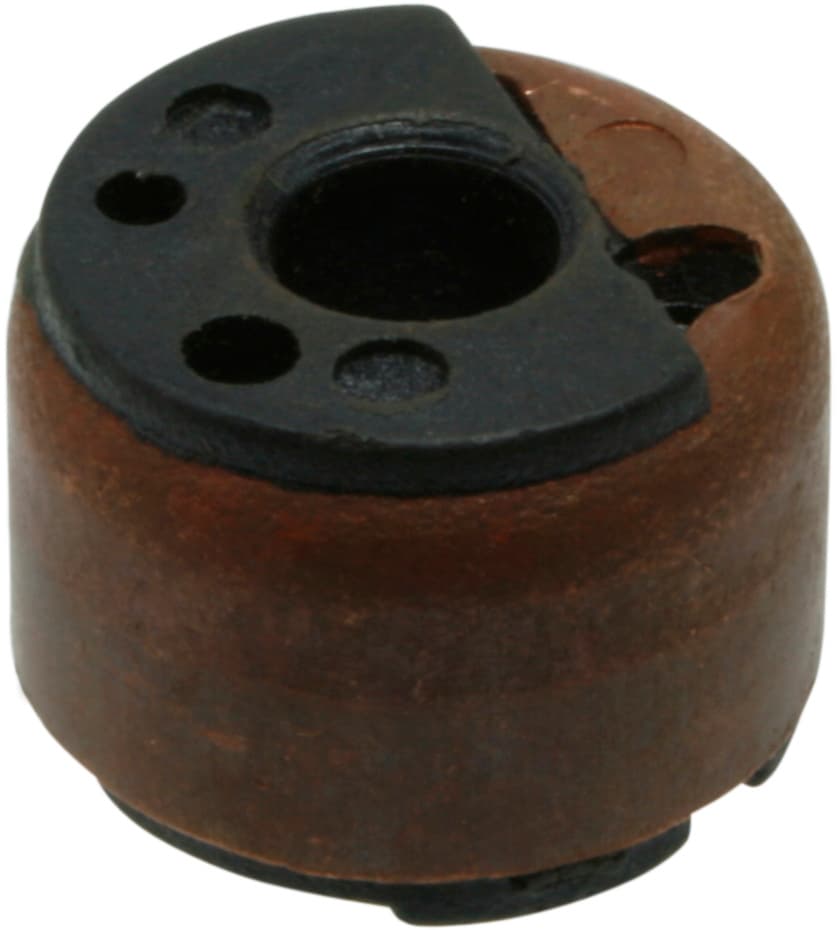

F032237323 - Parts SetTrade number 237323
Type Round, Inner Diameter 5.00, Material Copper alloy, Outer Diameter 14.40, Total Length 10.50

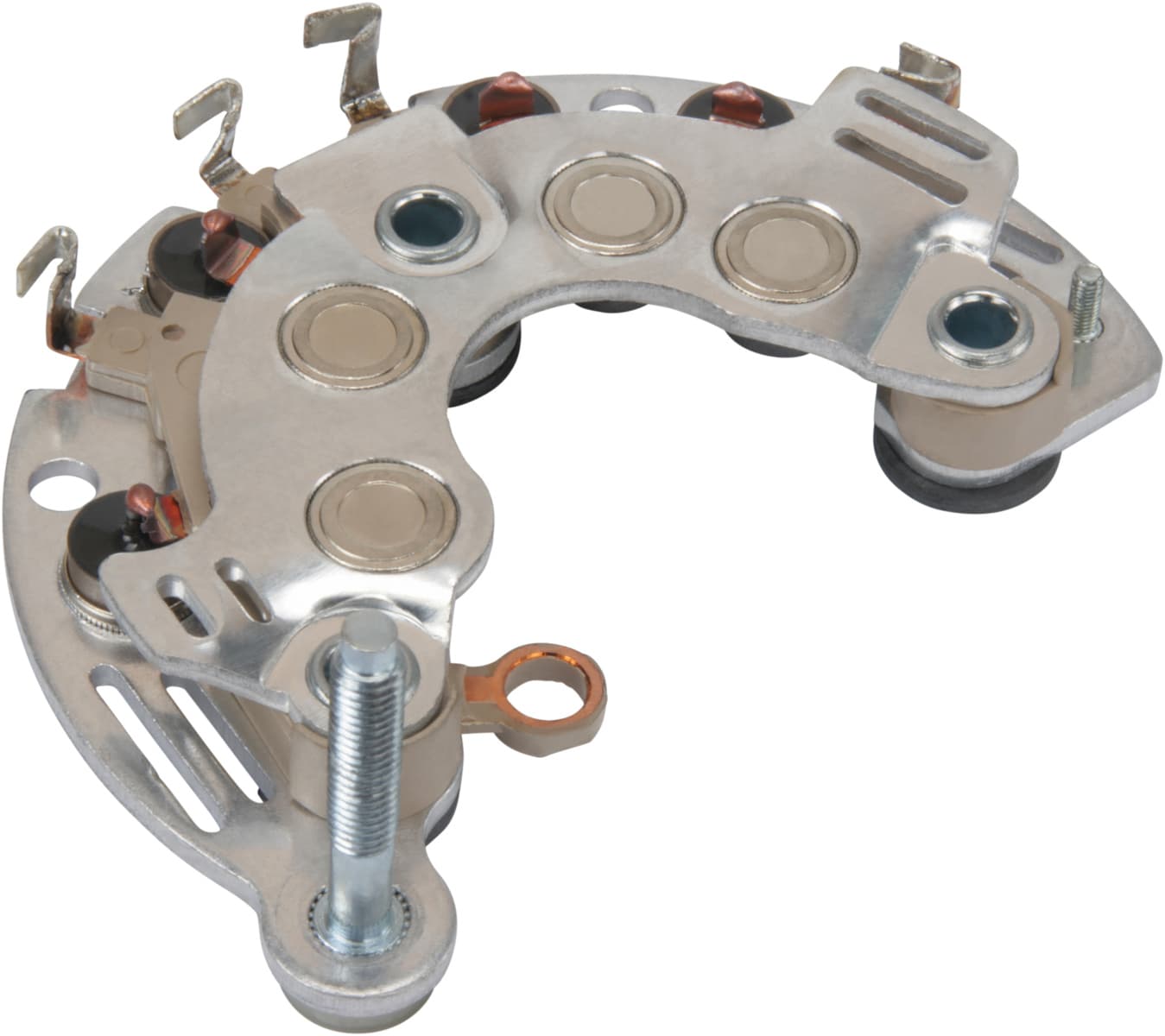

F032331690 - RectifierTrade number 331690
Voltage 14, B+ type Bolt, Connections for stator 4, Diode type Zener, B+ size M6, Outer Diameter 104.50, B+ Length 36.00, No. of diodes 8
