Showing results for: REMY 219235
F032133936 - PulleyTrade number 133936
Replacement for:
REMY 10495191
Free run w/o, Grooves 1, Width 1 16.50, Depth 6.30, Pulley type P, Bore dia. 17.00, Belt type Z=9.5, Over Belt Diameter 68.00, Outer Diameter 65.00, Servicing 10SI, 12SI, 15SI, 17SI, CS130
F032134077 - ScrewTrade number 134077
Replacement for:
REMY 1989650
Thread Length 18.00, Washer w/, Servicing CS121, -130, Thread/mm/" M4, Remarks E5 torx., Length 22.00, Total Length 25.50
F032136682 - Parts SetTrade number 136682
Replacement for:
REMY 10475751
Ring Height 1 8.30, Ring Height 2 8.20, Inner Diameter 7.10/8.40, Collar w/o, Ring Distance 1.55, Material Copper, Outer Diameter 14.85, Servicing CS130D, Total Length 20.30

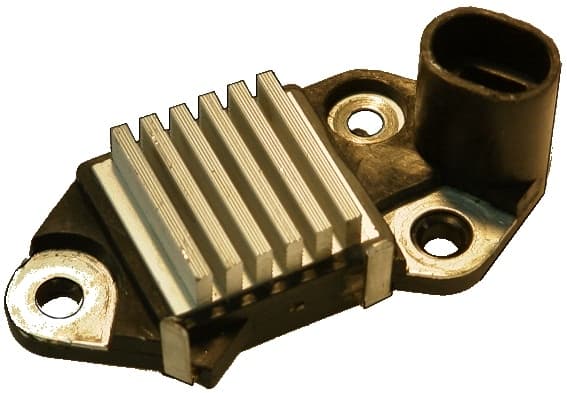

F032139468 - EL Field RegulatorTrade number 139468
Replacement for:
REMY 271710
Voltage setting 14.6, Voltage 14, Plug no. 1 PL77, Regulator type Electronic, Distance Between Mounting Holes 45.50
F032140084 - Ball BearingTrade number 140084
Replacement for:
REMY 10451619
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140087 - Ball BearingTrade number 140087
Replacement for:
REMY 10469092
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS1., Height 12.00
F032232051 - ScrewTrade number 232051
Replacement for:
REMY 1989624
Thread Length 20.50, Collar Length Rear 66.00, Thread size M5, Servicing CS121, CS130, Total Length 72.50

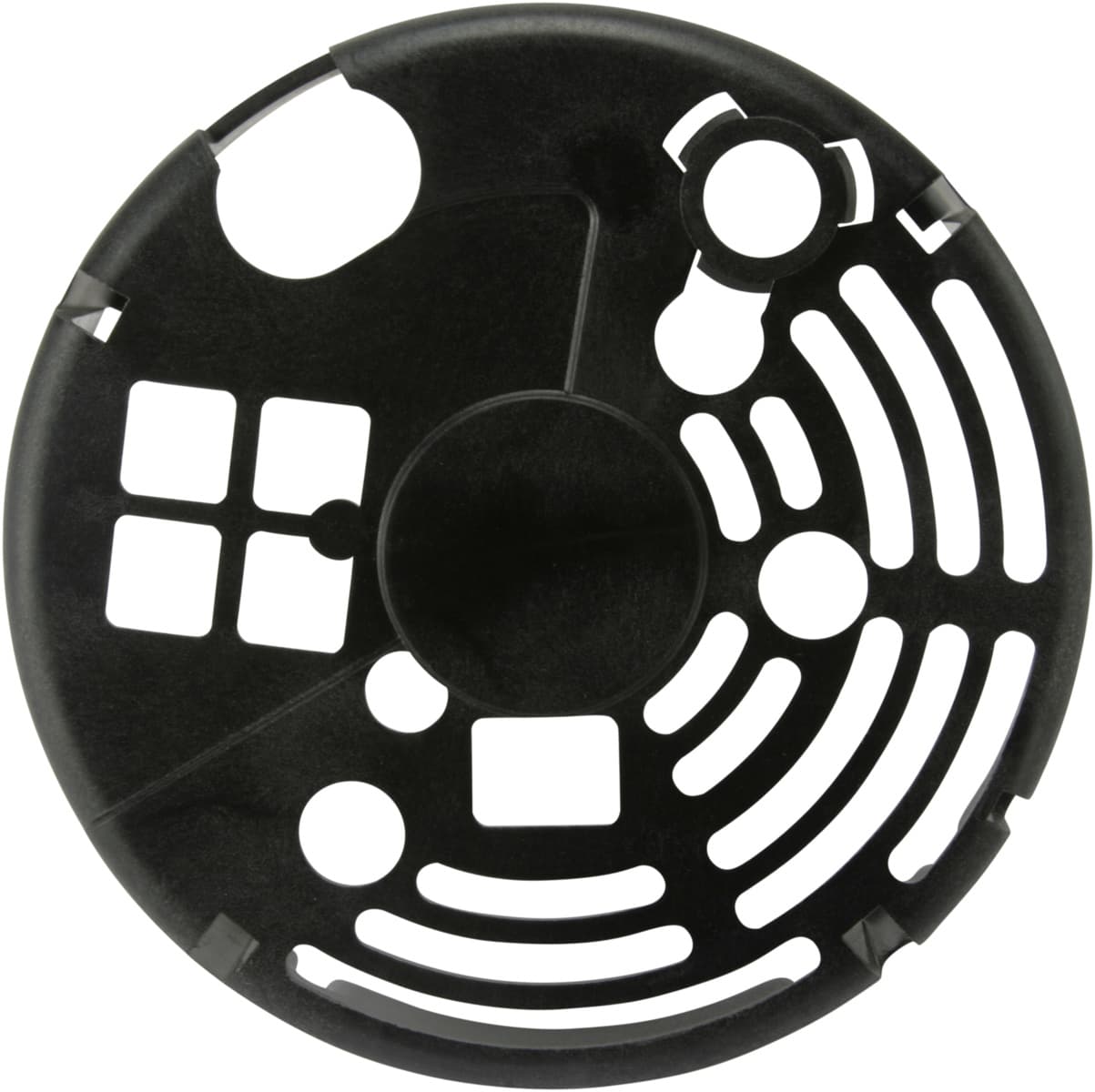

F032238164 - Protective CapTrade number 238164
Replacement for:
REMY 238164
D+ Inner Diameter 10.00, No./lock tag 4, B+ Inner Diameter 11.00, W Inner Diameter 10.00, Inner Diameter 107.00, Material Plastic, Outer Diameter 110.00, Height 30.00
F032333110 - Ball BearingTrade number 333110
Replacement for:
REMY 10451619
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032333112 - Ball BearingTrade number 333112
Replacement for:
REMY 10469092
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 40.00, Remarks 6203-2RS/C3., Height 12.00
