Showing results for: DENSO 2280005120

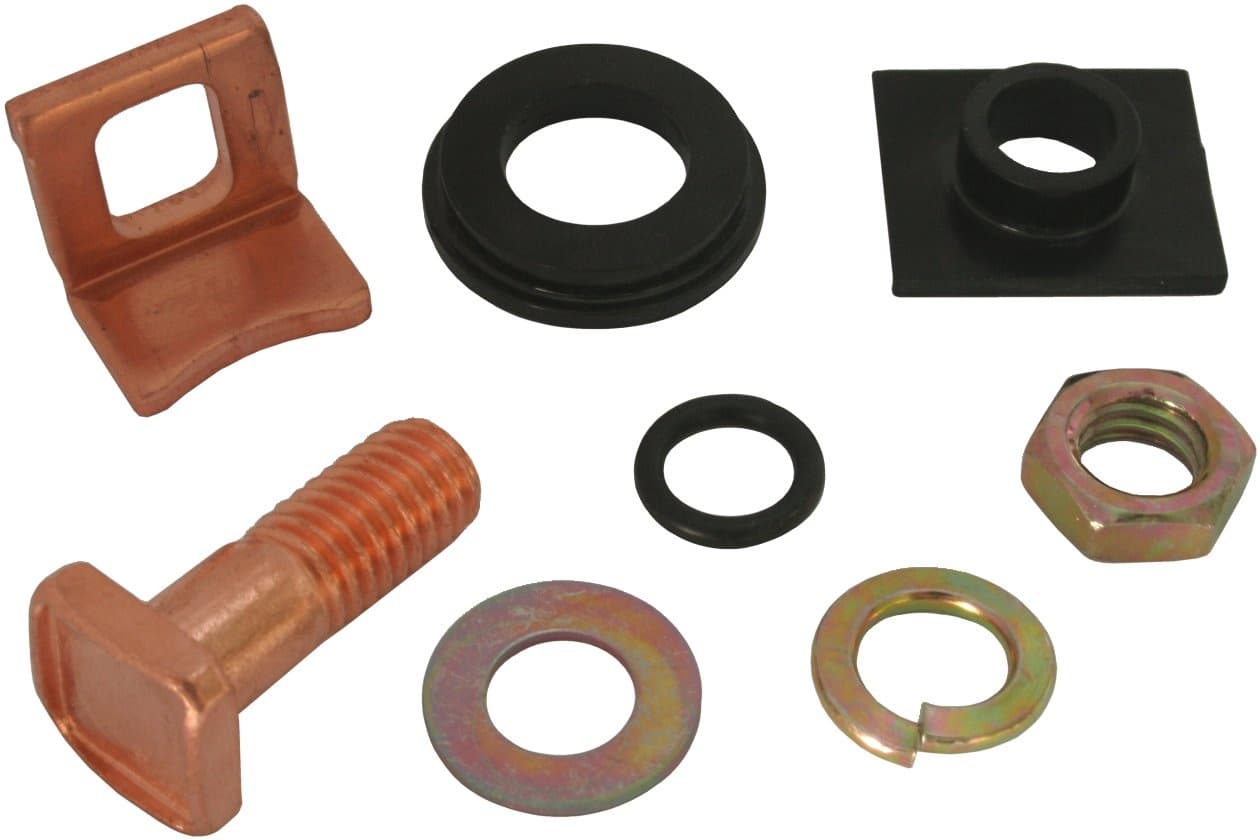

F032132568 - Contact SetTrade number 132568
Replacement for:
DENSO 0280993020
Material Copper, Remarks Contact Bolt: M8. Contact Bolt Length: 26.50 mm.
F032132892 - O-RingTrade number 132892
Replacement for:
DENSO 9491403700
Lathe cut o-ring No, Colour Black, Inner Diameter 69.00, Outer Diameter 73.00, Thickness 2.00
F032132894 - steel ballTrade number 132894
Replacement for:
DENSO 1289610010DENSO 9491200240
Ball type Round, Material Steel, Outer Diameter 8.70
F032132896 - RollersTrade number 132896
Replacement for:
DENSO 0283060061
Outer Diameter 6.00, Length 9.50

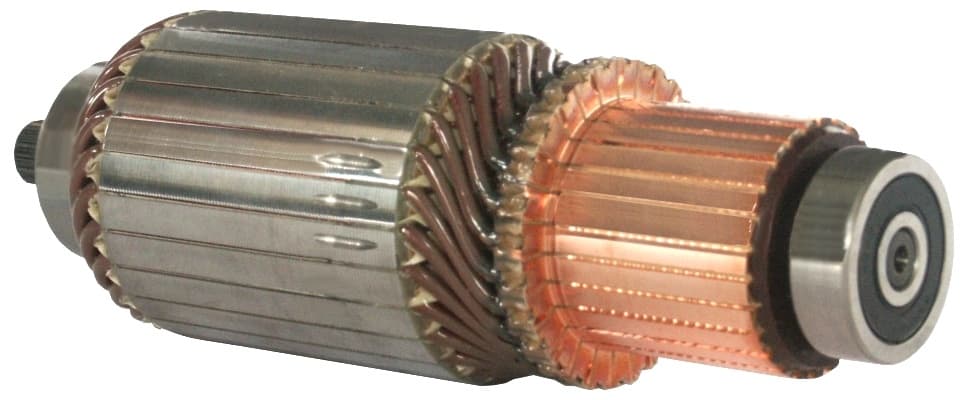

F032139148 - ArmatureTrade number 139148
Replacement for:
DENSO 0282006860
kW 2.0, Voltage 12, Commutator Diameter 35.20, Commutator Distance 11.00, OD/spline/teeth 10.80, No./bars 27, Commutator Height 41.30, Commutator Inner Diameter 11.60, No./teeth 21, Core Diameter 50.60, Shaft length 159.60, Commutator End Shaft Diameter 8.00, Spline Teeth Length 15.20, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 47.20

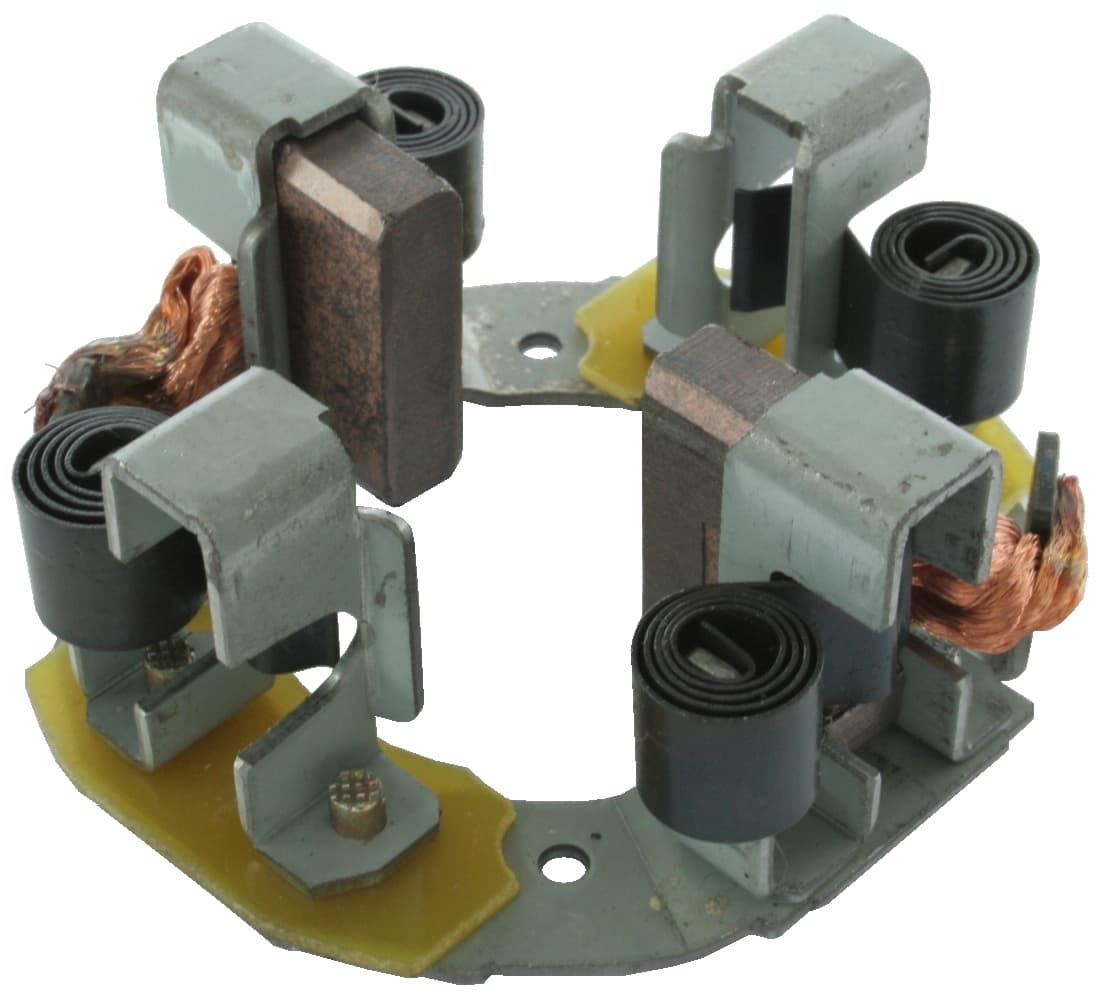

F032139150 - Brush HolderTrade number 139150
Replacement for:
DENSO 0285105800
Voltage 12, Brush w/, Spring w/, Inner Diameter 38.00, Brush Gear Width 10.00, No./brushes 2, Outer Diameter 61.00, Remarks Neg. brushes. Brush set: HC-CARGO 140961., Height 28.20, Brush Thickness 6.80
F032140272 - Ball BearingTrade number 140272
Replacement for:
DENSO 9491004130DENSO 9491005240DENSO 9491005250
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 32.00, Remarks 6002-2RS1., Height 9.00

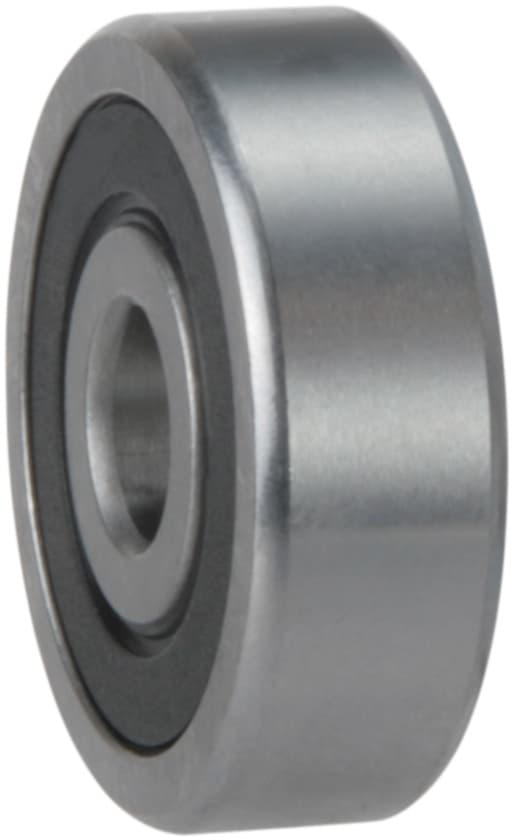

F032140960 - Ball BearingTrade number 140960
Replacement for:
DENSO 9491004840
Bearing type Ball bearing, Inner Diameter 8.00, Outer Diameter 28.00, Height 9.00
F032191513 - Self-locking nutTrade number 191513
Replacement for:
DENSO 9490561370DENSO 9490563460
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M8, Spanner Size 13

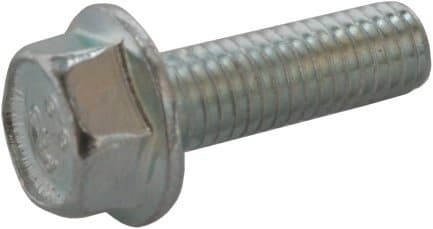

F032191546 - ScrewTrade number 191546
Replacement for:
DENSO 0289035040
DIN norm 6921, Coating Electro Galvanized, Material Steel, Thread/mm/" M5, Length 16.00, Spanner Size 8.00

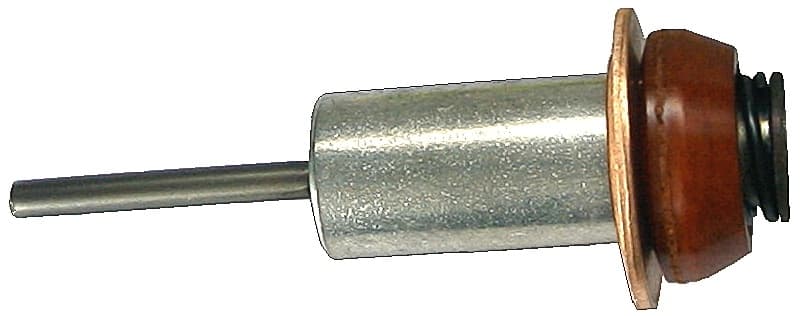

F032230221 - Parts SetTrade number 230221
Replacement for:
DENSO 0536607240
Shaft measurement 80.00, Outer Diameter 2 20.70, Outer Diameter 36.80, Length 96.70, Thickness 2.00

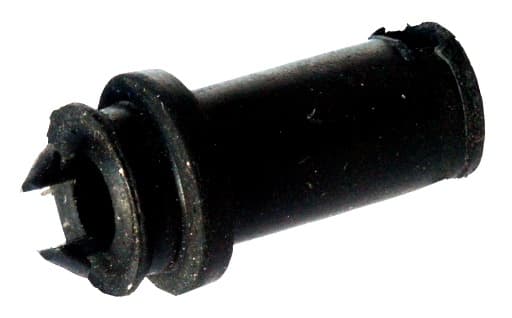

F032232594 - Sealing CapTrade number 232594
Replacement for:
DENSO 0280650290DENSO 0280650300
Length 28.95
F032233868 - Brush-Spring SetTrade number 233868
Replacement for:
DENSO 1289530080
Pcs. 4, Width 1 10.00, Material Steel, Outer Diameter 11.50, Length 22.70
F032333102 - Ball BearingTrade number 333102
Replacement for:
DENSO 9491004130DENSO 9491005240DENSO 9491005250
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 32.00, Remarks 6002-2RS/C3., Height 9.00
F032333105 - Ball BearingTrade number 333105
Replacement for:
DENSO 9491004110DENSO 9491004230
Bearing type Ball bearing, Inner Diameter 20.00, Outer Diameter 42.00, Remarks 6004-2RS1/C3., Height 12.00
