Showing results for: VALEO 2542324A
F032133610 - RingTrade number 133610
Replacement for:
VALEO 133610
Inner Diameter 13.12, Material Copper/Brass, Outer Diameter 15.80, Height 9.55, Remarks w/ 4 pins.
F032135169 - Protective CapTrade number 135169
Replacement for:
VALEO 135169
Outer Diameter 19.55, Height 27.70
F032135469 - SealTrade number 135469
Replacement for:
VALEO 135469
Inner Diameter 18.00, Material Neoprene, Outer Diameter 28.00, Thickness 4.00
F032140084 - Ball BearingTrade number 140084
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140093 - Ball BearingTrade number 140093
Replacement for:
VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032140722 - Tolerance RingTrade number 140722
Replacement for:
VALEO 140722
Gasket w/o, Inner Diameter 35.00, Material Steel, Outer Diameter 38.00, Height 10.00
F032141233 - Ball BearingTrade number 141233
Replacement for:
VALEO 593563
Bearing type Ball bearing, Source NSK, Inner Diameter 17.00, Outer Diameter 47.00, Height 14.00
F032142270 - Ball BearingTrade number 142270
Replacement for:
VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks Bearing plate: HC-CARGO 139124. 6303-2RS1/C3., Height 14.00
F032142272 - Ball BearingTrade number 142272
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032230090 - Parts SetTrade number 230090
Replacement for:
VALEO 230090
Ring Height 1 9.15, Ring Height 2 9.90, Inner Diameter 6.60/8.85, Collar w/, Ring Distance 2.00, Material Copper, Outer Diameter 14.90, Total Length 48.30
F032231103 - EL Field RegulatorTrade number 231103
Replacement for:
VALEO 593426
Voltage setting 14.7, Voltage 14, Plug no. 1 PL61, Terminal type L-DFM, Regulator type Electronic, Distance Between Mounting Holes 60.00
F032231557 - Parts SetTrade number 231557
Replacement for:
VALEO 231557
No./mount. holes 4, Width 1 52.00, Distance Mounting Holes 40.00, Inner Diameter 37.00, Hole Id 4.00, Material Steel, Outer Diameter 52.00, Amount of Mounting Holes 4, Thickness 1.50

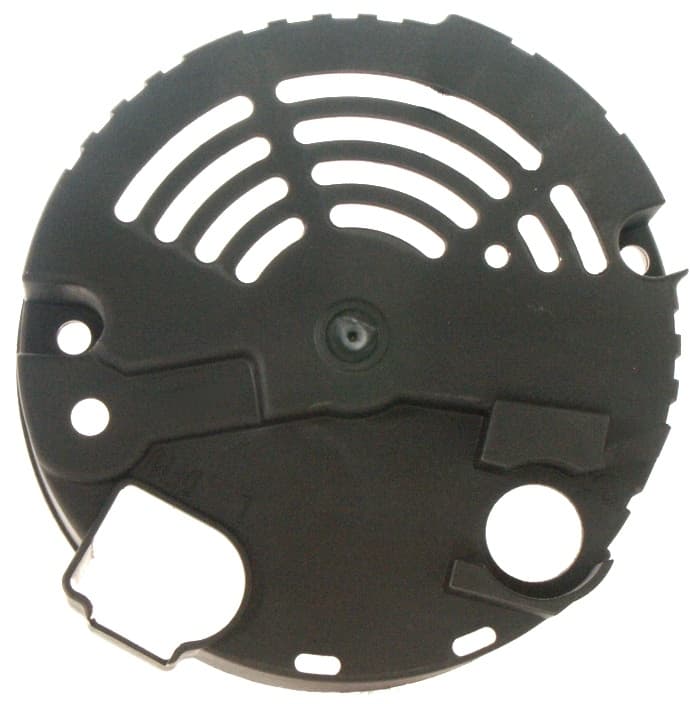

F032231933 - Protective CapTrade number 231933
Replacement for:
VALEO 593370
B+ Inner Diameter 18.70, Inner Diameter 117.50, Material Plastic, Outer Diameter 121.70, Height 35.40
F032232766 - RotorTrade number 232766
Replacement for:
VALEO 593572
Voltage 14, Amp 120, Wire Diameter 0.85, Ring Height 1 9.50, Thread Length 12.50, Slip Ring Rear 108.20, Slip Ring Outer Diameter 14.50, Ring Height 2 9.50, Slip Ring End Length 49.30, Ring Distance 2.00, Drive End Length 44.70, Windings 375, Bearing Diameter 15.00, Slip Ring Front 98.00, Wing height 79.00, Cooling fan w/, Rotation CW, Thread size M16-1.50, Outer Diameter 105.20, Remarks Slip ring: HC-CARGO 230090., Height 53.50, Shaft Diameter 17.00, Total Length 48.30;146.50
F032233713 - StatorTrade number 233713
Replacement for:
VALEO 593847
Voltage 14, Amp 120, Wire thickness 1.35, Number of leads 3, Stator winding Triangle, Winding Height 64.50, Lead 4 Lead 4, Inner Diameter 106.00, Outer Diameter 135.00, Height 30.00
F032233848 - PulleyTrade number 233848
Replacement for:
VALEO 593593
Rear Distance 4.50, Free run w/o, Grooves 6, Width 1 30.40, Depth 16.20, Pulley type SP, Bore dia. 17.00, Outer Diameter 64.40
F032233987 - Stator WindingTrade number 233987
Replacement for:
VALEO 233987
Inner Diameter 5.50, Length 12.20
F032235652 - RectifierTrade number 235652
Replacement for:
VALEO 593369
Zener volt 24, Diode type Avalanche, Connections for stator 3, B+ type Bolt, No. of diodes 3, Connection Single, B+ size M8, Diode socket Aluminium, B+ Length 14.00, Outer Diameter 108.00
F032332583 - Bearing CapTrade number 332583
Replacement for:
VALEO 135508
Inner Diameter 35.00, Outer Diameter 37.50, Height 17.50
F032333110 - Ball BearingTrade number 333110
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032333119 - Ball BearingTrade number 333119
Replacement for:
VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
