Showing results for: TOYOTA 2706027060

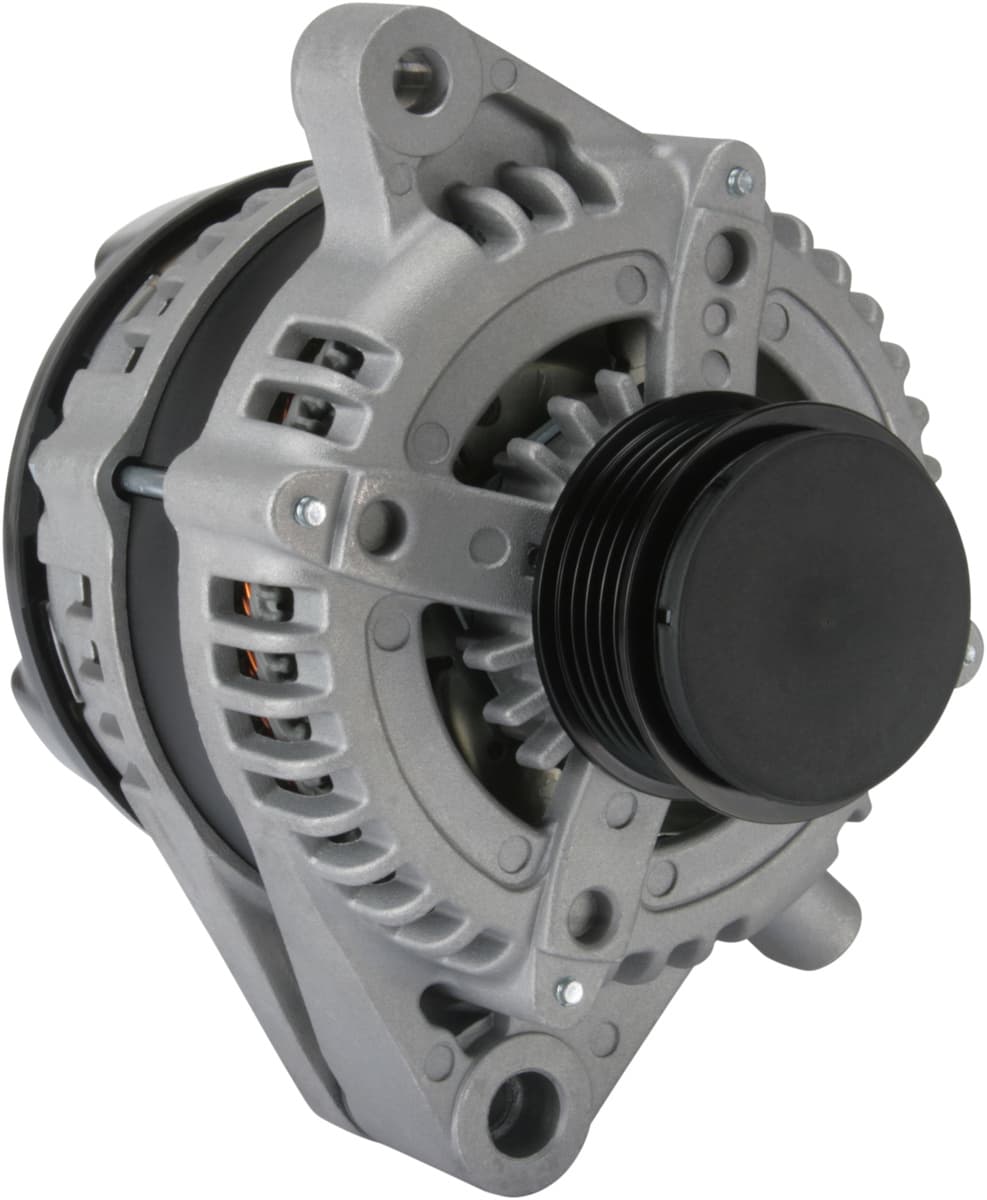

F032114010 - AlternatorTrade number 114010
Terminal IF, Voltage 14, Amp 100, Grooves/pulley 5, Regulator type IR, Belt Adjustment Bracket Hole 1 10.00, Radius 90.00, Pulley Diameter 58.00, Prod. info BN, Pulley SP/FW, Pulley Distance 93.00, D+ Position 49, Plug no. 1 PL78, Fan IF, Radius 2 86.00, B+ M6, Rotation CW, Lamp type Inactive, Bracket Hole Size 1 10.50, Holder Arm Width 53.00, D+ Size Plug, Belt Adjustment Bracket Hole Position 55, Total Length 157.00, B+ Position 55
F032133610 - RingTrade number 133610
Inner Diameter 13.12, Material Copper/Brass, Outer Diameter 15.80, Remarks w/ 4 pins., Height 9.55
F032133673 - Brush HolderTrade number 133673
Replacement for:
TOYOTA 2737075060
Voltage 14, Brush Width 6.80
F032133679 - SealTrade number 133679
Replacement for:
TOYOTA 2744511010
Double sealed No, Inner Diameter 18.70, O-ring w/o, Height 1.90
F032135173 - Parts SetTrade number 135173
Ring Height 1 9.50, Type Standard, Inner Diameter 7.90/8.75, Material Copper, Outer Diameter 14.90, Collar w/o, Ring Distance 1.20, Ring Height 2 9.50, Remarks Quick repair: HC-CARGO 234489, Total Length 24.00
F032136357 - ScrewTrade number 136357
Replacement for:
TOYOTA 9009904966
Thread Length Front 12.50, Thread size M5, Thread Length Rear 22.00, Thread Size Rear M7, Total Length 67.00
F032137452 - SpacerTrade number 137452
Bushing w/o, Total height/thickness 2.70, Collar Height 1.40, Inner Diameter 10.60, Material Steel, Outer Diameter 21.00, Collar Outer Diameter 1 18.80, Thickness 2.70
F032140237 - Ball BearingTrade number 140237
Replacement for:
TOYOTA 9009910140
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
TOYOTA 2737163020
Voltage 14, Conductor w/, Spring w/, Cable lugs w/o, No./brushes 2, Lead Length 51.50, Solder hole w/o, Thickness 7.00, Length 15.00, Height 5.00
F032142075 - Ball BearingTrade number 142075
Replacement for:
TOYOTA 9009910192
Bearing type Ball bearing, Ball holder Plastics, Inner Diameter 17.00, Outer Diameter 52.00, Remarks To use for units w/ free wheel pulley., Height 16.00
F032191307 - Self-locking nutTrade number 191307
Replacement for:
TOYOTA 9490560990
Self-locking w/, Material Steel, Servicing CS121, -130, Thread/mm/" M5-0.8, Coating Electro Galvanized, Spanner Size 8
F032191308 - Self-locking nutTrade number 191308
Replacement for:
TOYOTA 9490561001
Self-locking w/, Material Steel, Thread/mm/" M6, Coating Electro Galvanized, Spanner Size 10
F032191319 - ScrewTrade number 191319
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 6.00
F032191478 - ScrewTrade number 191478
Head type Pan head, Screw type Pozidriv, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 25.00, Remarks w/ waved washer.
F032191586 - ScrewTrade number 191586
Replacement for:
TOYOTA 9490065460
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 6.00
F032230861 - ScrewTrade number 230861
Replacement for:
TOYOTA 9009900195
Thread/mm/" M4.5-0.75, Thread Length 18.00, Length 18.00, Total Length 21.50
F032231786 - InsulatorTrade number 231786
Gasket w/o, Inner Diameter 8.30, Material Plastic, Outer Diameter 25.55, Collar w/o, O-ring w/o, Height 24.10
F032232788 - WasherTrade number 232788
Bushing w/o, Total height/thickness 2.20, Collar Height 1.65, Inner Diameter 15.00, Material Steel, Outer Diameter 22.00, Collar Outer Diameter 1 15.90, Thickness 0.50
F032232790 - SealTrade number 232790
Inner Diameter 24.50, Material Steel, Outer Diameter 35.20, Bushing w/o, Thickness 0.75
F032232793 - Protective CapTrade number 232793
D+ plug No, W plug w/o, B+ plug w/o, Inner Diameter 112.00, Outer Diameter 116.00, Height 37.00
F032236332 - PulleyTrade number 236332
Grooves 5, Rotation CW, Thread size M14-1.50, Outer Diameter 58.00, Belt type Multi Belt, Depth 11.70, Free run w/, Width 1 40.90, Groove Measurement 1 13.50, Rear Distance 5.50, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
F032237642 - EL Field RegulatorTrade number 237642
Voltage setting 14.2, Voltage 14, Amp 7, Plug no. 1 PL78, Regulator type Electronic, Battery sensor w/
F032239026 - RectifierTrade number 239026
Diode A Charging Current to 35, Diode A Charging Current from 6, Voltage 14, Outer Diameter 100.00, Diode + 3, Diode - 3, B+ type Bolt, Connections for stator 4, Diode type Avalanche, B+ size M6, B+ Length 21.00

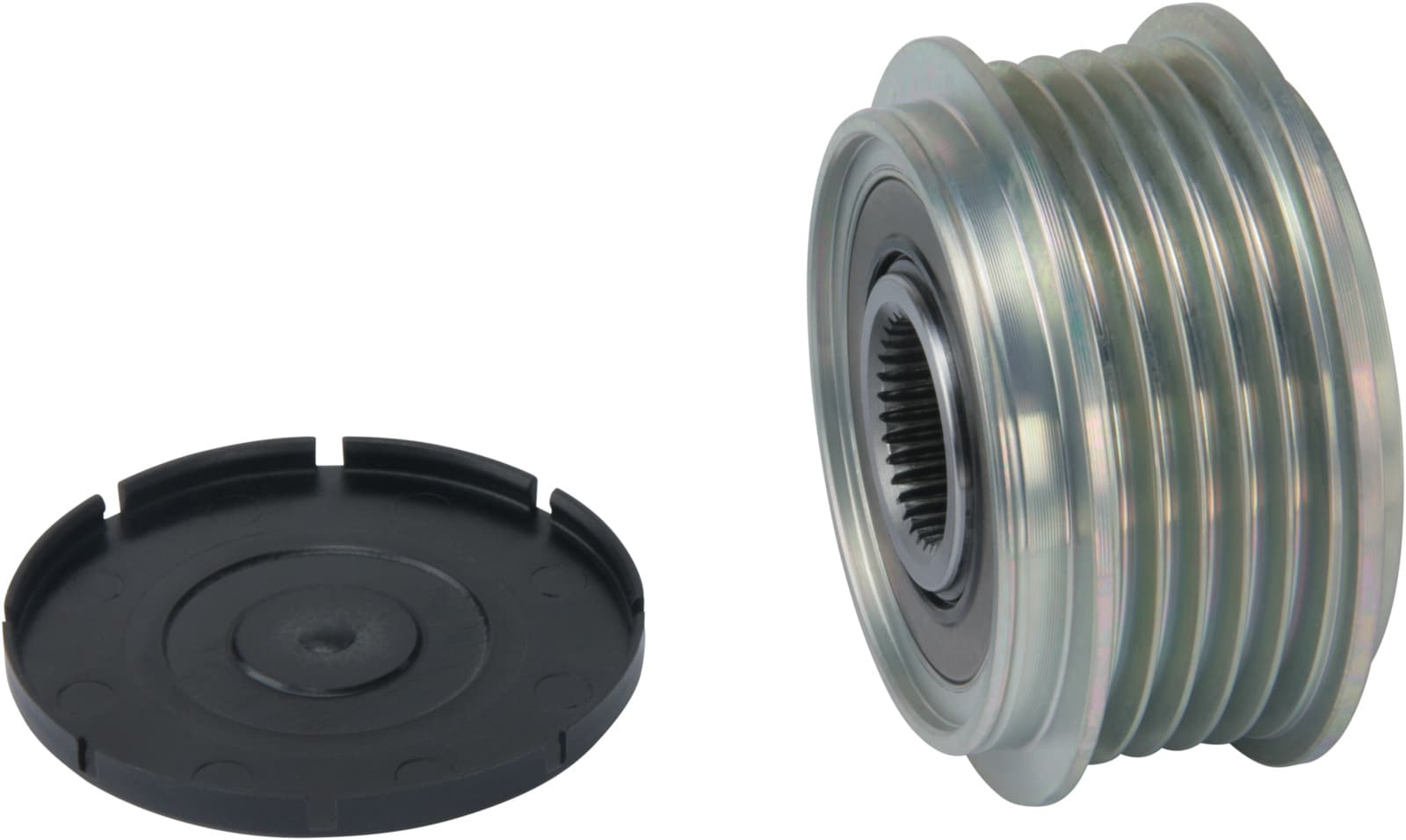

F032332310 - PulleyTrade number 332310
Grooves 5, Rotation CW, Thread size M14-1.50, Outer Diameter 58.00, Belt type Multi Belt, Depth 12.10, Free run w/, Width 1 38.30, Groove Measurement 1 13.60, Rear Distance 4.80, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210843., Pulley type SP;FW
F032B40237 - Ball BearingTrade number B140237
Replacement for:
TOYOTA 9009910140
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
TOYOTA 2737163020
Voltage 14, Conductor w/, Spring w/, Cable lugs w/o, Lead Length 51.50, Thickness 7.00, Length 15.00, Height 5.00
