Showing results for: TOYOTA 2706030010
F032133672 - RectifierTrade number 133672
Replacement for:
TOYOTA 2735774160
Diode A 50, Connections for stator 4, B+ type Bolt, Diode Trio w/, No. of diodes 8, Inner Diameter 30.50, B+ size M6, B+ Length 43.00, Outer Diameter 103.00, Remarks w/ terminal W.
F032133673 - Brush HolderTrade number 133673
Replacement for:
TOYOTA 2737075060
Voltage 14, Brush Width 6.80
F032133679 - SealTrade number 133679
Replacement for:
TOYOTA 2744511010
O-ring w/o, Inner Diameter 18.70, Double sealed No, Height 1.90
F032133915 - InsulatorTrade number 133915
Replacement for:
TOYOTA 2738742020
Inner Diameter 6.00/8.00, Outer Diameter 23.60, Height 24.00
F032136357 - ScrewTrade number 136357
Replacement for:
TOYOTA 9009904966
Thread Size Rear M7, Thread Length Front 12.50, Thread size M5, Thread Length Rear 22.00, Total Length 67.00
F032140237 - Ball BearingTrade number 140237
Replacement for:
TOYOTA 9009910140
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
TOYOTA 2737163020
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 15.00, Thickness 7.00, Height 5.00
F032142075 - Ball BearingTrade number 142075
Replacement for:
TOYOTA 9009910192
Bearing type Ball bearing, Ball holder Plastics, Inner Diameter 17.00, Outer Diameter 52.00, Remarks To use for units w/ free wheel pulley., Height 16.00
F032191586 - ScrewTrade number 191586
Replacement for:
TOYOTA 9490065460
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00
F032230861 - ScrewTrade number 230861
Replacement for:
TOYOTA 9009900195
Thread Length 18.00, Thread/mm/" M4.5-0.75, Total Length 21.50, Length 18.00

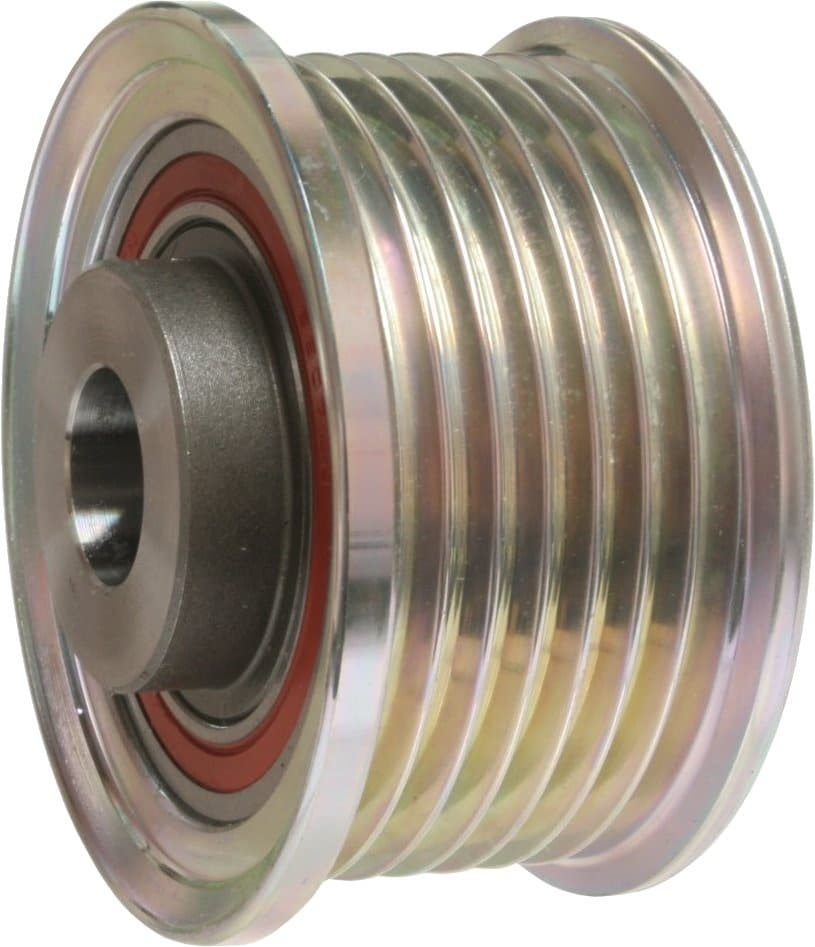

F032236763 - PulleyTrade number 236763
Replacement for:
TOYOTA 2706000L20
Groove Measurement 1 11.00, Rear Distance 7.50, Free run w/, Width 1 41.30, Pulley type SP/FW, Bore dia. 17.00, Grooves 7, Depth 12.70, Rotation CW, Belt type Multi Belt, Thread size M14-1.50, Outer Diameter 58.10
F032236768 - EL Field RegulatorTrade number 236768
Replacement for:
TOYOTA 2770050040
Voltage setting 14.6, Voltage 14, Plug no. 1 PL92, Terminal type S-FR-IG-L, Regulator type Electronic, Distance Between Mounting Holes 51.50
F032B40237 - Ball BearingTrade number B140237
Replacement for:
TOYOTA 9009910140
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
TOYOTA 2737163020
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Cable lugs w/o, Length 15.00, Thickness 7.00, Height 5.00
