Showing results for: TOYOTA 2706042060
F032131459 - EL Field RegulatorTrade number 131459
Replacement for:
TOYOTA 2770001010
Voltage setting 14.4, Voltage 14, Terminal type S-IG-L, Shock steering w/, Regulator type Electronic, Remarks L-terminal drives the choke., Distance Between Mounting Holes 63.50

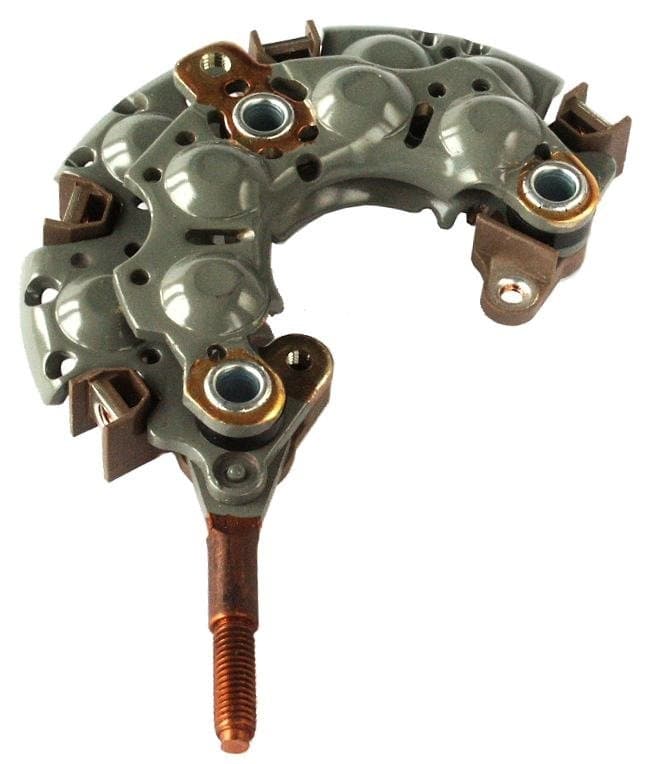

F032133672 - RectifierTrade number 133672
Replacement for:
TOYOTA 2735716310
Diode A 50, Connections for stator 4, B+ type Bolt, Diode Trio w/, No. of diodes 8, Inner Diameter 30.50, B+ size M6, B+ Length 43.00, Outer Diameter 103.00, Remarks w/ terminal W.

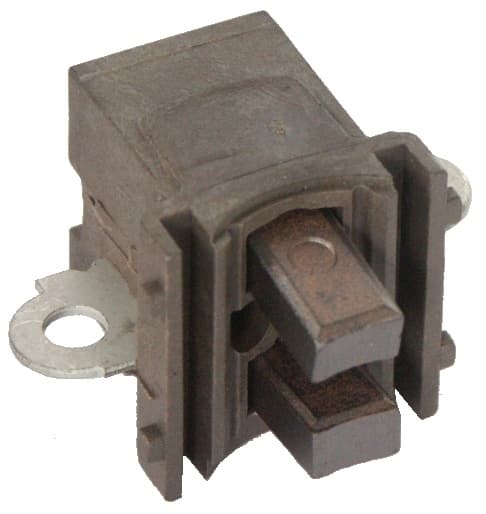

F032133673 - Brush HolderTrade number 133673
Replacement for:
TOYOTA 2737075060
Voltage 14, Brush Width 6.80
F032133679 - SealTrade number 133679
Replacement for:
TOYOTA 2744511010
O-ring w/o, Inner Diameter 18.70, Double sealed No, Height 1.90
F032136357 - ScrewTrade number 136357
Replacement for:
TOYOTA 9009904966
Thread Size Rear M7, Thread Length Front 12.50, Thread size M5, Thread Length Rear 22.00, Total Length 67.00
F032140237 - Ball BearingTrade number 140237
Replacement for:
TOYOTA 9009910140
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00

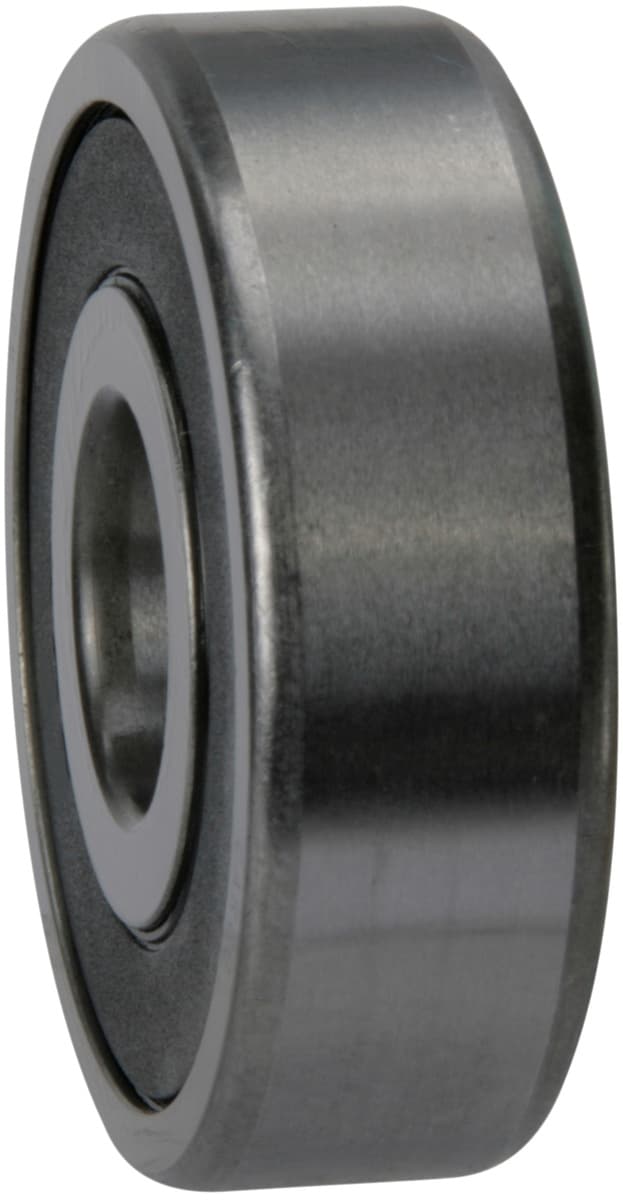

F032142075 - Ball BearingTrade number 142075
Replacement for:
TOYOTA 9009910192
Bearing type Ball bearing, Ball holder Plastics, Inner Diameter 17.00, Outer Diameter 52.00, Remarks To use for units w/ free wheel pulley., Height 16.00
F032191307 - Self-locking nutTrade number 191307
Replacement for:
TOYOTA 9490560990
Self-locking w/, Coating Electro Galvanized, Material Steel, Servicing CS121, -130, Thread/mm/" M5-0.8, Spanner Size 8
F032191308 - Self-locking nutTrade number 191308
Replacement for:
TOYOTA 9490561001
Self-locking w/, Coating Electro Galvanized, Material Steel, Thread/mm/" M6, Spanner Size 10
F032191586 - ScrewTrade number 191586
Replacement for:
TOYOTA 9490065460
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00
F032230861 - ScrewTrade number 230861
Replacement for:
TOYOTA 9009900195
Thread Length 18.00, Thread/mm/" M4.5-0.75, Total Length 21.50, Length 18.00
F032B40237 - Ball BearingTrade number B140237
Replacement for:
TOYOTA 9009910140
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
