Showing results for: TOYOTA 281003162571
F032131832 - Contact SetTrade number F032131832
Replacement for:
TOYOTA 2801719512
Inner Diameter 10.00, Material Copper
F032132553 - ArmatureTrade number 132553
Replacement for:
TOYOTA 2816077090
kW 4.5, Voltage 24, Commutator Diameter 35.50, Commutator Distance 10.50, OD/spline/teeth 16.80, No./bars 23, Commutator Height 43.00, Bar length 6.00, Commutator Inner Diameter 14.00, Bar Distance 2.40, No./teeth 9, Core Diameter 60.00, Shaft length 187.00, Bar Cross Distance 35.00, Commutator End Shaft Diameter 10.00, Bar Lane Height 30.80, Spline Teeth Length 23.60, Commutator Outer Diameter 47.20, Drive End Inside Shaft Diameter 17.00, Rotation CW/CCW
F032132570 - Parts SetTrade number 132570
Replacement for:
TOYOTA 2810622060
Outer Diameter 39.80, Length 119.20

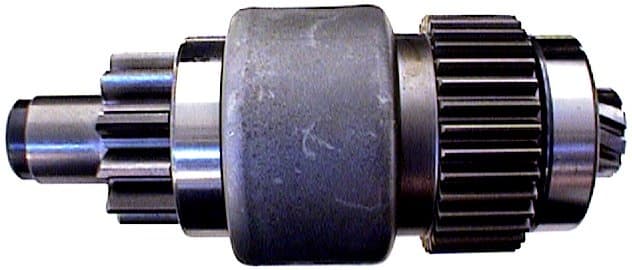

F032132942 - Overrunning-Clutch DriveTrade number 132942
Replacement for:
TOYOTA 2801154010
Splines internal 10, No./teeth 11, Rotation CW, Outer Diameter 40.20, Total Length 146.60, Housing Outer Diameter 58.20
F032138148 - WasherTrade number 138148
Replacement for:
TOYOTA 2822277090
Inner Diameter 15.25, Material Steel, Outer Diameter 39.80, Thickness 0.55
F032138569 - PinionTrade number 138569
Replacement for:
TOYOTA 2825477090
Bearing w/o, Bushing w/o, No./teeth 31, Inner Diameter 30.00, Teeth Height 17.30, Outer Diameter 49.50, Height 17.40
F032140361 - Carbon-Brush SetTrade number 140361
Replacement for:
TOYOTA 2814077090
Voltage 12, Spring w/o, Lead Length 41.00, No./brushes 4, Remarks Brush set w/ plate: HC-CARGO 141223., Length 21.00, Thickness 8.00, Height 25.00
F032230721 - ScrewTrade number 230721
Replacement for:
TOYOTA 9009900138
Thread Length 25.00, Collar Length Rear 69.00, Thread size M6, Total Length 74.00
