Search for vehicles and auto parts

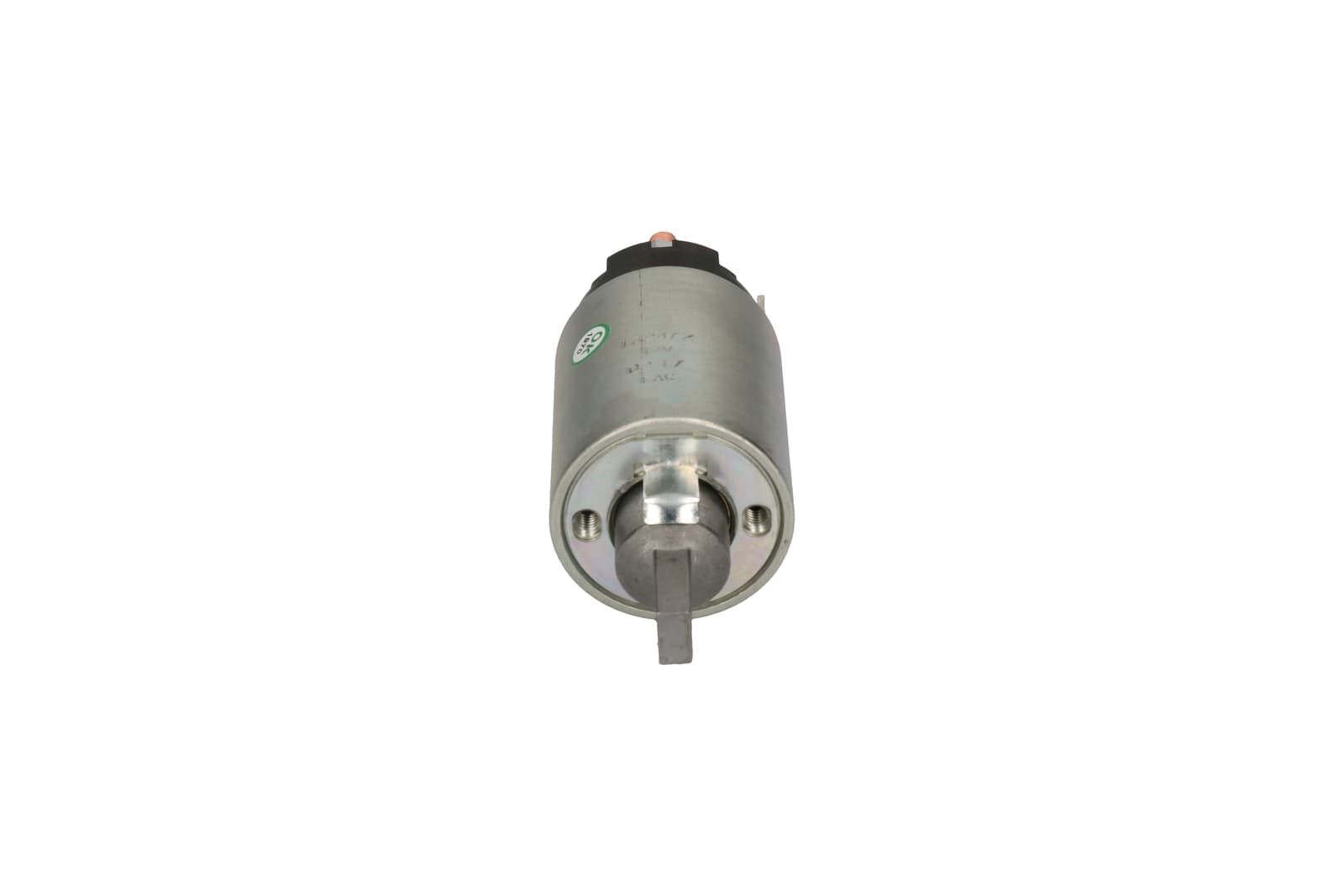

F032132472 - Solenoid SwitchTrade number 132472

Replacement for:

MITSUBISHI M371X45971MITSUBISHI ME700115

Voltage 12, No./mount. holes 2, No./terminals 3, Terminal 50/mm M5, Coil Bolt Length 18.00, Eye Outer Diameter 10.00, Plunger Outer Diameter 25.40, Eye Inner Diameter 6.70, B+ M8, Terminal 50 Screw, B+ Height 18.00, Coil Bolt Diameter M8, Outer Diameter 55.00, Remarks Cap: HC-CARGO 133286., Amount of Mounting Holes 2, Total Length 106.00

F032134673 - Contact PlateTrade number 134673

Replacement for:

MITSUBISHI 134673

Inner Diameter 9.25, Width 1 17.55, Length 30.20, Thickness 2.95

F032135574 - steel ballTrade number 135574

Replacement for:

MITSUBISHI S409S00008

Ball type Round, Material Steel, Outer Diameter 6.35

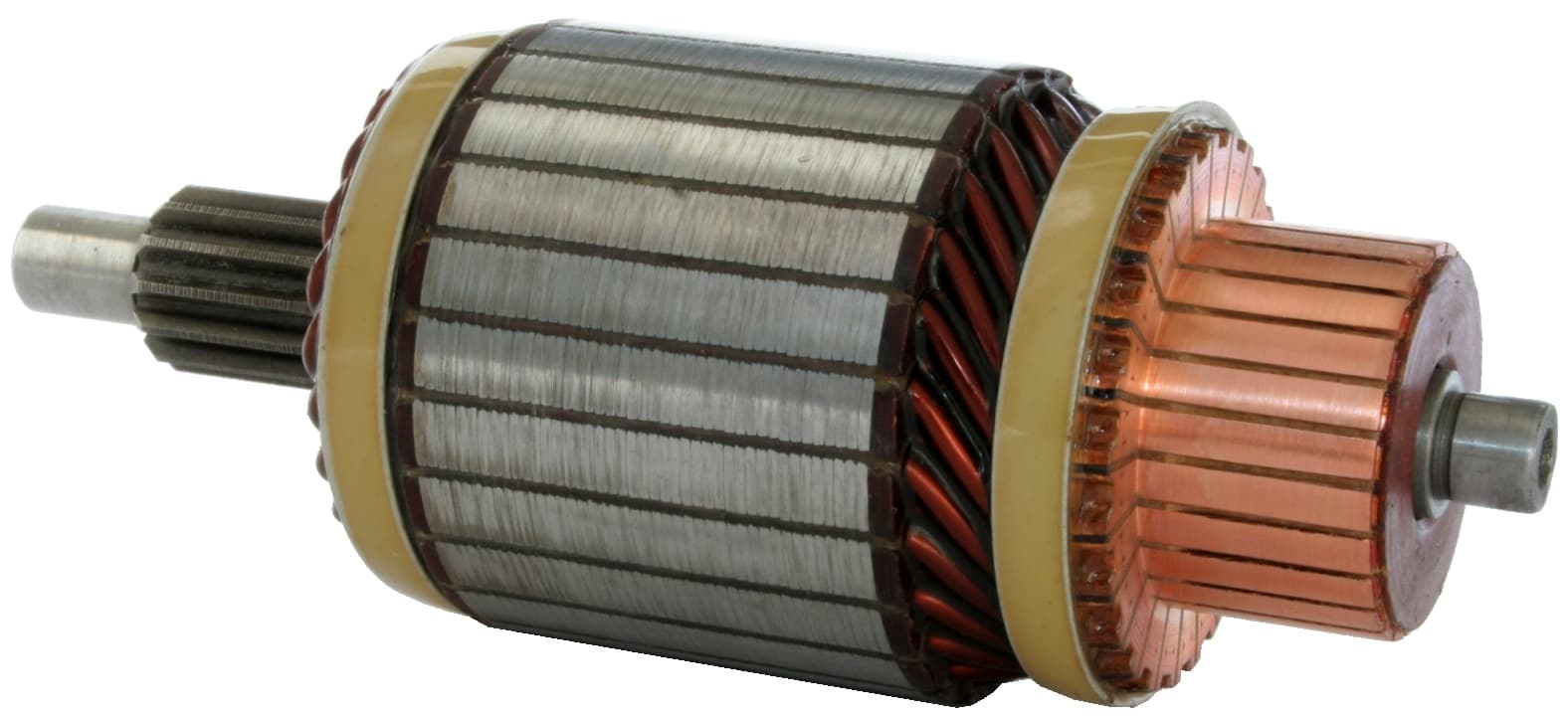

F032138962 - ArmatureTrade number 138962

Replacement for:

MITSUBISHI MD618958

kW 2.0/2.2, Voltage 12, Commutator Diameter 32.60, Commutator Distance 9.30, OD/spline/teeth 17.10, No./bars 25, Commutator Height 25.20, Bar length 4.50, Commutator Inner Diameter 12.00, Bar Distance 2.00, Core Diameter 54.00, Shaft length 141.00, Bar Cross Distance 37.40, Commutator End Shaft Diameter 9.00, Bar Lane Height 17.80, Spline Teeth Length 22.00, Drive End Inside Shaft Diameter Outside 10.00, Commutator Outer Diameter 46.70, Rotation CW, No./teeth 13

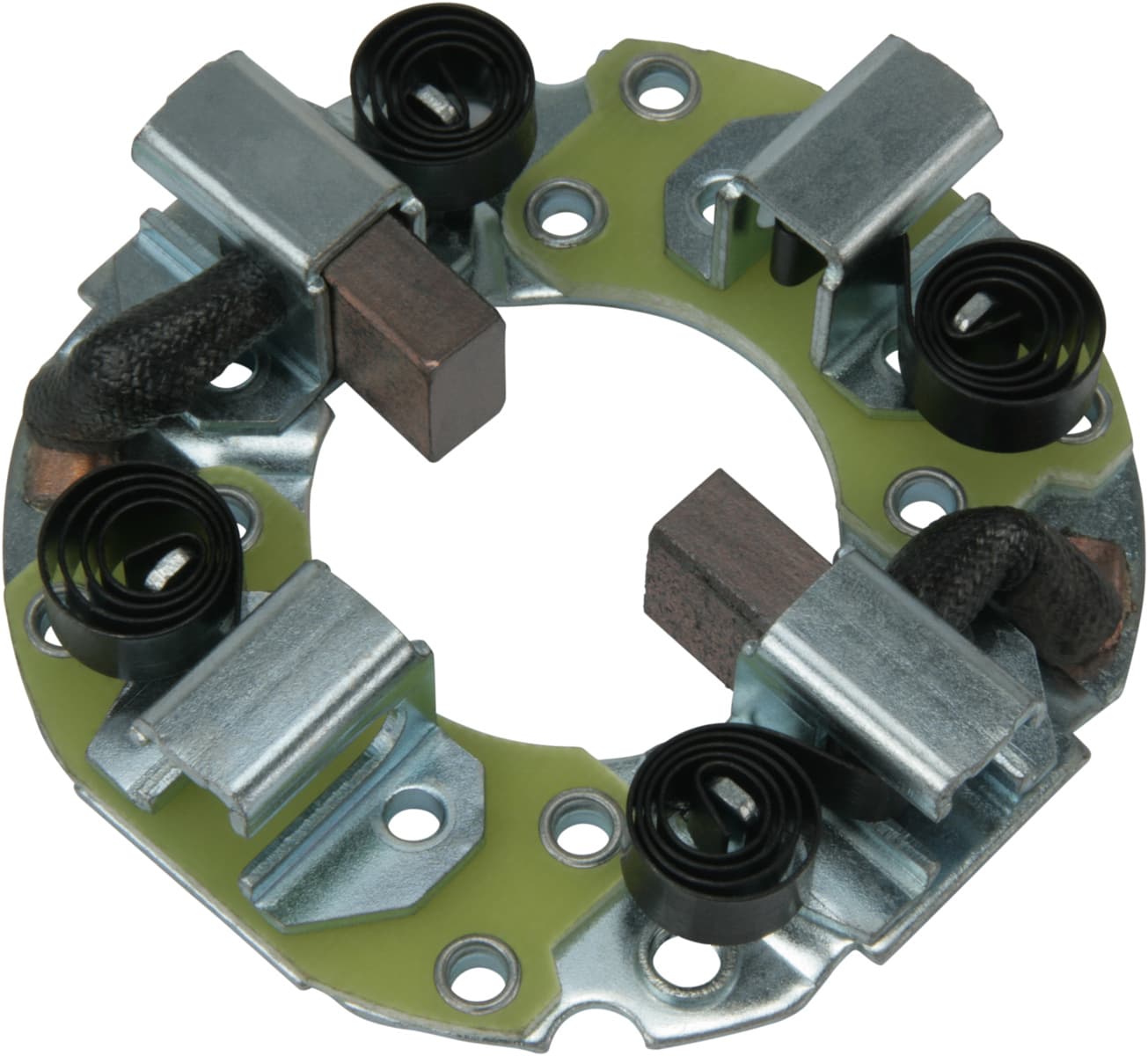

F032138963 - Brush HolderTrade number 138963

Replacement for:

MITSUBISHI ME701467

Voltage 12, Brush w/, Spring w/, Inner Diameter 33.00, Brush Gear Width 10.00, No./brushes 2, Outer Diameter 71.50, Remarks Neg. brushes. Brush set: HC-CARGO 140973 (x2)., Height 15.50, Brush Thickness 6.50

F032139361 - Pole housingTrade number 139361

Replacement for:

MITSUBISHI MD618966

kW 2.0, Voltage 12, Lead Length 70.00, Inner Diameter 54.20, Brush gear w/o, No./brushes 2, Outer Diameter Middle 77.00, Brush Length 17.60, Coil w/, Magnets w/o, Remarks Brush set: HC-CARGO 140347., Length 63.00, Brush Thickness 6.60, Brush Height 11.80

F032140893 - Ball BearingTrade number 140893

Replacement for:

MITSUBISHI 6292RS1C3

Bearing type Ball bearing, Inner Diameter 9.00, Outer Diameter 26.00, Height 8.00, Remarks 629-2RS1/C3.

F032230759 - SealTrade number 230759

Replacement for:

MITSUBISHI 230759

Double sealed No, O-ring w/o, Inner Diameter 21.00, Material Metal/Rubber, Outer Diameter 38.00, Height 2.45

F032231371 - Overrunning-Clutch DriveTrade number 231371

Replacement for:

MITSUBISHI ME701651

Clutch End Inner Diameter 12.00, No./splines 20, Drive End House Shaft Length 65.80, Drive End Outer Diameter 59.20, Splines/housing 5, Rotation CW, Shaft Outer Diameter Front 20.00, Outer Diameter 14.80, Total Length 110.70
