Showing results for: HYUNDAI 3610002555

F032112322 - StarterTrade number 112322

kW 0.8, Voltage 12, Mounting Flange 75.00, Terminal 50 6.30, B+ M8, Clutch type Dry, Rotation CW, Distance 93.50, Oil sealed No, Prod. info BN, Drive type Steel, No./mount. holes 2 (2), Rear Distance 135.00, Drive Distance 14.00, Waterproof No, Front Distance 49.00, Amount of Mounting Holes 2, Total Length 187.50, Position 60, Gear type DD, Mounting Holes with Thread 2, No./teeth 8;9

F032135368 - Stop RingTrade number 135368

Inner Diameter 12.00, Outer Diameter 17.50, Height 5.00

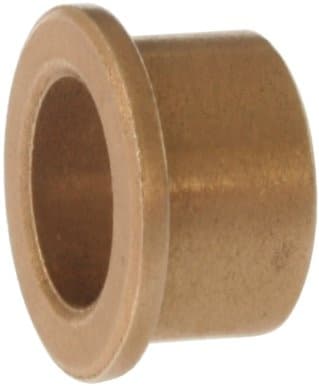

F032141252 - BushingTrade number 141252

Collar Height 2.05, Inner Diameter 12.00, Material Copper, Outer Diameter 16.00, Collar Outer Diameter 1 19.70, Length 11.00

F032190582 - Spring Lock WasherTrade number 190582

DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60

F032191304 - ScrewTrade number 191304

Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13

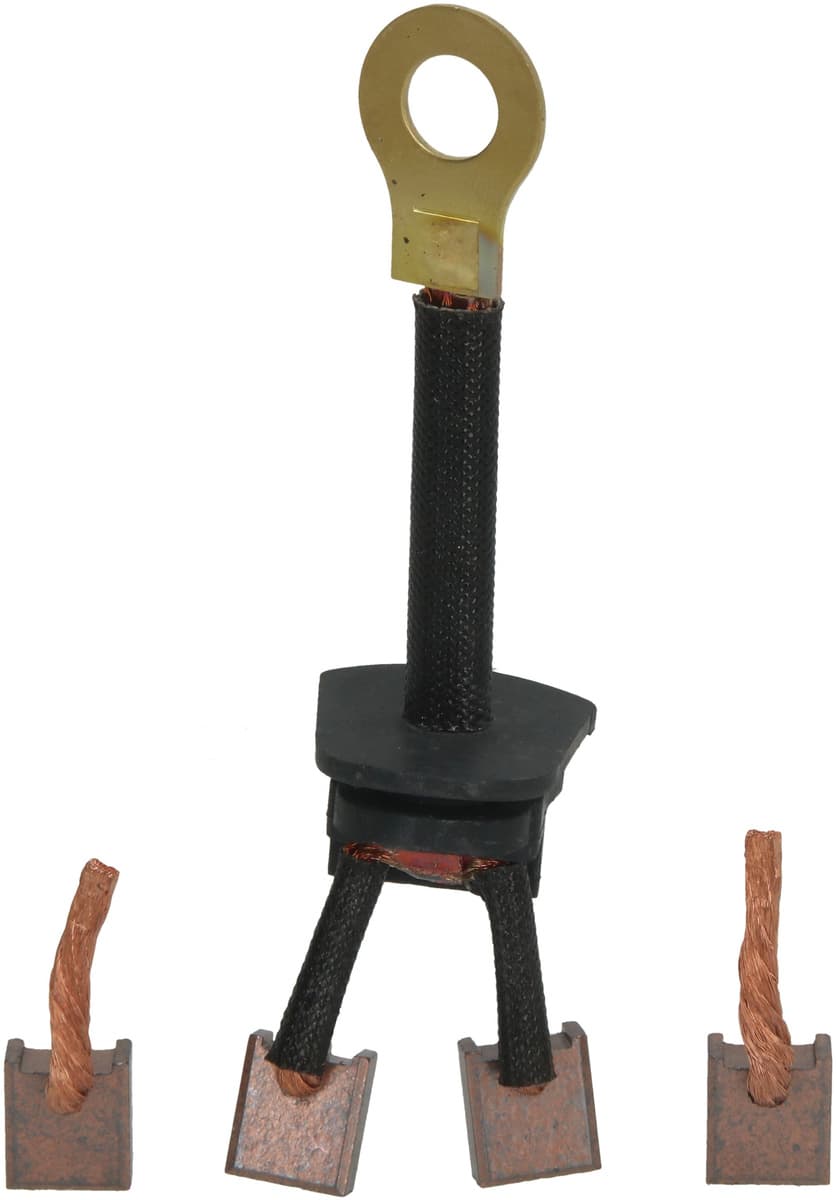

F032332971 - Carbon-Brush SetTrade number 332971

Voltage 14, Conductor w/, Spring w/o, Brush lead length 24.00, No./brushes 4, Lead Length 44.00, Solder hole w/o, Thickness 5.00, Length 12.00, Height 10.60

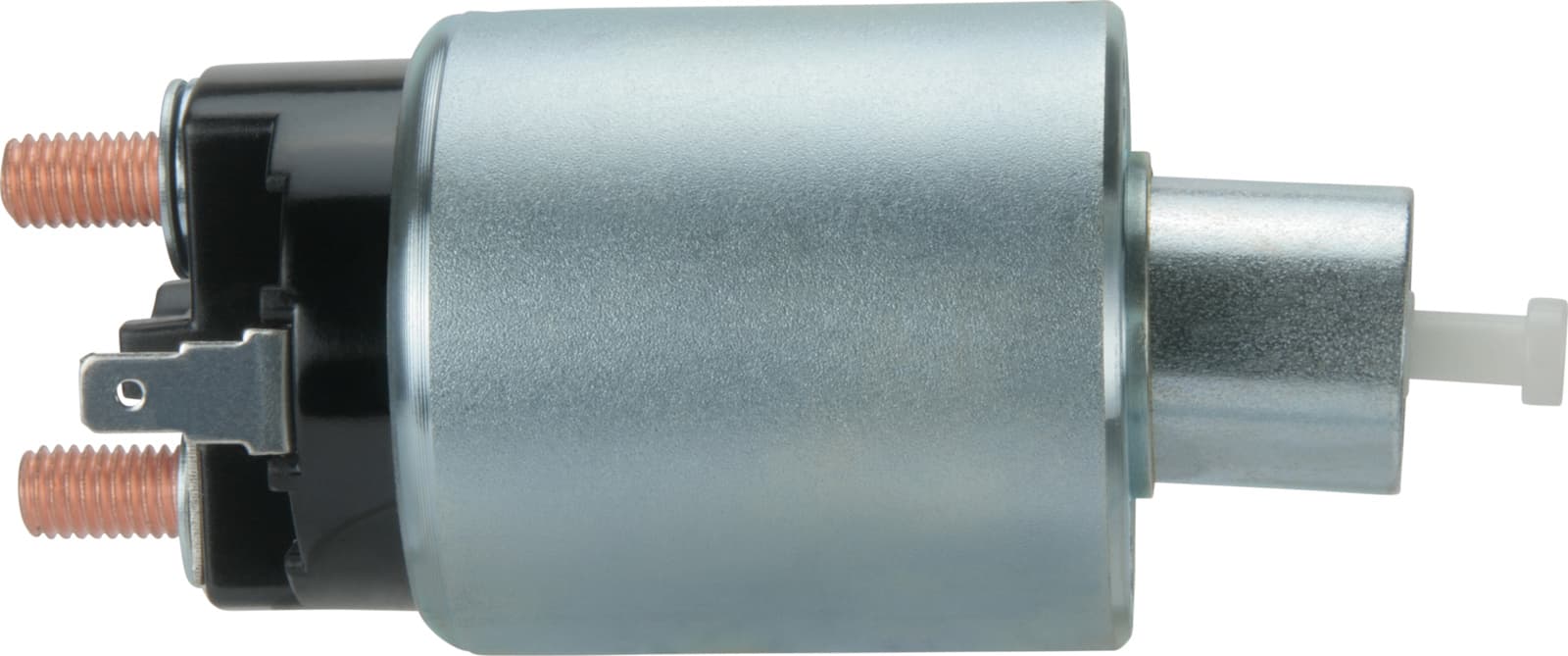

F032334304 - Solenoid SwitchTrade number 334304

Voltage 12, Terminal 50 Spade, B+ Height 14.00, Coil Bolt Diameter M8, B+ M8, Outer Diameter 52.00, No./mount. holes 2, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 14.00, Plunger Outer Diameter 24.60, Amount of Mounting Holes 2, Total Length 90.00, Length 43.10, Mounting Hole 1 15

F032901520 - Overrunning-Clutch DriveTrade number 132005Z

Replacement for:

HYUNDAI 3613911140

Splines internal 8, Drive type Steel, Rotation CW, Inner Diameter 12.00, Outer Diameter 28.00, Shaft Distance 9.00, Housing Outer Diameter 46.20, No./teeth 8, Total Length 55.60

Splines internal 8, Rotation CW, Inner Diameter 12.00, Outer Diameter 28.20, Shaft Distance 9.50, Housing Outer Diameter 45.50, No./teeth 8, Total Length 56.00
