Showing results for: DENSO 4210000028
F032133610 - RingTrade number 133610
Replacement for:
DENSO 133610
Inner Diameter 13.12, Material Copper/Brass, Outer Diameter 15.80, Height 9.55, Remarks w/ 4 pins.
F032133679 - SealTrade number 133679
Replacement for:
DENSO 0216260190
O-ring w/o, Inner Diameter 18.70, Double sealed No, Height 1.90

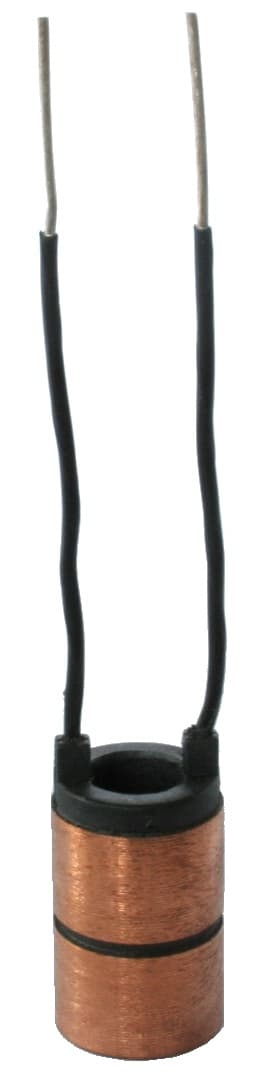

F032135173 - Parts SetTrade number 135173
Replacement for:
DENSO 135173
Ring Height 1 9.50, Ring Height 2 9.50, Inner Diameter 7.90/8.75, Type Standard, Collar w/o, Ring Distance 1.20, Material Copper, Outer Diameter 14.90, Remarks Quick repair: HC-CARGO 234489, Total Length 24.00
F032140237 - Ball BearingTrade number 140237
Replacement for:
DENSO 9491005360
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032140371 - Carbon-Brush SetTrade number 140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Solder hole w/o, Cable lugs w/o, No./brushes 2, Length 15.00, Thickness 7.00, Height 5.00
F032191586 - ScrewTrade number 191586
Replacement for:
DENSO 9490076280
Screw type Pozidriv, Head type Pan head, DIN norm 7985, Iso norm 7045, Coating Electro Galvanized, Material Steel, Thread/mm/" M4, Length 6.00
F032232788 - WasherTrade number 232788
Replacement for:
DENSO 0215060070
Total height/thickness 2.20, Bushing w/o, Inner Diameter 15.00, Collar Height 1.65, Collar Outer Diameter 1 15.90, Material Steel, Outer Diameter 22.00, Thickness 0.50
F032232790 - SealTrade number 232790
Replacement for:
DENSO 0215420220
Inner Diameter 24.50, Bushing w/o, Material Steel, Outer Diameter 35.20, Thickness 0.75
F032234727 - Connecting BlockTrade number 234727
Replacement for:
DENSO 1262200180
Thread Length 4.35, Thread size M4, Total Length 47.60, Length 44.60

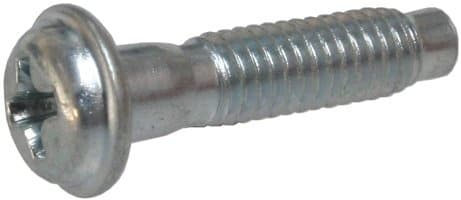

F032238687 - ScrewTrade number 238687
Replacement for:
DENSO 9490065200
Thread Length 10.50, Thread/mm/" M4, Total Length 20.00, Length 16.00

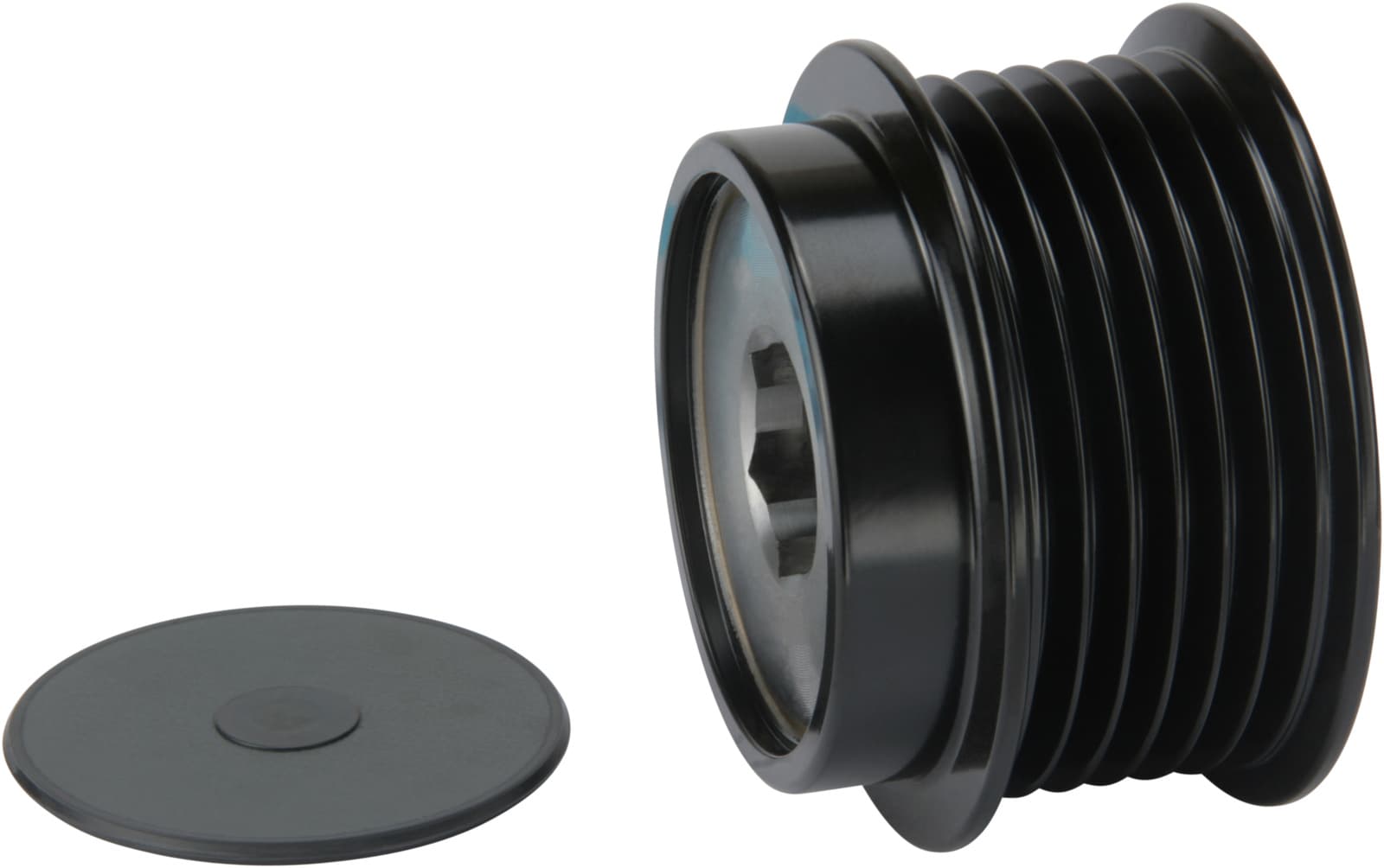

F032332486 - PulleyTrade number 332486
Replacement for:
DENSO 0210401441
Groove Measurement 1 9.00, Rear Distance 4.00, Free run w/, Width 1 43.00, Pulley type OAD, Bore dia. 17.00, Grooves 6, Depth 10.40, Rotation CW, Thread size M14-1.50, Outer Diameter 55.00, Remarks Attention: Always change OADTM pulleys with the same OADTM technology – To prevent damages and loss of warranty in case of failures.
F032B40237 - Ball BearingTrade number B140237
Replacement for:
DENSO 9491005360
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks B15-69-2RS-P., Height 13.00
F032B40371 - Carbon BrushTrade number B140371
Replacement for:
DENSO 0216600510
Voltage 14, Conductor w/, Spring w/, Lead Length 51.50, Cable lugs w/o, Length 15.00, Thickness 7.00, Height 5.00
