Showing results for: DENSO 4280001620

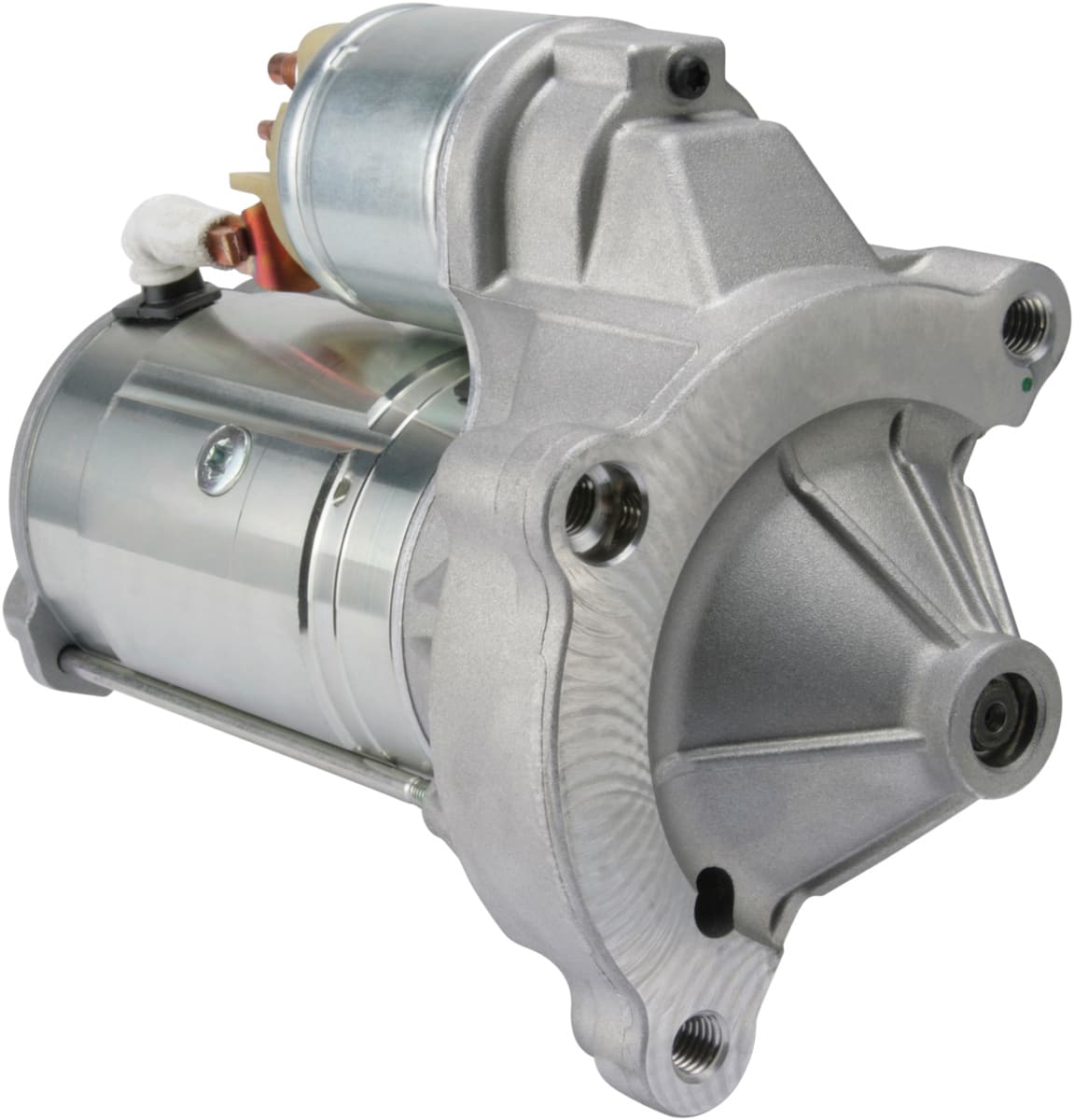

F032113926 - StarterTrade number 113926
kW 1.9, Voltage 12, Terminal 50 M5, B+ M8, Rotation CW, Distance 120.00, No./mount. holes 3 (3), Rear Distance 198.00, Distance 2 85.00, Distance 3 85.00, Drive Distance -5.00, Mounting hole 3 with thread M10, Front Distance 31.00, Amount of Mounting Holes 3, Total Length 237.00, Position 10, Gear type GR, Mounting Holes with Thread 3, No./teeth 11;12
F032135847 - Stop RingTrade number 135847
Material Steel, Thickness 2.00, Remarks Stop collar: HC-CARGO 137742.
F032137745 - Stop RingTrade number 137745
Inner Diameter 12.00, Outer Diameter 17.20, Collar w/o, Remarks Retaining ring: HC-CARGO 135847., Height 5.50
F032140620 - Needle bearingTrade number 140620
Inner Diameter 6.00, Outer Diameter 10.00, Bearing type Needle bearing, Ball holder Steel, Height 8.00
F032141054 - Needle bearingTrade number 141054
Inner Diameter 12.00, Outer Diameter 16.00, Bearing type Needle bearing, Height 14.00

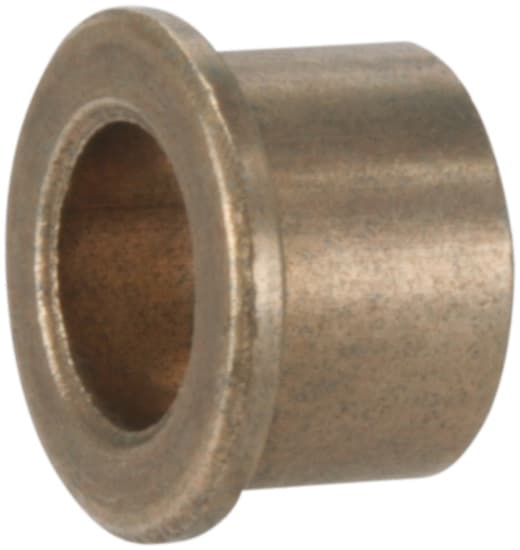

F032141091 - BushingTrade number 141091
Pin w/o, Type Standard, Collar Height 1.50, Inner Diameter 8.12, Material Copper, Milling w/o, Outer Diameter 11.55, Lubricating groove w/o, Collar Outer Diameter 1 14.10, Length 9.00
F032141134 - BushingTrade number 141134
Pin w/o, Inner Diameter 8.15, Material Copper, Milling w/o, Outer Diameter 11.00, Lubricating groove w/o, Length 8.25

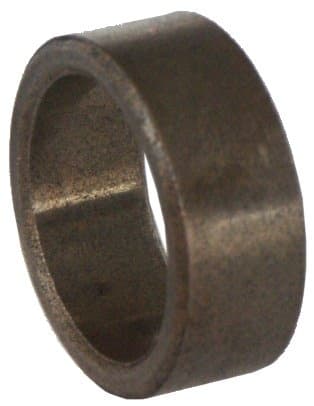

F032141197 - BushingTrade number 141197
Pin w/o, Type Standard, Inner Diameter 18.08, Material Copper, Milling w/o, Outer Diameter 23.05, Lubricating groove w/o, Length 9.30

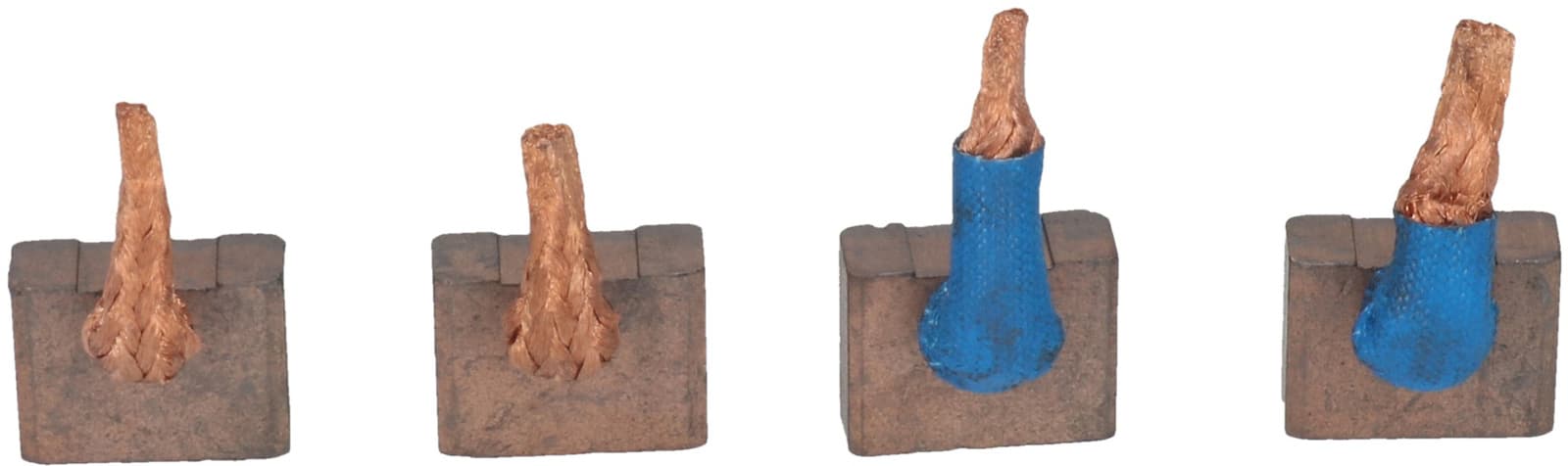

F032142040 - Carbon-Brush SetTrade number 142040
Voltage 12, Conductor w/, Spring w/o, Brush lead length 33.00, Cable lugs w/o, No./brushes 4, Lead Length 25.00, Thickness 7.00, Length 15.50, Height 20.00
F032190544 - ScrewTrade number 190544
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 10
F032231731 - PipeTrade number 231731
Replacement for:
DENSO 0280620272
Outer Diameter 8.05, Length 8.45

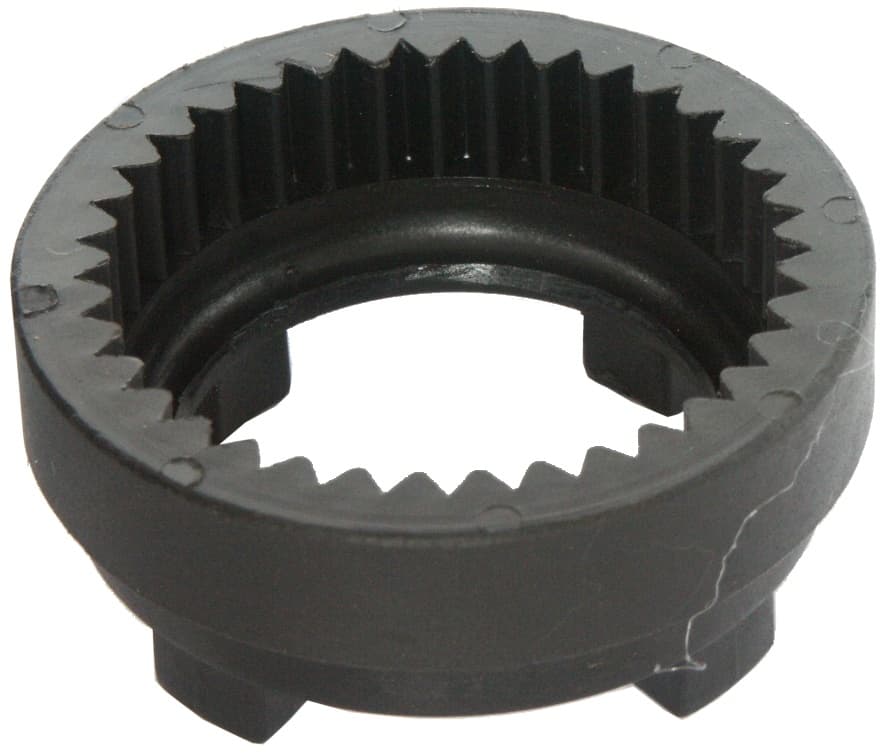

F032232604 - Parts SetTrade number 232604
Teeth Depth 2.50, Teeth Height 10.85, Outer Diameter 61.20, No./teeth 37, Height 25.30

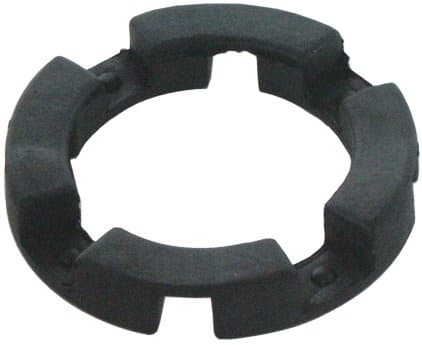

F032232849 - Rubber BushingTrade number 232849
Pin w/o, Inner Diameter 38.40, Material Rubber, Milling w/o, Outer Diameter 54.85, Lubricating groove w/o, Length 9.30

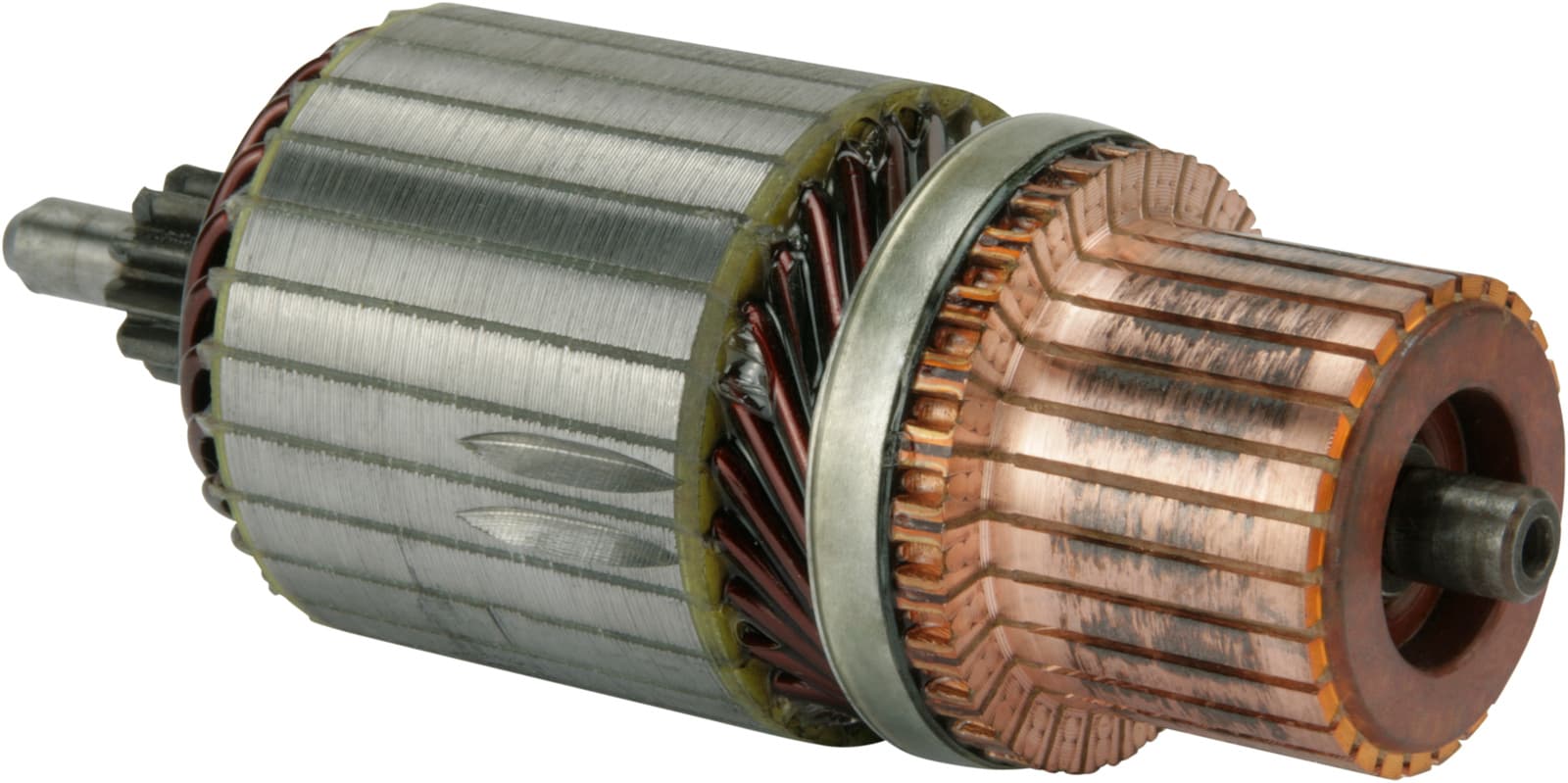

F032237879 - ArmatureTrade number 237879
kW 1.9, Voltage 12, Drive End Inside Shaft Diameter Outside 8.00, Bar Lane Height 26.00, Bar Cross Distance 36.60, Commutator End Shaft Diameter 8.00, Spline Teeth Length 21.50, Rotation CW, Commutator Outer Diameter 44.80, Bar length 3.90, Commutator Inner Diameter 13.40, No./bars 27, Commutator Height 34.70, Commutator Diameter 36.00, Commutator Distance 5.80, OD/spline/teeth 16.80, Core Diameter 48.50, Shaft length 136.80, Bar Distance 2.00, No./teeth 11

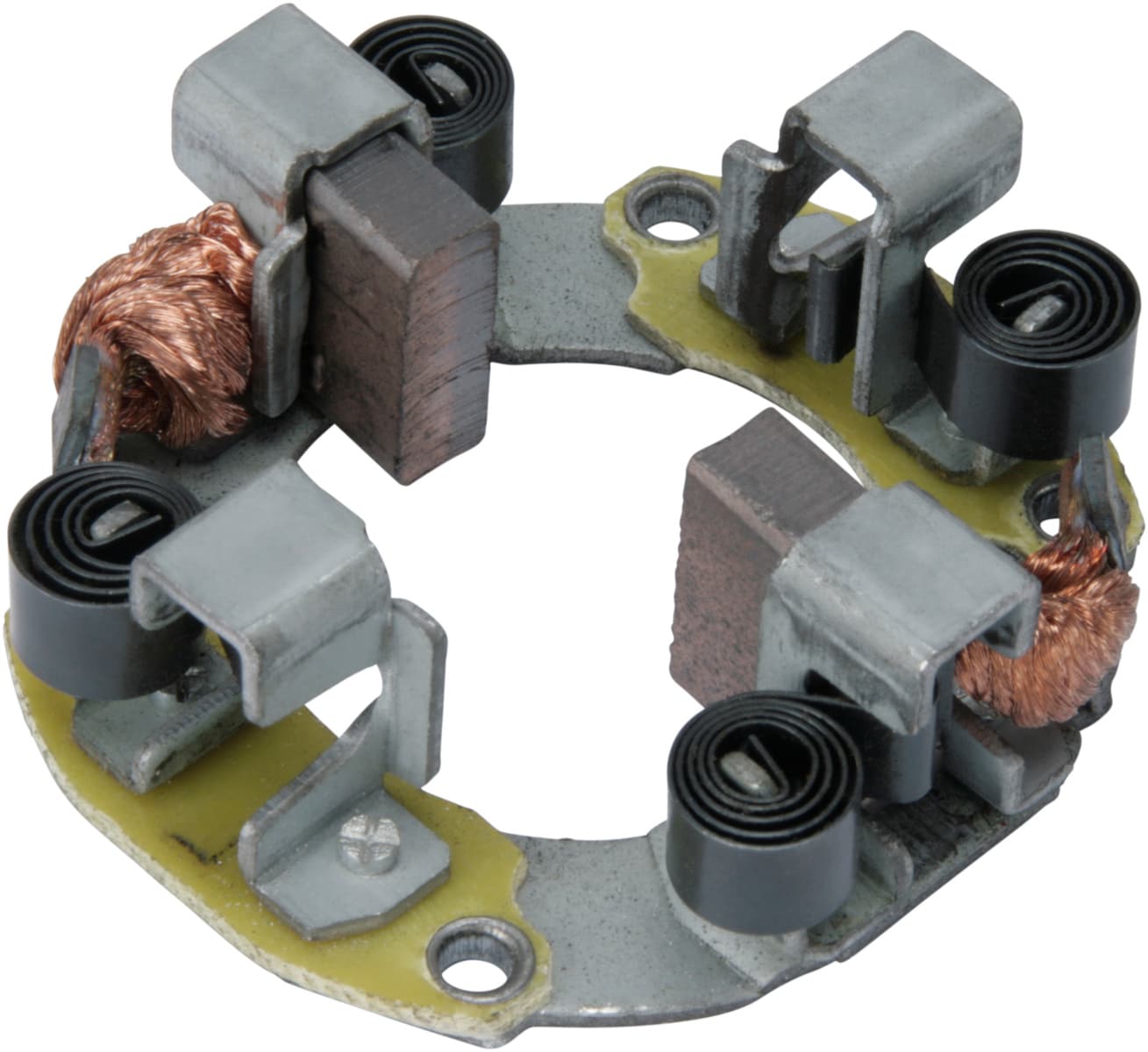

F032237885 - Brush HolderTrade number 237885
Voltage 12, Spring w/, Brush w/, Brush Length 14.00, Inner Diameter 38.50, No./brushes 2, Outer Diameter 64.00, Lead Length 25.00, Brush Height 19.60, Brush Thickness 7.00

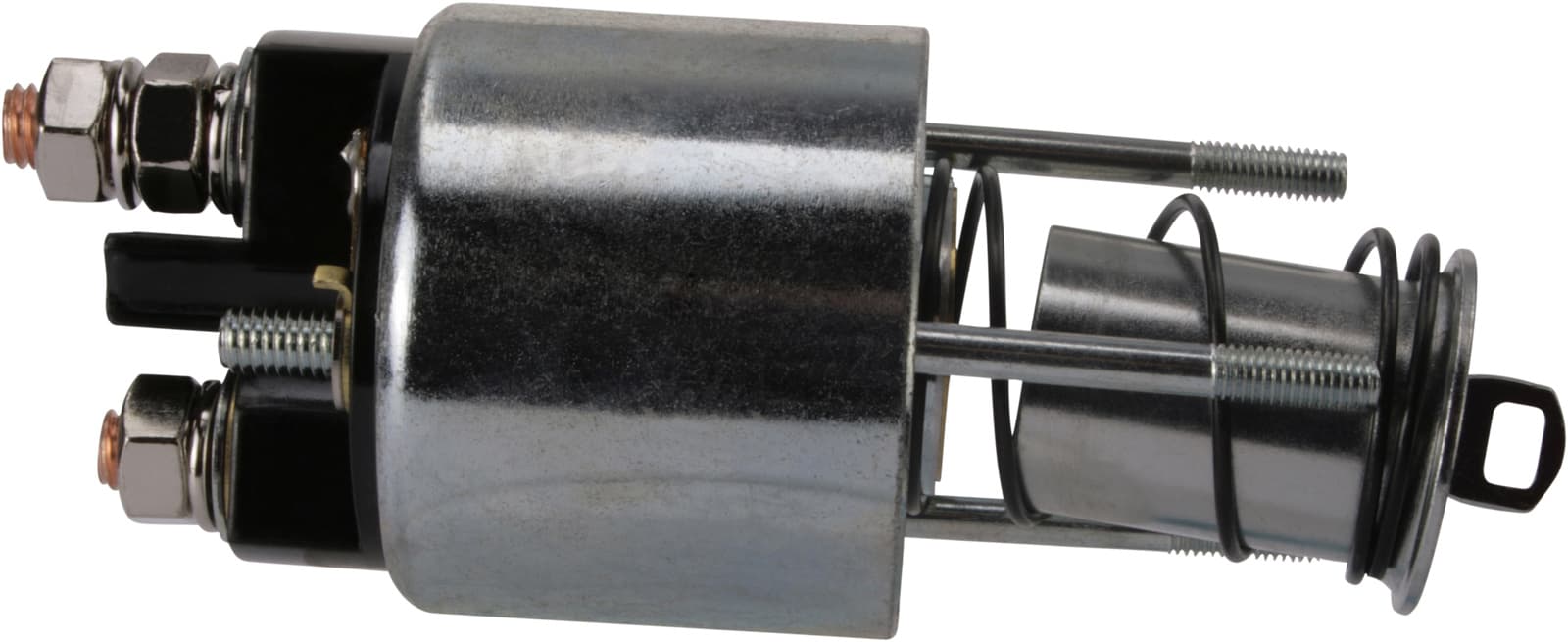

F032237891 - Solenoid SwitchTrade number 237891
Voltage 12, Terminal 50 Width 10.00, Terminal 50 Bolt, B+ Height 14.00, B+ M8, Outer Diameter 54.00, No./mount. holes 3, No./terminals 3, Terminal 50/mm M5, Plunger Outer Diameter 25.40, Amount of Mounting Holes 3, Total Length 82.00, Length 47.50, Remarks Cap: HC-CARGO 237892.

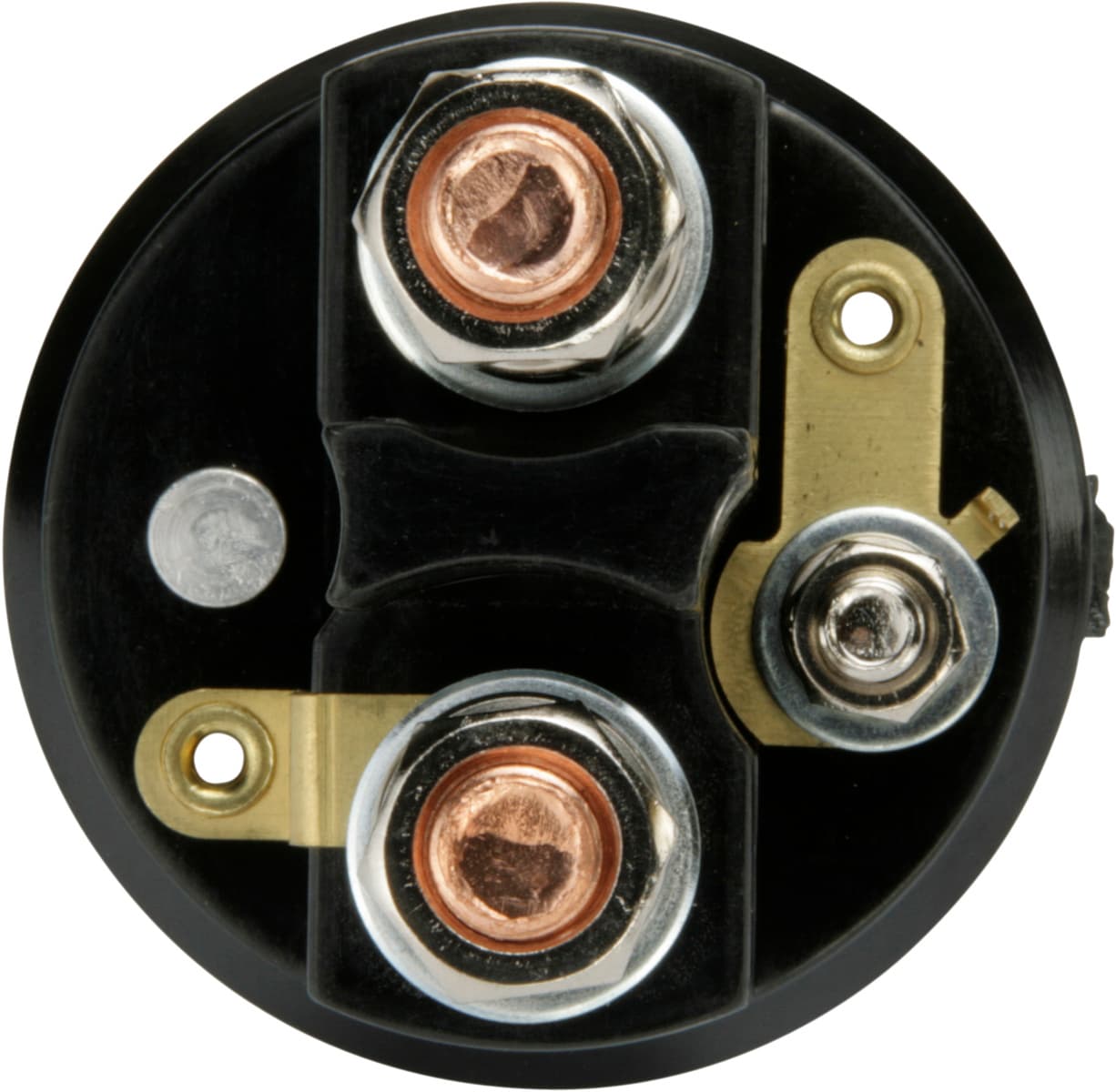

F032237892 - Solenoid ProtectionTrade number 237892
Coil Bolt Diameter M8, B+ Width 14.00, Terminal 50 Width/Height 9.50, Outer Diameter 52.20, Switch measurement 4.50, Terminal 50 size M5, B+ type Bolt, No./terminals 3, Coil Bolt Length 10.50, B+ size M8, Earth straps Short, Terminal 50 type Bolt

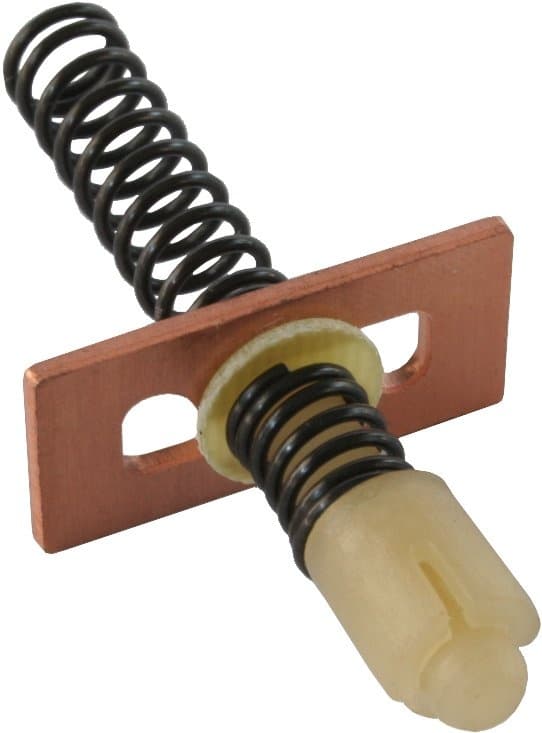

F032237893 - Contact PlateTrade number 237893
Width 1 26.50, Outer Diameter 2 8.20, Material Copper, Shaft w/, Thickness 1.60, Length 24.50
