Showing results for: MAKO 63321826
F032230313 - PulleyTrade number 230313
Replacement for:
MAKO 083625160000
Groove Measurement 1 13.40, Rear Distance 5.40, Free run w/, Width 1 37.40, Pulley type SP/FW, Bore dia. 17.00, Servicing A127IR, Grooves 6, Depth 11.10, Rotation CW, Belt type Multi Belt, Thread size M17-1.50, Outer Diameter 61.50, Remarks Pulley tool: HC-CARGO 210843.
F032231025 - RectifierTrade number 231025
Replacement for:
MAKO 063625002000
Diode A 50, Diode type Avalanche, Connections for stator 3, B+ type Bolt, B+ size M8, B+ Length 37.00, Outer Diameter 107.00, Servicing A115I

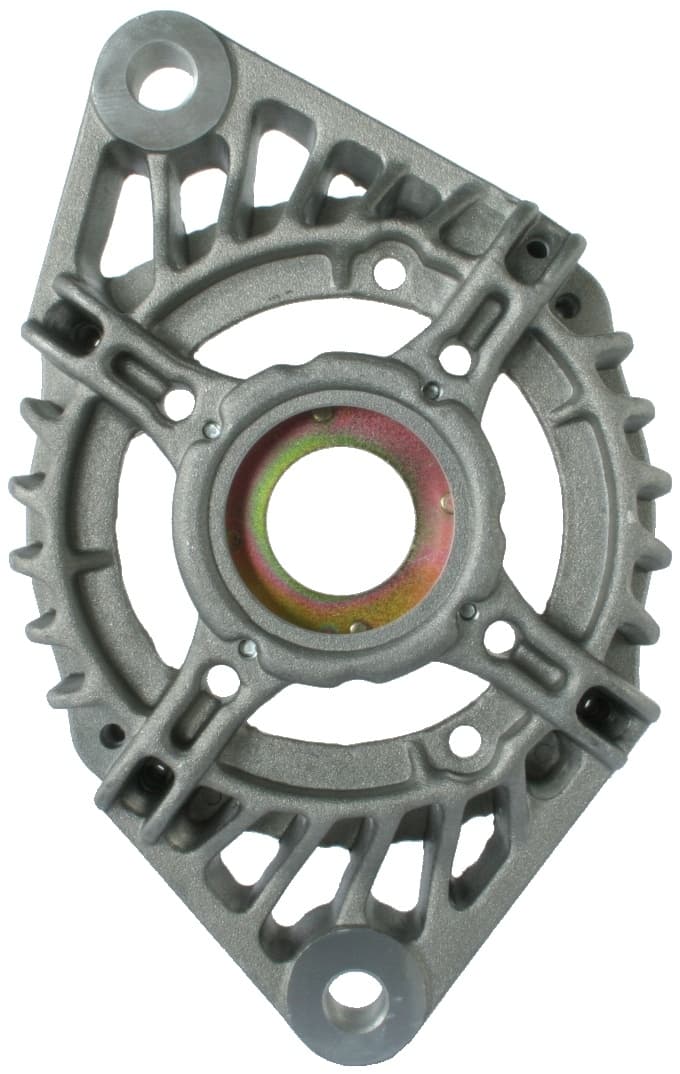

F032235021 - drive end shieldTrade number 235021
Replacement for:
MAKO 083629711000
Belt Position 55, Stator edge 30.00, Holder arm Diameter with thread 11.20, Inner Diameter 117.80, Servicing A115IM, Remarks Bearing: HC-CARGO 142270., Thickness 16.80, Belt Adjustment Bracket 12.20

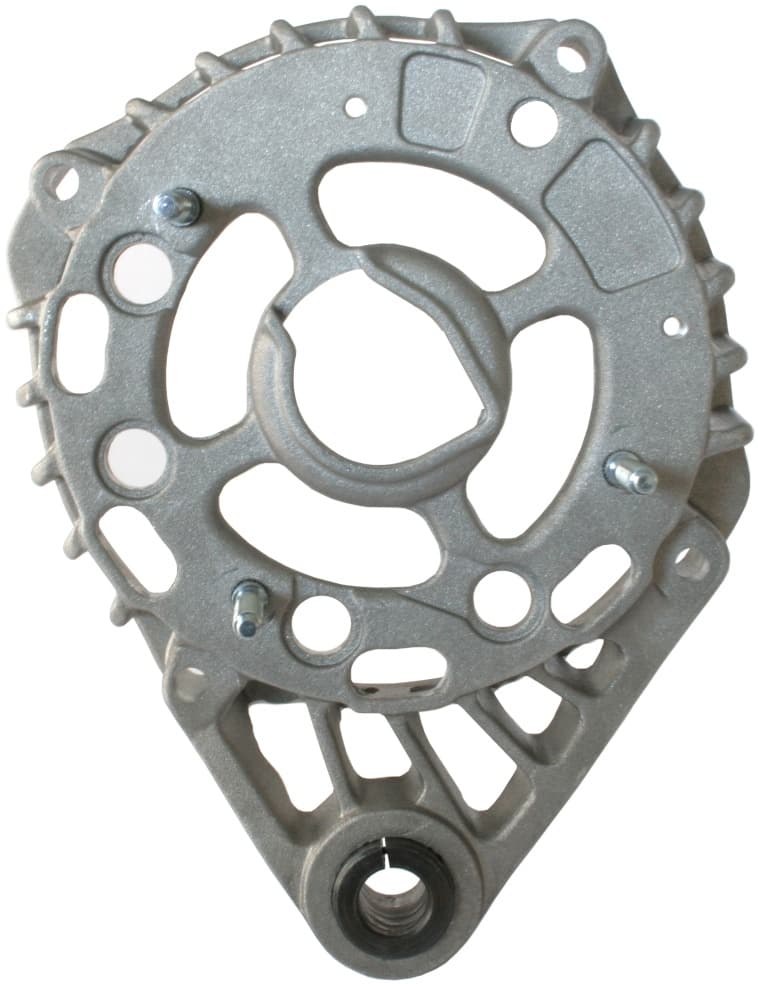

F032235137 - Slip-Ring End ShieldTrade number 235137
Replacement for:
MAKO 083624801000
Stator edge 3.12, Screw Height 27.68, Bushing w/, W plug w/o, Inner Diameter 120.00, Servicing A115IM, B+ plug w/o, D+ plug No, Vac. pump hole w/o, Screw Size M5, Bearing Hole Inner Diameter 36.88, Outer Diameter 127.20, Remarks Bearing: HC-CARGO 141071., Height 35.50, Mounting Hole Inner Diameter 12.00, Thickness 16.47

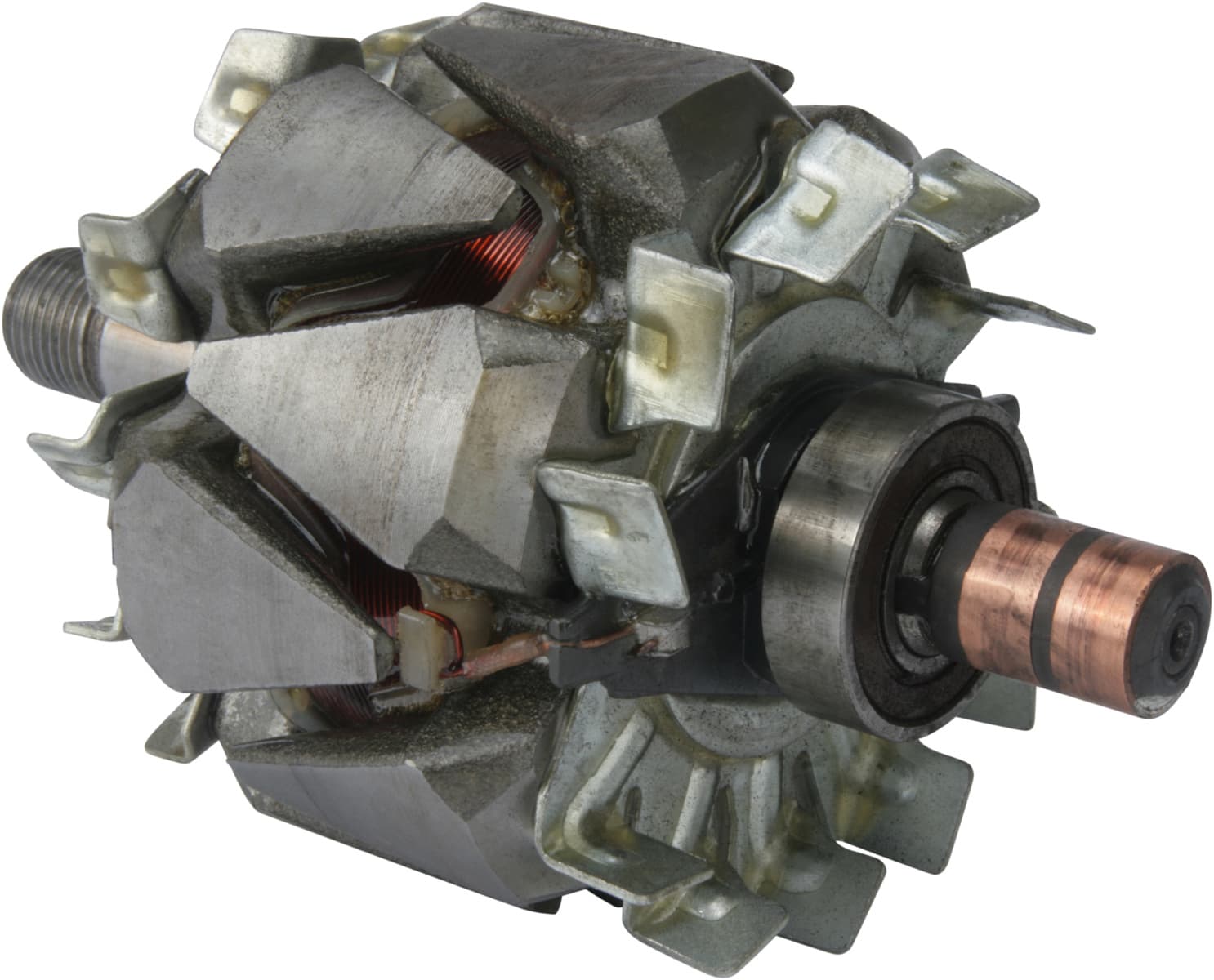

F032330090 - RotorTrade number 330090
Replacement for:
MAKO 012120007000
Voltage 14, Wire Diameter 0.80, Ring Height 1 7.30, Thread Length 17.00, Slip Ring Rear 109.50, Slip Ring Outer Diameter 16.00, Ring Height 2 7.80, Slip Ring End Length 45.00, Ring Distance 2.20, Drive End Length 48.00, Windings 355, Slip Ring Front 99.50, Wing height 82.00, Cooling fan w/, Rotation CW, Thread size M17-1.50, Outer Diameter 91.50, Height 54.00, Shaft Diameter 17.00, Total Length 46.50;152.50

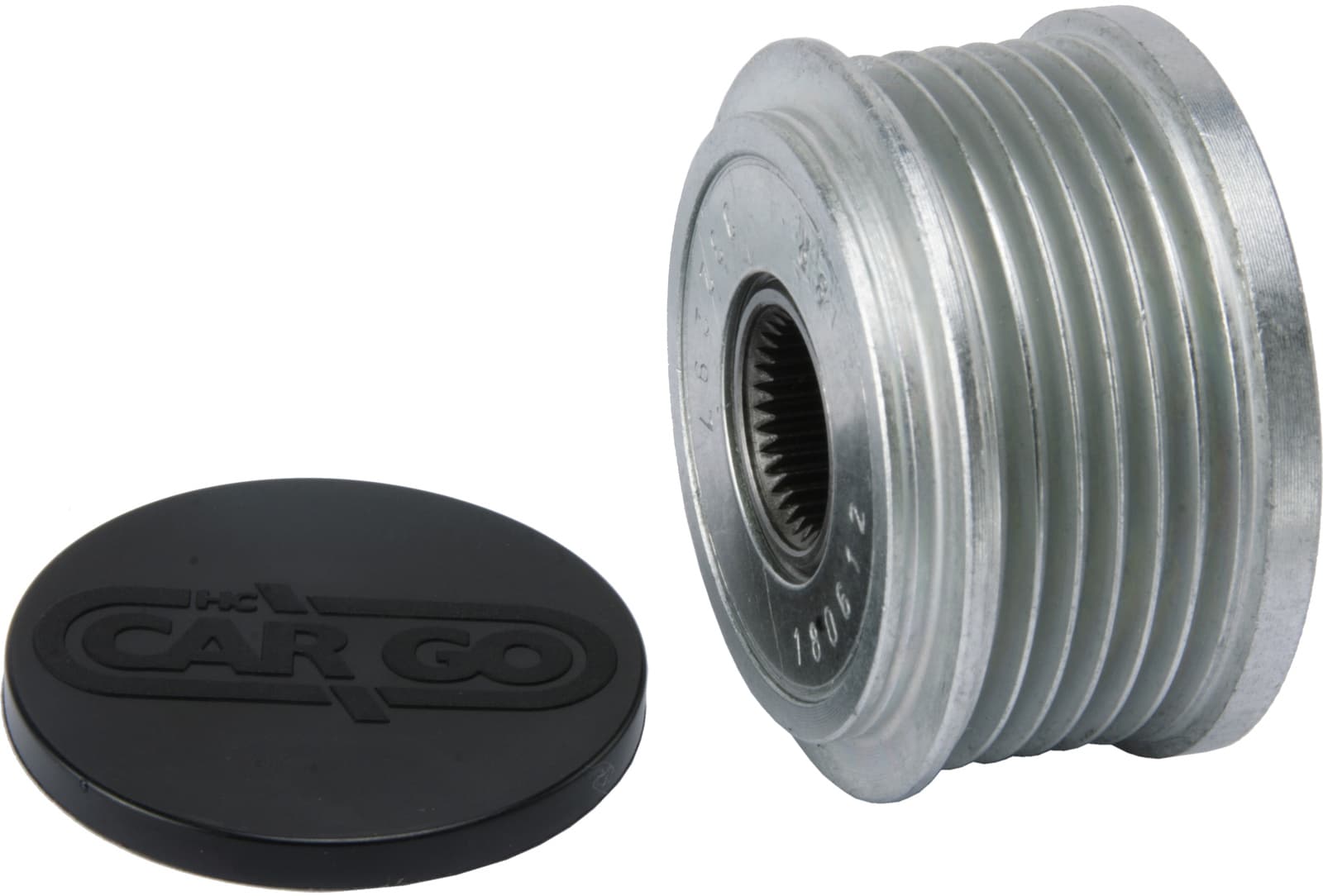

F032332297 - PulleyTrade number 332297
Replacement for:
MAKO 083625160000
Groove Measurement 1 14.00, Rear Distance 6.00, Free run w/, Width 1 41.50, Pulley type SP/FW, Bore dia. 17.00, Servicing A127IR, Grooves 6, Depth 11.00, Rotation CW, Belt type Multi Belt, Thread size M17-1.50, Outer Diameter 61.50, Remarks Pulley tool: HC-CARGO 210843.
