Showing results for: BOSCH 9000331418

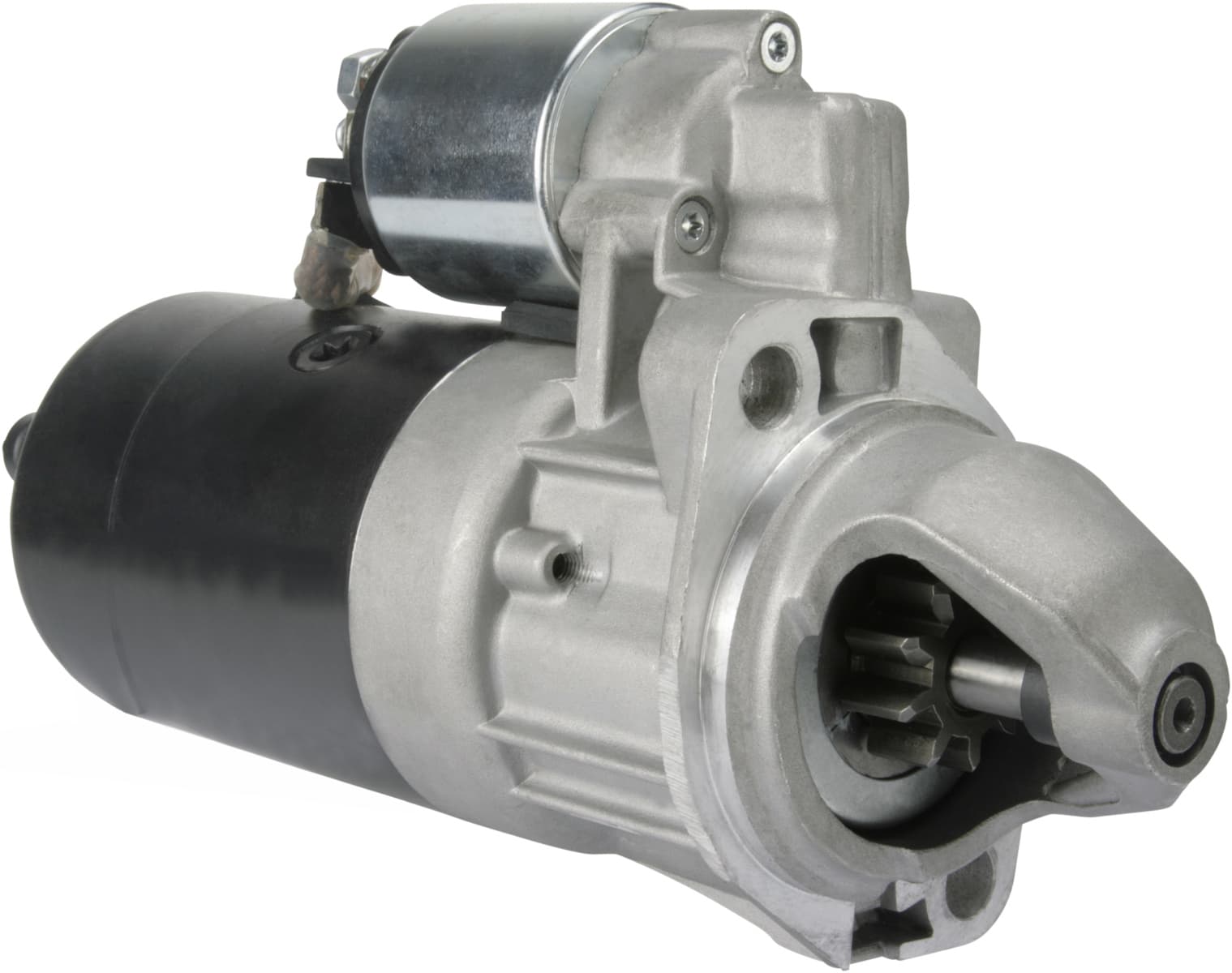

F032114055 - StarterTrade number 114055
kW 2.3, Voltage 12, Mounting Flange 82.50, Distance 105.00, Oil sealed No, Prod. info BN, Drive type Steel, Mounting Hole 2 13.00, Rear Distance 212.00, Drive Distance 21.00, Waterproof No, Terminal 50 M4, B+ M8, Rotation CW, No./mount. holes 2 (0), Thread Length 11.00, Front Distance 61.00, Total Length 273.00, Position 15, Mounting Hole 1 13.00, Mounting Holes with Thread 0, Amount of Mounting Holes 2, Gear type GR, No./teeth 9
F032132031 - ArmatureTrade number 132031
Replacement for:
BOSCH 9001140339BOSCH 9003334028
kW 2.2, Voltage 12, Drive End Inside Shaft Diameter Outside 8.00, Bar Lane Height 22.20, Bar Cross Distance 31.60, Commutator End Shaft Diameter 10.00, Spline Teeth Length 22.50, Rotation CW, Commutator Outer Diameter 45.60, Bar length 6.80, Commutator Inner Diameter 10.00, No./bars 13, Commutator Height 37.50, Commutator Diameter 31.20, Commutator Distance 20.80, OD/spline/teeth 25.00, Core Diameter 50.00, Shaft length 158.00, Bar Distance 3.50, No./teeth 18
F032132258 - Solenoid SwitchTrade number 132258
Replacement for:
BOSCH 0331303048
Voltage 12, Terminal 50 Screw, B+ Height 18.00, Coil Bolt Diameter M8, Eye Inner Diameter 4.70, B+ M8, Outer Diameter 56.50, No./mount. holes 3, No./terminals 3, Terminal 50/mm M4, Coil Bolt Length 10.00, Plunger Inner Diameter 10.30, Eye Outer Diameter 10.30, Plunger Outer Diameter 26.80, Amount of Mounting Holes 3, Total Length 87.00, Length 62.70, Remarks Cap: HC-CARGO 132780.
F032132585 - Excitation WindingTrade number 132585
Replacement for:
BOSCH 1004112906
kW 2.2, Voltage 12, Housing w/o, Internal Height 50.45, Brush gear w/o, No./brushes 0, Inner Width 18.65, Lead Length 101.61, Height 83.09
F032134661 - Brush HolderTrade number 134661
Replacement for:
BOSCH 9003334314
Voltage 12, Spring w/, Brush lead length 26.00, Brush w/, Brush Length 17.00, Outer Diameter 85.50, Brush Gear Width 10.00, Inner Diameter 31.00, No./brushes 4, Brush Height 18.00, Brush Thickness 7.40, Height 27.50
F032135004 - Brush-Spring SetTrade number 135004
Replacement for:
BOSCH 1004615001
Wire thickness 0.90, Inner Diameter 9.70, Material Steel, Outer Diameter 11.50, Length 32.00
F032135074 - Parts SetTrade number 135074
Replacement for:
BOSCH 9001337058BOSCH 9003336299
No./splines 10, Shaft Diameter Middle 12.00, Shaft Diameter Front 12.00, No./pinions 4, Shaft Lock Length 102.70, Spline Length 19.50, Rotation CW, Spline Diameter 16.70, Housing Outer Diameter 86.40, Total Length 145.00
F032135077 - Parts SetTrade number 135077
Replacement for:
BOSCH 9002338850
Teeth Depth 2.14, Bushing w/, Collar Height 2.50, Teeth Height 12.50, Outer Diameter 86.00, No./teeth 42, Height 30.00
F032135777 - Fork LeverTrade number 135777
Replacement for:
BOSCH 1001933101
Plunger w/o, Distance 40.35, Length 92.70
F032138856 - Commutator BearingTrade number 138856
Replacement for:
BOSCH 1000505010
Outer Diameter 32.00, Remarks Bosch., Height 20.00
F032140242 - Needle bearingTrade number 140242
Replacement for:
BOSCH 9001140384
Bearing type Needle bearing, Inner Diameter 12.00, Outer Diameter 16.00, Servicing PMGR series, M78, M79, Height 10.00
F032140563 - BushingTrade number 140563
Replacement for:
BOSCH 1000322005
Pin w/o, Collar Height 1.50, Inner Diameter 10.07, Material Copper, Milling w/o, Outer Diameter 16.55, Lubricating groove w/o, Collar Outer Diameter 1 18.70, Length 14.60
F032190582 - Spring Lock WasherTrade number 190582
Replacement for:
BOSCH 2916699085
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032191290 - Special WasherTrade number 191290
Replacement for:
BOSCH 1190100029
Thread type mm, Thread standard mm, Inner Diameter 6.50, Material Steel, Outer Diameter 13.00, Coating Electro Galvanized, Thickness 1.00
F032191304 - ScrewTrade number 191304
Replacement for:
BOSCH 2915051107
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191337 - WasherTrade number 191337
Replacement for:
BOSCH 2916069084
Inner Diameter 10.00, Material Steel, Outer Diameter 16.00, Coating Electro Galvanized, Thickness 0.50
F032191586 - ScrewTrade number 191586
Replacement for:
BOSCH 2910001116
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 6.00

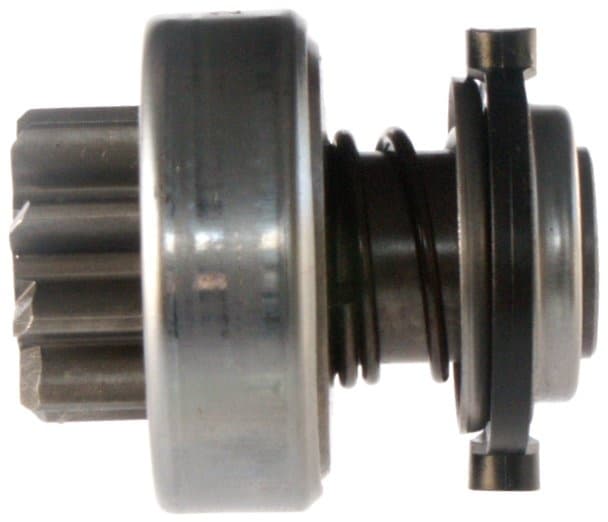

F032234403 - Overrunning-Clutch DriveTrade number 234403
Replacement for:
BOSCH 9003336282
Splines internal 10, Rotation CW, Inner Diameter 12.00, Outer Diameter 34.40, Shaft Distance 6.50, Housing Outer Diameter 54.30, No./teeth 9, Total Length 61.80
F032900063 - Carbon-Brush SetTrade number BSX151S4
Replacement for:
BOSCH 1007014143
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/, No./brushes 4, Lead Length 26.00, Solder hole w/o, Thickness 7.50, Length 17.00/19.00, Height 18.00
F032B40204 - BushingTrade number B140204
Replacement for:
BOSCH 9001140347
Pin w/o, Inner Diameter 10.05, Material Copper, Milling w/o, Outer Diameter 16.55, Lubricating groove w/o, Length 11.50
F032B40563 - BushingTrade number B140563
Replacement for:
BOSCH 1000322005
Pin w/o, Collar Height 1.60, Inner Diameter 10.07, Material Copper, Milling w/o, Outer Diameter 16.55, Lubricating groove w/o, Collar Outer Diameter 1 19.00, Length 14.60
F032B40854 - BushingTrade number B140854
Replacement for:
BOSCH 1000301031BOSCH 1000301106
Pin w/o, Inner Diameter 12.10, Material Steel, Milling w/o, Outer Diameter 13.57, Lubricating groove w/o, Length 11.50
