Showing results for: MITSUBISHI A005TA4391

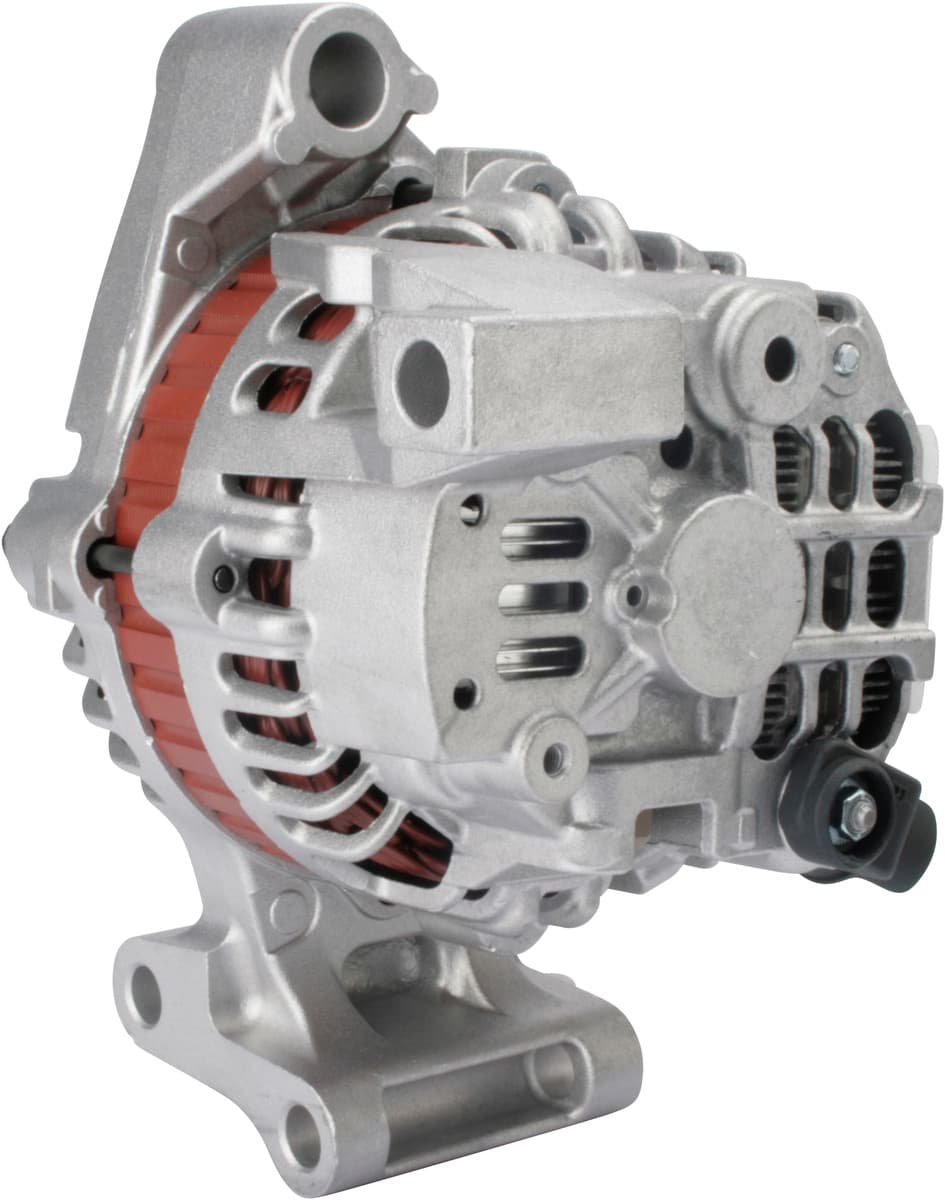

F032113952 - AlternatorTrade number 113952
Voltage 14, Amp 70, Plug no. 1 PL48, B+ M6, Bracket Hole Size 2 11.00, Rotation CW, Grooves/pulley 6, Regulator type IR, Belt Adjustment Bracket Hole 1 12.50, Mounting Bracket Distance 52.00, Pulley Diameter 49.00, Prod. info BN, Pulley SP, Bracket Hole Size 1 11.00, Pulley Distance 11.00, Holder Arm Width 72.00, D+ Size Plug, D+ Position 30, Total Length 159.00, Position 45, B+ Position 22
F032132080 - NutTrade number 132080
Replacement for:
MITSUBISHI A529X04971
Lock nut w/, Washer Outer Diameter 27.55, Material Steel, Outer Diameter 23.80, Thread/mm/" M17-1.50, Washer w/, Height 6.80
F032133409 - Parts SetTrade number 133409
Ring Height 1 7.70, Inner Diameter 12.50, Material Copper, Outer Diameter 23.00, Collar w/, Ring Distance 1.75, Ring Height 2 7.40, Total Length 28.00
F032140093 - Ball BearingTrade number 140093
Replacement for:
MITSUBISHI A930X94570
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032140419 - Ball BearingTrade number 140419
Replacement for:
MITSUBISHI S930P63605
Bearing type Ball bearing, Teflon ring w/, Inner Diameter 8.00, Outer Diameter 23.00, Remarks B8-23D., Height 14.00
F032140817 - Carbon-Brush SetTrade number 140817
Replacement for:
MITSUBISHI A647X50170
Voltage 14;28, Spring w/, No./brushes 2, Lead Length 31.50, Thickness 8.00, Length 21.50/23.00, Height 5.00
F032142317 - Ball BearingTrade number 142317
Replacement for:
MITSUBISHI S930P63605
Source NTN, Bearing type Ball bearing, Teflon ring w/, Inner Diameter 8.00, Outer Diameter 23.00, Remarks B8-23D., Height 14.00
F032191267 - ScrewTrade number 191267
Replacement for:
MITSUBISHI A414X12771
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 60.00
F032233912 - Bearing PlateTrade number 233912
Replacement for:
MITSUBISHI A834S02047
No./mount. holes 4, Inner Diameter 29.00, Material Steel, Outer Diameter 54.30, Distance Mounting Holes 42.00, Thickness 2.50, Amount of Mounting Holes 4

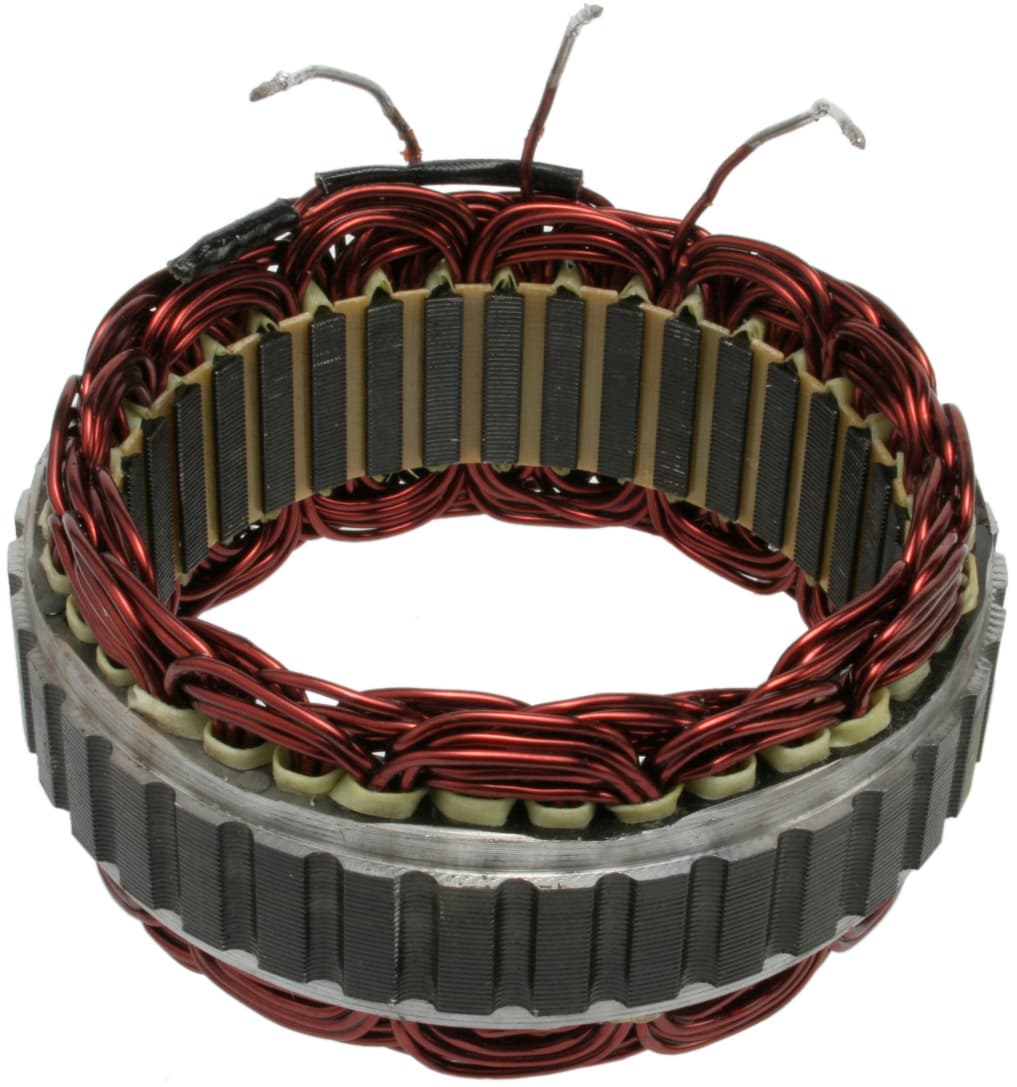

F032236573 - StatorTrade number 236573
Voltage 14, Amp 70, Wire thickness 1.80, Number of leads 3, Stator winding Cross, Inner Diameter 95.00, Outer Diameter 2 119.00, Outer Diameter 122.00, Winding Height 60.00, Height 20.00
F032333119 - Ball BearingTrade number 333119
Replacement for:
MITSUBISHI A930X94570
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
