Showing results for: VALEO A13VI97

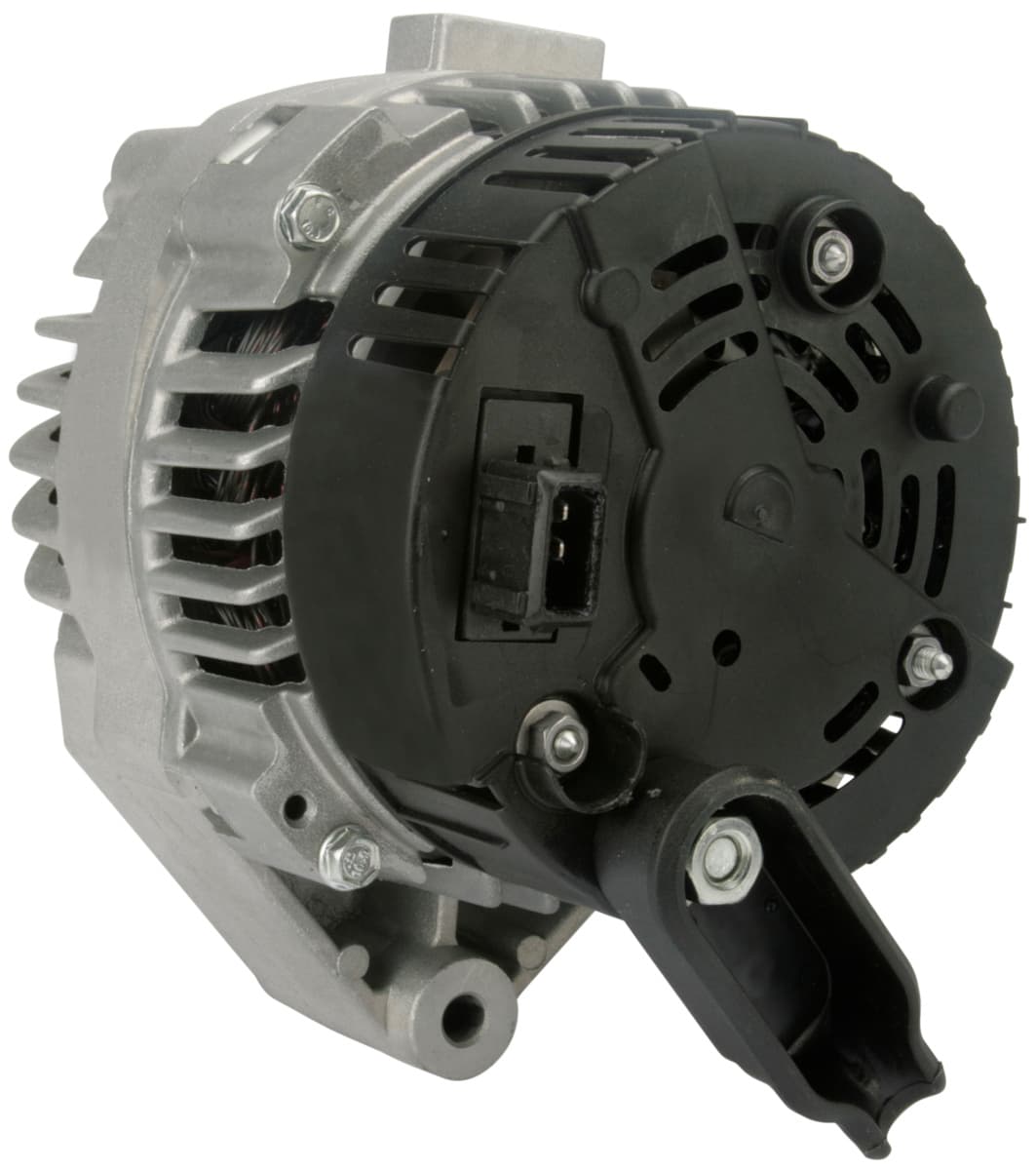

F032113868 - AlternatorTrade number 113868
Voltage 14, Amp 95, Plug no. 1 PL113, Radius 2 90.00, B+ M8, Rotation CW, Grooves/pulley 5, Belt Adjustment Bracket Hole 1 8.00, Radius 90.00, Pulley Diameter 54.00, Prod. info BN, Pulley SP, Bracket Hole Size 1 8.00, Pulley Distance 77.50, Servicing BMW, Holder Arm Width 56.00, D+ Size Plug, Belt Adjustment Bracket Hole Position 50, Position 45, B+ Position 32
F032133610 - RingTrade number 133610
Inner Diameter 13.12, Material Copper/Brass, Outer Diameter 15.80, Remarks w/ 4 pins., Height 9.55
F032135469 - SealTrade number 135469
Inner Diameter 18.00, Material Neoprene, Outer Diameter 28.00, Thickness 4.00
F032135533 - StatorTrade number 135533
Replacement for:
VALEO 592832
Voltage 14, Amp 90;100, Wire thickness 1.50, Inner Diameter 96.00, Outer Diameter 2 120.00, Outer Diameter 127.00, Winding Height 62.00, Height 29.00
F032138421 - Parts SetTrade number 138421
Ring Height 1 9.25, Inner Diameter 6.60/8.40, Material Copper, Outer Diameter 14.30, Collar w/o, Ring Distance 1.20, Ring Height 2 9.80, Total Length 27.80
F032139124 - Parts SetTrade number 139124
No./mount. holes 4, Inner Diameter 26.00, Outer Diameter 52.20, Thickness 6.80, Remarks Bearing: HC-CARGO 140093., Amount of Mounting Holes 4
F032139475 - EL Field RegulatorTrade number 139475
Replacement for:
VALEO 593132
Voltage setting 14.6, Voltage 14, Plug no. 1 PL52, Distance Between Mounting Holes 63.00
F032140084 - Ball BearingTrade number 140084
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140093 - Ball BearingTrade number 140093
Replacement for:
VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032142270 - Ball BearingTrade number 142270
Replacement for:
VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks Bearing plate: HC-CARGO 139124. 6303-2RS1/C3., Height 14.00
F032142272 - Ball BearingTrade number 142272
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032191513 - Self-locking nutTrade number 191513
Self-locking w/, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191657 - ScrewTrade number 191657
Iso norm 4035, DIN norm 439B, Material Steel, Servicing 4G series, Thread/mm/" M16-1.5, Coating Electro Galvanized, Spanner Size 24
F032230090 - Parts SetTrade number 230090
Ring Height 1 9.15, Inner Diameter 6.60/8.85, Material Copper, Outer Diameter 14.90, Collar w/, Ring Distance 2.00, Ring Height 2 9.90, Total Length 48.30
F032231868 - ScrewTrade number 231868
Thread/mm/" M5, Collar Length 37.50, Thread Length 23.00, Remarks Knurl O.D. 5.50 mm, Total Length 40.00
F032332583 - Bearing CapTrade number 332583
Replacement for:
VALEO 135508
Inner Diameter 35.00, Outer Diameter 37.50, Height 17.50
F032333110 - Ball BearingTrade number 333110
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032333119 - Ball BearingTrade number 333119
Replacement for:
VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
F032900313 - Carbon-Brush SetTrade number SVX72
Voltage 14;28, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 2, Lead Length 50.00, Solder hole w/o, Thickness 6.40, Length 14.50, Height 4.60
F032141233 - Ball BearingTrade number 141233
Replacement for:
VALEO 593563
Source NSK, Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Height 14.00
