F032000SV7 - Carbon BrushTrade number SV7

Voltage 14/28, Conductor w/, Spring w/o, No./brushes 1, Lead Length 50.00, Thickness 6.40, Length 14.50, Height 4.60

Voltage 14, Amp 150, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL125, B+ M8, Rotation CW, Grooves/pulley 5, Regulator type IR, Belt Adjustment Bracket Hole 1 9.50, Pulley Diameter 50.00, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 10.00, Pulley Distance 30.00, Terminal type COM, Holder Arm Width 151.00, Total Length 183.00, Position 22, B+ Position 60

F032133610 - RingTrade number 133610

Inner Diameter 13.12, Material Copper/Brass, Outer Diameter 15.80, Remarks w/ 4 pins., Height 9.55

F032135469 - SealTrade number 135469

Inner Diameter 18.00, Material Neoprene, Outer Diameter 28.00, Thickness 4.00

F032140910 - Tolerance RingTrade number 140910

Inner Diameter 47.00, Material Steel, Outer Diameter 48.07, Gasket w/o, Height 11.75

F032191678 - ScrewTrade number 191678

Head type Flat head, Screw type Pozidriv, Iso norm 7046, DIN norm 965, Material Steel, Thread/mm/" M5, Length 16.00

F032230090 - Parts SetTrade number 230090

Ring Height 1 9.15, Inner Diameter 6.60/8.85, Material Copper, Outer Diameter 14.90, Collar w/, Ring Distance 2.00, Ring Height 2 9.90, Total Length 48.30

F032231557 - Parts SetTrade number 231557

Width 1 52.00, No./mount. holes 4, Hole Id 4.00, Inner Diameter 37.00, Material Steel, Outer Diameter 52.00, Distance Mounting Holes 40.00, Thickness 1.50, Amount of Mounting Holes 4

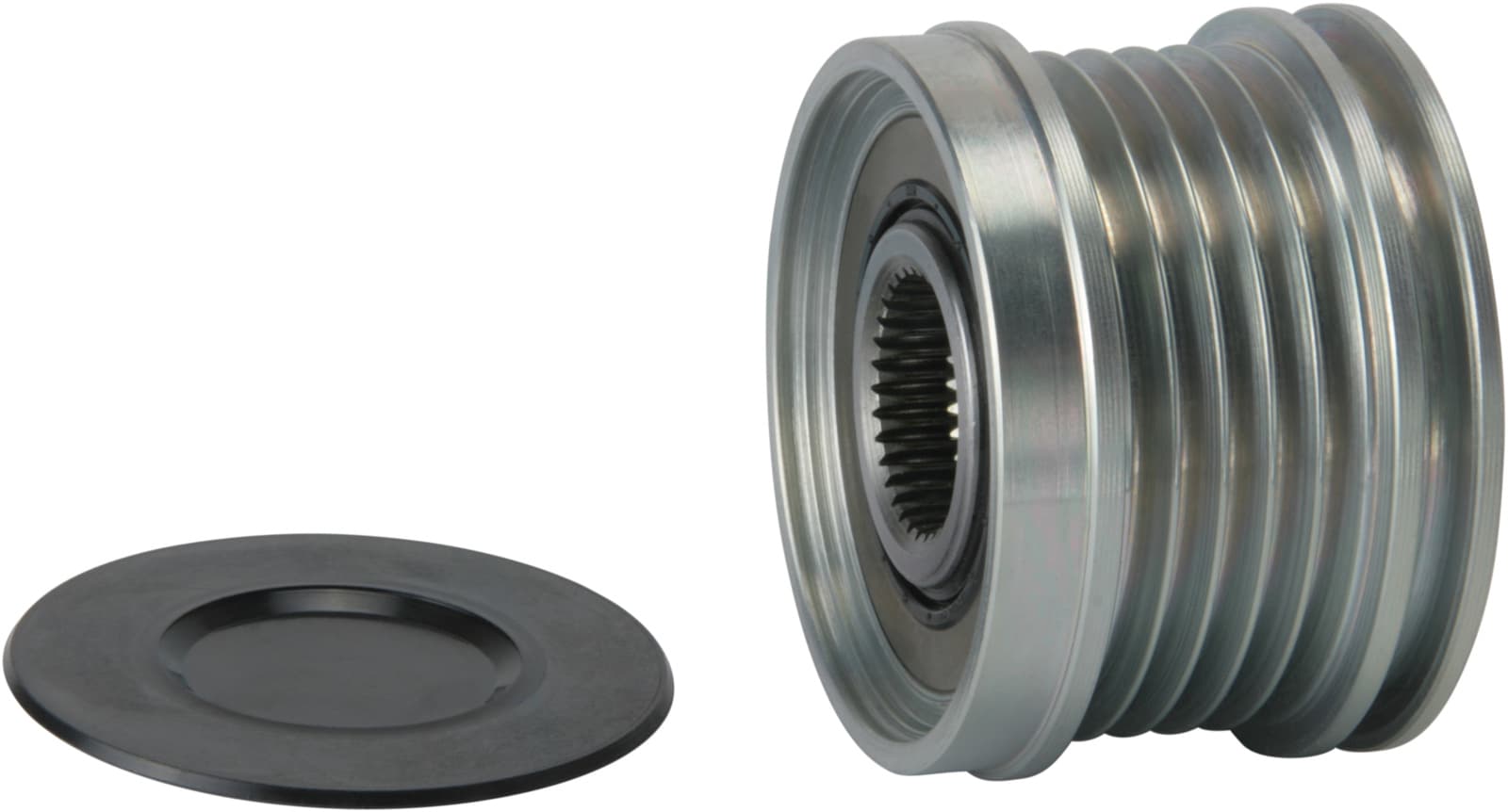

F032233847 - PulleyTrade number 233847

Replacement for:

MERCEDES-BENZ 6681550615

Grooves 5, Thread size M16-1.50, Outer Diameter 49.70, Belt type Multi Belt, Depth 14.40, Free run w/, Width 1 41.00, Groove Measurement 1 14.90, Rear Distance 4.50, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210909., Pulley type SP;FW

F032235017 - InsulatorTrade number 235017

Inner Diameter 12.60/5.90, Material Plastic, Outer Diameter 14.40/7.60

F032235338 - StatorTrade number 235338

Voltage 14, Amp 150, Number of leads 3, Outer Diameter 135.00, Winding Height 73.50, Lead 2 4, Lead 1 4, Wire thickness 1.12, Stator winding Delta connection, Lead 3 4, Inner Diameter 106.00, Height 33.50

F032236756 - Sealing FrameTrade number 236756

Inner Diameter 127.00, Material Rubber, Outer Diameter 135.00, Width 1 4.00, Thickness 1.50

F032238322 - Protective CapTrade number 238322

B+ Inner Diameter 23.00, No./mount. holes 2, Inner Diameter 125.00, Material Plastic, Outer Diameter 144.70, Amount of Mounting Holes 2, Height 48.60

F032330316 - RotorTrade number 330316

Voltage 14, Amp 150, Bearing Diameter 15.00, Cooling fan w/, Thread size M16-1.50, Outer Diameter 105.30, Wing height 83.00, Ring Height 1 9.60, Ring Height 2 9.60, Slip Ring End Length 50.00, Drive End Length 45.60, Windings 364, Rotation CW, Slip Ring Front 100.00, Slip Ring Outer Diameter 14.40, Wire Diameter 0.95, Slip Ring Rear 111.80, Thread Length 12.50, Ring Distance 2.00, Wire weight 517, Total Length 152.00, Height 57.50, Shaft Diameter 17.00

F032332115 - EL Field RegulatorTrade number 332115

Voltage 14, Source Valeo, Communication LIN, Regulator type Electronic, Terminal type COM, Distance Between Mounting Holes 61.00

F032333110 - Ball BearingTrade number 333110

Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00

F032333119 - Ball BearingTrade number 333119

Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00

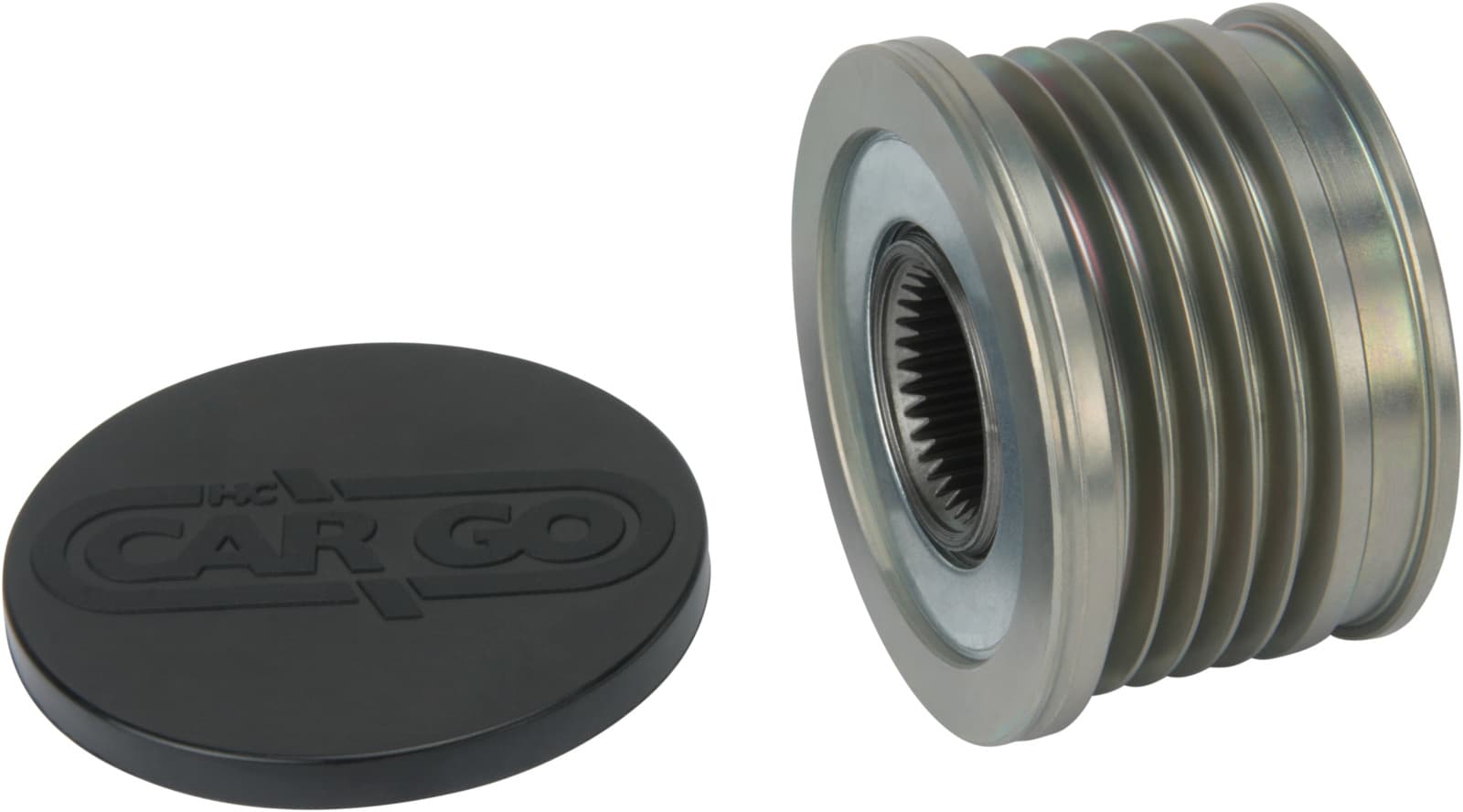

F032333133 - PulleyTrade number 333133

Replacement for:

MERCEDES-BENZ 6681550615

Grooves 5, Thread size M16-1.50, Outer Diameter 49.70, Belt type Multi Belt, Depth 14.40, Free run w/, Width 1 37.70, Groove Measurement 1 15.70, Rear Distance 4.20, Bore dia. 17.00, Remarks Pulley tool: HC-CARGO 210909., Pulley type SP;FW
