Showing results for: JOHN DEERE AL67175
F03200B204 - Carbon BrushTrade number B204
Voltage 14, Conductor w/, Spring w/o, Cable lugs w/o, Lead Length 51.00, Solder hole w/o, Thickness 8.00, Length 19.20, Height 5.00
F032110105 - AlternatorTrade number 110105
Voltage 14, Amp 55, Source Mahle Letrika, Grooves/pulley 1, Regulator type IR, Belt Adjustment Bracket Hole 1 8.00, Radius 84.50, Pulley Diameter 93.00, Prod. info BN, Pulley P, W plug type M5, Pulley Distance 83.30, Servicing John Deere lawn equipment w/ cooling eng, D+ Position 25, Radius 2 87.50, B+ M6, Rotation CW, Bracket Hole Size 1 8.00, Holder Arm Width 56.00, D+ Size M4, Belt Adjustment Bracket Hole Position 60, Total Length 178.00, Position 10, B+ Position 50
F032130101 - StatorTrade number 130101
Replacement for:
JOHN DEERE AL68889
Voltage 14, Amp 55, Number of leads 3, Outer Diameter 125.00, Winding Height 50.00, Lead 2 1, Lead 1 1, Wire thickness 1.75, Stator winding Cross, Lead 3 1, Inner Diameter 89.00, Outer Diameter 2 117.00, Height 23.60
F032130958 - EL Field RegulatorTrade number 130958
Voltage setting 14.7, Voltage 14, Regulator type Electronic, Distance Between Mounting Holes 65.00, Remarks Slip ring O.D. 28.00 mm.
F032132667 - RectifierTrade number 132667
Replacement for:
JOHN DEERE AL68887
Diode A Current Strength 35, W Size 6.30, Control diodes w/, Outer Diameter 114.00, B+ type Bolt, W type Spade, Connections for stator 3, Diode type HD, B+ size M8, Inner Diameter 36.70, D+ type Bolt, B+ Length 34.50, D+ Size M5, D+ Length 27.00
F032132769 - Fitting RingTrade number 132769
Gasket w/o, Inner Diameter 32.00, Material Plastic, Outer Diameter 35.00, Height 42.00
F032134315 - Slip-Ring End ShieldTrade number 134315
D+ plug No, W plug w/o, B+ plug w/o, Stator edge 3.75, Inner Diameter 125.00, Thread size M5, Outer Diameter 135.30, Bearing Hole Inner Diameter 30.35, Remarks Bearing: HC-CARGO 142271., Height 57.45

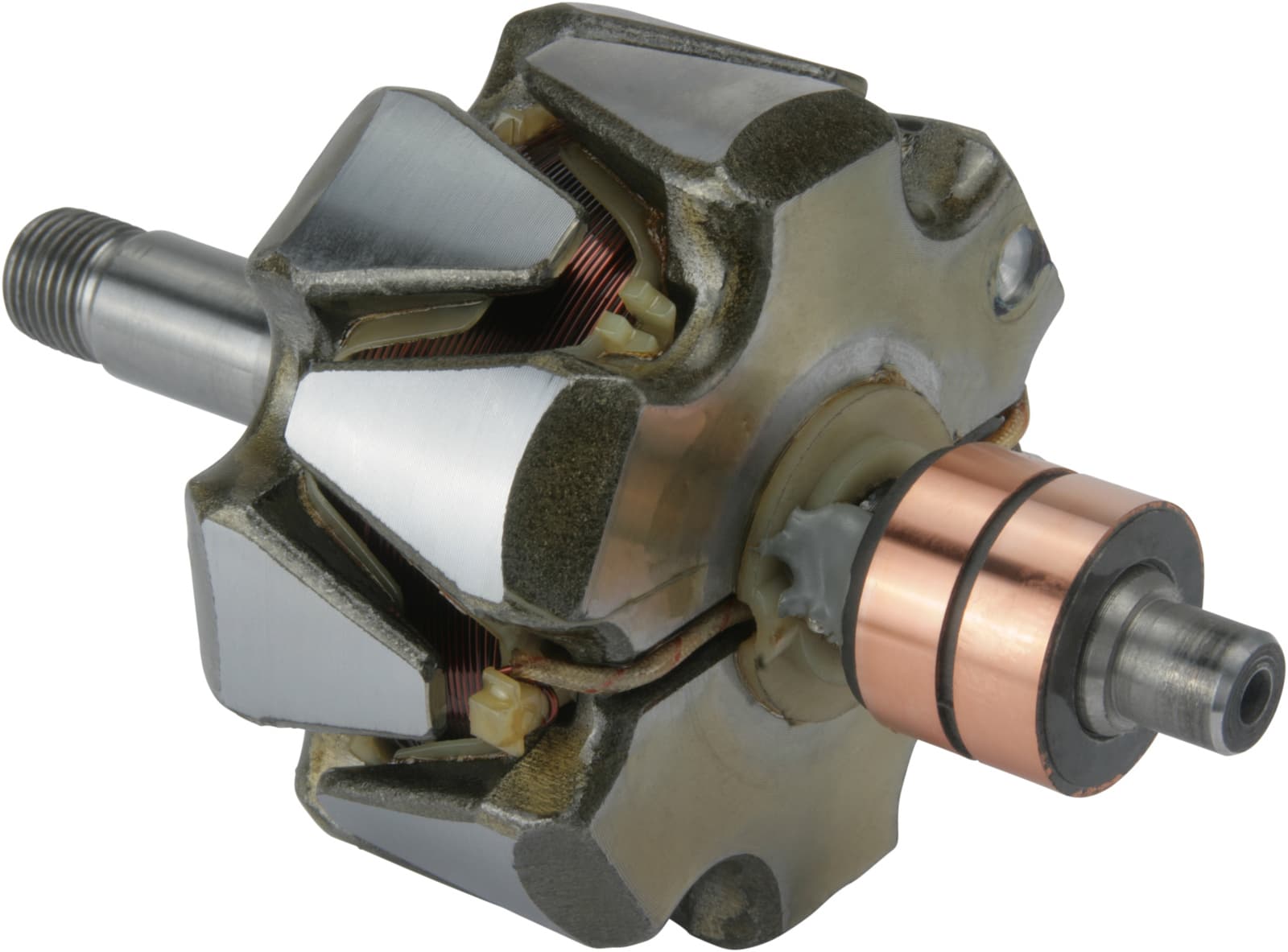

F032138041 - RotorTrade number 138041
Voltage 14, Amp 55, Bearing Diameter 12.00, Cooling fan w/o, Thread size M14-1.50, Outer Diameter 89.00, Current coil 3.57, Core type Loose, Ring Height 1 10.60, Ring Height 2 9.30, Slip Ring End Length 46.60, Drive End Length 58.80, Windings 415, Core height 24.80, Slip Ring Front 75.60, Slip Ring Outer Diameter 27.70, Wire Diameter 0.70, Slip Ring Rear 86.70, Thread Length 13.50, Core Diameter 46.60, Bobine measurement 72.30, Ring Distance 2.20, Wire weight 302, Total Length 153.00, Height 48.00, Shaft Diameter 17.00
F032333108 - Ball BearingTrade number 333108
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 32.00, Remarks 6201-2RS1/C3., Height 10.00
F032333119 - Ball BearingTrade number 333119
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00
F032B33402 - Slip-RingTrade number B133402
Ring Height 1 9.45, Inner Diameter 17.00, Material Copper, Outer Diameter 28.00, Ring Distance 2.60, Ring Height 2 9.35, Remarks w/ 1.80 mm copper., Total Length 22.10
F032B33875 - Fan WheelTrade number B133875
Fans 13, Pulley w/o, Bore dia. 17.00, Rotation CW, Outer Diameter 135.00, Height 13.60
F032B35660 - RingTrade number B135660
Inner Diameter 30.00, Material Copper, Outer Diameter 26.00, Remarks Quick repair for slip ring HC-CARGO 133402., Height 8.50
