Showing results for: VALEO D7E39

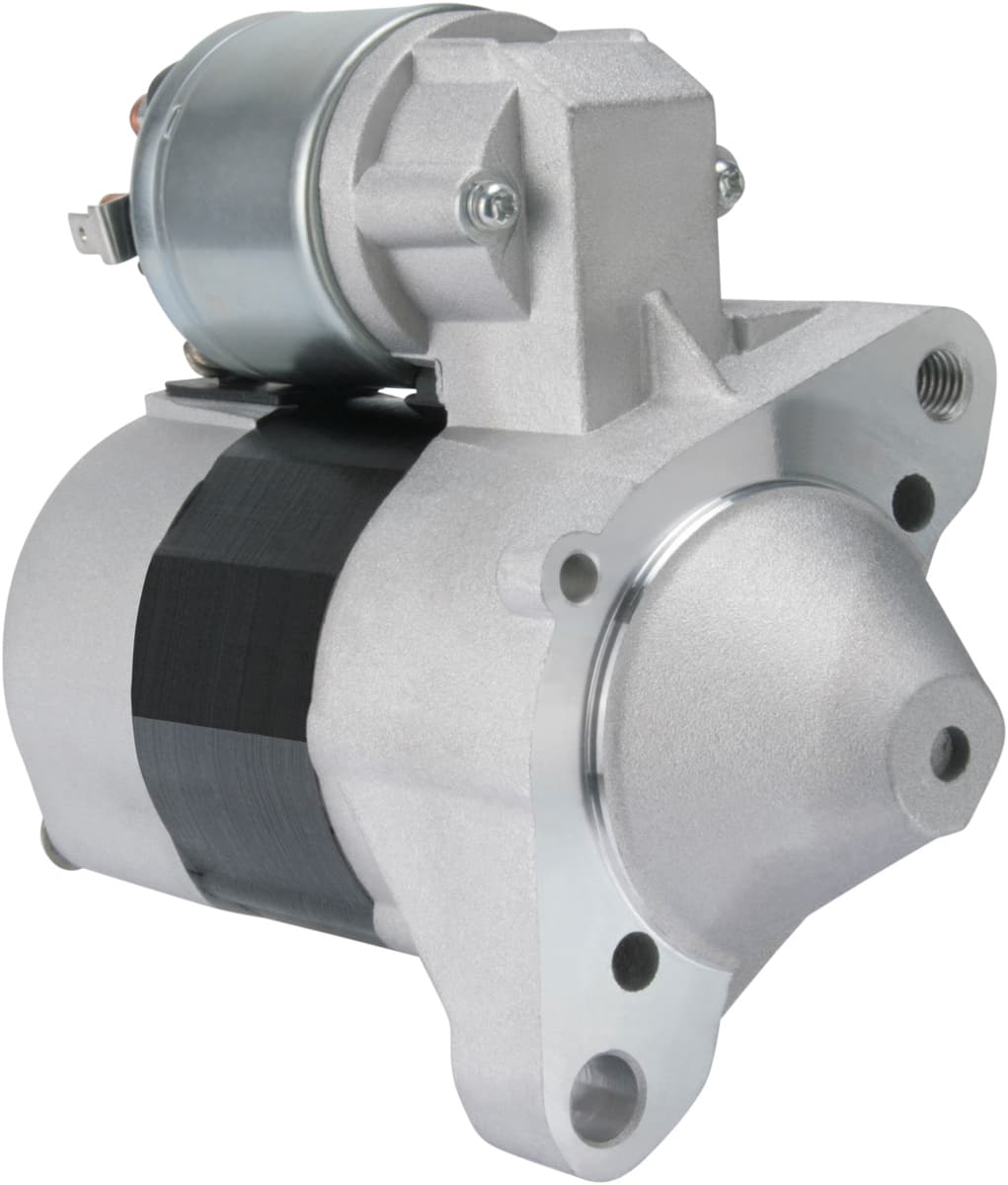

F032114095 - StarterTrade number 114095
kW 0.85, Voltage 12, Mounting Flange 62.50, Terminal 50 6.30, B+ M8, Clutch type Dry, Rotation CW, Distance 105.50, Drive type Steel, No./mount. holes 2 (1), Mounting Hole 2 11.00, Rear Distance 139.00, Drive Distance -1.00, Front Distance 31.00, Amount of Mounting Holes 2, Total Length 170.00, Position 25, Gear type DD, Mounting Holes with Thread 1, No./teeth 9
F032132037 - Parts SetTrade number 132037
Replacement for:
VALEO 132037
Width 1 14.00, Shaft measurement 28.00, Outer Diameter 2 5.85, Material Steel, Shaft w/, Thickness 2.50, Length 33.20
F032132124 - Contact PlateTrade number 132124
Replacement for:
VALEO 132124
Width 1 14.00, Shaft measurement 27.80, Outer Diameter 2 5.85, Material Copper, Shaft w/, Thickness 2.50, Length 28.30

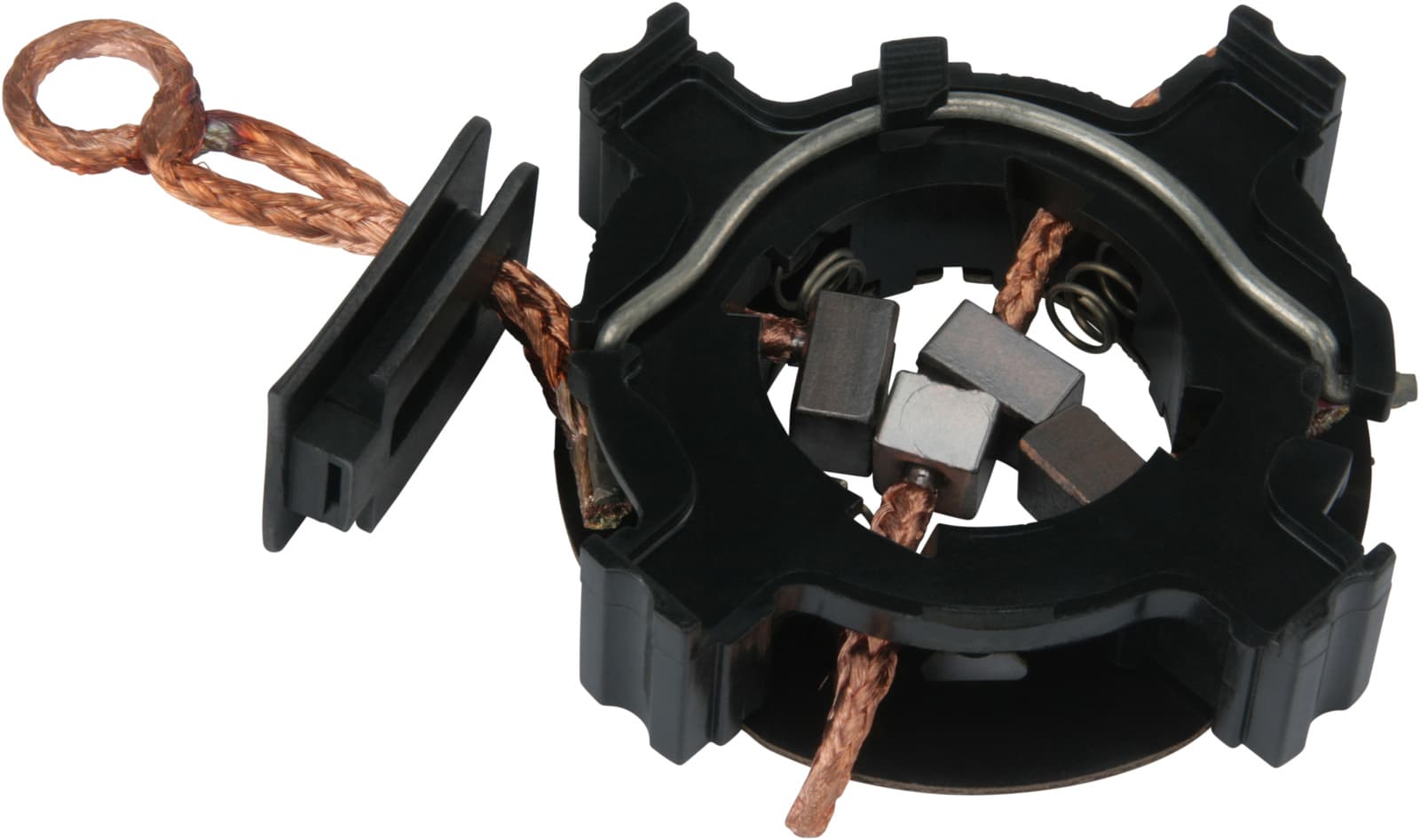

F032139224 - Brush HolderTrade number 139224
Replacement for:
VALEO 594479
Voltage 12, Spring w/, Brush lead length 31.00, Brush w/, Brush Length 11.00, Outer Diameter 60.00, Inner Diameter 29.50, No./brushes 4, Lead Length 31.50, Remarks Brush set: HC-CARGO PSX1554., Brush Height 8.00, Brush Thickness 6.30, Height 17.00

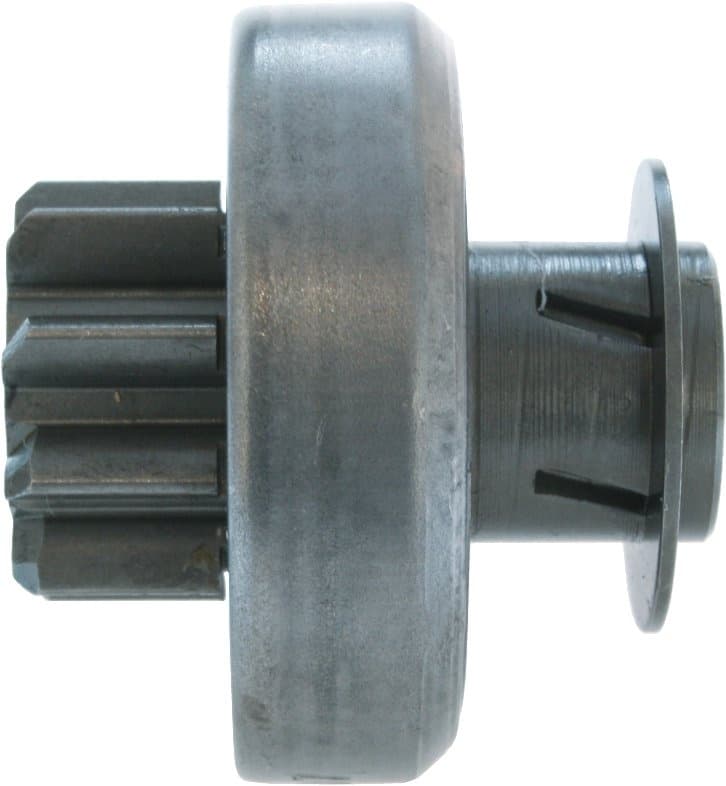

F032139473 - Overrunning-Clutch DriveTrade number 139473
Replacement for:
VALEO NE949
Splines internal 5, Rotation CW, Inner Diameter 11.00, Outer Diameter 25.30, Shaft Distance 3.00, Housing Outer Diameter 46.00, No./teeth 9, Total Length 41.00
F032140249 - BushingTrade number 140249
Pin w/o, Inner Diameter 8.10, Material Copper, Milling w/o, Outer Diameter 11.12, Lubricating groove w/o, Length 8.00
F032140430 - BushingTrade number 140430
Pin w/o, Inner Diameter 10.10, Material Copper, Milling w/o, Outer Diameter 14.04, Lubricating groove w/o, Length 9.60
F032190582 - Spring Lock WasherTrade number 190582
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032191304 - ScrewTrade number 191304
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13

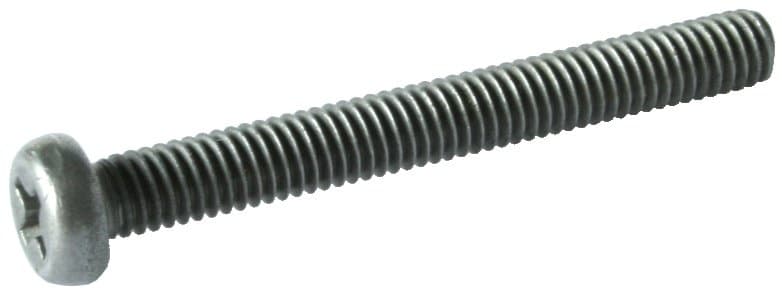

F032192364 - ScrewTrade number 192364
Head type Cheese head, Screw type Phillips, Iso norm 7048, Material Steel, Thread/mm/" M4, Coating Electro Galvanized, Length 35.00
F032230566 - Stop RingTrade number 230566
Replacement for:
VALEO 230566
Thickness 1.20, Remarks Stop collar: HC-CARGO 230565.

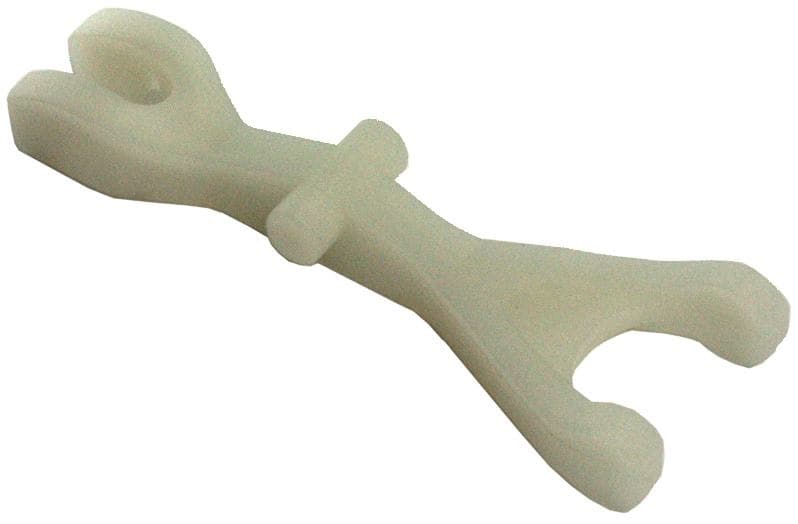

F032231148 - Fork LeverTrade number 231148
Replacement for:
VALEO 231148
Plunger w/o, Distance 19.00, Length 83.00
F032231476 - Parts SetTrade number 231476
Replacement for:
VALEO 594523
kW 0.85/1.0, Voltage 12, Coil w/, Magnets w/o, Brush Length 11.00, Inner Diameter 51.00, Brush gear w/, No./brushes 4, Outer Diameter Middle 78.30, Lead Length 32.00, Length 44.50, Remarks Brush gear: HC-CARGO 139224. Brush set: HC-CARGO PSX1554., Brush Height 8.00, Brush Thickness 6.40

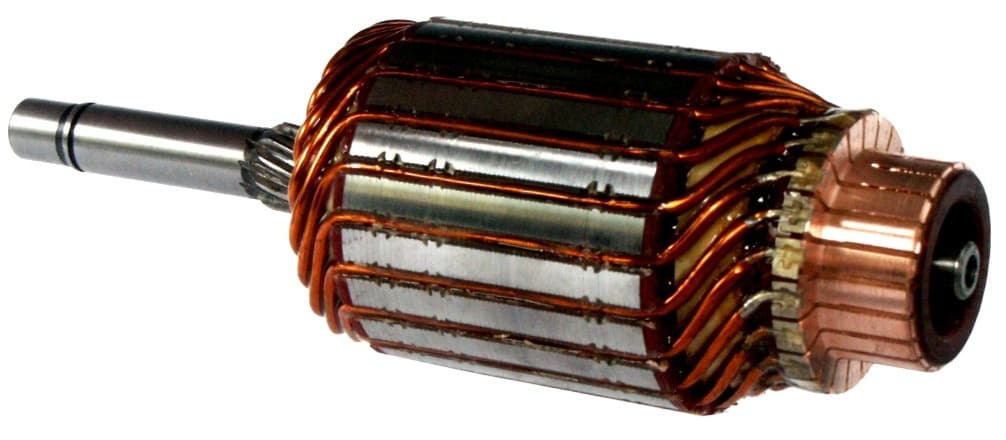

F032233767 - ArmatureTrade number 233767
Replacement for:
VALEO 594518
kW 0.85, Voltage 12, Source Valeo, Bar Lane Height 12.40, Bar Cross Distance 28.00, Spline Teeth Length 21.00, Bar length 3.70, No./bars 21, Commutator Height 22.00, Commutator Diameter 28.00, Commutator Distance 1.50, OD/spline/teeth 13.70, Shaft length 155.50, Bar Distance 2.15, No./splines 10, Drive End Inside Shaft Diameter Outside 10.00, Commutator End Shaft Diameter 8.00, Rotation CW, Commutator Outer Diameter 34.80, Drive End Inside Shaft Diameter 11.00, Commutator Inner Diameter 12.20, Core Diameter 50.00, Shaft Diameter 17.00, Remarks Can only be used w/ drive: HC-CARGO 239359.

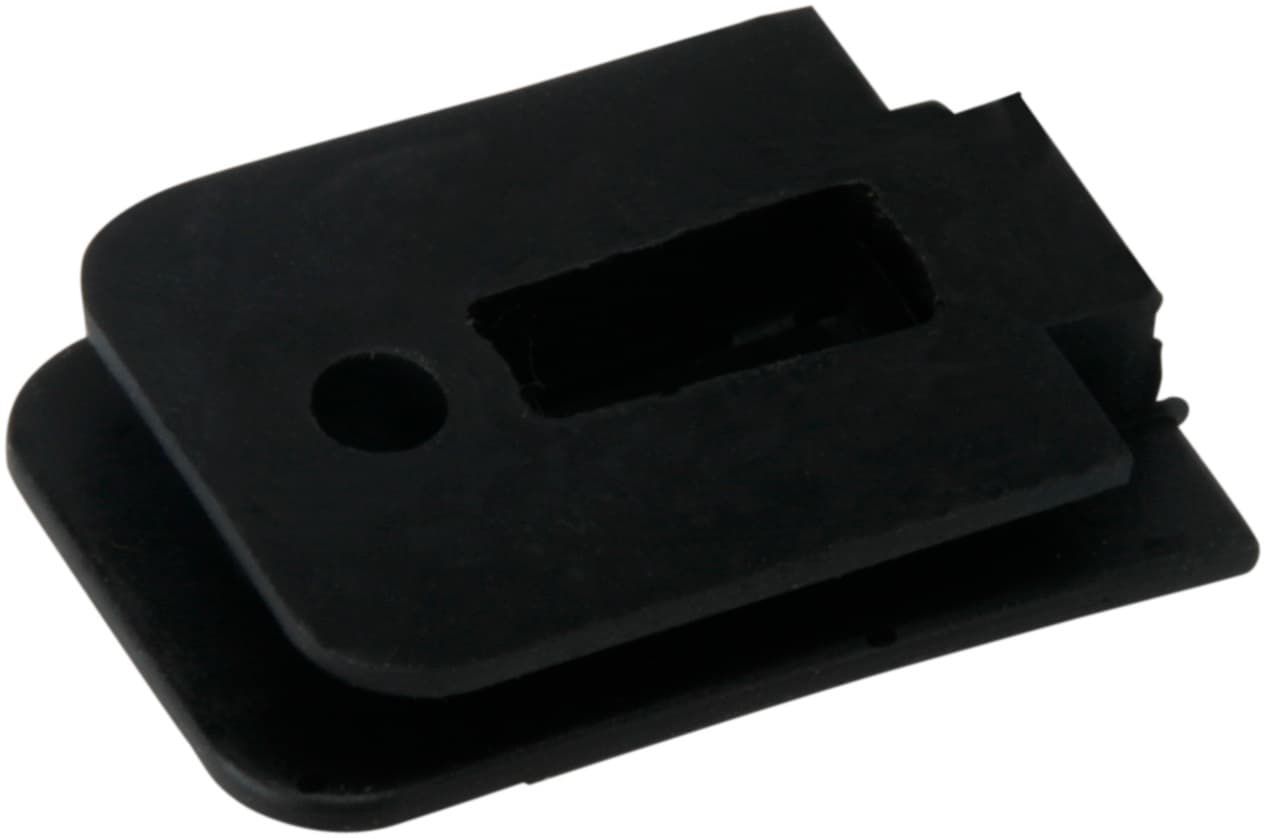

F032236456 - GrommetTrade number 236456
Width 1 20.10, Type Starter, Material Rubber, Mount. holes 1, Thickness 6.55, Length 31.65, Mounting Hole Inner Diameter 3.50

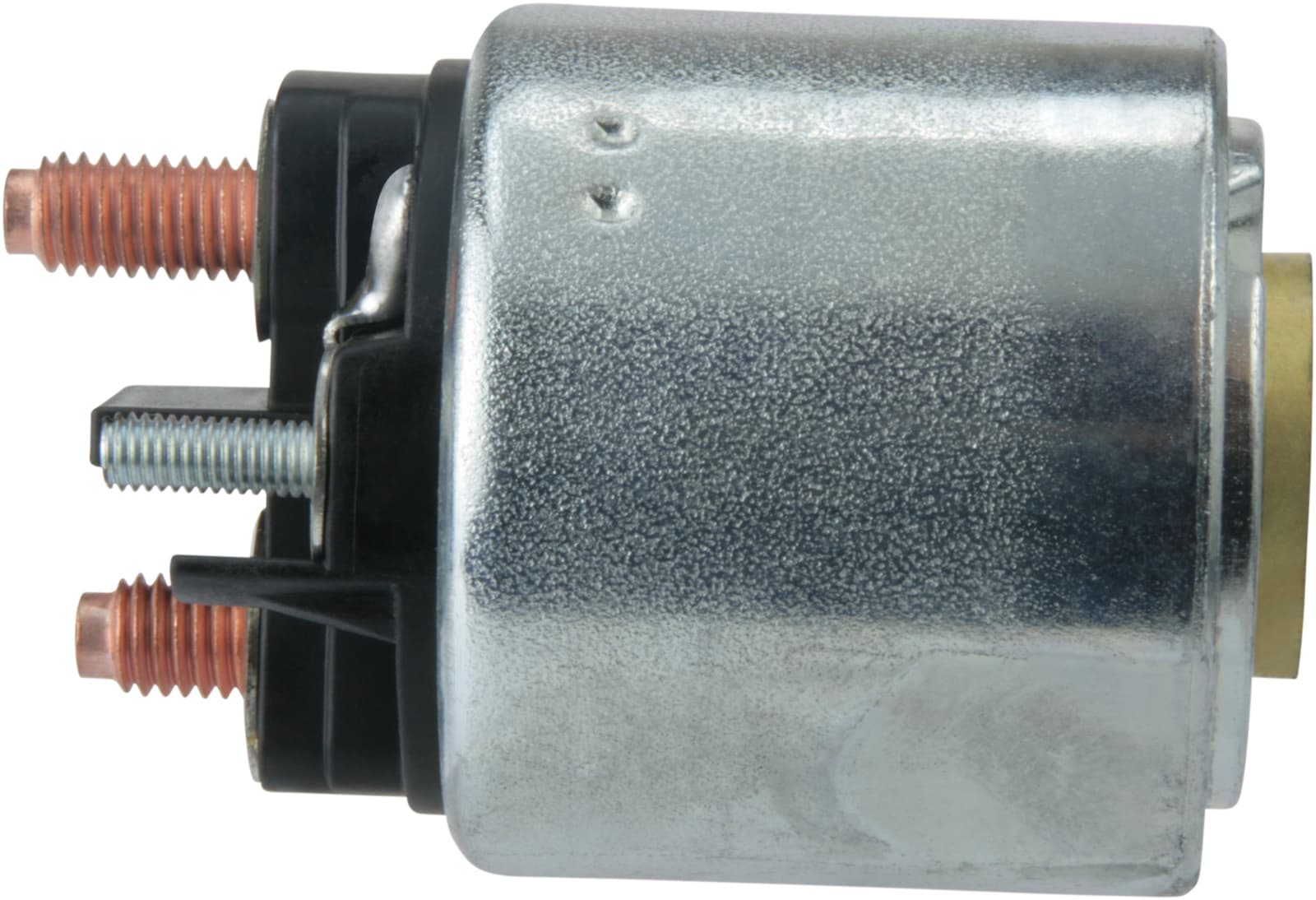

F032237686 - Solenoid SwitchTrade number 237686
Replacement for:
VALEO 237686
Voltage 12, Terminal 50 Width 10.00, Terminal 50 Bolt, B+ Height 14.50, B+ M8, No./mount. holes 2, No./terminals 3, Terminal 50/mm M5, Outer Diameter 54.00, Amount of Mounting Holes 2, Total Length 74.00
F032900269 - Carbon-Brush SetTrade number PSX1554
Replacement for:
VALEO 187144
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 4, Servicing D7E... 2 component, Lead Length 31.50, Thickness 6.40, Length 11.00, Height 8.00

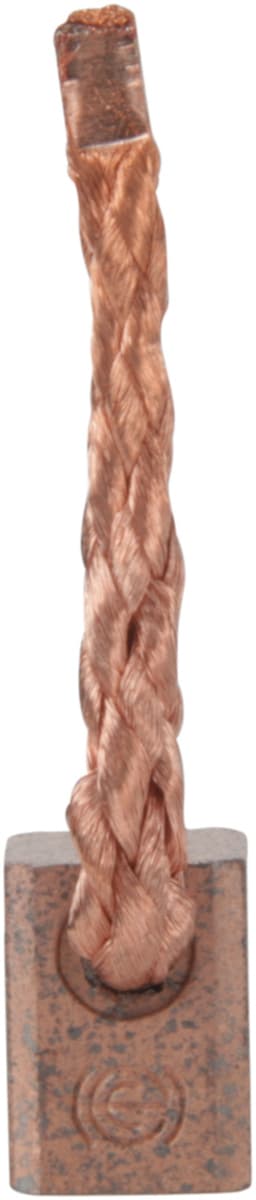

F032902688 - Carbon BrushTrade number PS155B
Replacement for:
VALEO 187144
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/o, Servicing D7E... 2 component, Lead Length 31.50, Thickness 6.40, Length 11.00, Height 8.00
F032B32037 - Contact PlateTrade number B132037
Replacement for:
VALEO 132037
Width 1 14.00, Shaft measurement 28.00, Outer Diameter 2 5.85, Shaft w/, Thickness 2.50, Length 33.20
F032B40249 - BushingTrade number B140249
Pin w/o, Inner Diameter 8.10, Material Copper, Milling w/o, Outer Diameter 11.12, Lubricating groove w/o, Length 8.00

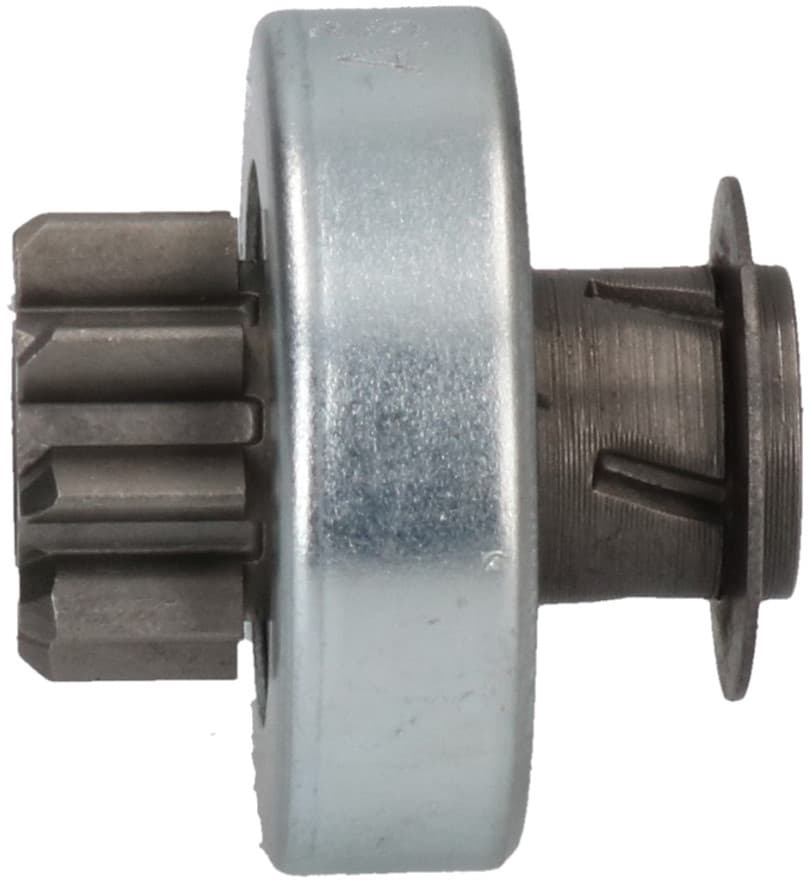

F032335234 - Overrunning-Clutch DriveTrade number 335234
Replacement for:
VALEO NE949
Splines internal 5, Drive type Steel, Rotation CW, Inner Diameter 11.00, Outer Diameter 25.30, Shaft Distance 3.00, Housing Outer Diameter 46.00, No./teeth 9, Total Length 41.00
