Showing results for: VALEO D7G26

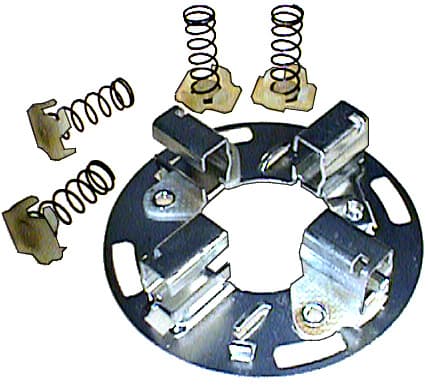

F032136763 - Brush HolderTrade number 136763
Replacement for:
VALEO 594780
Voltage 12, Brush w/o, Spring w/, Inner Diameter 34.00, Brush Gear Width 9.40, Outer Diameter 77.00, Remarks Brush set: HC-CARGO PSX1584., Height 21.20

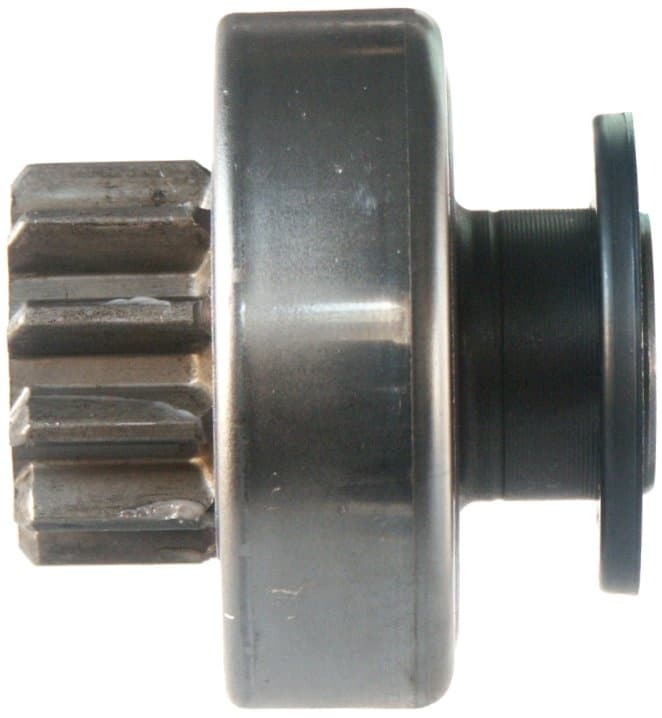

F032234819 - Overrunning-Clutch DriveTrade number 234819
Replacement for:
VALEO 595575
Splines internal 10, Source Valeo, Rotation CW, Inner Diameter 12.00, Outer Diameter 28.90, Total Length 45.00, No./teeth 11, Housing Outer Diameter 50.00

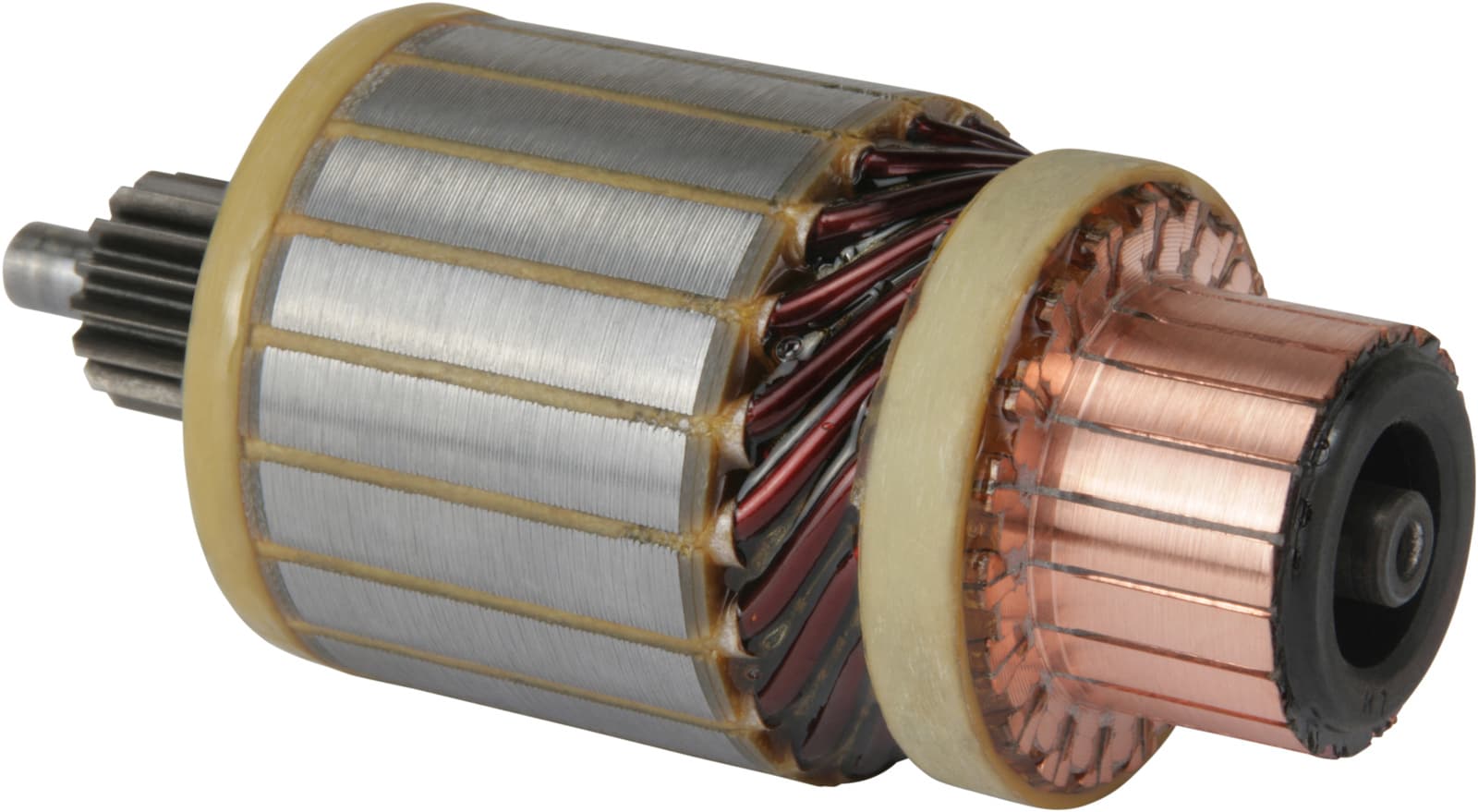

F032236358 - ArmatureTrade number 236358
Replacement for:
VALEO 594781
kW 2.0, Voltage 12, Commutator Diameter 30.20, OD/spline/teeth 18.90, No./bars 19, Commutator Height 29.80, Bar length 5.50, Commutator Inner Diameter 10.00, Bar Distance 2.75, Core Diameter 49.70, Shaft length 118.50, Bar Cross Distance 32.70, Commutator End Shaft Diameter 8.00, Bar Lane Height 18.20, Spline Teeth Length 21.00, Drive End Inside Shaft Diameter Outside 7.00, Commutator Outer Diameter 41.00, Rotation CW/CCW, No./teeth 16

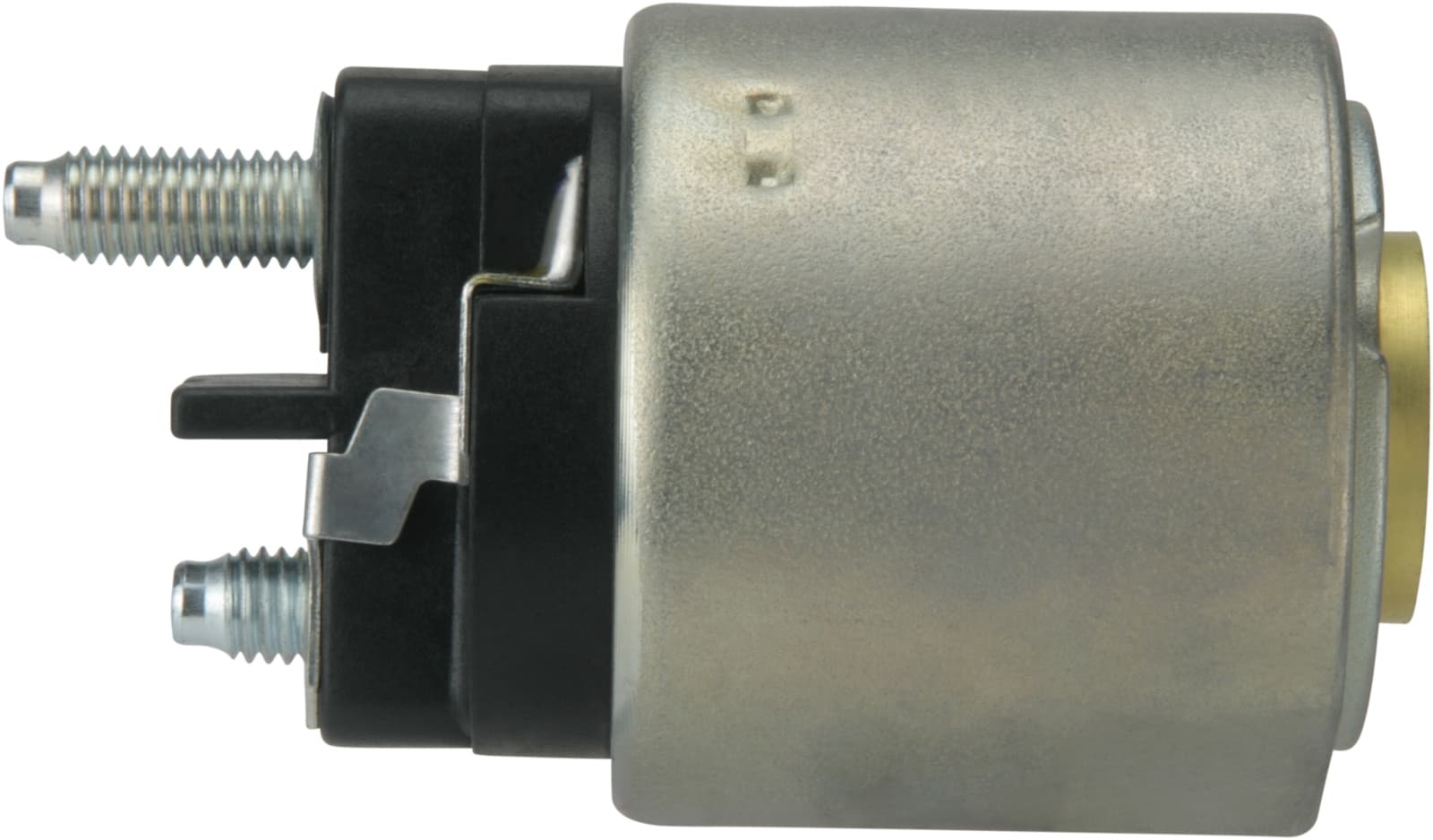

F032238193 - Solenoid SwitchTrade number 238193
Replacement for:
VALEO 595731
Voltage 12, No./mount. holes 2, No./terminals 3, Terminal 50/mm M5, Coil Bolt Length 9.50, Earth straps Long, B+ M8, Terminal 50 Bolt, B+ Height 16.00, Coil Bolt Diameter M8, Terminal 50 Width 10.50, Outer Diameter 54.10, Mounting Hole 1 55, Amount of Mounting Holes 2, Total Length 89.00

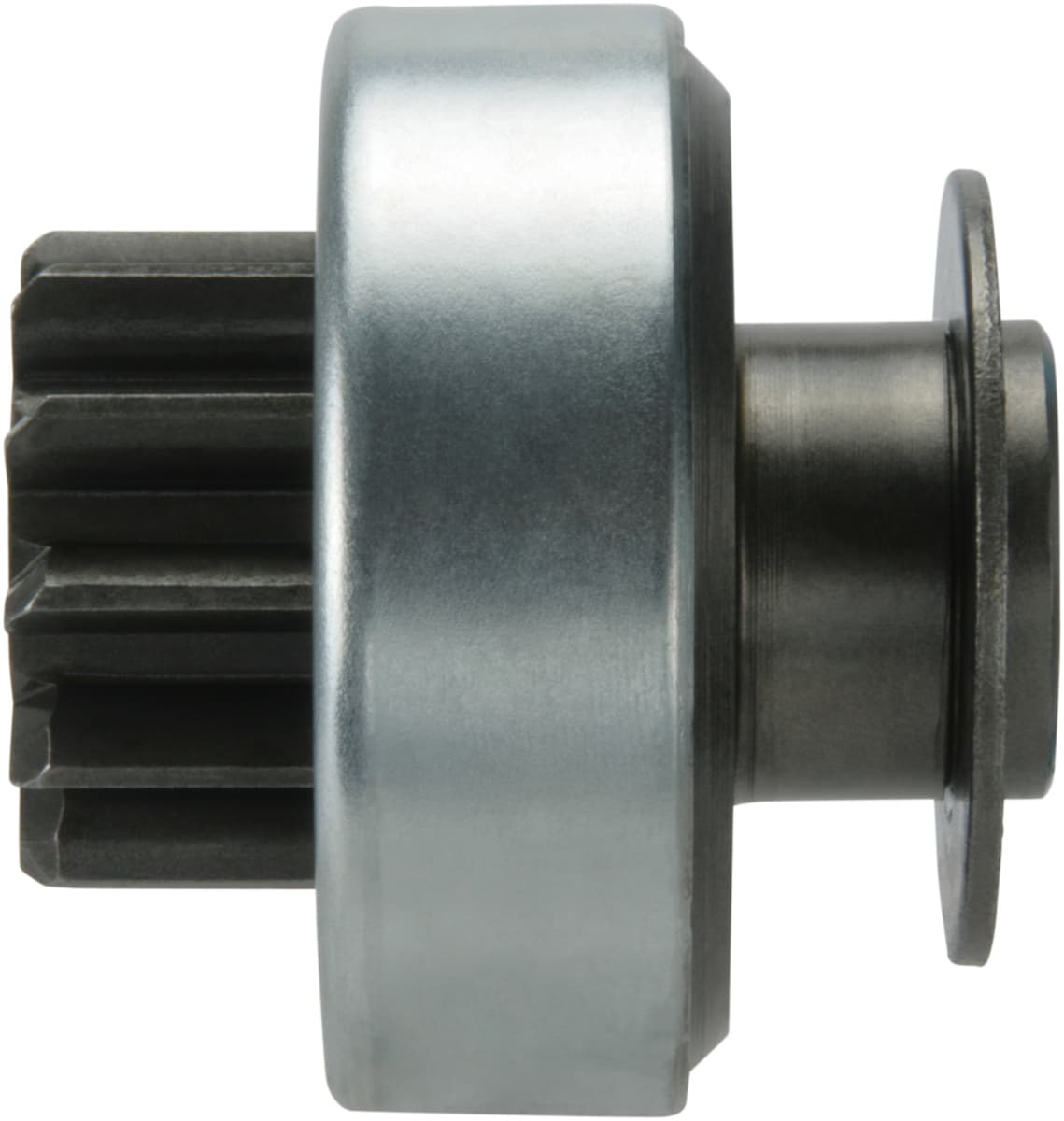

F032332530 - Overrunning-Clutch DriveTrade number 332530
Replacement for:
VALEO 595575
Drive type Steel, Splines internal 10, Rotation CW, Inner Diameter 12.00, Outer Diameter 29.40, Total Length 45.60, No./teeth 11, Housing Outer Diameter 48.40

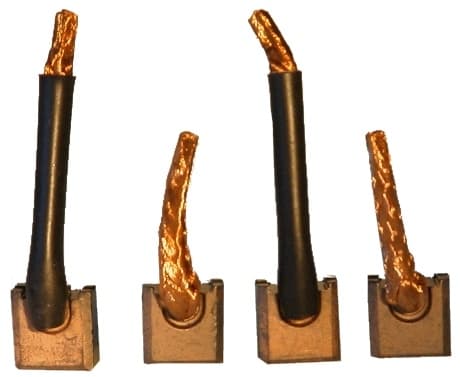

F032900262 - Carbon-Brush SetTrade number PSX142-1444
Replacement for:
VALEO 187778
Voltage 12, Lead Length 56.00, No./brushes 4, Brush lead length 36.00, Conductor w/, Spring w/o, Cable lugs w/o, Remarks 2 component., Length 13.70, Height 14.00, Thickness 7.00
