Search for vehicles and auto parts

F032134267 - SpringTrade number 134267

Replacement for:

MITSUBISHI 134267

Wire thickness 0.75, Width 1 12.20, Material Steel, Height 4.60, Length 14.50

F032135137 - Contact PlateTrade number 135137

Replacement for:

MITSUBISHI 135137

Width 1 11.15, Inner Diameter 9.00, Material Copper, Width 2 14.10, Length 30.25, Thickness 3.00

F032135468 - Fork LeverTrade number 135468

Replacement for:

MITSUBISHI MD618546

Distance 36.30, Plunger w/o, Length 74.00

F032135574 - steel ballTrade number 135574

Replacement for:

MITSUBISHI S409S00008

Ball type Round, Material Steel, Outer Diameter 6.35

F032137929 - Brush HolderTrade number 137929

Replacement for:

MITSUBISHI M321X07071

Voltage 12, Lead Length 77.50, Inner Diameter 31.00, No./brushes 4, Brush w/, Brush lead length 32.00, Brush Length 12.00, Spring w/, Outer Diameter 63.00, Remarks Brush set: HC-CARGO 140921., Height 15.50, Brush Thickness 4.50, Brush Height 12.60

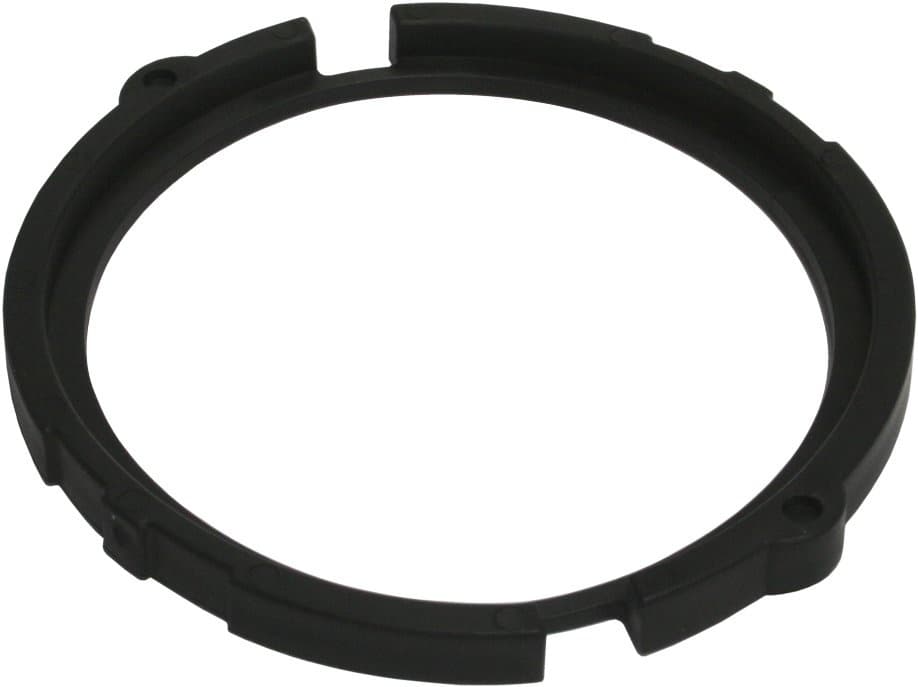

F032139205 - O-RingTrade number 139205

Replacement for:

MITSUBISHI MD618547

Lathe cut o-ring No, Colour Black, Inner Diameter 52.50, Material Rubber, Outer Diameter 63.90, Thickness 4.85

F032140555 - BushingTrade number 140555

Replacement for:

MITSUBISHI M409C12970

Pin w/o, Inner Diameter 10.03, Type Standard, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 14.00, Length 12.50

F032140731 - BushingTrade number 140731

Replacement for:

MITSUBISHI MD618334

Inner Diameter 10.10, Collar Height 1.95, Collar Outer Diameter 1 15.95, Material Copper, Outer Diameter 12.95, Length 10.45

F032140966 - Carbon-Brush SetTrade number 140966

Replacement for:

MITSUBISHI M647X06571

Voltage 12, Conductor w/, Spring w/o, Lead Length 60.00, Solder hole w/o, Cable lugs w/, No./brushes 4, Length 12.00, Thickness 4.50, Height 12.00

F032191873 - ScrewTrade number 191873

Replacement for:

MITSUBISHI M981D73202

Screw type Pozidriv, Thread Length 60.00, Partly threaded w/, Head type Cheese head, Colour Black, Coating Electro Galvanized, Material Steel, Thread/mm/" M5, Length 120.00

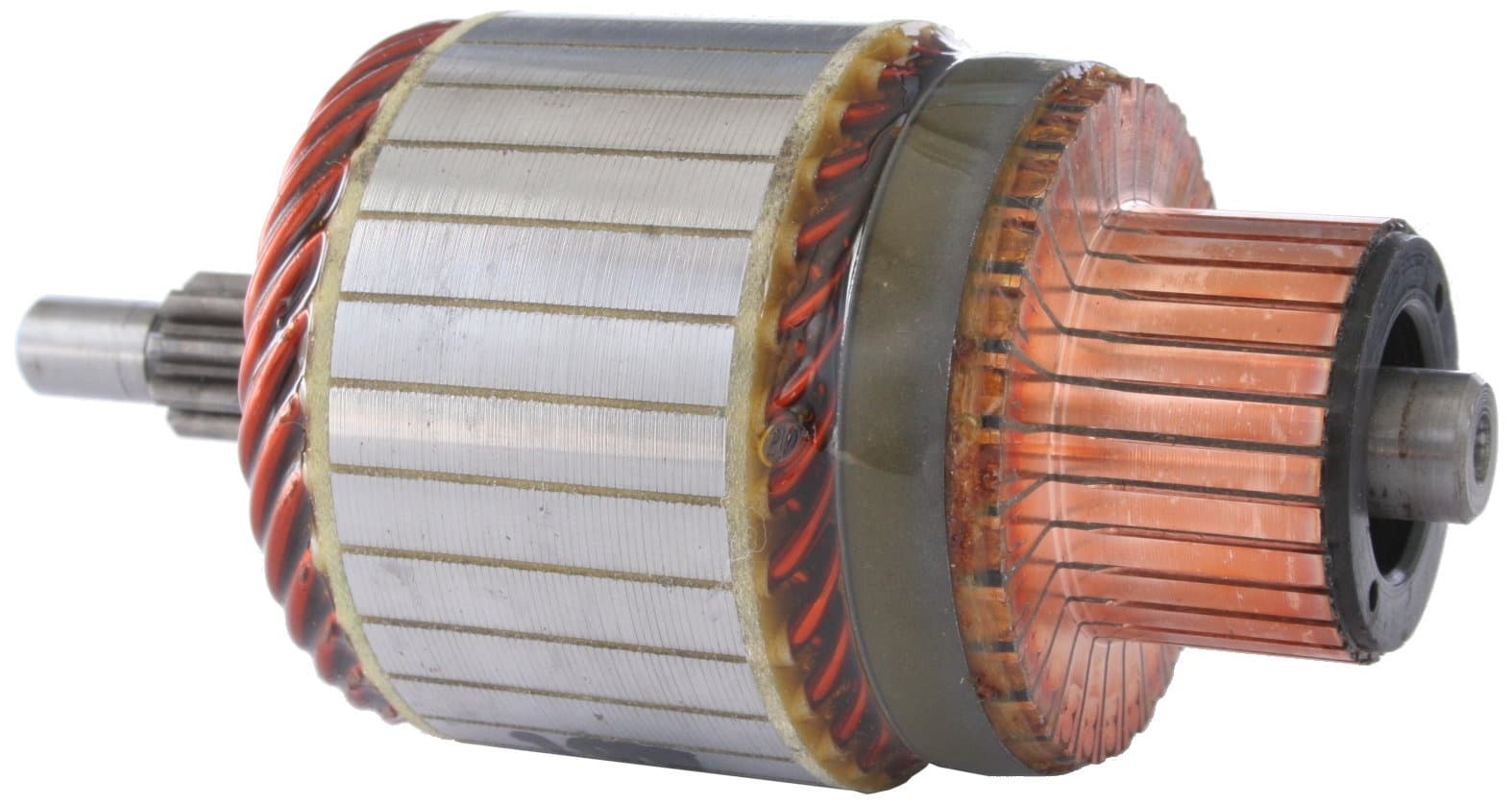

F032230499 - ArmatureTrade number 230499

Replacement for:

MITSUBISHI M106X59771

kW 1.4, Voltage 12, Commutator Diameter 31.50, Commutator Distance 5.10, OD/spline/teeth 13.00, No./bars 29, Commutator Height 25.00, Bar length 3.80, Commutator Inner Diameter 12.00, Bar Distance 2.00, Core Diameter 53.60, Shaft length 113.30, Bar Cross Distance 37.50, Commutator End Shaft Diameter 10.00, Bar Lane Height 18.30, Spline Teeth Length 20.00, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 46.50, No./teeth 9

F032233164 - PipeTrade number 233164

Replacement for:

MITSUBISHI 233164

Inner Diameter 7.70, Outer Diameter 11.55, Length 10.00

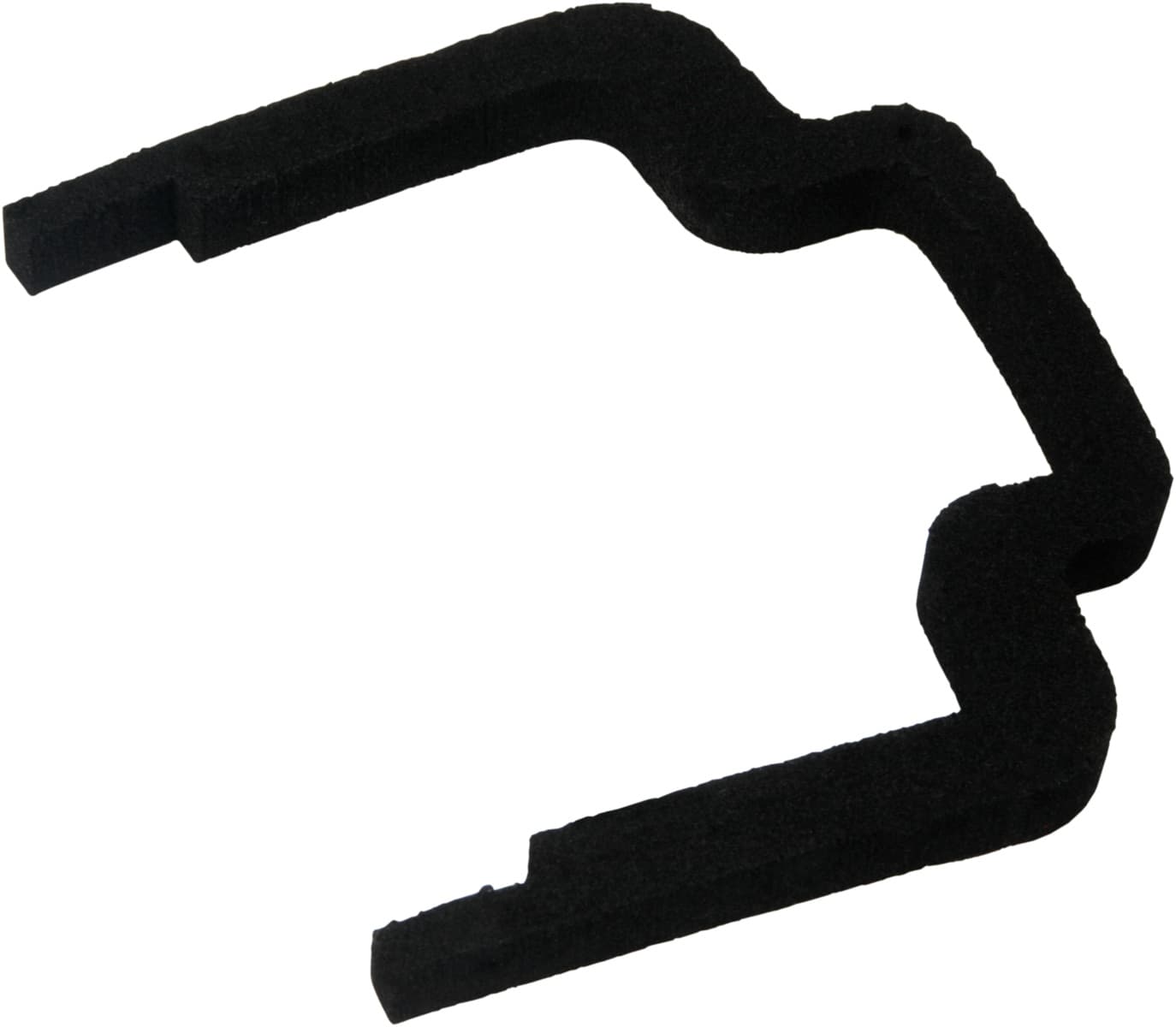

F032236778 - Sealing FrameTrade number 236778

Replacement for:

MITSUBISHI 236778

Width 1 79.00, Length 59.00, Thickness 5.60

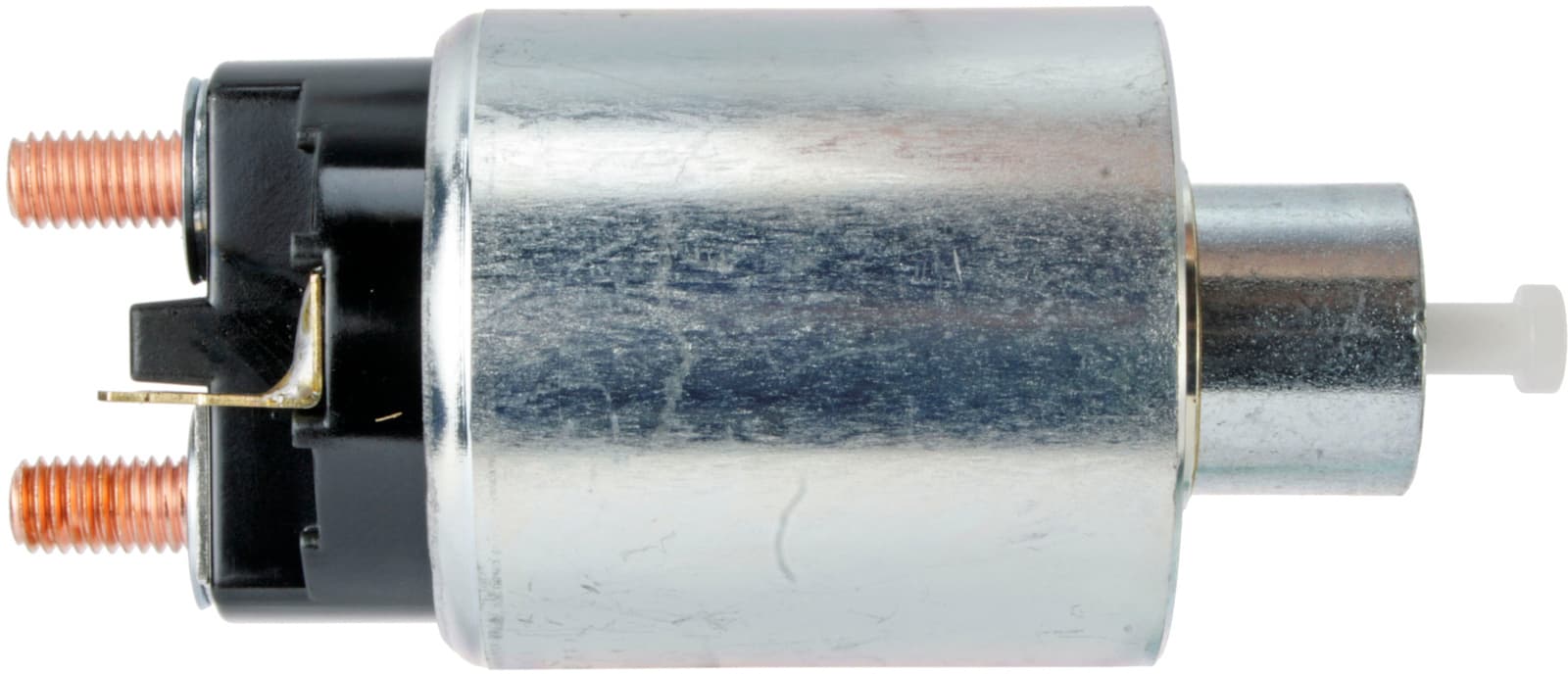

F032236780 - Solenoid SwitchTrade number 236780

Replacement for:

MITSUBISHI M371XC3775

Voltage 12, No./mount. holes 4, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 14.00, Earth straps Short, Bracket type Crimp, Plunger Outer Diameter 24.60, B+ M8, Terminal 50 Spade, B+ Height 16.00, Coil Bolt Diameter M8, Outer Diameter 52.00, Length 43.30, Amount of Mounting Holes 4, Total Length 91.00
