Showing results for: MITSUBISHI M001T72085

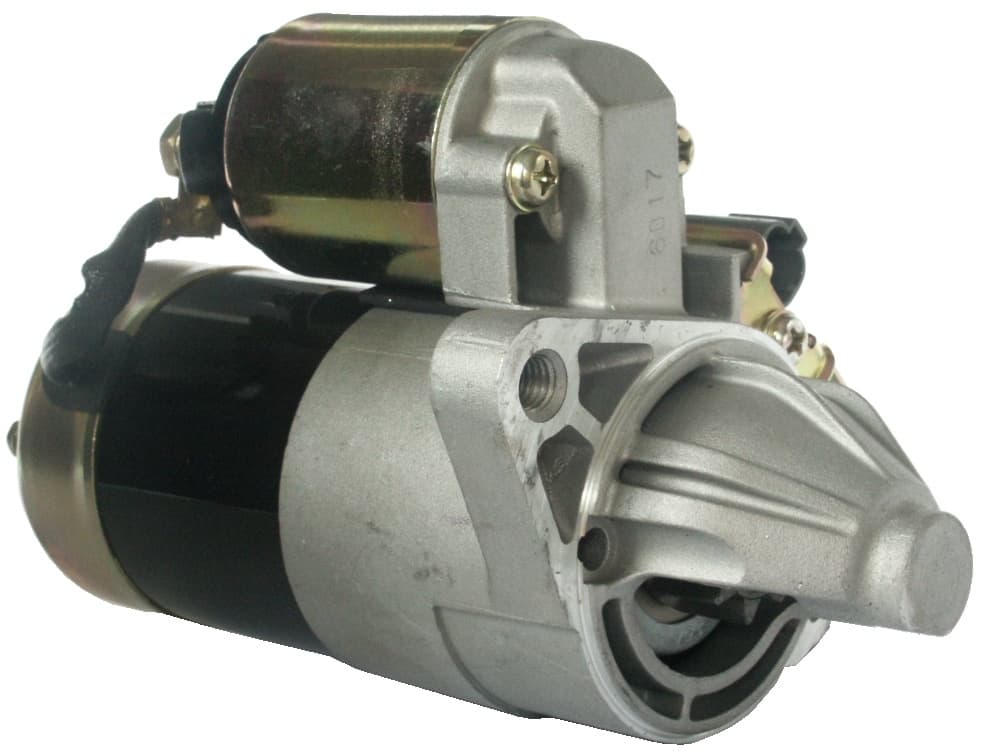

F032111459 - StarterTrade number 111459
kW 1.2, Voltage 12, Mounting Flange 70.00, Terminal 50 Plug, B+ M8, Rotation CW, Distance 105.00, Oil sealed No, Prod. info BN, Drive type Steel, No./mount. holes 2 (1), Rear Distance 160.50, Drive Distance 11.50, Waterproof No, Front Distance 47.00, Amount of Mounting Holes 2, Total Length 207.00, Mounting Hole 1 10.80, Gear type GR, Mounting Holes with Thread 1, No./teeth 8
F032132011 - Overrunning-Clutch DriveTrade number 132011
Replacement for:
MITSUBISHI M191X18171
Splines internal 8, Rotation CW, Inner Diameter 12.00, Outer Diameter 28.00, Housing Outer Diameter 46.00, No./teeth 8, Total Length 50.20
F032133341 - Brush HolderTrade number 133341
Replacement for:
MITSUBISHI M649X01271MITSUBISHI M649T01271
Voltage 12, Spring w/, Brush w/, Brush Length 17.50, Outer Diameter 67.50, Brush Gear Width 7.60, Inner Diameter 31.00, No./brushes 2, Remarks Pos. brushes: HC-CARGO 140967., Brush Height 11.80, Brush Thickness 4.40, Height 16.50
F032135341 - Parts SetTrade number 135341
Replacement for:
MITSUBISHI M230D00171
Teeth Depth 1.40, Bushing w/, Inner Diameter 8.00, Outer Diameter 20.30, No./teeth 16, Height 11.30
F032135468 - Fork LeverTrade number 135468
Replacement for:
MITSUBISHI M864X09774
Plunger w/o, Distance 36.30, Length 74.00
F032135574 - steel ballTrade number 135574
Replacement for:
MITSUBISHI S409S00008
Ball type Round, Material Steel, Outer Diameter 6.35

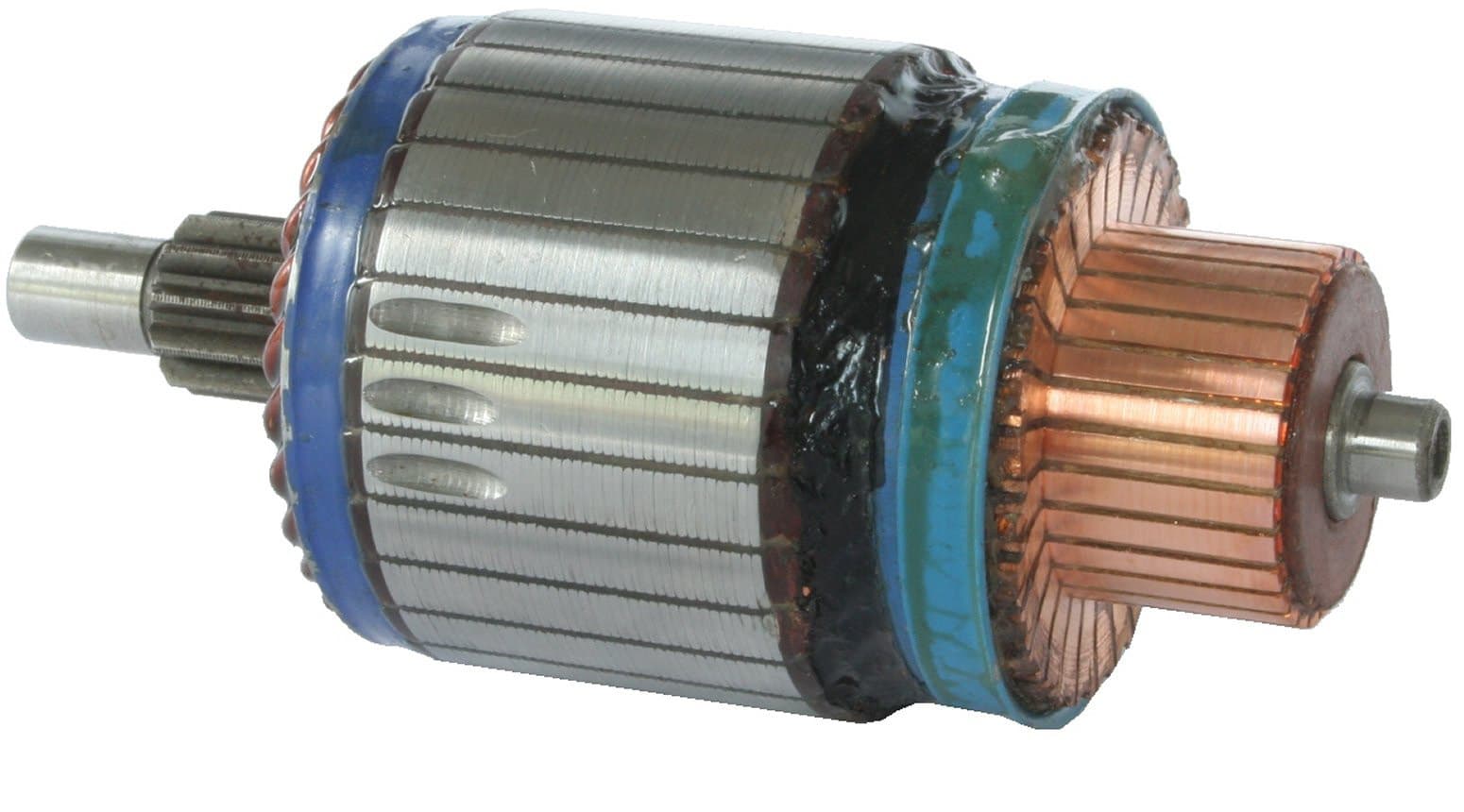

F032136334 - ArmatureTrade number 136334
Replacement for:
MITSUBISHI M106X50471
kW 1.2/1.4, Voltage 12, Drive End Inside Shaft Diameter Outside 10.00, Bar Lane Height 16.80, Bar Cross Distance 37.30, Commutator End Shaft Diameter 8.00, Spline Teeth Length 22.30, Commutator Outer Diameter 29.50, Bar length 4.50, Commutator Inner Diameter 12.00, No./bars 29, Commutator Height 25.00, Commutator Diameter 31.20, Commutator Distance 7.30, OD/spline/teeth 15.60, Core Diameter 54.00, Shaft length 121.50, Bar Distance 2.00, No./teeth 11
F032136894 - Pole housingTrade number 136894
Replacement for:
MITSUBISHI M800T39871
kW 1.2/1.4, Voltage 12, Coil w/o, Magnets w/, Outer Diameter Rear 72.20, Outer Diameter Front 71.90, Rotation CW, Inner Diameter 55.80, Brush gear w/o, No./magnets 6, Outer Diameter Middle 74.70, Length 63.60
F032136895 - Parts SetTrade number 136895
Replacement for:
MITSUBISHI M578C24601
Inner Diameter 53.00, Outer Diameter 67.00, Thickness 8.00
F032136947 - Brush-Spring SetTrade number 136947
Replacement for:
MITSUBISHI M391C03201
Material Steel, Outer Diameter 10.45, Length 15.85

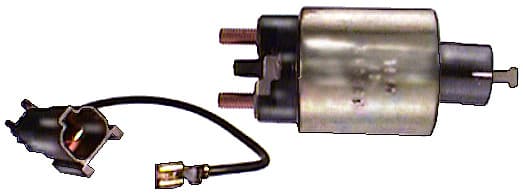

F032138012 - Solenoid SwitchTrade number 138012
Replacement for:
MITSUBISHI M371X64771MITSUBISHI M371X76871
Voltage 12, Terminal 50 Spade, B+ Height 18.00, Coil Bolt Diameter M8, B+ M8, Outer Diameter 51.30, No./mount. holes 4, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 17.00, Plunger Outer Diameter 25.00, Amount of Mounting Holes 4, Total Length 125.00, Length 43.25, Remarks Cap: HC-CARGO 231107.
F032140222 - Ball BearingTrade number 140222
Replacement for:
MITSUBISHI S930P12070
Inner Diameter 8.00, Outer Diameter 22.00, Bearing type Ball bearing, Height 7.00
F032140555 - BushingTrade number 140555
Replacement for:
MITSUBISHI M409C12970
Pin w/o, Type Standard, Inner Diameter 10.03, Material Copper, Milling w/o, Outer Diameter 14.00, Lubricating groove w/o, Length 12.50
F032140559 - Carbon-Brush SetTrade number 140559
Replacement for:
MITSUBISHI M647C00272MITSUBISHI M647C00271
Voltage 12, Spring w/o, Brush lead length 31.00, No./brushes 4, Lead Length 80.00, Thickness 4.40, Length 17.30, Remarks w/o brush bar: HC-CARGO 141037., Height 11.80
F032140731 - BushingTrade number 140731
Replacement for:
MITSUBISHI M409C32401
Collar Height 1.95, Inner Diameter 10.10, Material Copper, Outer Diameter 12.95, Collar Outer Diameter 1 15.95, Length 10.45

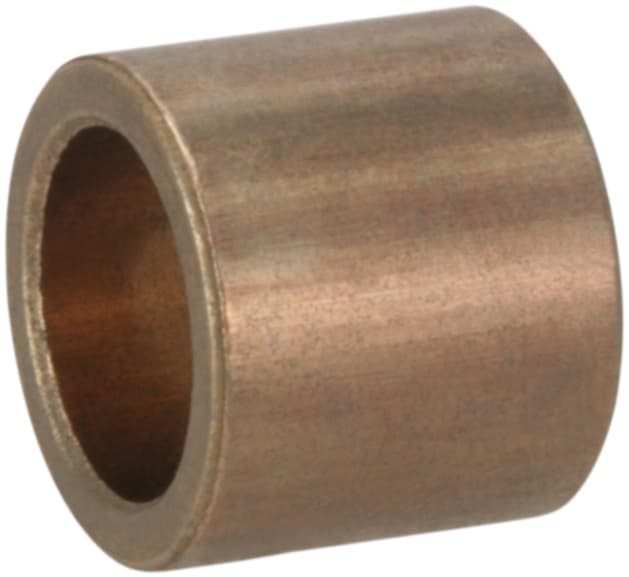

F032141025 - BushingTrade number 141025
Pin w/o, Inner Diameter 10.17, Material Copper, Milling w/o, Outer Diameter 14.07, Lubricating groove w/o, Length 12.20
F032190552 - ScrewTrade number 190552
Head type Pan head, Screw type Pozidriv, Iso norm 7045, DIN norm 7985, Material Steel, Thread/mm/" M6, Coating Electro Galvanized, Length 10.00
F032191304 - ScrewTrade number 191304
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191513 - Self-locking nutTrade number 191513
Self-locking w/, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191584 - ScrewTrade number 191584
Replacement for:
MITSUBISHI M981S70101
Head type Cheese head, Partly threaded w/, Screw type Pozidriv, Thread Length 60.00, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Colour Black, Length 125.00
F032333106 - Ball BearingTrade number 333106
Replacement for:
MITSUBISHI S930P12070
Bearing type Ball bearing, Inner Diameter 8.00, Outer Diameter 22.00, Remarks 608-2RS1., Height 7.00
F032B40555 - BushingTrade number B140555
Replacement for:
MITSUBISHI M409C12970
Pin w/o, Inner Diameter 10.03, Material Copper, Milling w/o, Outer Diameter 14.00, Lubricating groove w/o, Length 12.50
