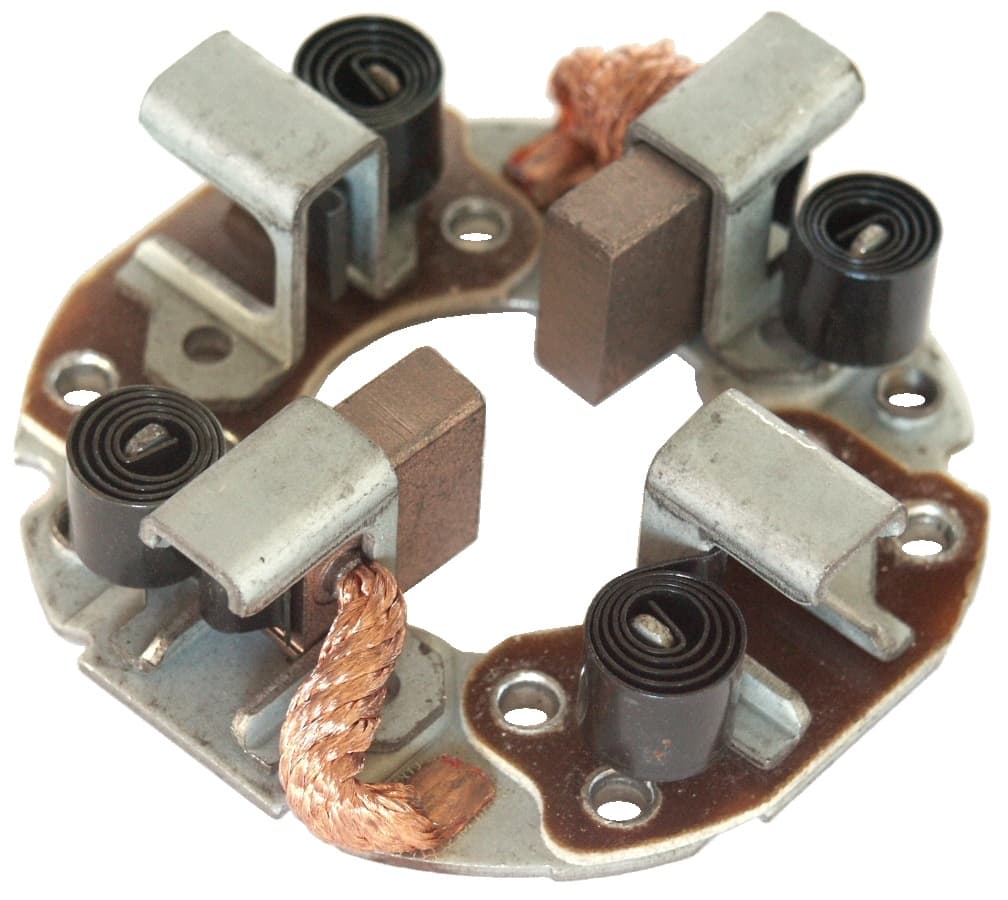

F032132475 - Brush HolderTrade number 132475

Replacement for:

MITSUBISHI M649T05071

Voltage 12, Inner Diameter 32.00, No./brushes 2, Brush w/, Brush Length 18.00, Spring w/, Brush Gear Width 10.20, Outer Diameter 70.50, Remarks Brush set: HC-CARGO 140387., Height 22.00, Brush Thickness 6.80, Brush Height 18.00

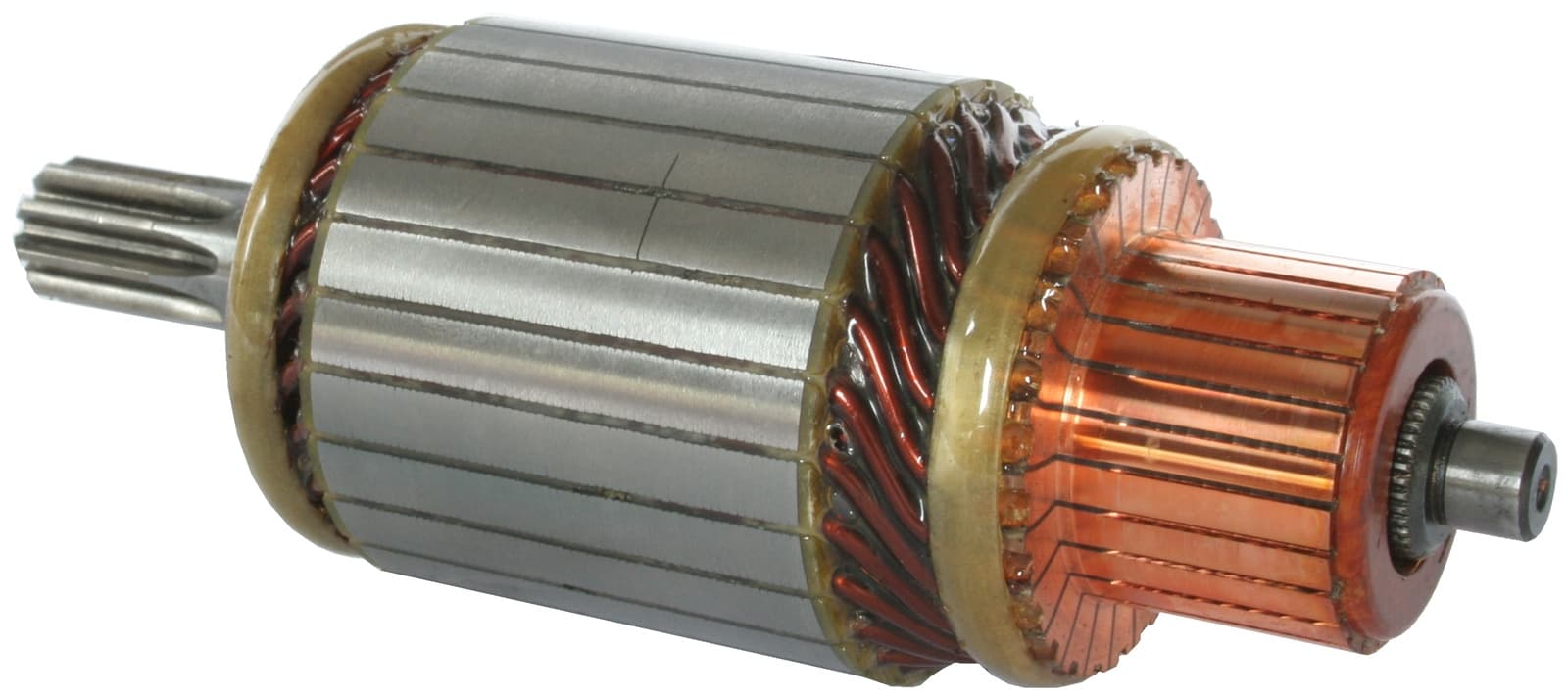

F032132486 - ArmatureTrade number 132486

Replacement for:

MITSUBISHI M106X02271

kW 2.0, Voltage 12, Commutator Diameter 33.30, Commutator Distance 9.00, OD/spline/teeth 14.70, No./bars 25, Commutator Height 31.70, Bar length 4.30, Commutator Inner Diameter 9.90, Bar Distance 2.25, Core Diameter 53.20, Shaft length 152.00, Bar Cross Distance 38.30, Commutator End Shaft Diameter 9.00, Bar Lane Height 22.60, Spline Teeth Length 26.00, Commutator Outer Diameter 47.00, Drive End Inside Shaft Diameter 15.00, Rotation CW/CCW, No./teeth 9

F032133449 - Overrunning-Clutch DriveTrade number 133449

Replacement for:

MITSUBISHI M357T72671

No./splines 20, Shaft Outer Diameter Rear 14.00, Drive End House Shaft Length 66.00, Shaft Outer Diameter Front 18.65, Outer Diameter 66.70, Total Length 143.80

F032134484 - O-RingTrade number 134484

Replacement for:

MITSUBISHI M578D13501

Lathe cut o-ring No, Colour Black, Inner Diameter 5.00, Thickness 2.00

F032134485 - O-RingTrade number 134485

Replacement for:

MITSUBISHI M816D00701

Lathe cut o-ring No, Colour Black, Inner Diameter 4.00, Thickness 2.00

F032137219 - Commutator End ShieldTrade number 137219

Replacement for:

MITSUBISHI M644B21201

Inner Diameter 76.50, Height 44.00

F032139344 - PinionTrade number 139344

Replacement for:

MITSUBISHI M605X36171

Bearing w/o, No./splines 20, Teeth Depth 6.00, Bushing w/o, Inner Diameter 19.80, Teeth Height 16.55, Collar Height 1.85, Outer Diameter 38.50, Height 18.20, No./teeth 10

F032140284 - Ball BearingTrade number 140284

Replacement for:

MITSUBISHI S930P14670

Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 32.00, Height 9.00, Remarks 6002-2Z.

F032140301 - Ball BearingTrade number 140301

Replacement for:

MITSUBISHI S930P60470

Bearing type Ball bearing, Inner Diameter 9.00, Outer Diameter 26.00, Remarks 629-2Z., Height 8.00

F032140412 - Ball BearingTrade number 140412

Replacement for:

MITSUBISHI M410X12971

Bearing type Ball bearing, Bushing w/, Height 2 10.00, Inner Diameter 18.75, Outer Diameter 37.00, Height 9.00

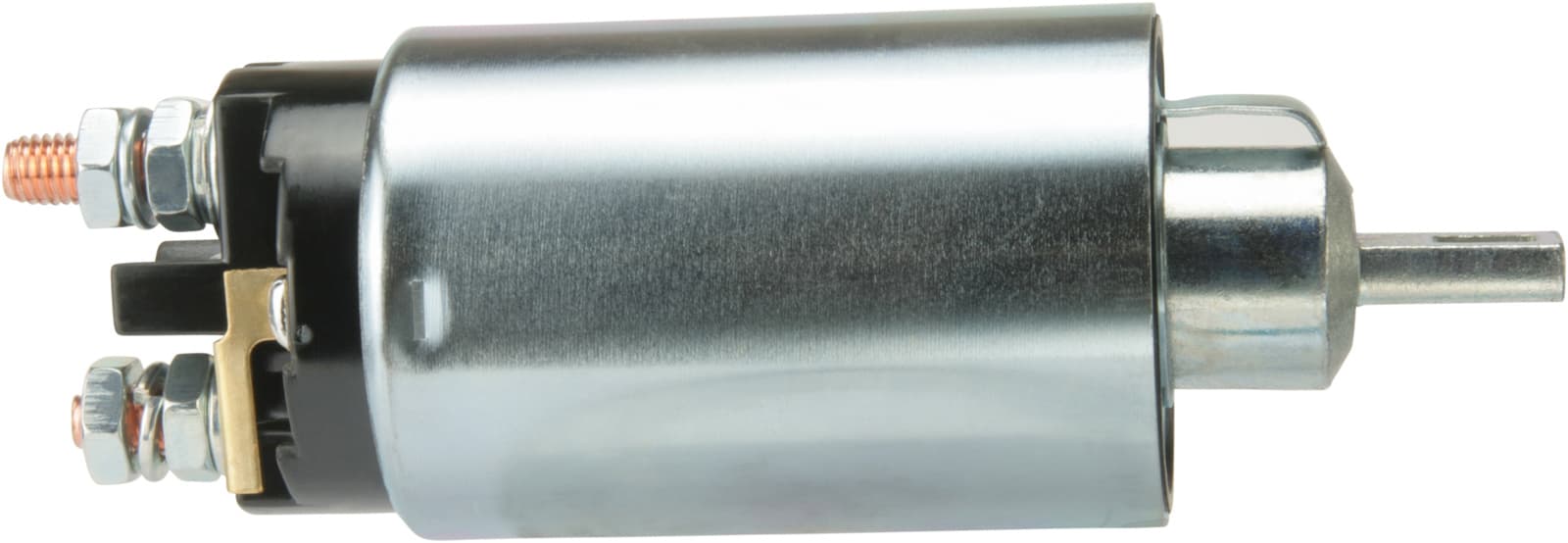

F032230204 - Solenoid SwitchTrade number 230204

Replacement for:

MITSUBISHI M372X02471

Voltage 12, No./mount. holes 2, No./terminals 3, Terminal 50/mm M5, Coil Bolt Length 16.50, Eye Outer Diameter 10.30, Plunger Outer Diameter 25.80, Eye Inner Diameter 6.20, B+ M8, Terminal 50 Screw, B+ Height 21.50, Coil Bolt Diameter M8, Outer Diameter 55.20, Remarks Cap: HC-CARGO 134625., Amount of Mounting Holes 2, Total Length 124.00
