Showing results for: MITSUBISHI M002T88671

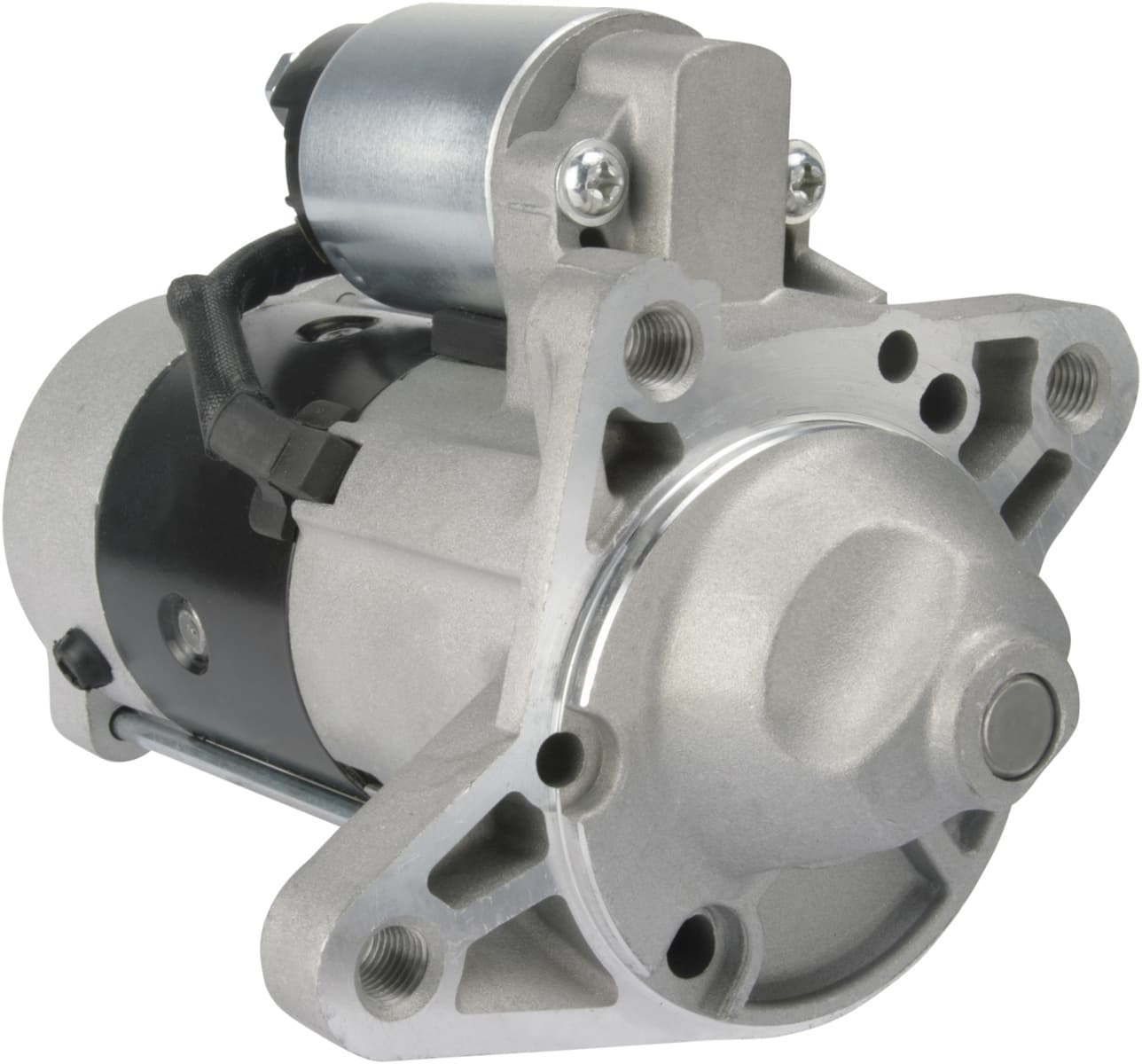

F032114059 - StarterTrade number 114059
kW 2.3, Voltage 12, Mounting Flange 88.00, Terminal 50 6.30, B+ M8, Rotation CW, Distance 140.00, Prod. info BN, No./mount. holes 3 (3), Rear Distance 186.00, Distance 2 90.00, Distance 3 80.00, Drive Distance 5.00, Mounting hole 3 with thread M12-1.50, Front Distance 41.50, Amount of Mounting Holes 3, Total Length 226.00, Position 50, Gear type GR, Mounting Holes with Thread 3, No./teeth 12

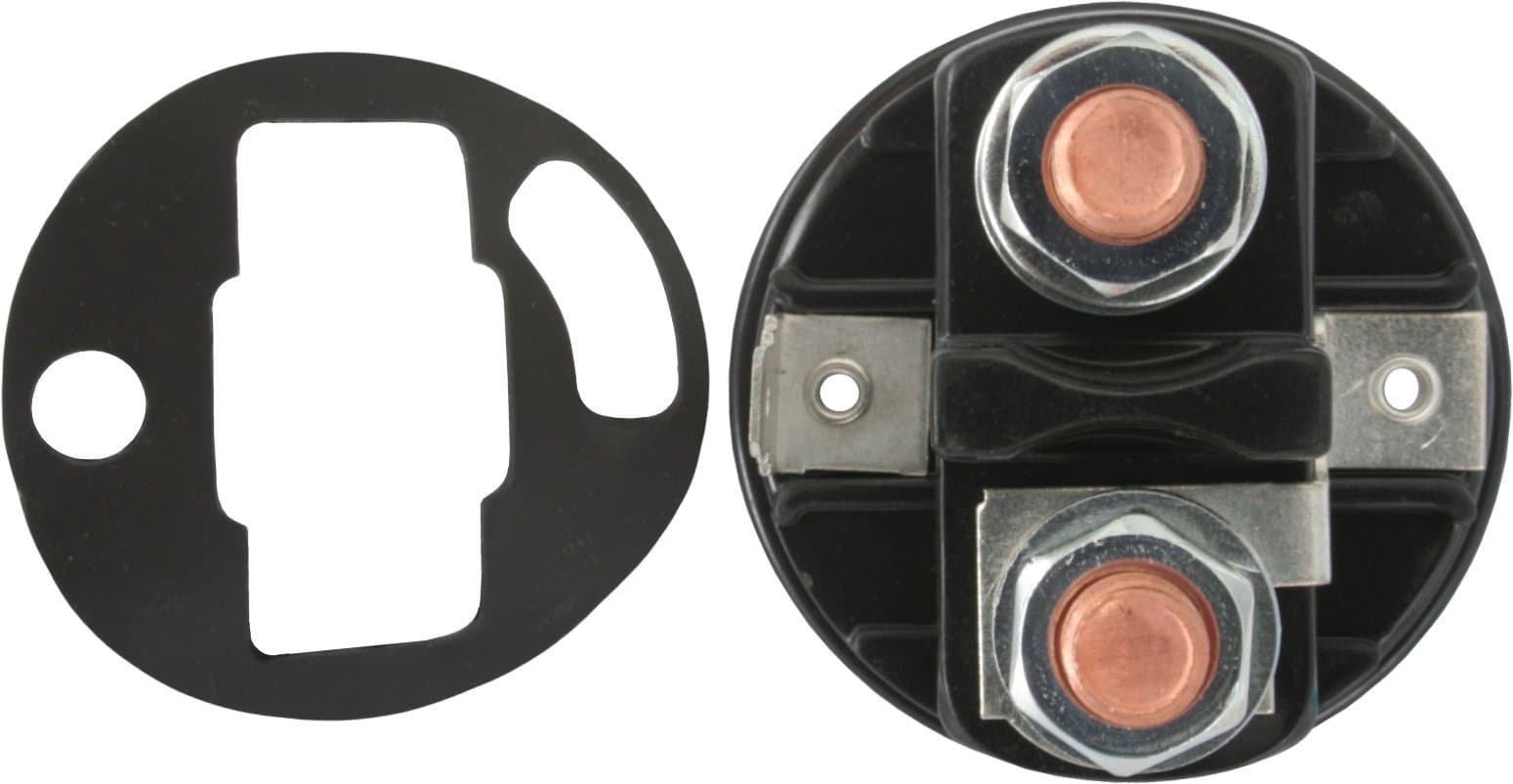

F032133287 - Solenoid ProtectionTrade number 133287
Coil Bolt Diameter M8, B+ Width 15.00, Outer Diameter 49.50, Terminal 50 size 6.30, B+ type Bolt, No./terminals 3, Coil Bolt Length 14.00, B+ size M8, Bracket type Crimp, Earth straps Long, Terminal 50 type Spade, Inner Diameter 37.50, Remarks HC-CARGO 132917, 133052, 133288, 138618, 139408, 231977.
F032135137 - Contact PlateTrade number 135137
Width 1 11.15, Inner Diameter 9.00, Material Copper, Width 2 14.10, Thickness 3.00, Length 30.25
F032135574 - steel ballTrade number 135574
Replacement for:
MITSUBISHI S409S00008
Ball type Round, Material Steel, Outer Diameter 6.35
F032136895 - Parts SetTrade number 136895
Replacement for:
MITSUBISHI M578C24601
Inner Diameter 53.00, Outer Diameter 67.00, Thickness 8.00
F032138962 - ArmatureTrade number 138962
Replacement for:
MITSUBISHI M106X43572
kW 2.0/2.2, Voltage 12, Drive End Inside Shaft Diameter Outside 10.00, Bar Lane Height 17.80, Bar Cross Distance 37.40, Commutator End Shaft Diameter 9.00, Spline Teeth Length 22.00, Rotation CW, Commutator Outer Diameter 46.70, Bar length 4.50, Commutator Inner Diameter 12.00, No./bars 25, Commutator Height 25.20, Commutator Diameter 32.60, Commutator Distance 9.30, OD/spline/teeth 17.10, Core Diameter 54.00, Shaft length 141.00, Bar Distance 2.00, No./teeth 13
F032138963 - Brush HolderTrade number 138963
Replacement for:
MITSUBISHI M649T20471
Voltage 12, Spring w/, Brush w/, Inner Diameter 33.00, No./brushes 2, Outer Diameter 71.50, Brush Gear Width 10.00, Remarks Neg. brushes. Brush set: HC-CARGO 140973 (x2)., Brush Thickness 6.50, Height 15.50
F032139361 - Pole housingTrade number 139361
Replacement for:
MITSUBISHI M800X49771
kW 2.0, Voltage 12, Coil w/, Magnets w/o, Brush Length 17.60, Inner Diameter 54.20, Brush gear w/o, No./brushes 2, Outer Diameter Middle 77.00, Lead Length 70.00, Length 63.00, Remarks Brush set: HC-CARGO 140347., Brush Height 11.80, Brush Thickness 6.60
F032139955 - Contact PlateTrade number 139955
Width 1 11.00, Shaft measurement 28.80, Outer Diameter 2 6.00, Material Copper, Width 2 16.00, Thickness 2.55, Length 29.00
F032140347 - Carbon-Brush SetTrade number 140347
Replacement for:
MITSUBISHI M648C10371
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 4, Lead Length 38.00, Solder hole w/o, Thickness 6.80, Length 17.00, Height 12.00
F032140482 - Needle bearingTrade number 140482
Inner Diameter 10.00, Outer Diameter 14.00, Bearing type Needle bearing, Height 10.00
F032140893 - Ball BearingTrade number 140893
Replacement for:
MITSUBISHI 6292RS1C3
Inner Diameter 9.00, Outer Diameter 26.00, Bearing type Ball bearing, Remarks 629-2RS1/C3., Height 8.00
F032141090 - Needle bearingTrade number 141090
Inner Diameter 10.00, Outer Diameter 15.05, Bearing type Needle bearing, Remarks Closed end., Height 15.40
F032191513 - Self-locking nutTrade number 191513
Self-locking w/, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032231415 - Overrunning-Clutch DriveTrade number 231415
Replacement for:
MITSUBISHI M191X68471
Splines internal 8, Drive type Steel, Rotation CW, Inner Diameter 13.05, Outer Diameter 37.50, Housing Outer Diameter 47.00, No./teeth 12, Total Length 51.50
F032231503 - Commutator End ShieldTrade number 231503
Replacement for:
MITSUBISHI M642X28771
Inner Diameter 76.50, Outer Diameter 82.30, Height 42.50
F032235340 - Gear ShaftTrade number 235340
Replacement for:
MITSUBISHI M357X64771
No./splines 8, Front Diameter 3 17.45, Collar Diameter Rear 48.70, Rotation CW, Front Diameter 2 13.00, Front Length 1 89.00, Spline Middle Length 18.00, Shaft Outer Diameter 10.00, Spline Diameter Middle 16.70, Total Length 105.00
