Showing results for: MITSUBISHI M1T30171
F032133342 - Brush HolderTrade number 133342
Replacement for:
MITSUBISHI M649T06971
Voltage 12, Brush w/, Brush Length 17.00, Spring w/, Inner Diameter 31.00, Brush Gear Width 7.60, No./brushes 4, Outer Diameter 67.00, Height 22.50, Brush Thickness 4.50, Brush Height 17.00
F032135368 - Stop RingTrade number 135368
Replacement for:
MITSUBISHI M385X05071
Inner Diameter 12.00, Outer Diameter 17.50, Height 5.00
F032135574 - steel ballTrade number 135574
Replacement for:
MITSUBISHI S409S00008
Ball type Round, Material Steel, Outer Diameter 6.35
F032136895 - Parts SetTrade number 136895
Replacement for:
MITSUBISHI MD611213
Inner Diameter 53.00, Outer Diameter 67.00, Thickness 8.00

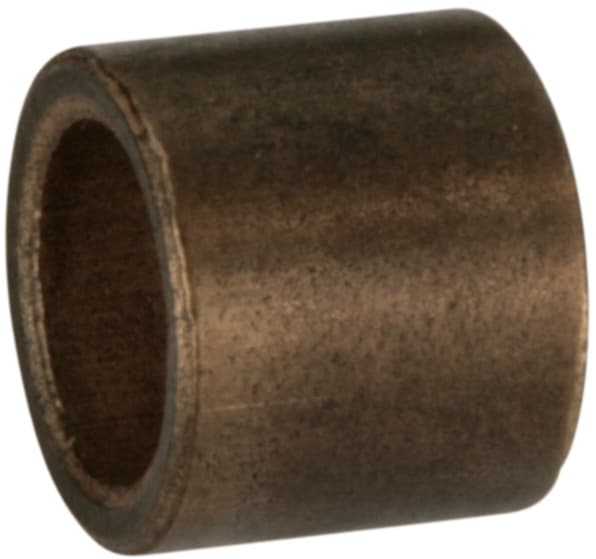

F032140319 - BushingTrade number 140319
Replacement for:
MITSUBISHI M409D30201
Pin w/o, Inner Diameter 10.00, Type Standard, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 14.00, Length 12.00
F032140560 - Carbon-Brush SetTrade number 140560
Replacement for:
MITSUBISHI M647C00371
Voltage 12, Conductor w/, Spring w/o, Lead Length 90.50, Solder hole w/, Cable lugs w/, No./brushes 4, Length 18.00, Thickness 4.50, Height 17.50
F032140731 - BushingTrade number 140731
Replacement for:
MITSUBISHI MD618334
Inner Diameter 10.10, Collar Height 1.95, Collar Outer Diameter 1 15.95, Material Copper, Outer Diameter 12.95, Length 10.45
F032231345 - BoltTrade number 231345
Replacement for:
MITSUBISHI M981C74201
Collar Length 140.00, Thread Length 33.00, Thread/mm/" M5, Total Length 144.00

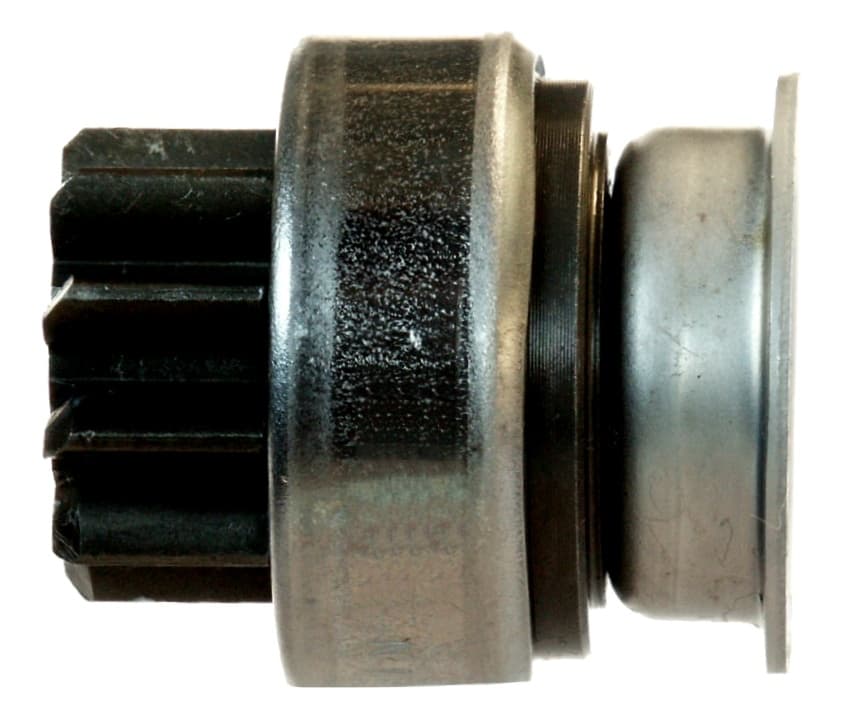

F032231952 - Overrunning-Clutch DriveTrade number 231952
Replacement for:
MITSUBISHI M191T76081
Splines internal 8, Rotation CW, Inner Diameter 12.00, Outer Diameter 33.00, Total Length 51.50, No./teeth 10, Housing Outer Diameter 46.20
F032233164 - PipeTrade number 233164
Replacement for:
MITSUBISHI 233164
Inner Diameter 7.70, Outer Diameter 11.55, Length 10.00

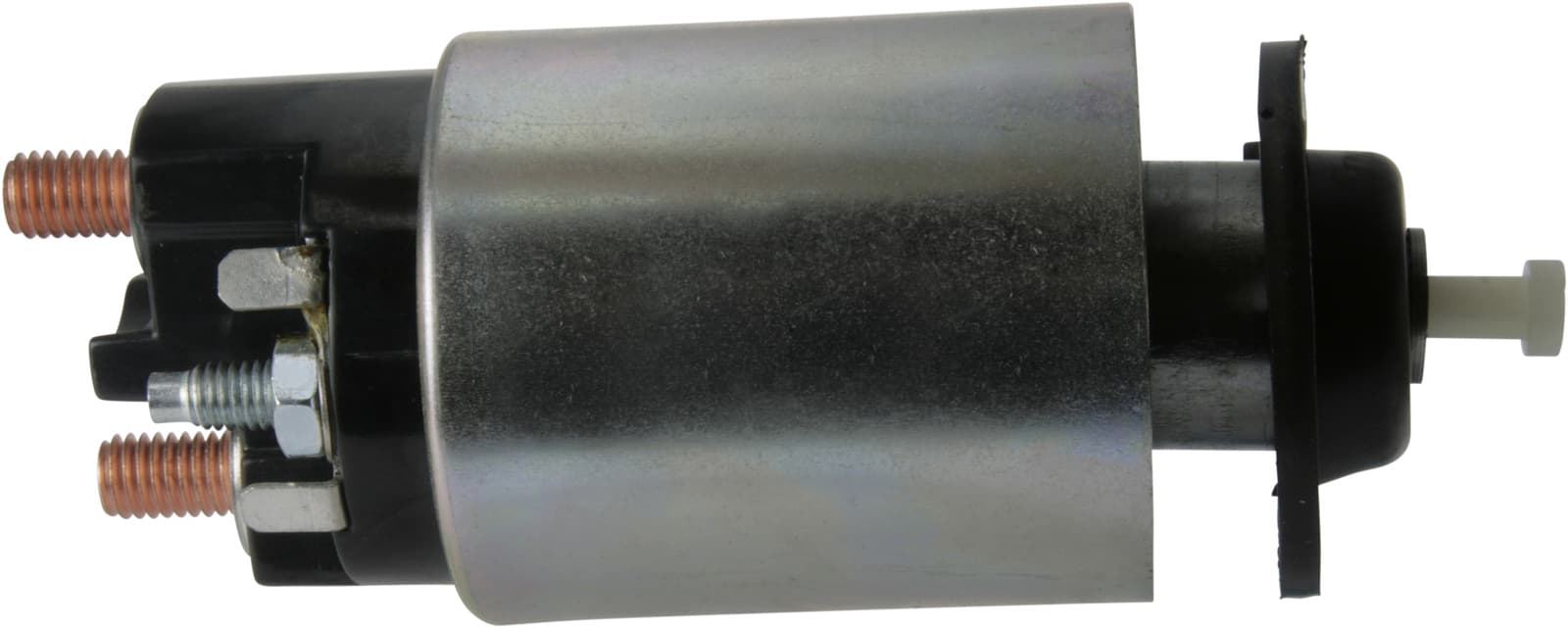

F032239823 - Solenoid SwitchTrade number 239823
Replacement for:
MITSUBISHI 239823
Voltage 12, No./mount. holes 2, No./terminals 3, Terminal 50/mm M6, Earth straps Short, B+ M8, Terminal 50 Bolt, B+ Height 12.00, Outer Diameter 51.20, Mounting Hole 1 15, Amount of Mounting Holes 2, Total Length 120.00

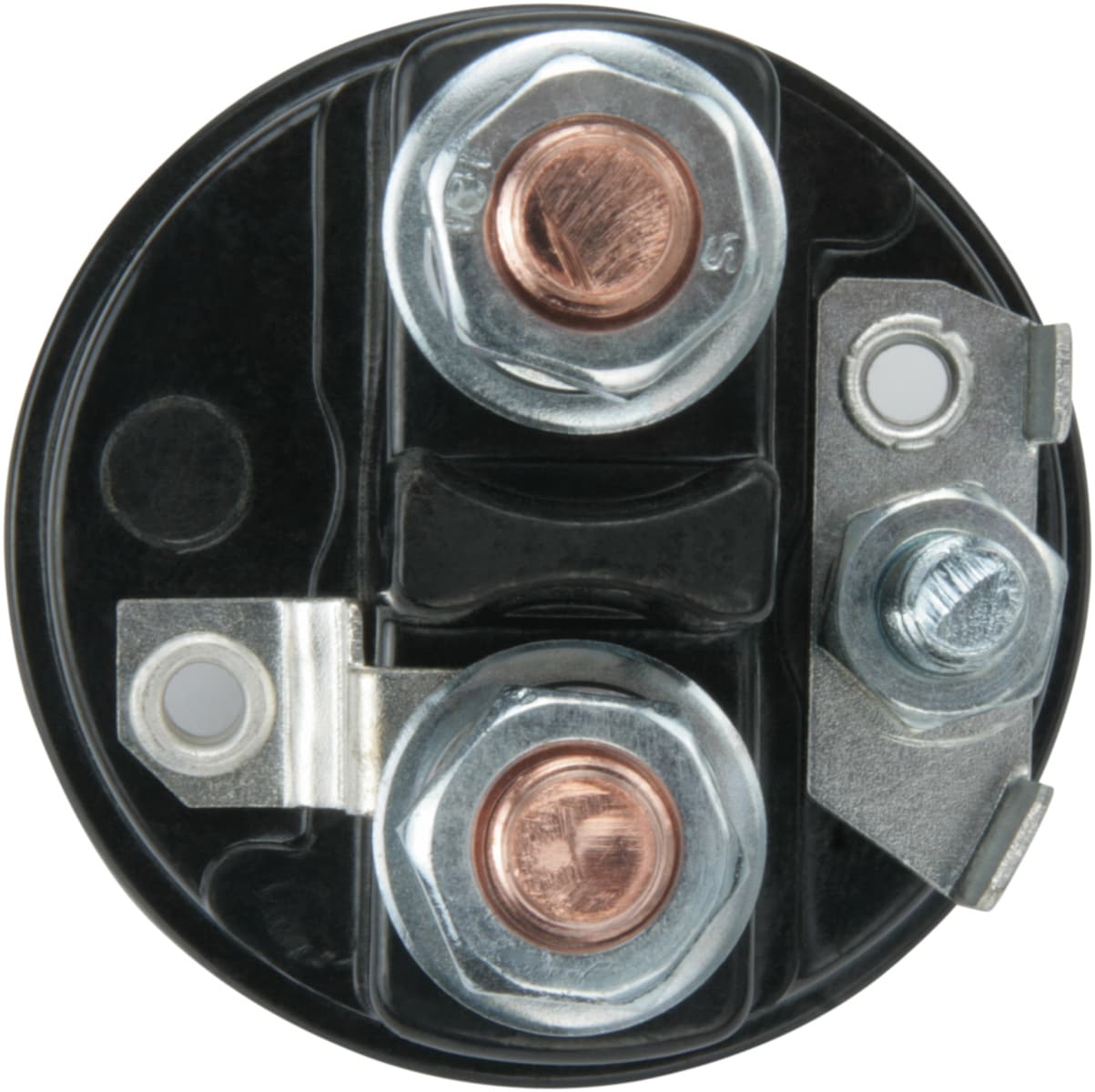

F032239824 - Solenoid ProtectionTrade number 239824
Replacement for:
MITSUBISHI 239824
No./terminals 3, Coil Bolt Length 10.00, Terminal 50 size M6, B+ type Bolt, Earth straps Short, Terminal 50 type Bolt, B+ size M8, B+ Width 11.00, Coil Bolt Diameter M8, Switch measurement 7.80, Terminal 50 Width/Height 10.00, Outer Diameter 49.10

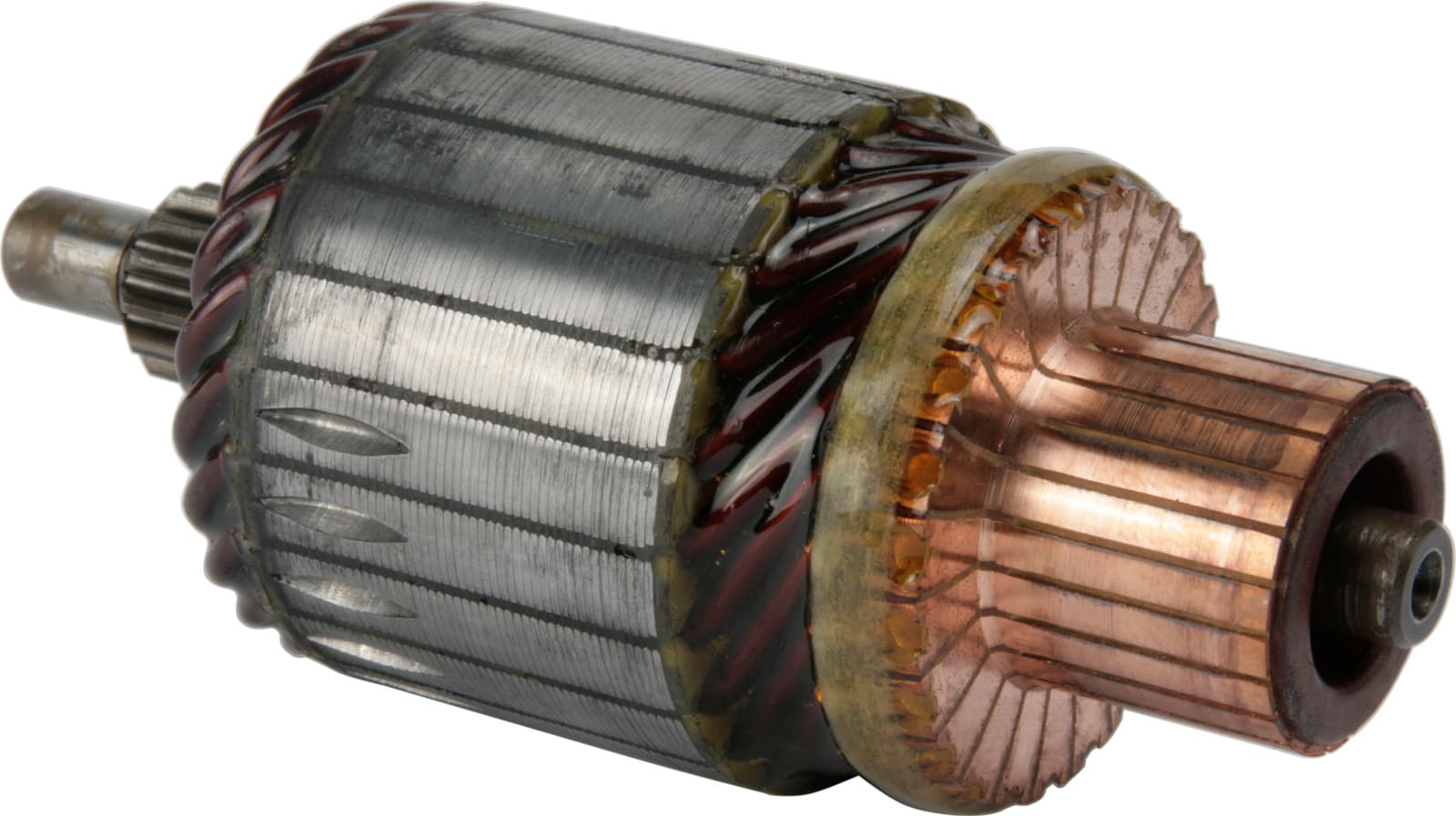

F032239829 - ArmatureTrade number 239829
Replacement for:
MITSUBISHI 239829
kW 1.9, Voltage 12, Commutator Diameter 31.00, OD/spline/teeth 17.30, No./bars 23, Commutator Height 32.20, Bar length 6.00, Commutator Inner Diameter 12.00, Bar Distance 2.75, Core Diameter 57.20, Shaft length 133.30, Bar Cross Distance 37.00, Commutator End Shaft Diameter 10.00, Bar Lane Height 24.00, Drive End Inside Shaft Diameter Outside 10.00, Commutator Outer Diameter 49.00, No./teeth 13
F032902596 - Carbon BrushTrade number GAS120
Replacement for:
MITSUBISHI M647C00371
Voltage 12, Brush lead length 18.00, Conductor w/, Spring w/o, Cable lugs w/o, Thickness 4.50, Height 17.50

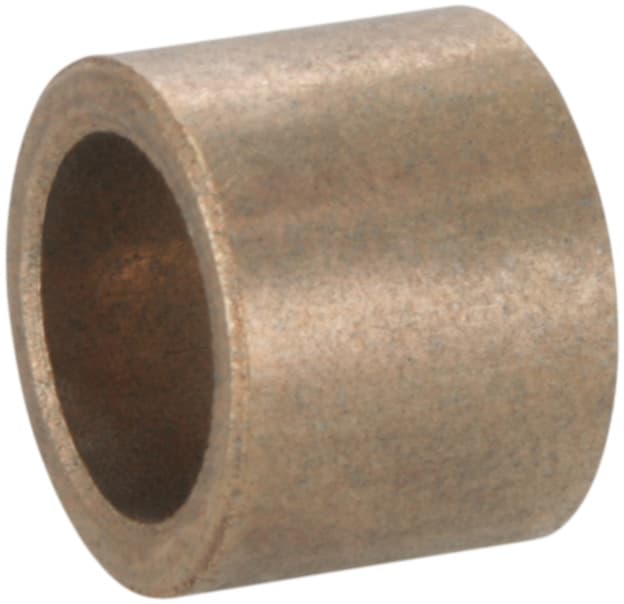

F032B40319 - BushingTrade number B140319
Replacement for:
MITSUBISHI M409D30201
Pin w/o, Inner Diameter 10.00, Lubricating groove w/o, Material Copper, Milling w/o, Outer Diameter 14.00, Length 12.00
