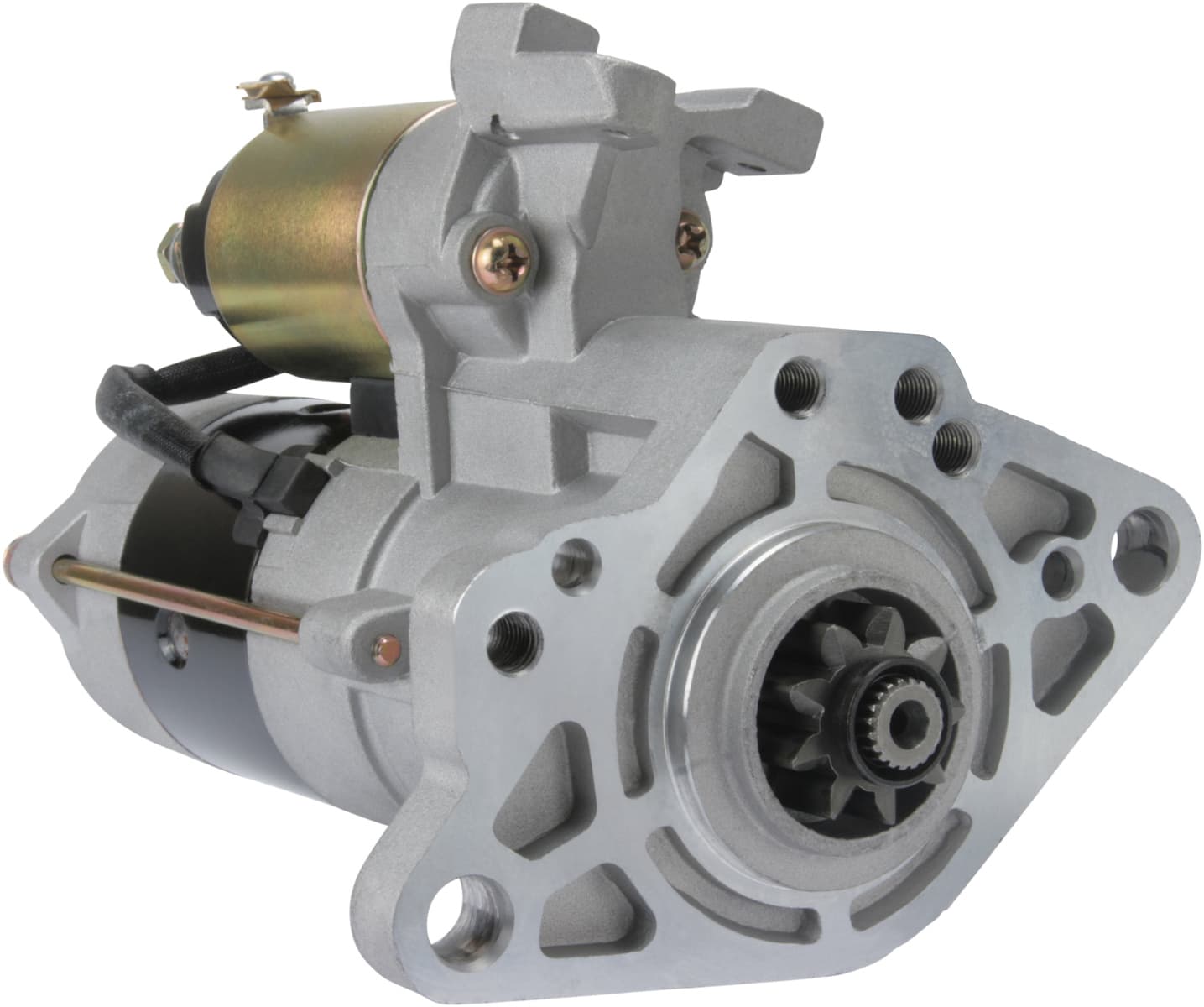

F032113195 - StarterTrade number 113195

kW 3.2, Voltage 24, Mounting Flange 60.00, Distance 145.50, Oil sealed No, Prod. info BN, Drive type Steel, Mounting Hole 2 14.00, Rear Distance 234.00, Distance 2 102.00, Distance 3 80.00, Drive Distance 17.00, Waterproof No, Terminal 50 6.30, B+ M8, Rotation CW, No./mount. holes 3 (1), Mounting hole 3 with thread M10, Front Distance 21.50, Total Length 257.00, Position 60, Mounting Hole 1 14.00, Mounting Holes with Thread 1, Amount of Mounting Holes 3, Gear type GR, No./teeth 9

F032133034 - ArmatureTrade number 133034

Replacement for:

MITSUBISHI M106X29371

kW 3.2, Voltage 24, Bar Lane Height 22.60, Bar Cross Distance 38.40, Commutator End Shaft Diameter 9.00, Spline Teeth Length 24.60, Rotation CW/CCW, Commutator Outer Diameter 47.00, Bar length 4.30, Commutator Inner Diameter 9.90, No./bars 25, Commutator Height 31.70, Commutator Diameter 33.30, Commutator Distance 9.70, OD/spline/teeth 14.65, Core Diameter 53.60, Shaft length 151.40, Bar Distance 2.25, No./teeth 9

F032133449 - Overrunning-Clutch DriveTrade number 133449

Replacement for:

MITSUBISHI M357T72672

No./splines 20, Shaft Outer Diameter Rear 14.00, Drive End House Shaft Length 66.00, Shaft Outer Diameter Front 18.65, Outer Diameter 66.70, Total Length 143.80

F032134484 - O-RingTrade number 134484

Replacement for:

MITSUBISHI M578D13501

Inner Diameter 5.00, Colour Black, Lathe cut o-ring No, Thickness 2.00

F032134485 - O-RingTrade number 134485

Replacement for:

MITSUBISHI M816D00701

Inner Diameter 4.00, Colour Black, Lathe cut o-ring No, Thickness 2.00

F032136938 - Parts SetTrade number 136938

Replacement for:

MITSUBISHI M800T47371MITSUBISHI M800X43573

kW 3.2, Voltage 24, Coil w/, Brush Length 18.00, Inner Diameter 53.00, No./brushes 2, Outer Diameter Middle 81.00, Lead Length 115.00, Length 85.00, Remarks Brush set: HC-CARGO 141273., Brush Height 18.00, Brush Thickness 7.0

F032137219 - Commutator End ShieldTrade number 137219

Replacement for:

MITSUBISHI M644B10601

Inner Diameter 76.50, Height 44.00

F032140284 - Ball BearingTrade number 140284

Replacement for:

MITSUBISHI S930P14670

Inner Diameter 15.00, Outer Diameter 32.00, Bearing type Ball bearing, Remarks 6002-2Z., Height 9.00

F032140301 - Ball BearingTrade number 140301

Replacement for:

MITSUBISHI S930P29970

Bearing type Ball bearing, Inner Diameter 9.00, Outer Diameter 26.00, Remarks 629-2Z., Height 8.00

F032140387 - Carbon-Brush SetTrade number 140387

Replacement for:

MITSUBISHI M648X28671

Voltage 12, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 4, Lead Length 34.50, Solder hole w/o, Thickness 6.80, Length 18.00, Height 18.00
