Showing results for: MITSUBISHI M2TS0575

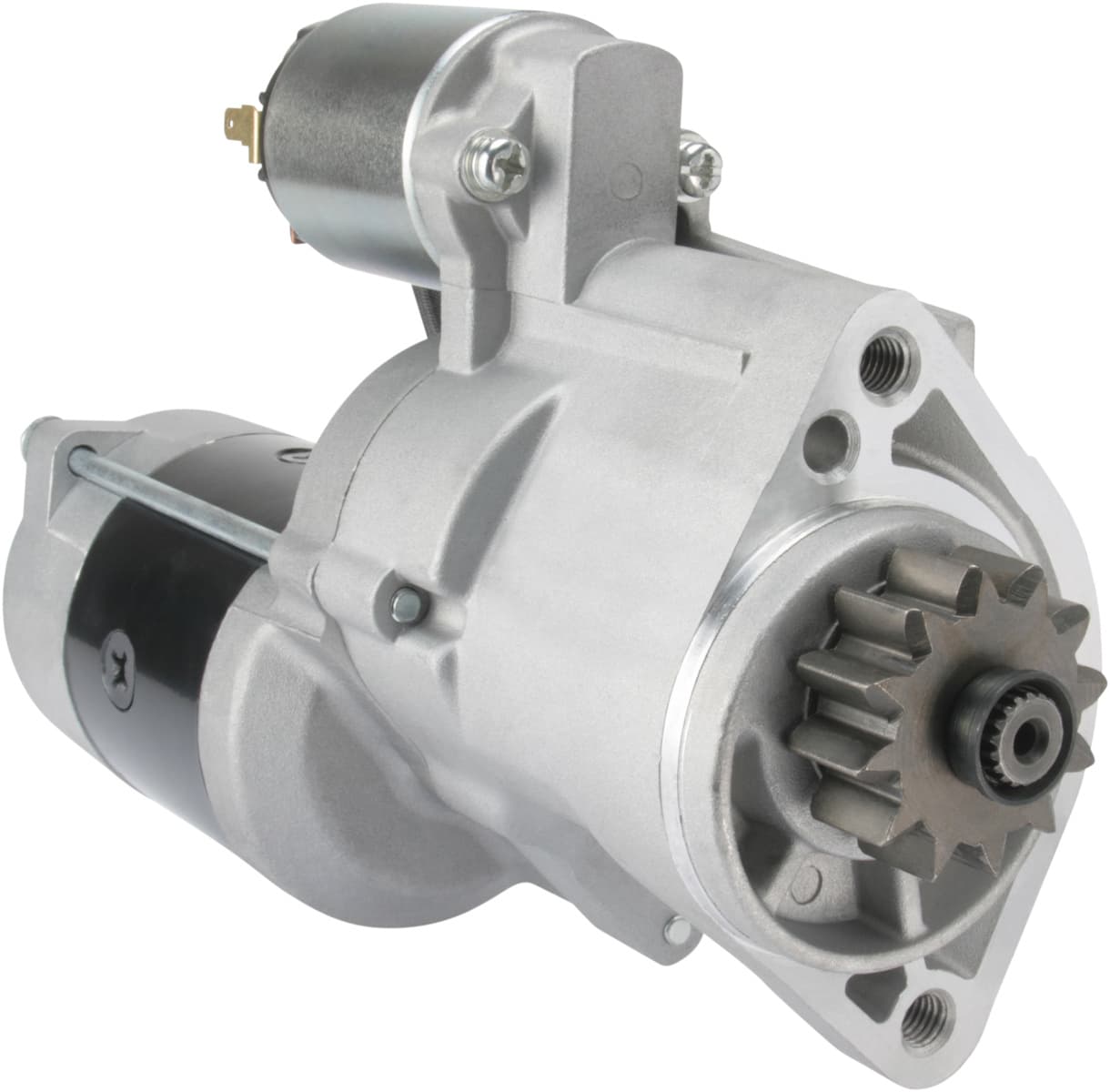

F032113964 - StarterTrade number 113964
kW 2.2, Voltage 12, Mounting Flange 70.00, Terminal 50 6.30, B+ M8, Rotation CW, Distance 107.50, Prod. info BN, Drive type Steel, No./mount. holes 2 (2), Rear Distance 227.50, Drive Distance 31.00, Front Distance 39.00, Amount of Mounting Holes 2, Total Length 267.00, Position 15, Gear type GR, Mounting Holes with Thread 2, No./teeth 12
F032135137 - Contact PlateTrade number 135137
Replacement for:
MITSUBISHI 135137
Width 1 11.15, Inner Diameter 9.00, Material Copper, Width 2 14.10, Thickness 3.00, Length 30.25
F032138963 - Brush HolderTrade number 138963
Replacement for:
MITSUBISHI ME701467
Voltage 12, Spring w/, Brush w/, Inner Diameter 33.00, No./brushes 2, Outer Diameter 71.50, Brush Gear Width 10.00, Remarks Neg. brushes. Brush set: HC-CARGO 140973 (x2)., Brush Thickness 6.50, Height 15.50
F032139537 - Solenoid SwitchTrade number 139537
Replacement for:
MITSUBISHI ME701462
Voltage 12, Terminal 50 Spade, B+ Height 14.50, Coil Bolt Diameter M8, B+ M8, Terminal 15a Spade, Outer Diameter 52.20, Terminal 15A/mm 5.00, No./mount. holes 4, No./terminals 4, Terminal 50/mm 6.30, Coil Bolt Length 14.50, Bracket type Crimp, Plunger Outer Diameter 24.60, Amount of Mounting Holes 4, Total Length 87.00, Length 43.20
F032139955 - Contact PlateTrade number 139955
Replacement for:
MITSUBISHI 139955
Width 1 11.00, Shaft measurement 28.80, Outer Diameter 2 6.00, Material Copper, Width 2 16.00, Thickness 2.55, Length 29.00
F032140412 - Ball BearingTrade number 140412
Replacement for:
MITSUBISHI ME700849
Bushing w/, Bearing type Ball bearing, Height 2 10.00, Inner Diameter 18.75, Outer Diameter 37.00, Height 9.00
F032140591 - Carbon-Brush SetTrade number 140591
Replacement for:
MITSUBISHI MD618447
Voltage 12, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 4, Lead Length 37.00, Solder hole w/o, Thickness 6.50, Length 17.50, Height 12.00
F032140893 - Ball BearingTrade number 140893
Replacement for:
MITSUBISHI 6292RS1C3
Inner Diameter 9.00, Outer Diameter 26.00, Bearing type Ball bearing, Remarks 629-2RS1/C3., Height 8.00

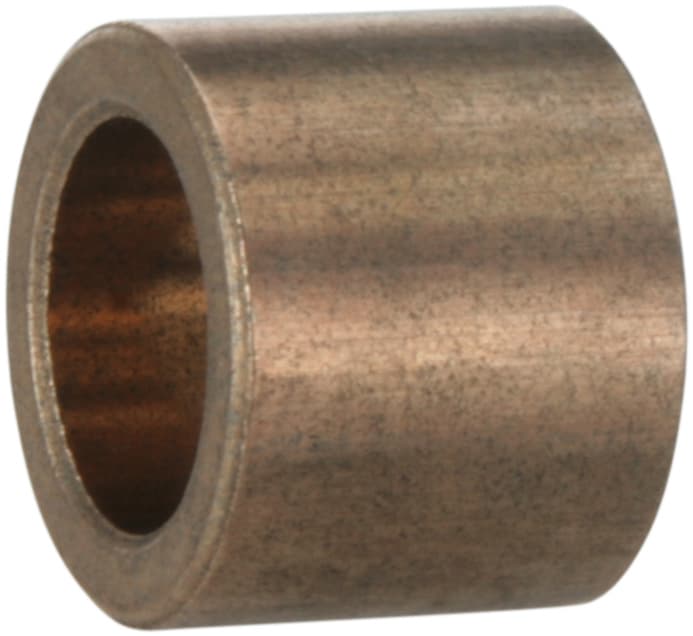

F032142349 - BushingTrade number 142349
Replacement for:
MITSUBISHI 142349
Pin w/o, Type Mount., Inner Diameter 11.03, Material Copper alloy, Milling w/o, Outer Diameter 16.05, Lubricating groove w/o, Length 13.00
F032191513 - Self-locking nutTrade number 191513
Self-locking w/, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032231503 - Commutator End ShieldTrade number 231503
Replacement for:
MITSUBISHI MD618968
Inner Diameter 76.50, Outer Diameter 82.30, Height 42.50
F032233164 - PipeTrade number 233164
Replacement for:
MITSUBISHI 233164
Inner Diameter 7.70, Outer Diameter 11.55, Length 10.00

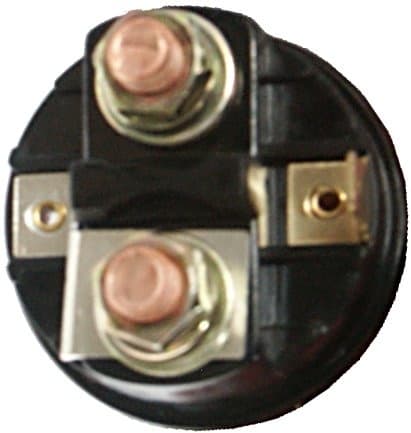

F032233927 - Solenoid ProtectionTrade number 233927
Replacement for:
MITSUBISHI 233927
Coil Bolt Diameter M8, B+ Width 14.00, Outer Diameter 49.20, Switch measurement 8.70, Terminal 50 size 6.30, B+ type Bolt, No./terminals 3, Coil Bolt Length 14.50, B+ size M8, Bracket type Crimp, Earth straps Short, Terminal 50 type Spade, Inner Diameter 38.20, Remarks HC-CARGO 139537.

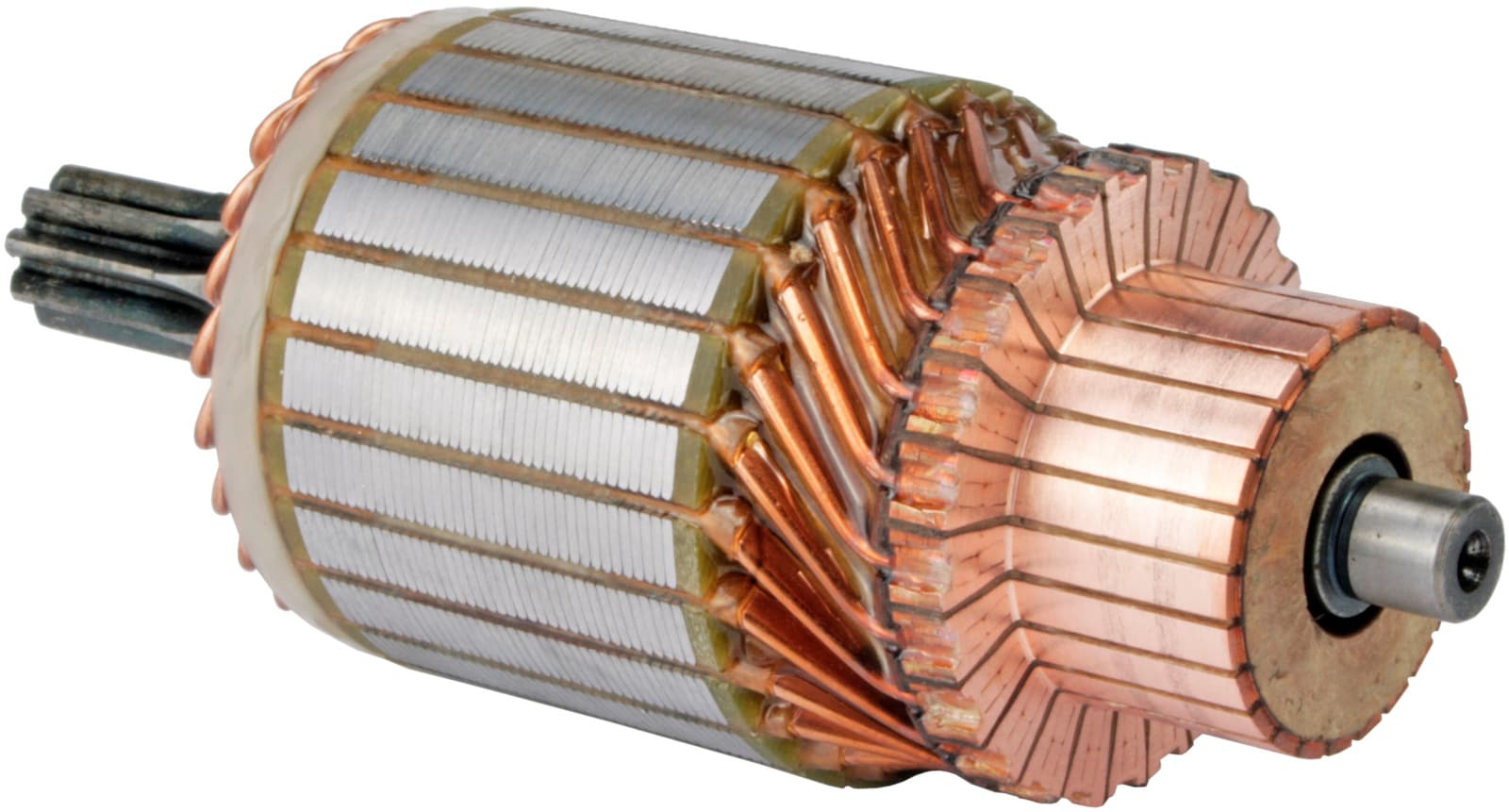

F032330725 - ArmatureTrade number 330725
Replacement for:
MITSUBISHI 330725
kW 2.2, Voltage 12, Bar Lane Height 17.80, Bar Cross Distance 37.40, Commutator End Shaft Diameter 9.00, Spline Teeth Length 25.00, Rotation CW, Commutator Outer Diameter 46.70, Drive End Inside Shaft Diameter 17.30, Bar length 4.50, Commutator Inner Diameter 12.00, No./bars 25, Commutator Height 25.20, Commutator Diameter 32.60, Commutator Distance 9.60, OD/spline/teeth 14.50, Core Diameter 53.75, Shaft length 140.00, Bar Distance 2.00, No./teeth 9
F032333102 - Ball BearingTrade number 333102
Replacement for:
MITSUBISHI S930P14301
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 32.00, Remarks 6002-2RS/C3., Height 9.00
F032140272 - Ball BearingTrade number 140272
Replacement for:
MITSUBISHI S930P14301
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 32.00, Remarks 6002-2RS1., Height 9.00
