Showing results for: MITSUBISHI M8T60071
F032113669 - StarterTrade number 113669
kW 5.0, Voltage 24, Mounting Flange 110.00, Distance 151.50, Oil sealed No, Prod. info BN, Drive type Steel, Mounting Hole 2 13.50, Rear Distance 214.00, Drive Distance 66.00, Waterproof No, Terminal 50 M5, B+ M8, Clutch type Wet, Rotation CW, No./mount. holes 2 (0), Front Distance 71.50, Total Length 288.00, Position 45, Mounting Hole 1 13.50, Mounting Holes with Thread 0, B+ Position 60, Amount of Mounting Holes 2, Gear type GR, No./teeth 11
F032135341 - Parts SetTrade number 135341
Replacement for:
MITSUBISHI M230X00671
Teeth Depth 1.40, Bushing w/, Inner Diameter 8.00, Outer Diameter 20.30, No./teeth 16, Height 11.30
F032135574 - steel ballTrade number 135574
Ball type Round, Material Steel, Outer Diameter 6.35
F032140301 - Ball BearingTrade number 140301
Bearing type Ball bearing, Inner Diameter 9.00, Outer Diameter 26.00, Remarks 629-2Z., Height 8.00
F032140388 - Carbon-Brush SetTrade number 140388
Replacement for:
MITSUBISHI M648X40871
Voltage 12, Conductor w/, Brush lead length 42.50, No./brushes 4, Lead Length 35.50, Thickness 8.00, Length 17.00, Height 24.00
F032231371 - Overrunning-Clutch DriveTrade number 231371
Replacement for:
MITSUBISHI M191X67771
No./splines 20, Drive End House Shaft Length 65.80, Drive End Outer Diameter 59.20, Clutch End Inner Diameter 12.00, Rotation CW, Shaft Outer Diameter Front 20.00, Outer Diameter 14.80, Splines/housing 5, Total Length 110.70
F032231459 - Parts SetTrade number 231459
Replacement for:
MITSUBISHI M578X29171MITSUBISHI ME701445
Inner Diameter 18.50, Outer Diameter 76.50, Cable Diameter 73.50, Remarks Some use gasket: HC-CARGO 136895., Height 7.75
F032231575 - Output GearTrade number 231575
Replacement for:
MITSUBISHI ME701437MITSUBISHI M135X01581
Teeth Depth 2.05, Bearing w/, Collar Height 4.70, Teeth Height 21.20, Outer Diameter 70.00, No./teeth 44, Height 30.40

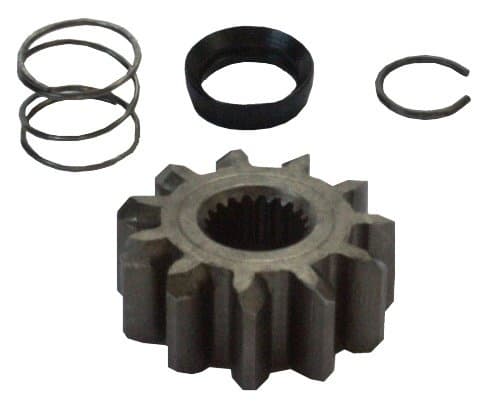

F032232391 - Starting-Motor PinionTrade number 232391
Replacement for:
MITSUBISHI ME701441MITSUBISHI M605X95071
No./splines 20, Teeth Depth 6.70, Bushing w/o, Bearing w/o, Collar Height 1.40, Inner Diameter 13.45, Teeth Height 16.30, Outer Diameter 40.65, No./teeth 11, Height 17.85
F032233377 - Fork LeverTrade number 233377
Replacement for:
MITSUBISHI M863X09272MITSUBISHI M864X12271
Inner Diameter 5.65, Plunger w/o, Distance 37.70, Length 84.60
F032234851 - ArmatureTrade number 234851
Replacement for:
MITSUBISHI M105X43671MITSUBISHI ME701446
kW 5.0, Voltage 24, Drive End Inside Shaft Diameter Outside 10.00, Bar Lane Height 29.40, Commutator End Shaft Diameter 8.80, Commutator Outer Diameter 47.00, No./bars 23, Commutator Height 34.00, Commutator Diameter 32.30, Commutator Distance 9.50, OD/spline/teeth 17.40, Core Diameter 53.60, Shaft length 171.00, No./teeth 13
F032234872 - Solenoid SwitchTrade number 234872
Replacement for:
MITSUBISHI ME701442MITSUBISHI M371XB2371MITSUBISHI ME701443
Voltage 24, Terminal 50 Screw, B+ Height 23.00, Coil Bolt Diameter M8, B+ M8, Outer Diameter 55.00, No./mount. holes 2, No./terminals 3, Terminal 50/mm M5, Coil Bolt Length 11.00, Plunger Outer Diameter 22.00, Amount of Mounting Holes 2, Total Length 136.00
