Showing results for: VALEO TG15C142
F032000P60 - Carbon BrushTrade number 000P60
Replacement for:
VALEO 092950
Voltage 14, Conductor w/, Spring w/o, Cable lugs w/o, Lead Length 48.00, Thickness 6.40, Length 15.40, Height 4.60
F0320PX602 - Carbon-Brush SetTrade number PX602
Replacement for:
VALEO 092950
Voltage 14, Conductor w/, Spring w/o, Cable lugs w/o, No./brushes 2, Lead Length 48.00, Thickness 6.40, Length 15.40, Height 4.60
F032116710 - AlternatorTrade number 116710
Terminal IF, Voltage 14, Amp 150, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., ID Code 56, Grooves/pulley 7, Belt Adjustment Bracket Hole 1 8.50, Mounting Bracket Distance 61.00, Radius 90.00, Pulley Diameter 48.50, Bracket Hole Size Rear M8, Communication BSS, Pulley SP/FW, Pulley Distance 33.00, Plug no. 1 PL131, Fan IF, Radius 2 90.00, B+ M8, Rotation CW, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.00, Belt Adjustment Bracket Hole Position 45, Total Length 194.00, B+ Position 50
F032133610 - RingTrade number 133610
Replacement for:
VALEO 133610
Inner Diameter 13.12, Material Copper/Brass, Outer Diameter 15.80, Remarks w/ 4 pins., Height 9.55
F032135169 - Protective CapTrade number 135169
Replacement for:
VALEO 135169
Outer Diameter 19.55, Height 27.70
F032140084 - Ball BearingTrade number 140084
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS1., Height 11.00
F032140093 - Ball BearingTrade number 140093
Replacement for:
VALEO 592858VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 141233, Height 14.00
F032141233 - Ball BearingTrade number 141233
Replacement for:
VALEO 593563
Source NSK, Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Height 14.00
F032142270 - Ball BearingTrade number 142270
Replacement for:
VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks Bearing plate: HC-CARGO 139124. 6303-2RS1/C3., Height 14.00
F032142272 - Ball BearingTrade number 142272
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032191513 - Self-locking nutTrade number 191513
Self-locking w/, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13

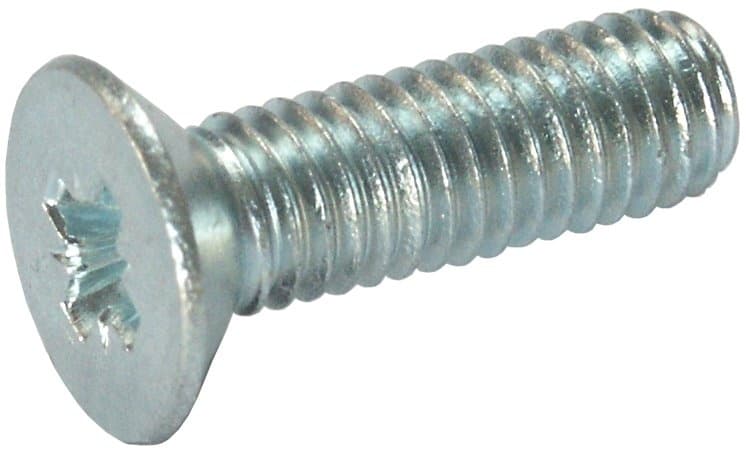

F032191678 - ScrewTrade number 191678
Head type Flat head, Screw type Pozidriv, Iso norm 7046, DIN norm 965, Material Steel, Thread/mm/" M5, Length 16.00
F032230090 - Parts SetTrade number 230090
Replacement for:
VALEO 230090
Ring Height 1 9.15, Inner Diameter 6.60/8.85, Material Copper, Outer Diameter 14.90, Collar w/, Ring Distance 2.00, Ring Height 2 9.90, Total Length 48.30
F032231557 - Parts SetTrade number 231557
Replacement for:
VALEO 231557
Width 1 52.00, No./mount. holes 4, Hole Id 4.00, Inner Diameter 37.00, Material Steel, Outer Diameter 52.00, Distance Mounting Holes 40.00, Thickness 1.50, Amount of Mounting Holes 4
F032235017 - InsulatorTrade number 235017
Replacement for:
VALEO 235017
Inner Diameter 12.60/5.90, Material Plastic, Outer Diameter 14.40/7.60
F032239570 - Protective CapTrade number 239570
Replacement for:
VALEO 595235
Inner Diameter 124.00, Outer Diameter 127.50, B+ Inner Diameter 16.50, No./mount. holes 3, Amount of Mounting Holes 3

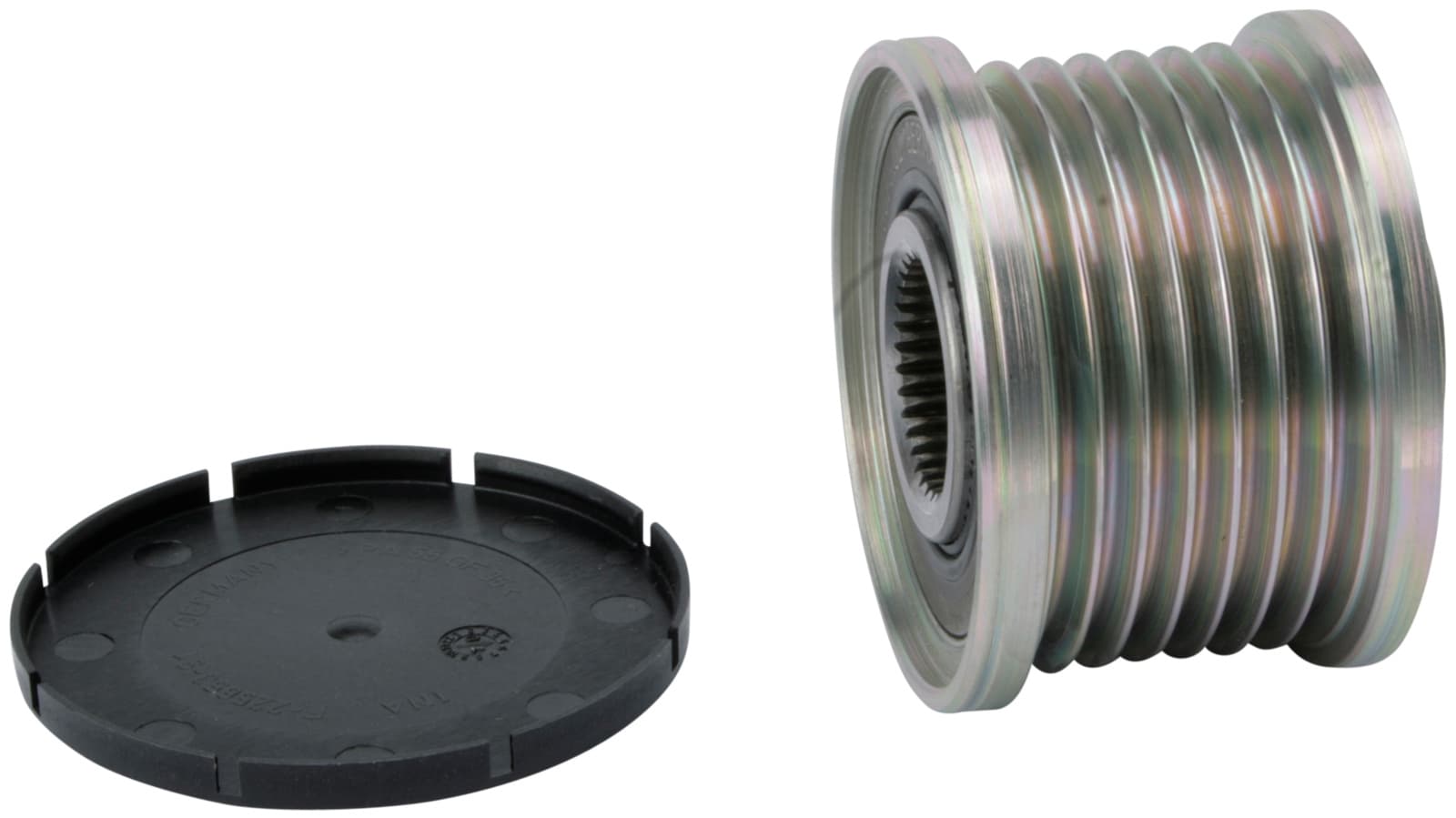

F032330200 - PulleyTrade number 330200
Replacement for:
VALEO 588027VALEO 593514
Grooves 7, Rotation CW, Thread size M16-1.50, Outer Diameter 48.60, Belt type Multi Belt, Depth 16.00, Free run w/, Width 1 40.80, Groove Measurement 1 11.70, Rear Distance 6.00, Bore dia. 17.00, Pulley type SP;FW

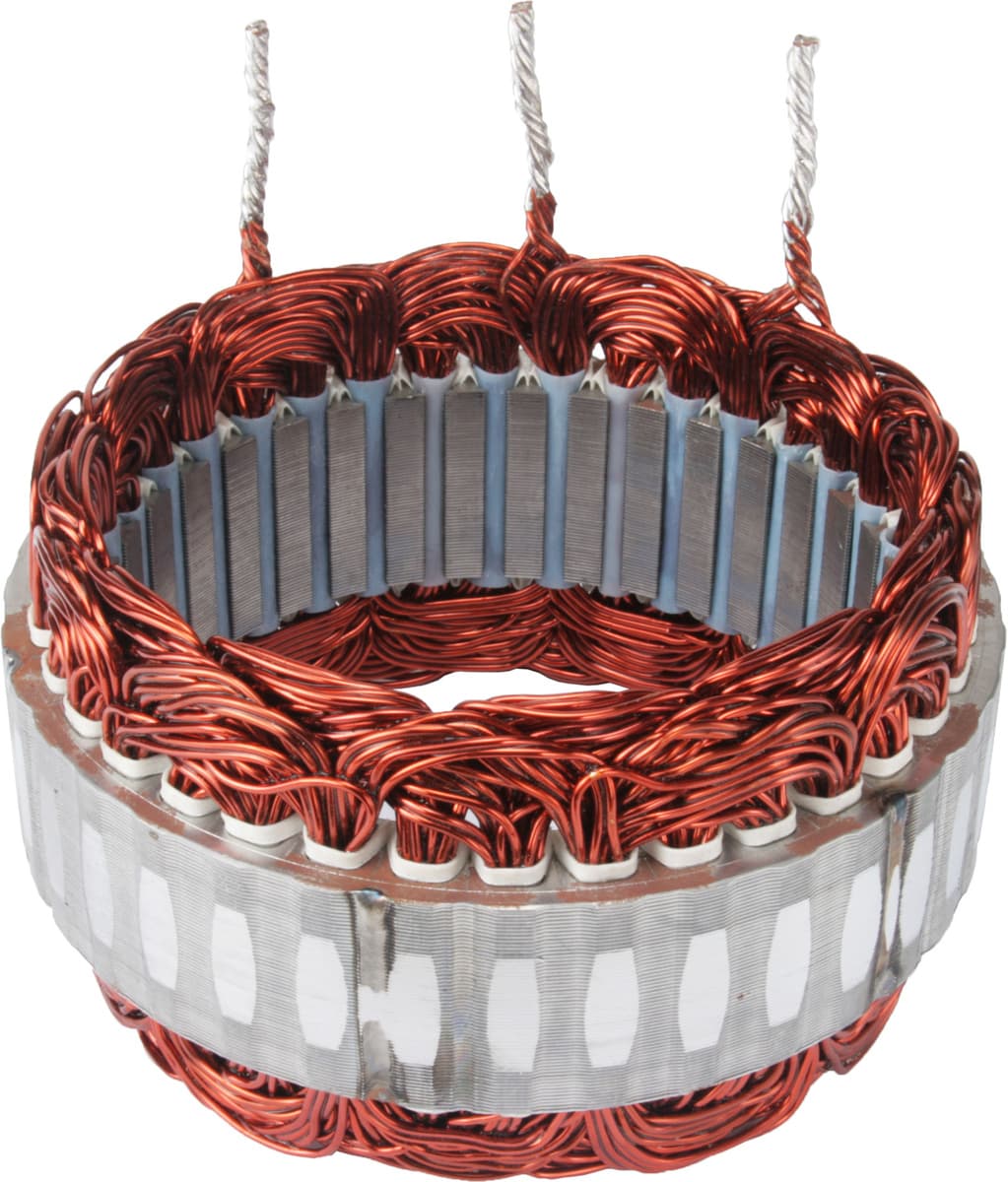

F032330317 - StatorTrade number 330317
Replacement for:
VALEO 595236
Voltage 14, Amp 150, Wire thickness 1.34, Number of leads 3, Lead 3 6, Inner Diameter 106.00, Outer Diameter 135.30, Winding Height 75.50, Lead 2 6, Lead 1 6, Height 32.80

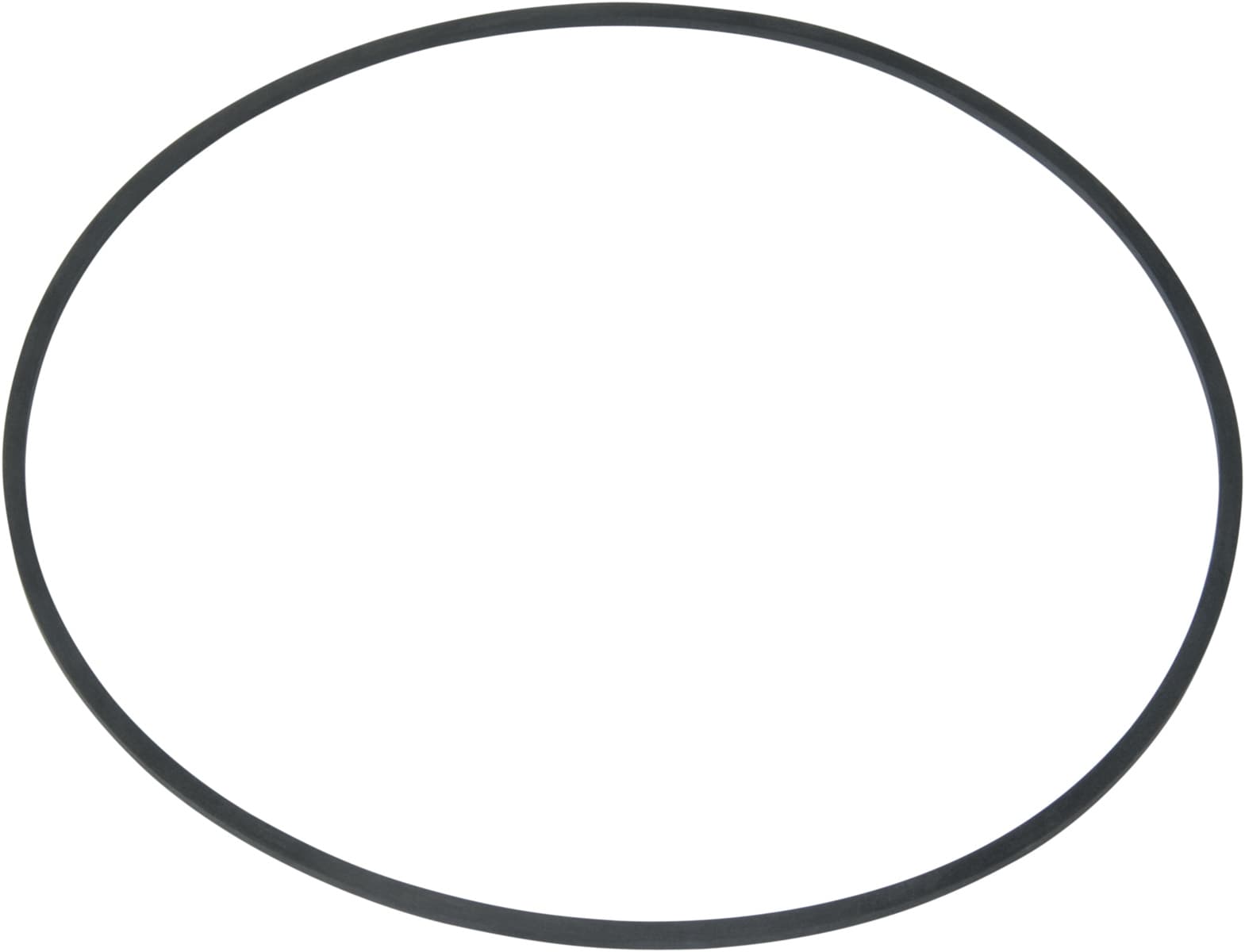

F032331675 - O-RingTrade number 331675
Replacement for:
VALEO 331675
Lathe cut o-ring Yes, Inner Diameter 133.80, Outer Diameter 139.00, Colour Black, Thickness 2.60, Height 1.80
F032333110 - Ball BearingTrade number 333110
Replacement for:
VALEO 593564
Bearing type Ball bearing, Inner Diameter 15.00, Outer Diameter 35.00, Remarks 6202-2RS/C3., Height 11.00
F032333119 - Ball BearingTrade number 333119
Replacement for:
VALEO 592858VALEO 593563
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Remarks 6303-2RS1/C3., Height 14.00

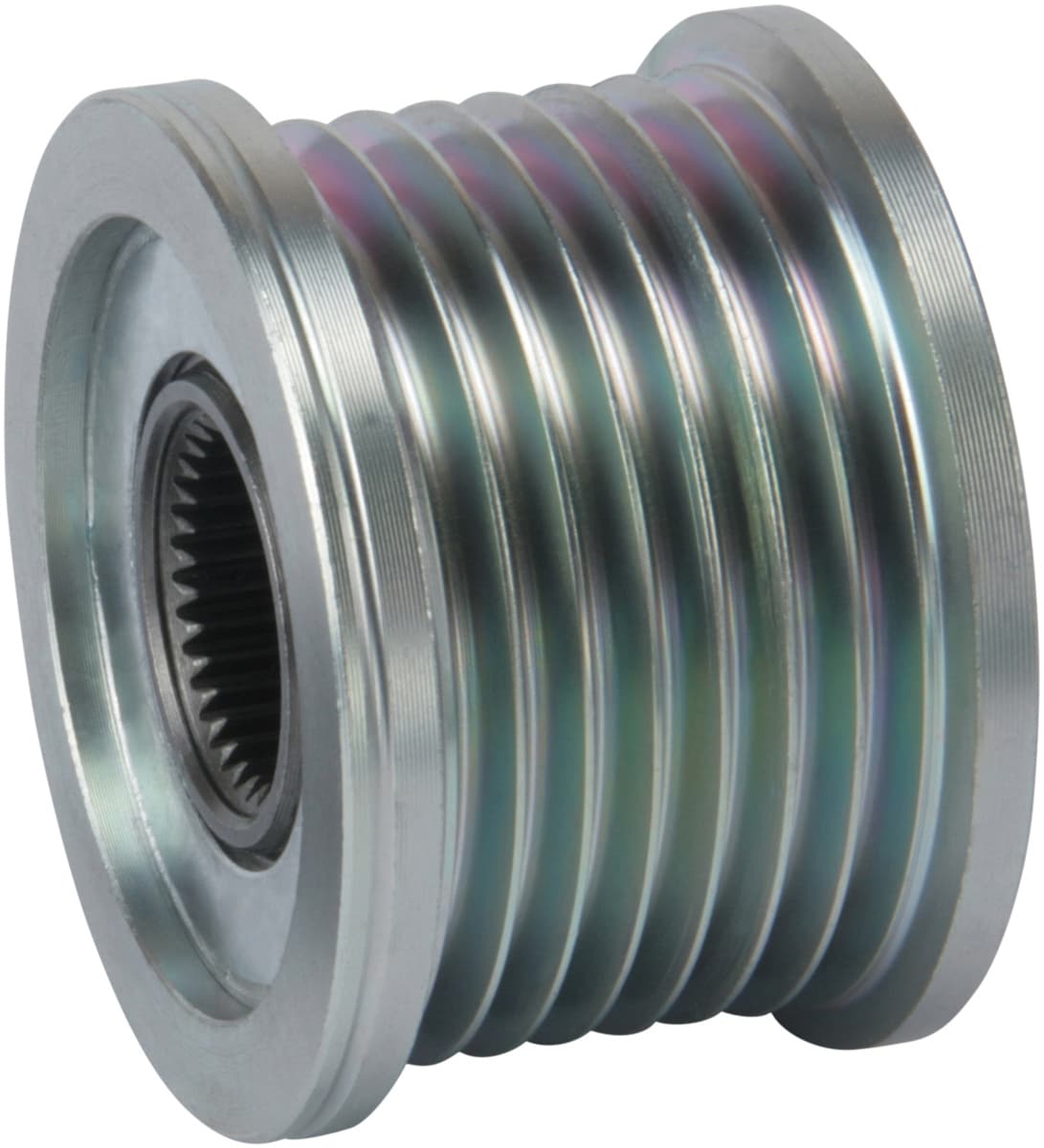

F032333340 - PulleyTrade number 333340
Replacement for:
VALEO 588027VALEO 593514
Grooves 7, Rotation CW, Thread size M16-1.50, Outer Diameter 48.80, Belt type Multi Belt, Depth 16.00, Free run w/, Width 1 41.00, Groove Measurement 1 11.70, Rear Distance 4.60, Bore dia. 17.00, Pulley type SP;FW
F032B30706 - ScrewTrade number B230706
Thread size M5, Thread Length 22.00, Collar Length Rear 47.00, Total Length 52.00
F032B32583 - Bearing CapTrade number B332583
Replacement for:
VALEO B332583
Inner Diameter 35.00, Outer Diameter 37.50, Height 17.50
F032B91513 - Self-locking nutTrade number B191513
Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032B91867 - ScrewTrade number B191867
DIN norm 6921, Material Steel, Thread/mm/" M5, Coating Electro Galvanized, Length 20.00, Spanner Size 8.00
