Showing results for: VALEO TS22E26

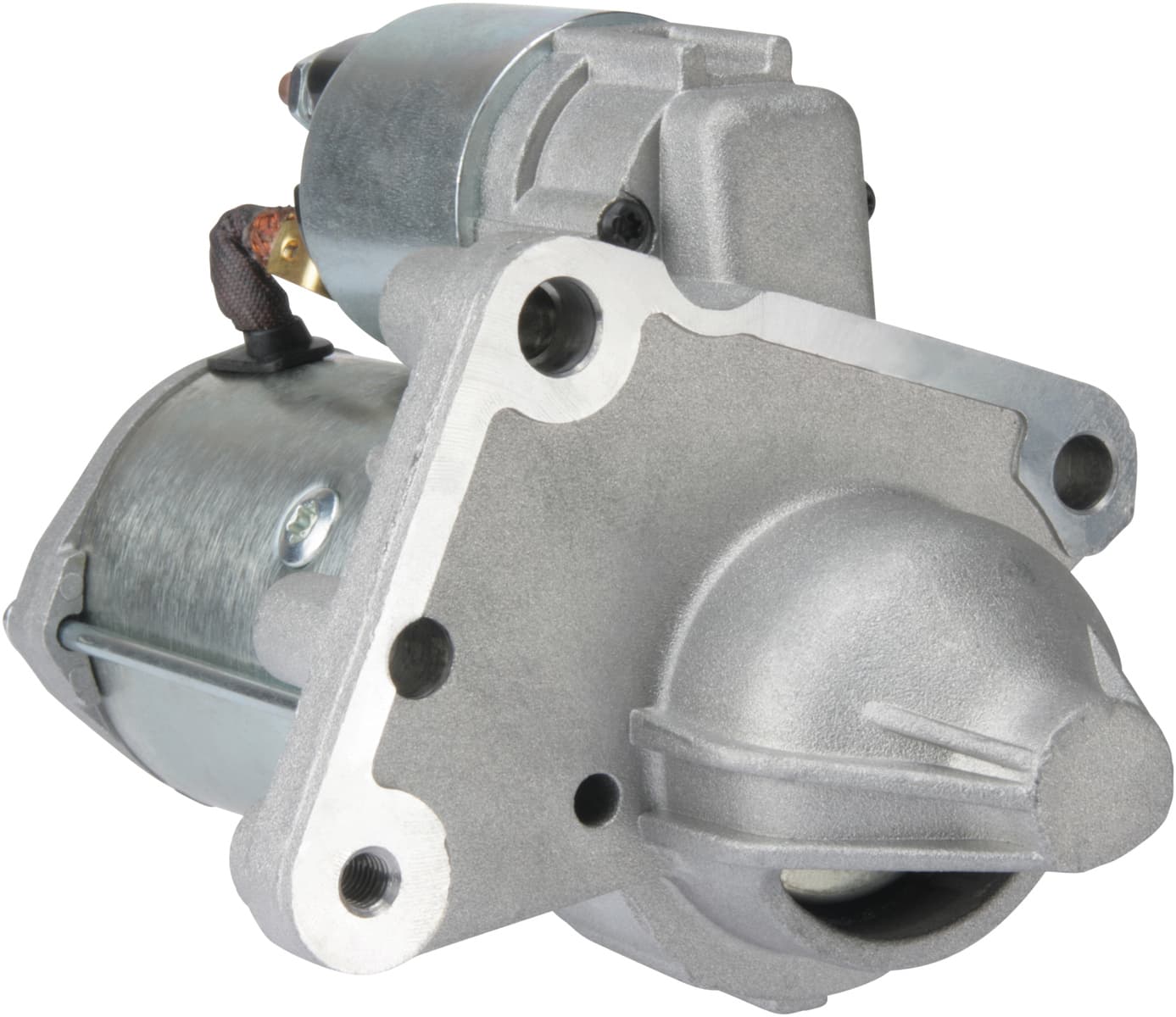

F032114030 - StarterTrade number 114030
kW 2.2, Voltage 12, Distance 123.00, Prod. info BN, Distance 4 90.00, Rear Distance 165.00, Distance 2 28.50, Distance 3 45.00, Drive Distance 13.50, Terminal 50 M5, Mounting Hole 4 10.00, B+ M8, Rotation CW, No./mount. holes 4 (2), Mounting hole 3 with thread M8, Front Distance 52.00, Total Length 218.00, Position 50, Mounting Hole 1 10.00, Mounting Holes with Thread 2, Amount of Mounting Holes 4, Gear type GR, No./teeth 11

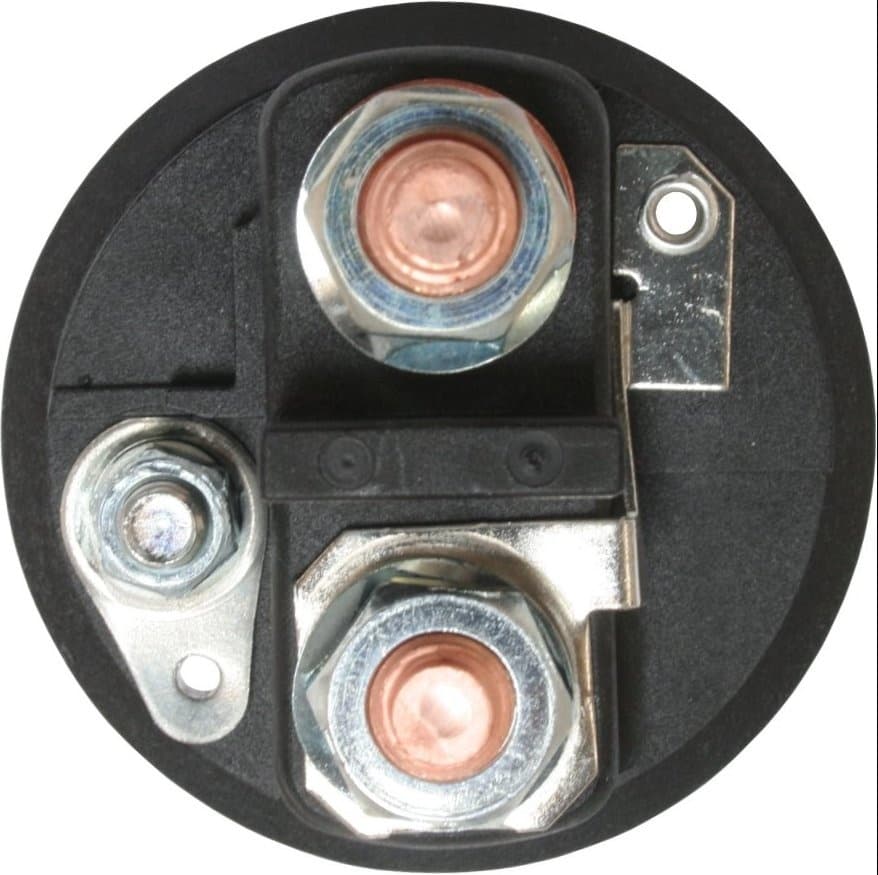

F032132034 - Solenoid ProtectionTrade number 132034
Coil Bolt Diameter M8, B+ Width 16.50, Terminal 50 Width/Height 8.00, Outer Diameter 51.30, Terminal 50 size M5, B+ type Bolt, No./terminals 3, Coil Bolt Length 11.50, B+ size M8, Bracket type Crimp, Earth straps Long, Terminal 50 type Bolt, Inner Diameter 38.00, Remarks HC-CARGO 135390.
F032135847 - Stop RingTrade number 135847
Material Steel, Thickness 2.00, Remarks Stop collar: HC-CARGO 137742.
F032137742 - Stop RingTrade number 137742
Gasket w/o, Inner Diameter 12.00, Material Steel, Outer Diameter 17.80, Collar w/o, O-ring w/o, Remarks Retaining ring: HC-CARGO 135847., Height 4.70
F032140482 - Needle bearingTrade number 140482
Inner Diameter 10.00, Outer Diameter 14.00, Bearing type Needle bearing, Height 10.00
F032140751 - Needle bearingTrade number 140751
Inner Diameter 8.00, Outer Diameter 12.00, Servicing PG100, -150, Bearing type Needle bearing, Height 8.00
F032190582 - Spring Lock WasherTrade number 190582
DIN norm 128A, Inner Diameter 8.10, Material Steel spring, Outer Diameter 14.80, Thickness 1.60
F032191304 - ScrewTrade number 191304
Iso norm 4035, DIN norm 439B, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032191513 - Self-locking nutTrade number 191513
Self-locking w/, Material Steel, Thread/mm/" M8, Coating Electro Galvanized, Spanner Size 13
F032231345 - BoltTrade number 231345
Thread/mm/" M5, Collar Length 140.00, Thread Length 33.00, Total Length 144.00
F032236358 - ArmatureTrade number 236358
Replacement for:
VALEO 594683VALEO 594781
kW 2.0, Voltage 12, Drive End Inside Shaft Diameter Outside 7.00, Bar Lane Height 18.20, Bar Cross Distance 32.70, Commutator End Shaft Diameter 8.00, Spline Teeth Length 21.00, Rotation CW/CCW, Commutator Outer Diameter 41.00, Bar length 5.50, Commutator Inner Diameter 10.00, No./bars 19, Commutator Height 29.80, Commutator Diameter 30.20, OD/spline/teeth 18.90, Core Diameter 49.70, Shaft length 118.50, Bar Distance 2.75, No./teeth 16
F032238193 - Solenoid SwitchTrade number 238193
Replacement for:
VALEO 594632VALEO 595731
Voltage 12, Terminal 50 Width 10.50, Terminal 50 Bolt, B+ Height 16.00, Coil Bolt Diameter M8, B+ M8, Outer Diameter 54.10, No./mount. holes 2, No./terminals 3, Terminal 50/mm M5, Coil Bolt Length 9.50, Earth straps Long, Amount of Mounting Holes 2, Total Length 89.00, Mounting Hole 1 55

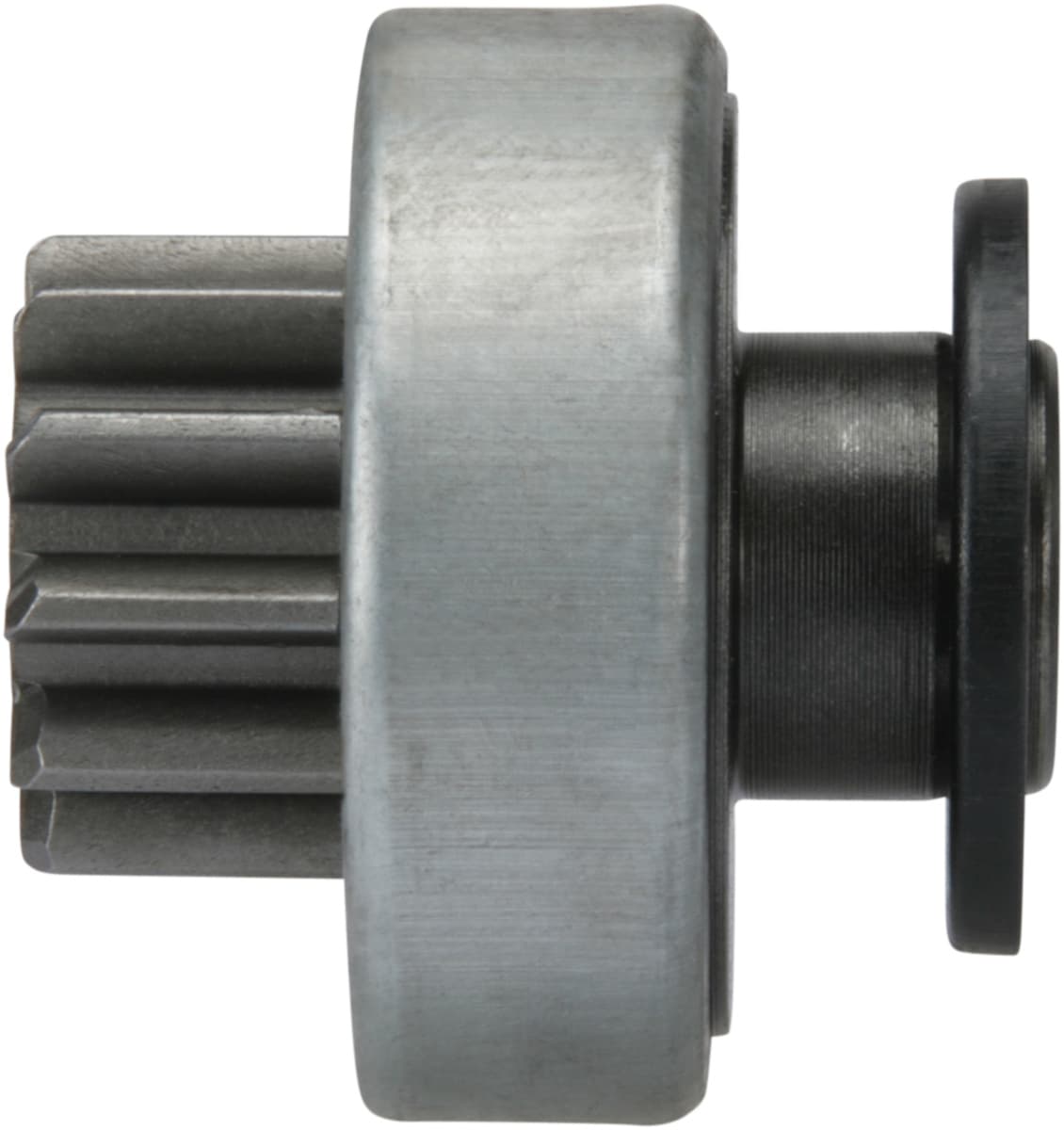

F032330800 - Overrunning-Clutch DriveTrade number 330800
Splines internal 8, Drive type Steel, Rotation CW, Inner Diameter 12.10, Outer Diameter 28.90, Housing Outer Diameter 50.00, No./teeth 11, Total Length 45.50
F032900262 - Carbon-Brush SetTrade number PSX142-1444
Replacement for:
VALEO 187778
Voltage 12, Conductor w/, Spring w/o, Brush lead length 36.00, Cable lugs w/o, No./brushes 4, Lead Length 56.00, Thickness 7.00, Length 13.70, Remarks 2 component., Height 14.00
