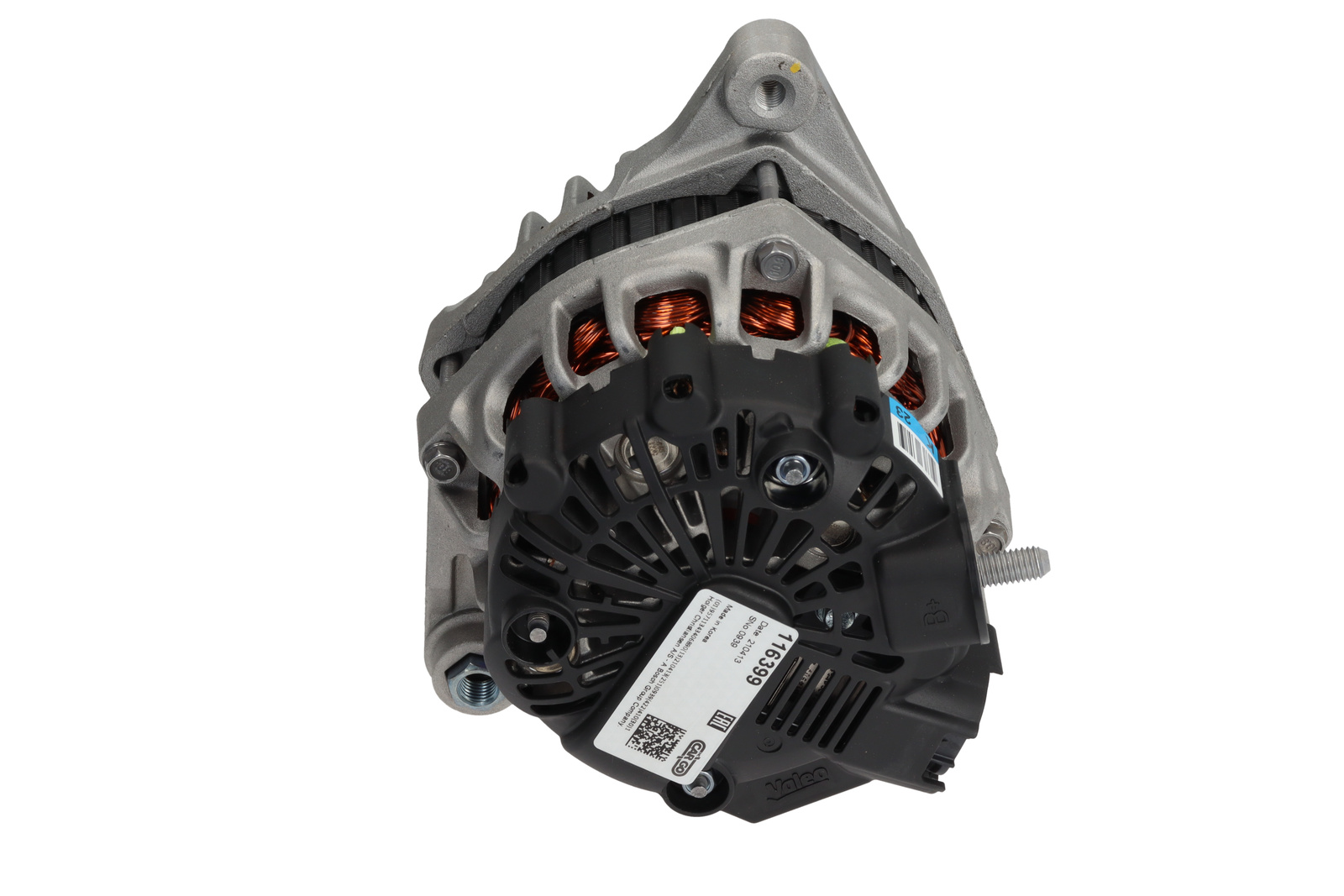

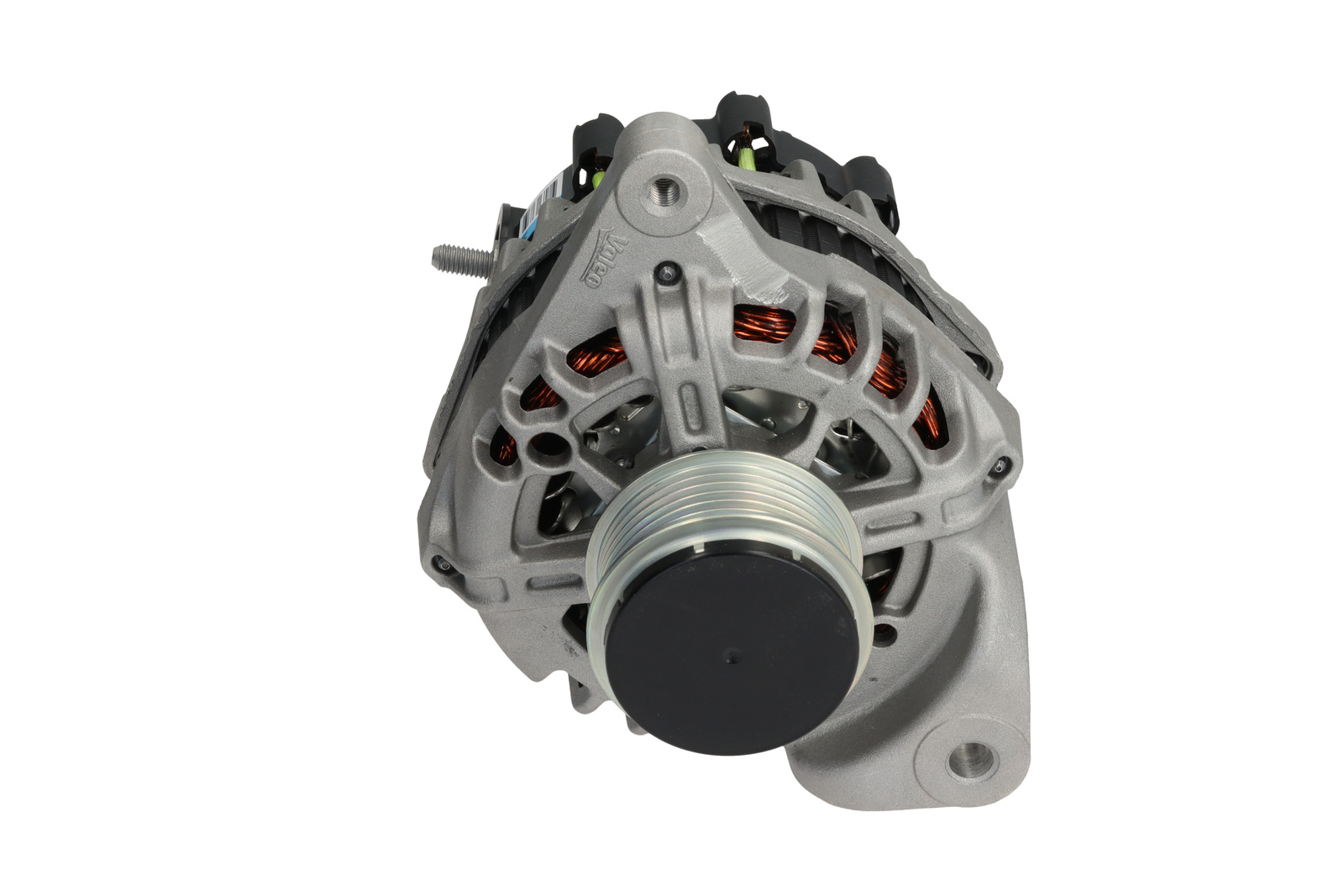

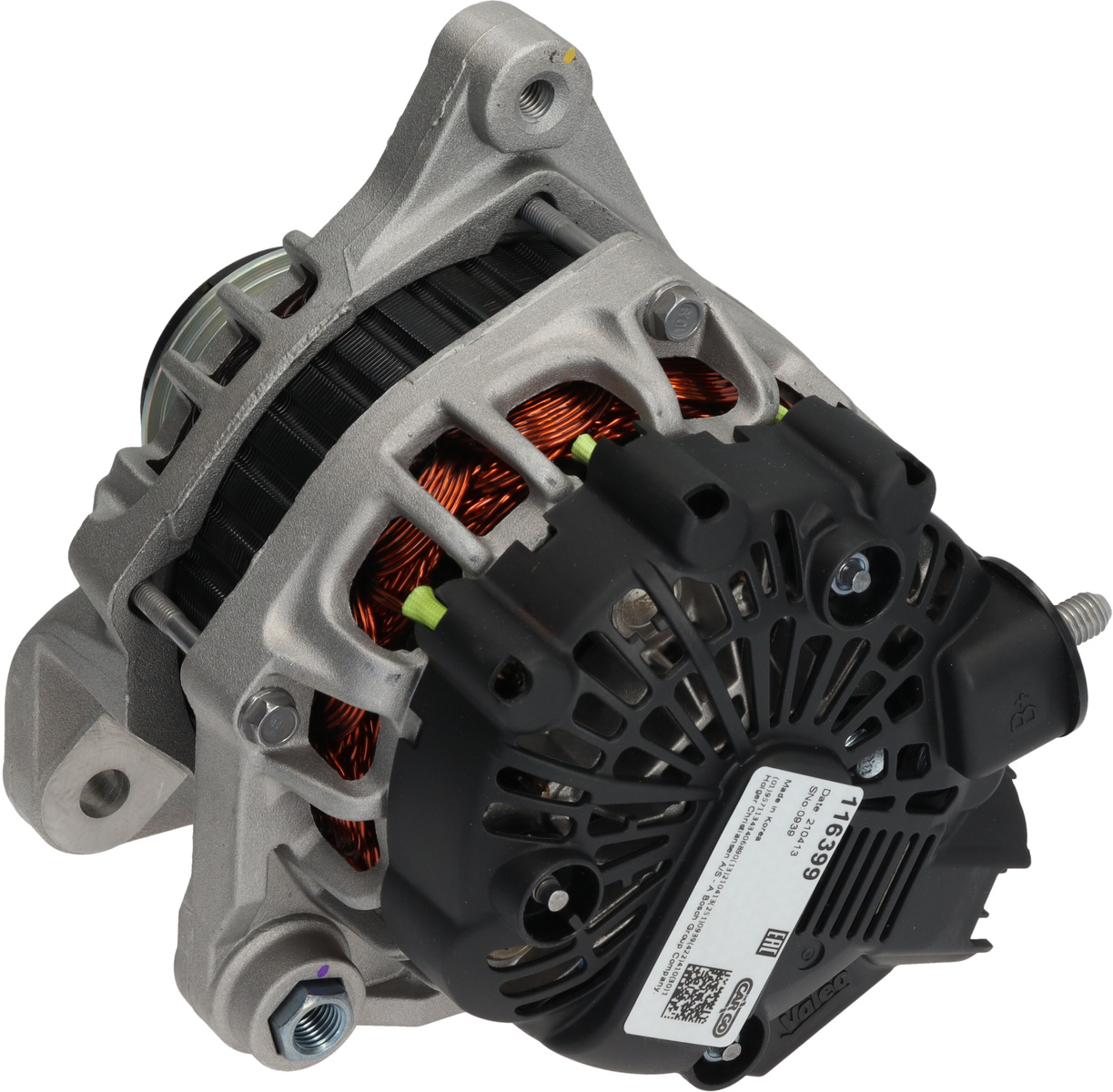

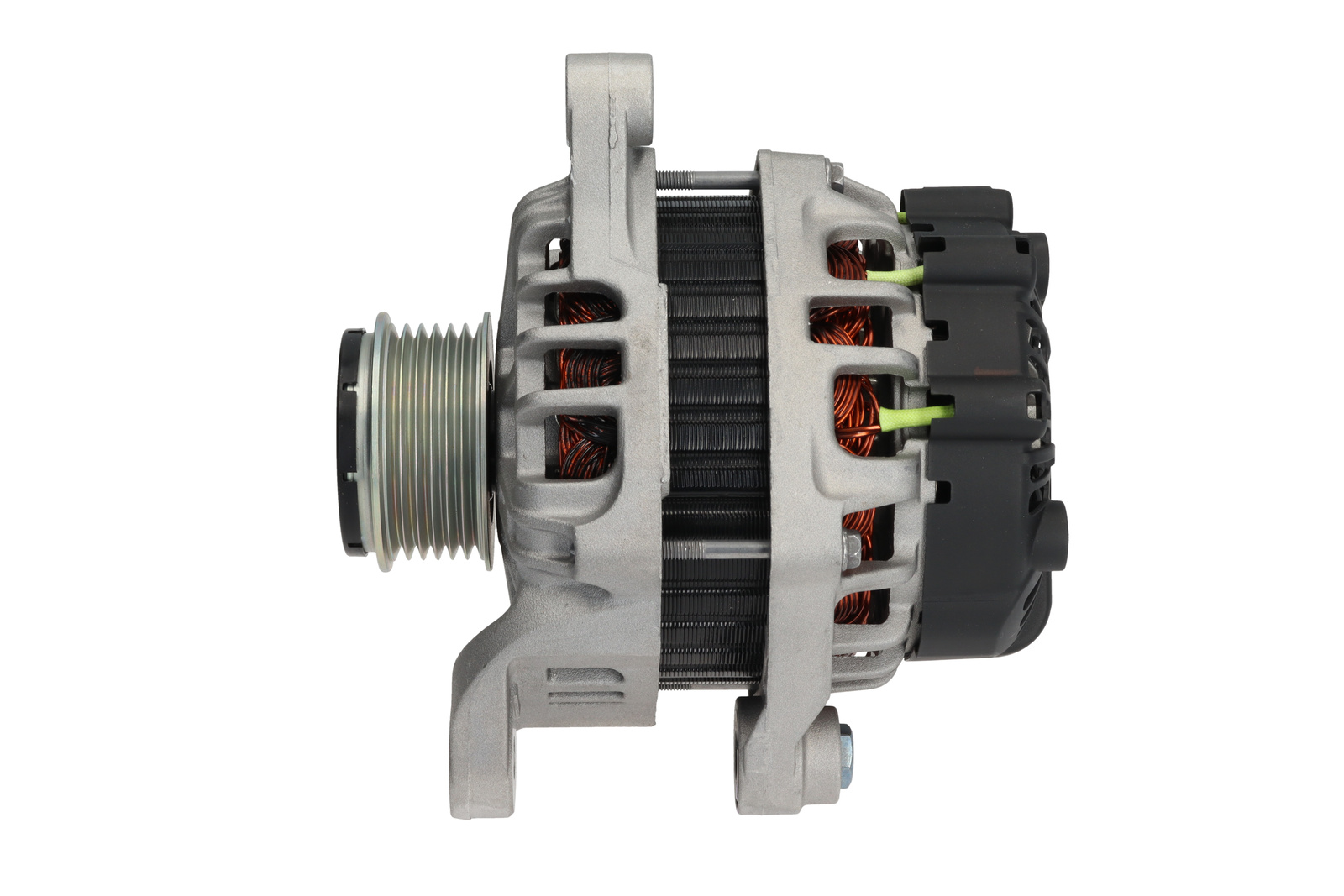

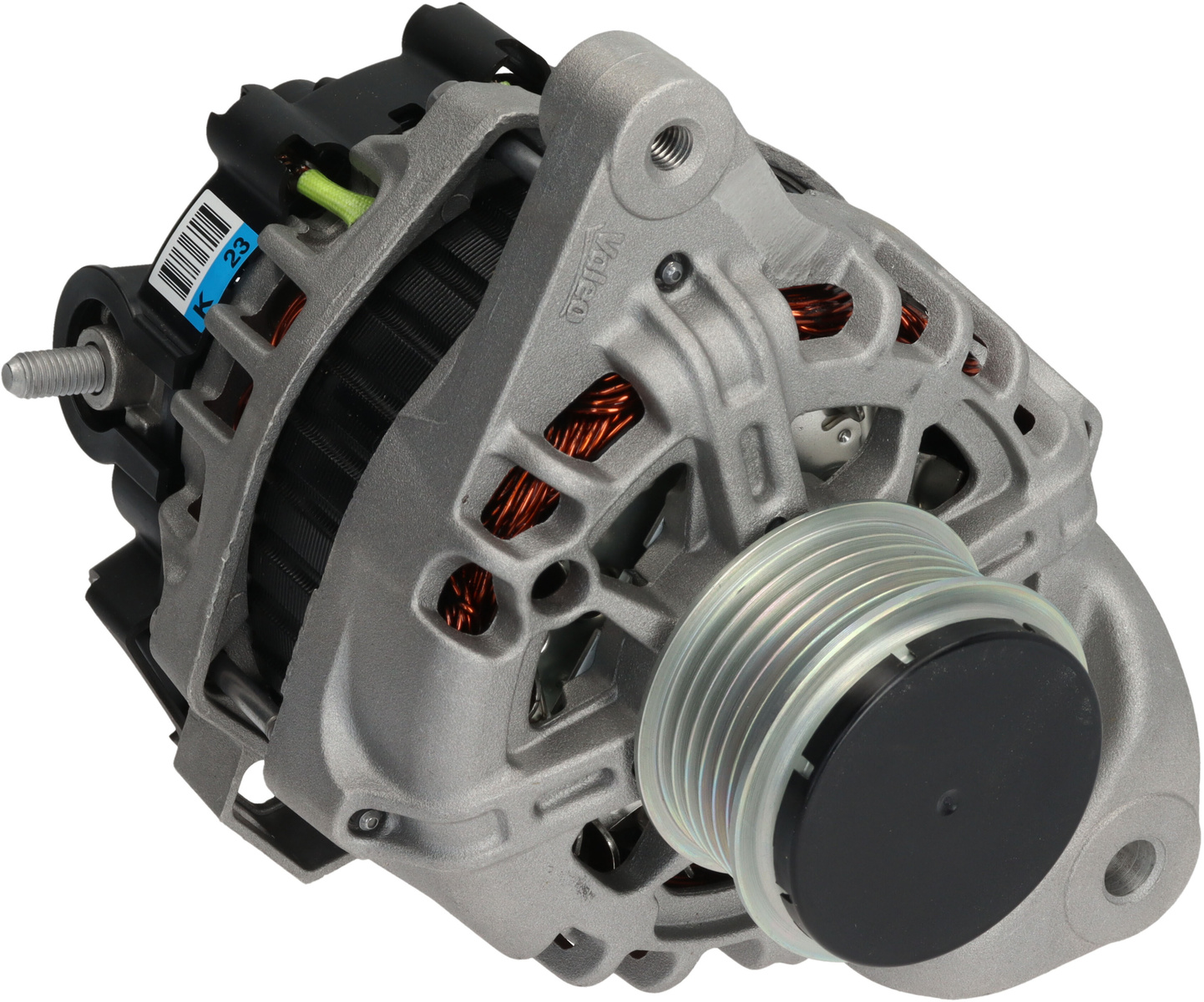

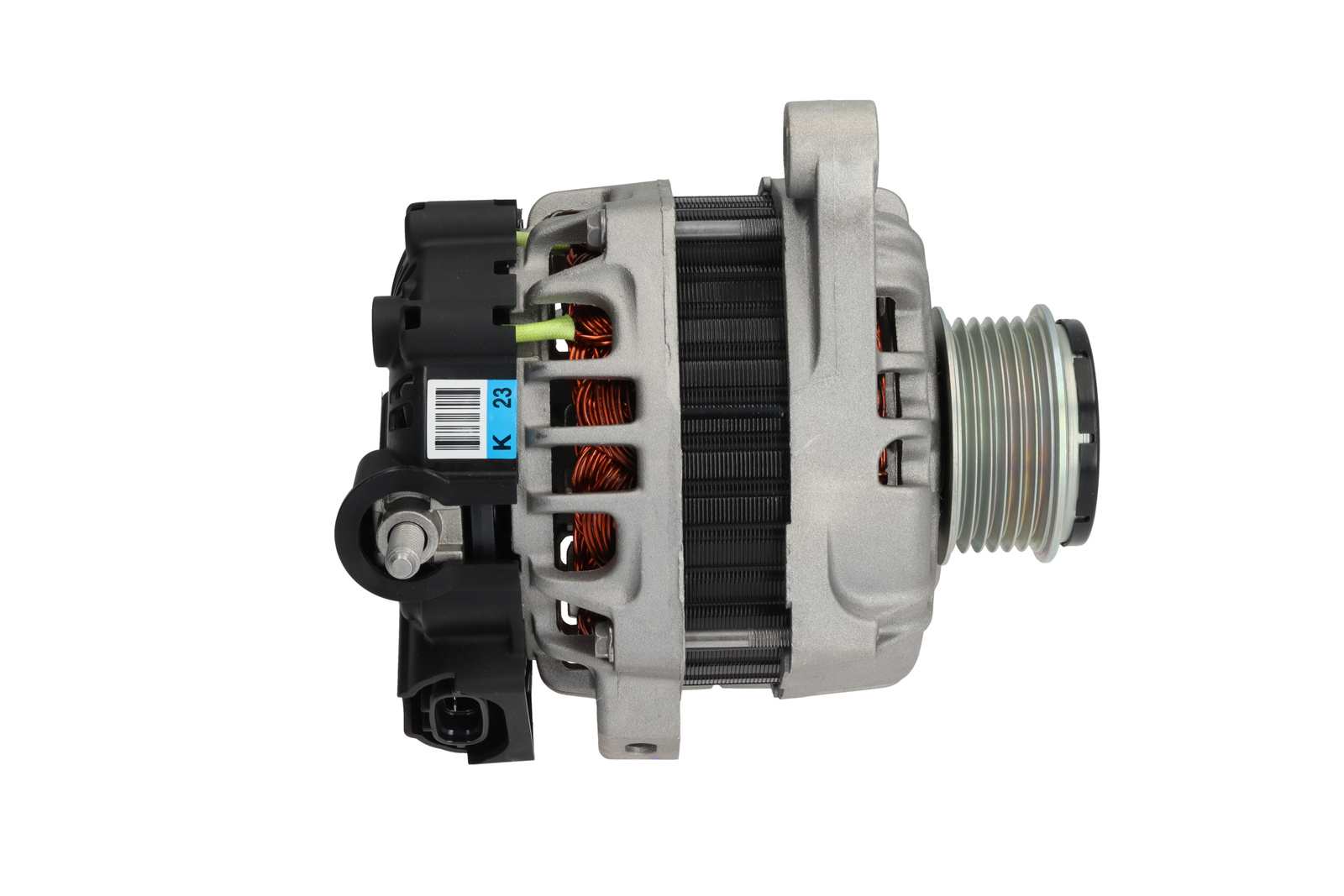

F032116399 - Alternator
Trade number 116399
Replacing and BOMs
OEM number
- 3730004635HYUNDAI
Competitor References
- A3568VALEOAUTOSTARTER POLAND
- 0986085860BOSCH
- 1986A01451BOSCH
- CAL32201CASCO SRL
- 155915090CV PSH
- 224315902DRI
- 286961ELSTOCK
- 12061225EUROTEC
- 116399HC-CARGO
Trade number 116399
Details & description
Terminal IF, Voltage 14, Amp 90, Pulley SP/FW, Bracket Hole Size 1 10.40, Pulley Diameter 58.00, Bracket Hole Size Rear M10-1.25, Holder Arm Width 14.80, Pulley Distance 10.00, B+ M8, Fan IF, Radius 2 86.00, Plug no. 1 PL176, Mounting Bracket Distance 52.50, Radius 78.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, Regulator type IR, B+ Position 5, Belt Adjustment Bracket Hole Position 7, Total Length 177.00
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp90
Physical information
- PulleySP/FW
- Bracket Hole Size 110.40
- Pulley Diameter58.00
- Bracket Hole Size RearM10-1.25
- Holder Arm Width14.80
- Pulley Distance10.00
- B+M8
- FanIF
- Radius 286.00
Replacing and BOMs
OEM number
- 3730004635HYUNDAI
Competitor References
- A3568VALEOAUTOSTARTER POLAND
- 0986085860BOSCH
- 1986A01451BOSCH
- CAL32201CASCO SRL
- 155915090CV PSH
- 224315902DRI
- 286961ELSTOCK
- 12061225EUROTEC
- 116399HC-CARGO
