F032132796 - Armature

Trade number 132796
Product image - main
Trade number 132796

Details & description

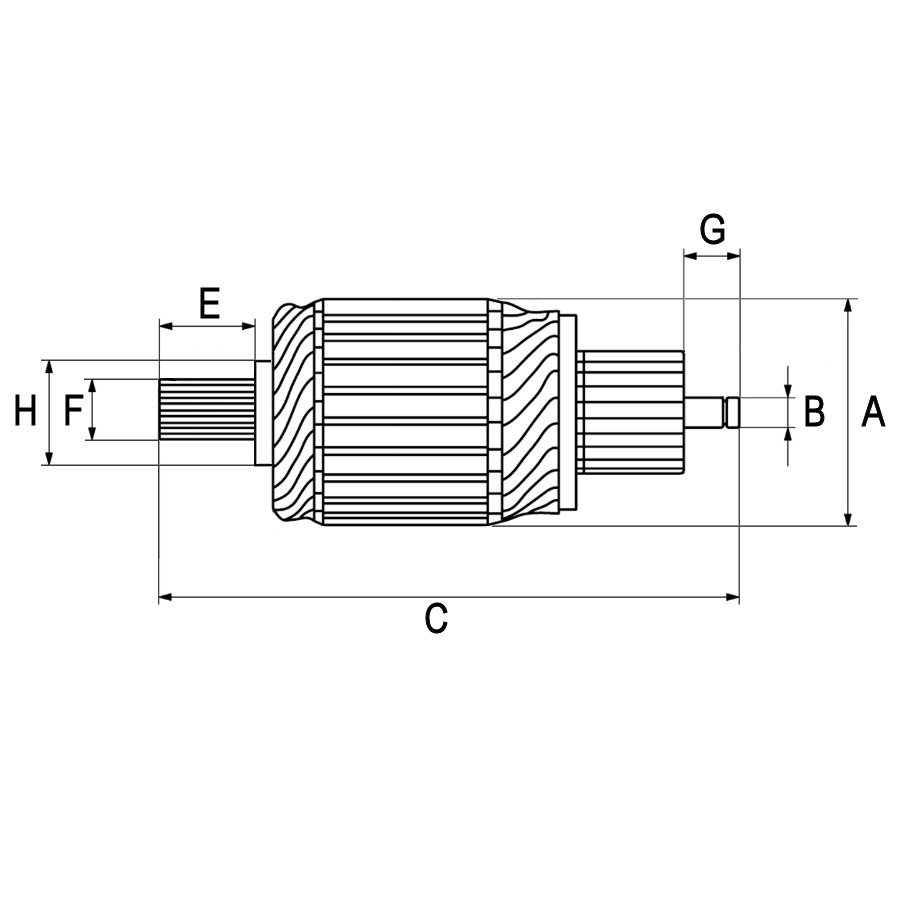

kW 0.9/1.0/1.2, Voltage 12, Commutator Diameter 30.20, Commutator Distance 8.90, OD/spline/teeth 14.20, No./bars 21, Commutator Height 31.70, Bar length 4.40, Commutator Inner Diameter 11.80, Bar Distance 1.80, No./teeth 9, Core Diameter 47.00, Shaft length 135.00, Bar Cross Distance 31.20, Commutator End Shaft Diameter 8.00, Bar Lane Height 21.30, Spline Teeth Length 24.00, Commutator Outer Diameter 40.20, Drive End Inside Shaft Diameter 15.00, Rotation CW

Product information

Electrical information

  • kW0.9/1.0/1.2
  • Voltage12

Physical information

  • Commutator Diameter30.20
  • Commutator Distance8.90
  • OD/spline/teeth14.20
  • No./bars21
  • Commutator Height31.70
  • Commutator Inner Diameter11.80
  • Bar Distance1.80
  • No./teeth9
  • Core Diameter47.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 31207657671HONDA
    • 5811210310ISUZU
    • 492007212SUBARU
    • 2816026070TOYOTA

    Competitor References

    • SA6004AUTOSTARTER POLAND
    • 0212002120DENSO
    • 0282001531DENSO
    • 0282002120DENSO
    • 0282004540DENSO
    • 132796HC-CARGO
    • 618202WAI
    • 618206WAI
    • WSA1938WOOD AUTO SUPPL
