D.E. Brackets

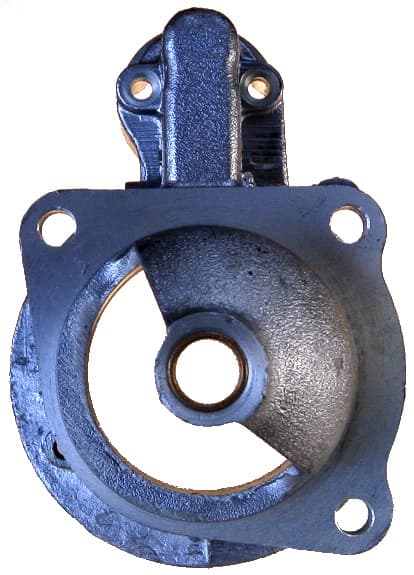

F032130511 - drive end shieldTrade number 130511
Mounting Hole B2 16.60, Position D2 30, Distance O2 127.00, Position D3 50, Distance O1 127.00, Distance C3 18.00, Mounting Hole B3 16.60, Distance C1 18.00, Mounting Flange Diameter 92.00, Distance O3 127.00, Position D1 10, Distance C2 18.00, Mounting Hole B1 16.60, Mounting Flange Distance 101.50, Type Closed, Servicing 40MT, 50MT
F032132049 - Drive bearingTrade number 132049
Mounting Hole B2 11.00, Distance C2 13.30, Mounting Hole B1 11.00, Mounting Flange Distance 23.00, Type Open, Distance C3 13.30, Mounting Hole B3 11.00, Distance C1 13.30, Mounting Flange Diameter 89.00
F032132219 - drive end shieldTrade number 132219
Mounting Hole B2 12.60, Position D2 20, Distance O2 139.00, Position D3 50, Distance O1 102.00, Distance C3 13.00, Mounting Hole B3 12.60, Distance C1 13.00, Mounting Flange Diameter 88.40, Distance O3 102.00, Position D1 5, Distance C2 13.00, Mounting Hole B1 12.60, Mounting Flange Distance 96.50, Type Closed
F032134677 - drive end shieldTrade number 134677
Mounting Hole B2 10.30, Position D1 25, Position D2 55, Distance C2 4.60, Mounting Hole B1 13.20, Mounting Flange Distance 53.40, Type Closed, Distance O1 120.00, Distance C1 4.20, Mounting Flange Diameter 82.60
F032134864 - drive end shieldTrade number 134864
Mounting Hole B2 12.50, Position D1 10, Position D2 40, Distance C2 15.00, Mounting Hole B1 12.50, Mounting Flange Distance 79.00, Type Closed, Distance O1 127.00, Distance C1 16.20, Mounting Flange Diameter 82.50
F032137630 - Drive bearingTrade number 137630
Mounting Hole B2 9.00, Position D2 29, Distance O2 106.00, Position D3 50, Distance O1 101.50, Mounting Hole B3 9.00, Mounting Flange Diameter 76.00, Distance O3 101.50, Position D1 10, Mounting Hole B1 9.00, Mounting Flange Distance 39.00, Type Open
F032137633 - drive end shieldTrade number 137633
Mounting Hole B2 M10, Position D2 35, Distance O2 94.00, Position D3 50, Distance O1 128.00, Distance C3 18.60, Mounting Hole B3 M10, Distance C1 18.60, Mounting Flange Diameter 74.00, Distance O3 93.00, Position D1 5, Distance C2 18.60, Mounting Hole B1 M10, Mounting Flange Distance 36.40, Type Closed, Remarks Needle bearing: HC-CARGO 140242.
F032137911 - Drive bearingTrade number 137911
Mounting Hole B2 M10, Position D2 20, Distance O2 105.00, Position D3 50, Distance O1 74.00, Distance C3 8.50, Mounting Hole B3 M10, Distance C1 9.60, Mounting Flange Diameter 76.00, Distance O3 74.00, Position D1 5, Distance C2 8.50, Mounting Hole B1 7.50, Mounting Flange Distance 53.00, Type Closed
F032138324 - drive end shieldTrade number 138324
Mounting Hole B2 M10, Position D1 5, Position D2 35, Distance C2 6.00, Mounting Hole B1 M10, Mounting Flange Distance 63.50, Type Closed, Distance O1 115.00, Distance C1 6.00, Mounting Flange Diameter 82.50
F032138434 - drive end shieldTrade number 138434
Mounting Hole B2 10.80, Position D2 20, Distance O2 138.50, Position D3 50, Distance O1 100.50, Distance C3 12.70, Mounting Hole B3 10.80, Distance C1 12.70, Mounting Flange Diameter 89.00, Distance O3 101.40, Position D1 10, Distance C2 12.70, Mounting Hole B1 10.80, Mounting Flange Distance 77.00, Type Closed, Servicing M127-2.8 kW
