Starter Components

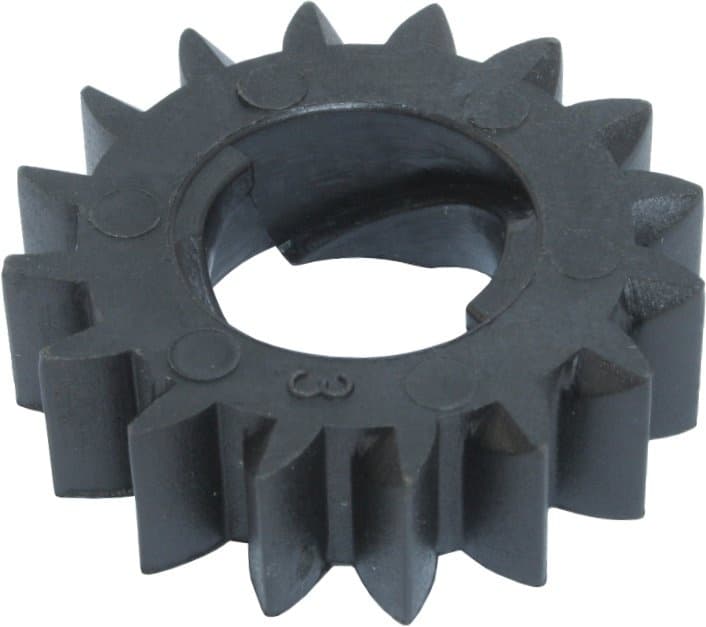

F032139395 - Starting-Motor PinionTrade number 139395
Bearing w/o,No./splines 2,Teeth Depth 5.20,Bushing w/o,No./teeth 16,Inner Diameter 20.50,Teeth Height 11.55,Outer Diameter 41.00,Height 11.50
F032139418 - Starting-Motor PinionTrade number 139418
No./teeth 16,Splines internal 2,Outer Diameter 41.00,Remarks Gear: HC-CARGO 139395.

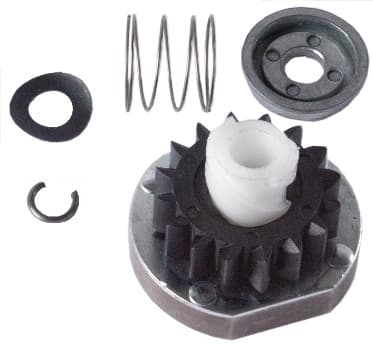

F032230400 - Starting-Motor PinionTrade number 230400
No./teeth 16,Outer Diameter 41.00,Remarks w/ snap ring.,Total Length 11.50

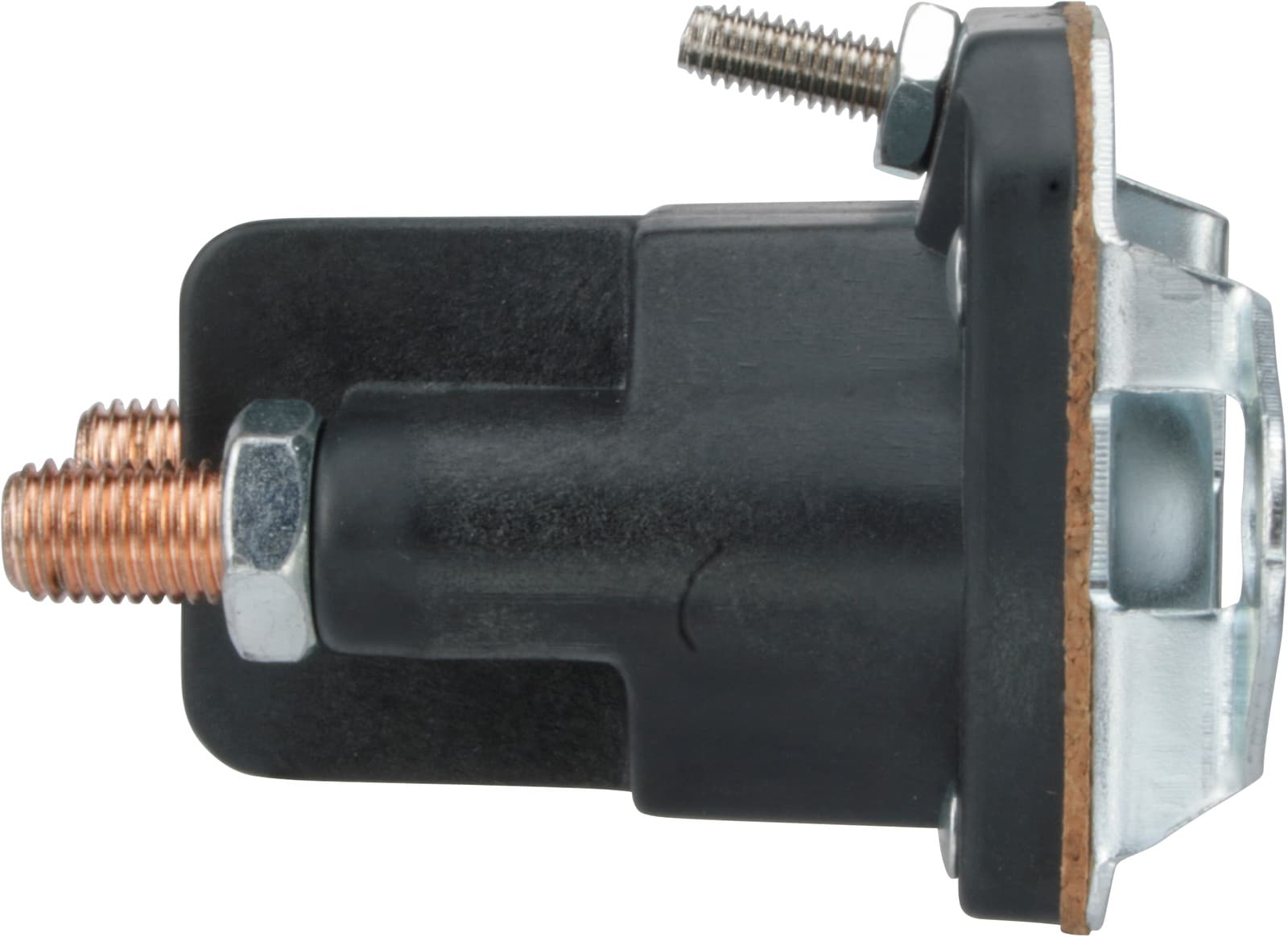

F032231526 - Solenoid SwitchTrade number 231526
Voltage 12,Amp 80,No./mount. holes 2,No./terminals 3,Outer Diameter 55.80,Amount of Mounting Holes 2,Remarks N.O. Terminals: 5/16" UNF. Coil Terminal: 10-32 UNF. Relay w/ 1/4" Terminals: HC-CARGO 234070.,Total Length 65.00

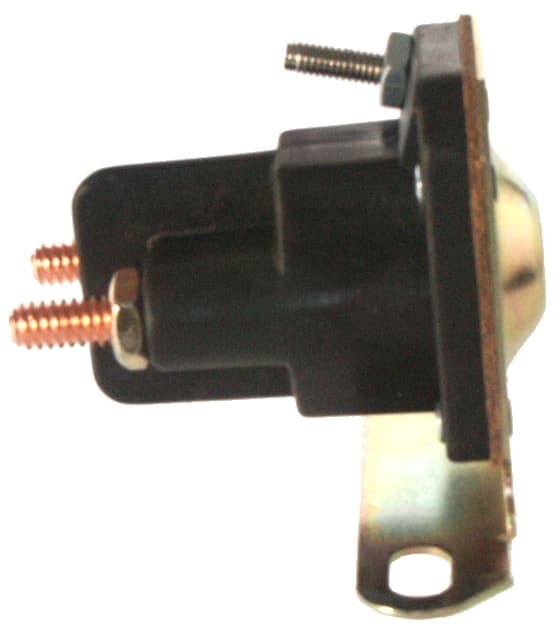

F032234070 - Solenoid SwitchTrade number 234070
Voltage 12,Amp 80,No./mount. holes 2,No./terminals 3,Amount of Mounting Holes 2,Remarks N.O. Terminals: 1/4" UNC. Coil Terminal: 10-32 UNF. Relay w/ 5/16" terminals: HC-CARGO 231526.,Total Length 66.50

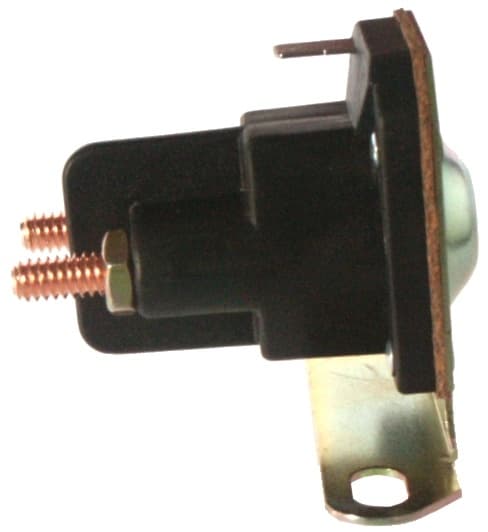

F032234071 - Solenoid SwitchTrade number 234071
Voltage 12,Amp 80,No./mount. holes 2,No./terminals 3,Amount of Mounting Holes 2,Remarks N.O. Terminals: 1/4" UNC. Coil Terminal: 6.30 mm.,Total Length 64.00

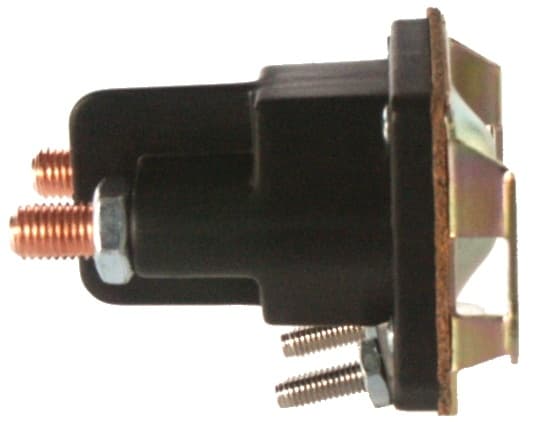

F032234072 - Solenoid SwitchTrade number 234072
Voltage 12,Amp 80,No./mount. holes 2,No./terminals 4,Amount of Mounting Holes 2,Remarks Insulated return. N.O. Terminals: 5/16" UNF. Coil Terminals: M5.,Total Length 66.50

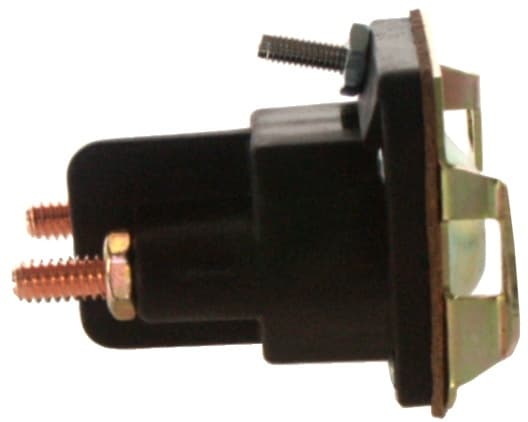

F032234073 - Solenoid SwitchTrade number 234073
Voltage 12,Amp 80,No./mount. holes 2,No./terminals 3,Amount of Mounting Holes 2,Remarks N.O. Terminals: 1/4" UNC. Coil Terminal: 10-32 UNF.,Total Length 64.00

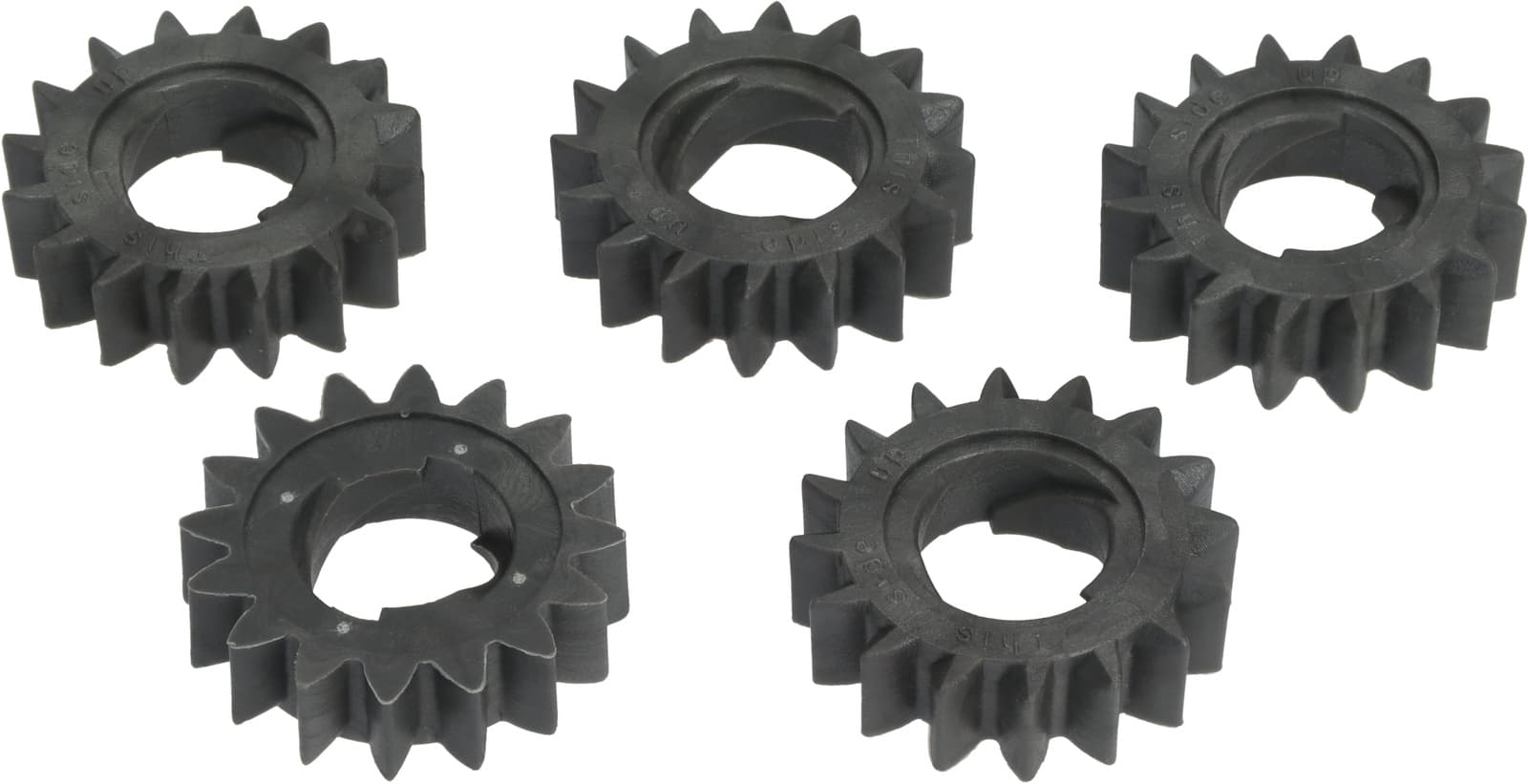

F032335924 - Starting-Motor PinionTrade number 335924
Bearing w/o,No./splines 2,Teeth Depth 5.20,Bushing w/o,No./teeth 16,Inner Diameter 20.50,Teeth Height 11.55,Outer Diameter 41.00,Remarks 5 pcs.,Height 11.50
