Starters & Alternators
We are always extending the HC-CARGO range of: starters, dynastarters, DC Motors, alternators and generators. Continuous development is key to maintaining a leading position in the market. The HC-CARGO range offers starters and alternators for cars and light and heavy commercial vehicles, as well as industrial, agricultural, marine, sport and outdoor equipment applications. Also, with every product in the shop you will find a complete cross reference list.

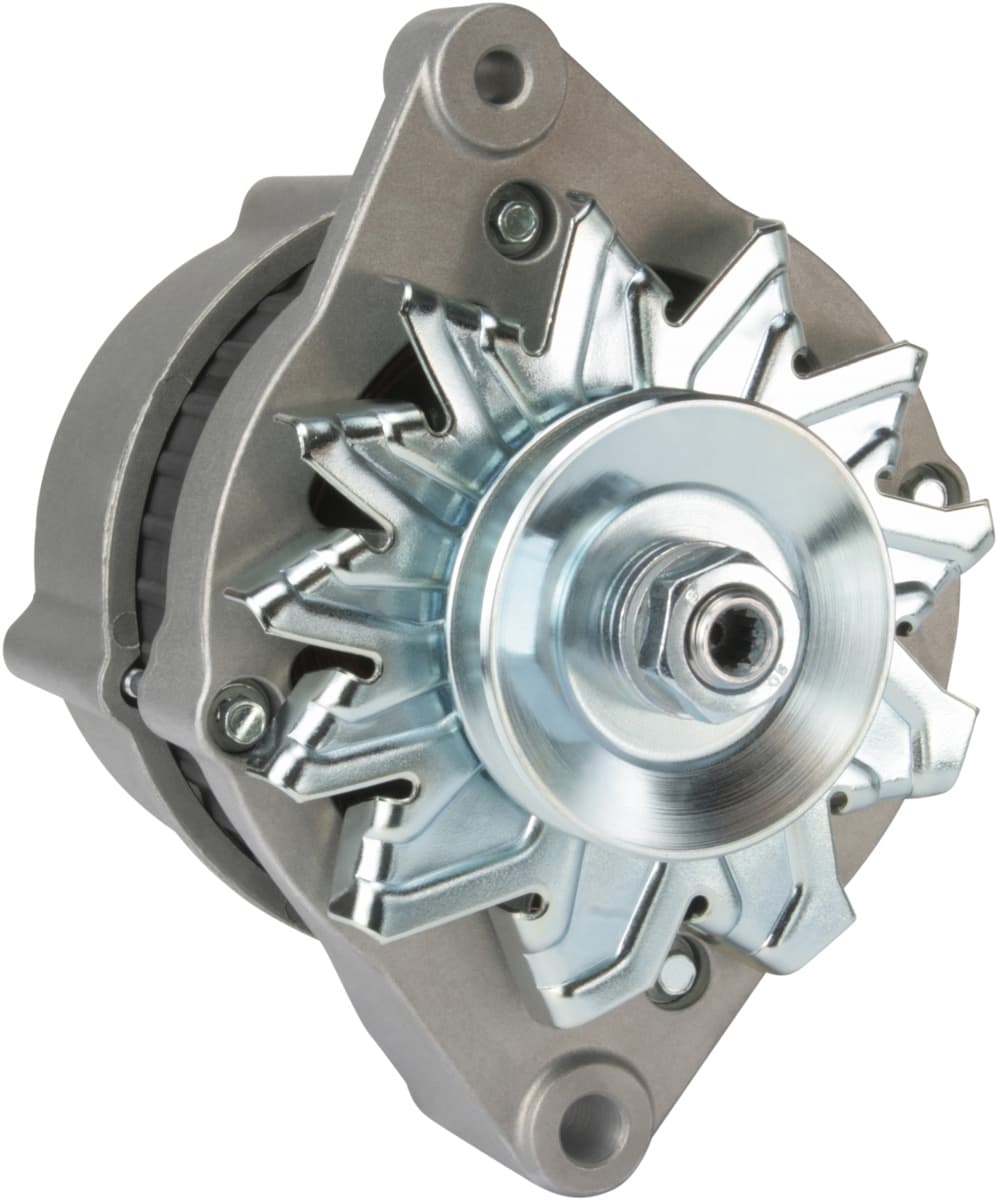

F032110048 - AlternatorTrade number 110048
Insulated return Yes,Voltage 14,Amp 70,Terminal W,Pulley SP,W plug type 6.30,Pulley Diameter 73.00,Prod. info BN/OE,D+ Position 25,Pulley Distance 72.00,Source Mahle Letrika,Radius 84.50,Belt Adjustment Bracket Hole 1 8.00,Grooves/pulley 1,Regulator type IR,Bracket Hole Size 1 11.00,D+ Size M5,Holder Arm Width 51.00,B+ M6,Fan EF,Radius 2 83.50,Rotation CW,Position 60,B+ Position 40,Belt Adjustment Bracket Hole Position 56,Total Length 180.00

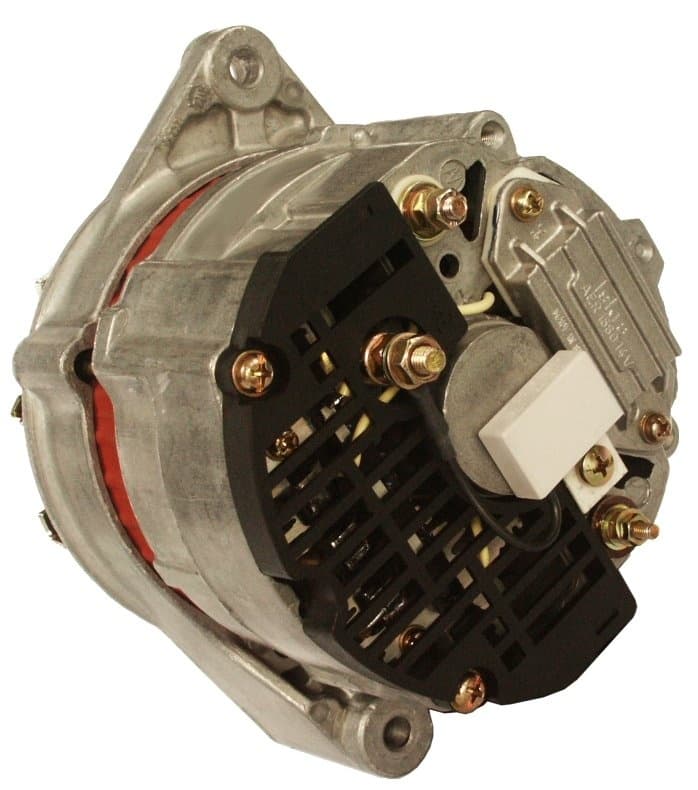

F032110052 - AlternatorTrade number 110052
Terminal W,Insulated return Yes,Voltage 28,Amp 40,Pulley w/o,W plug type 6.30,Bracket Hole Size 1 11.00,Prod. info BN,Bracket Hole Size Rear 14.00,D+ Size M5,D+ Position 5,Holder Arm Width 50.00,B+ M6,Fan EF,Radius 2 82.00,Radius 84.00,Rotation CW,Belt Adjustment Bracket Hole 1 8.20,Regulator type IR,Position 38,B+ Position 50,Belt Adjustment Bracket Hole Position 55,Total Length 177.00

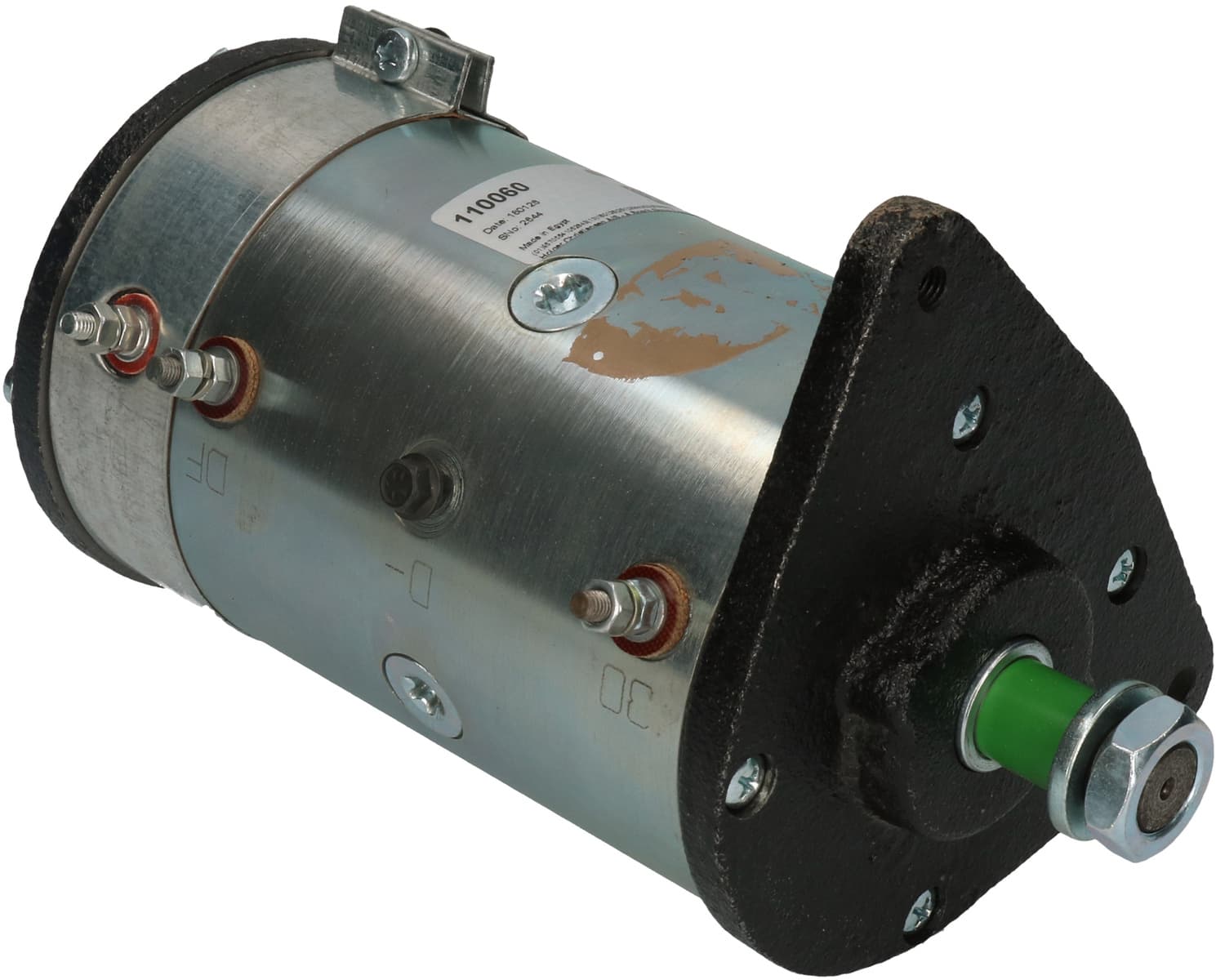

F032110060 - StarterTrade number 110060
Insulated return No,kW 0.9,Voltage 12,Amp 11,Regulator plug w/o,Pulley w/o,Prod. info BN/OE,Mounting Hole D3 10.00,Fan w/o,Radius 2 75.50,Mounting Hole D1 M8,Mounting Hole D2 8.00,Mounting Bracket Distance 150.00,Radius 75.50,Rotation CW,Thread size M16-1.00,Outer Diameter 102.50,Remarks Regulator: HC-CARGO 235781. Solenoid: HC-CARGO 133695.,Length 237.00,Shaft Diameter 17.00

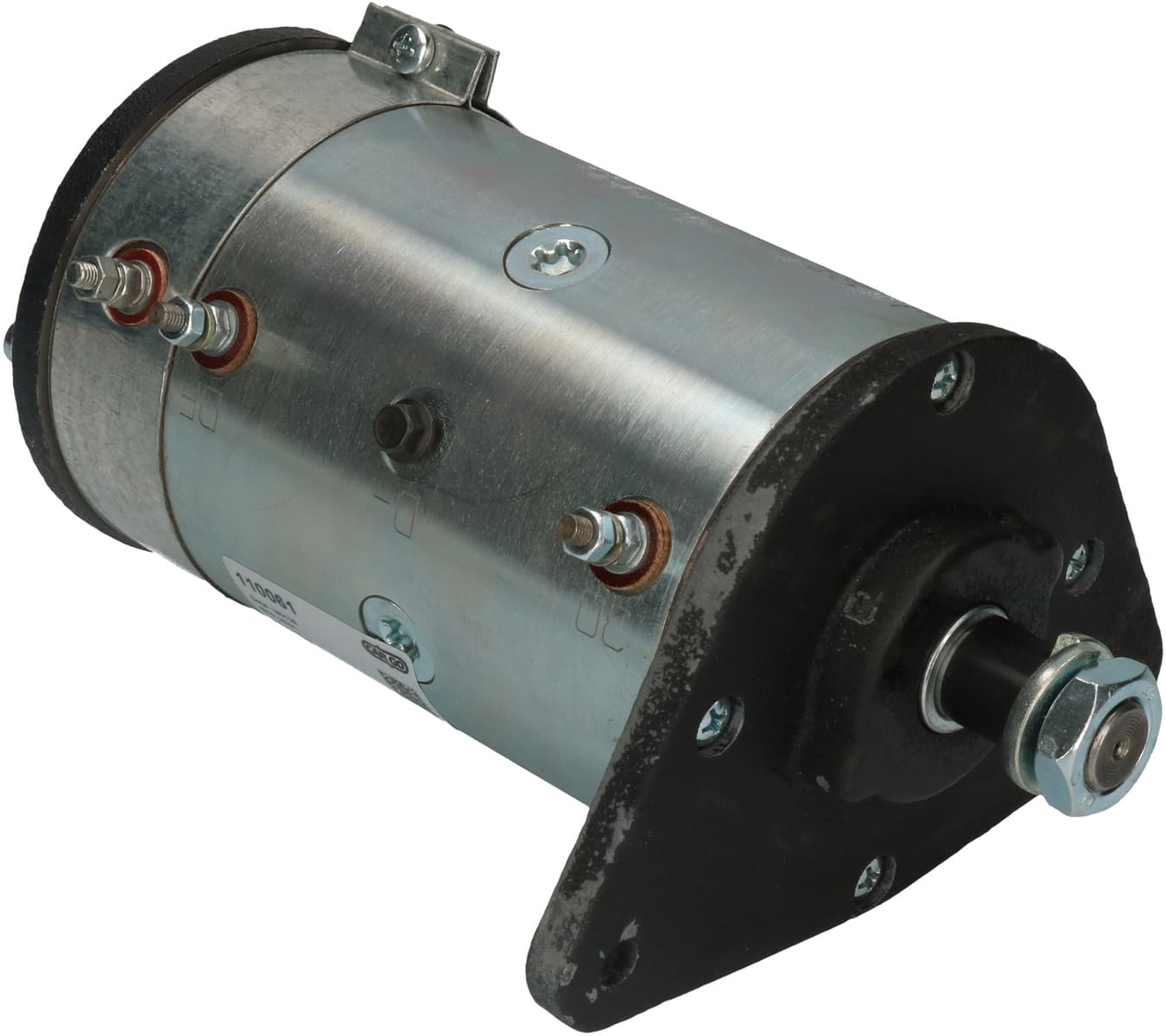

F032110061 - StarterTrade number 110061
Insulated return No,kW 0.9,Voltage 12,Amp 11,Regulator plug w/o,Pulley w/o,Prod. info BN/OE,Mounting Hole D3 10.00,Fan w/o,Mounting Hole D1 10.30,Mounting Hole D2 8.30,Mounting Bracket Distance 150.00,Rotation CW,Thread size M16-1.00,Outer Diameter 102.50,Remarks Regulator: HC-CARGO 235781. Solenoid: HC-CARGO 133695.,Length 237.00,Shaft Diameter 17.00

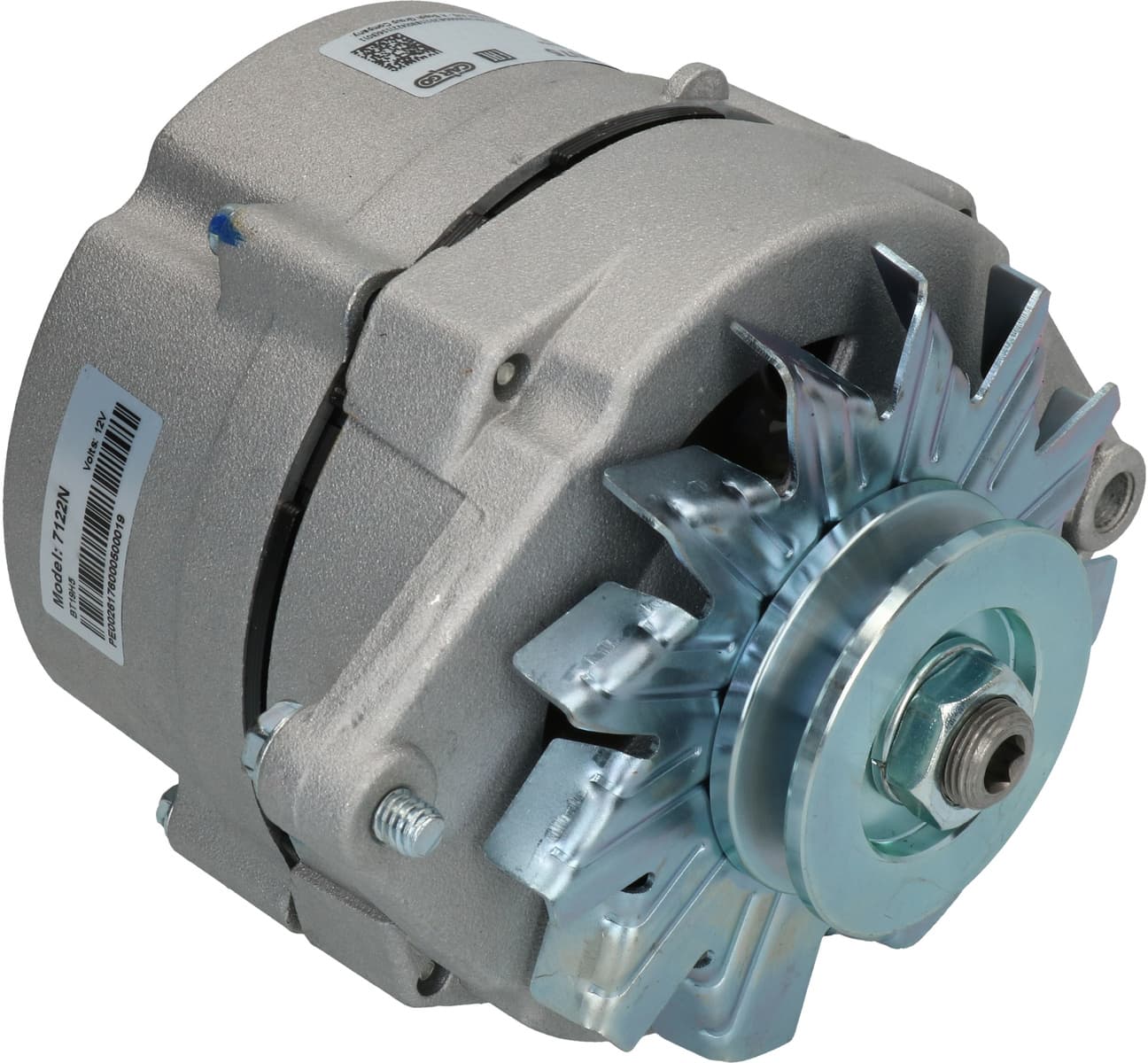

F032110075 - AlternatorTrade number 110075
Voltage 14,Amp 60,Pulley P,Pulley Diameter 67.70,Prod. info BN,D+ Position 50,Pulley Distance 75.00,Servicing American Motors, Buick, Cadillac, Chevrolet, GMC, Jeep, International, Oldsmobile, Pontiac,Radius 82.50,Regulator w/o,Belt Adjustment Bracket Hole 1 M8,Grooves/pulley 1,Bracket Hole Size 1 10.00,D+ Size Plug,Holder Arm Width 51.00,B+ M6,Radius 2 81.50,Plug no. 1 PL35,Rotation CW,Position 15,B+ Position 5,Belt Adjustment Bracket Hole Position 60,Total Length 176.00,Remarks Regulator: HC-CARGO 130505.
F032110077 - AlternatorTrade number 110077
Voltage 14,Amp 50,Pulley P,Bracket Hole Size 1 M8,Pulley Diameter 72.50,Prod. info BN,D+ Position 33,Holder Arm Width 56.00,Pulley Distance 78.50,Servicing Citroen, Opel, Peugeot, Vauxhall,B+ M6,Radius 2 88.50,Source Mahle Letrika,Radius 90.00,Rotation CW,Belt Adjustment Bracket Hole 1 M8,Grooves/pulley 1,Regulator type IR,Position 16,B+ Position 56,Belt Adjustment Bracket Hole Position 10,Total Length 171.00
F032110105 - AlternatorTrade number 110105
Voltage 14,Amp 55,Pulley P,W plug type M5,Pulley Diameter 93.00,Prod. info BN,D+ Position 25,Pulley Distance 83.30,Servicing John Deere lawn equipment w/ cooling eng,Source Mahle Letrika,Radius 84.50,Belt Adjustment Bracket Hole 1 8.00,Grooves/pulley 1,Regulator type IR,Bracket Hole Size 1 8.00,D+ Size M4,Holder Arm Width 56.00,B+ M6,Radius 2 87.50,Rotation CW,Position 10,B+ Position 50,Belt Adjustment Bracket Hole Position 60,Total Length 178.00
F032110107 - AlternatorTrade number 110107
Voltage 14,Amp 55,Pulley P,Bracket Hole Size 1 10.00,Prod. info BN,D+ Size Plug,B+ Plug,Fan EF,Radius 2 83.00,Plug no. 1 PL22,Radius 85.00,Belt Adjustment Bracket Hole 1 M8,Regulator type IR,Position 60,Belt Adjustment Bracket Hole Position 60,Total Length 165.00
F032110112 - AlternatorTrade number 110112
Terminal W,Voltage 28,Amp 40,Pulley w/o,W plug type M5,Bracket Hole Size 1 11.50,Prod. info BN,D+ Size M4,D+ Position 55,Holder Arm Width 51.00,Servicing Volvo,B+ M6,Fan EF,Radius 2 90.00,Radius 90.00,Belt Adjustment Bracket Hole 1 8.20,Regulator type IR,Position 25,B+ Position 10,Belt Adjustment Bracket Hole Position 57,Total Length 175.50
F032110113 - AlternatorTrade number 110113
Voltage 28,Amp 27,Pulley w/o,W plug type M5,Bracket Hole Size 1 10.00,Belt Adjustment Bracket Hole 2 12.00,Prod. info BN,D+ Size M4,D+ Position 2,Holder Arm Width 80.00,Servicing Mercedes-Benz,Radius 3 86.00,B+ M6,Radius 2 86.00,Radius 86.00,Rotation CCW,Belt Adjustment Bracket Hole 1 12.00,Regulator type IR,Position 33,B+ Position 18,Belt Adjustment Bracket Hole Position 10;50,Total Length 165.00
