Marine - HC-CARGO

F032110052 - AlternatorTrade number 110052

Insulated return Yes, Terminal W, Voltage 28, Amp 40, Regulator type IR, Belt Adjustment Bracket Hole 1 8.20, Radius 84.00, Prod. info BN, Bracket Hole Size Rear 14.00, Pulley w/o, W plug type 6.30, D+ Position 5, Fan EF, Radius 2 82.00, B+ M6, Rotation CW, Bracket Hole Size 1 11.00, Holder Arm Width 50.00, D+ Size M5, Belt Adjustment Bracket Hole Position 55, Total Length 177.00, Position 38, B+ Position 50

F032110060 - StarterTrade number 110060

kW 0.9, Insulated return No, Voltage 12, Amp 11, Mounting Hole D1 M8, Mounting Hole D2 8.00, Fan w/o, Radius 2 75.50, Rotation CW, Thread size M16-1.00, Outer Diameter 102.50, Mounting Bracket Distance 150.00, Radius 75.50, Prod. info BN/OE, Regulator plug w/o, Pulley w/o, Mounting Hole D3 10.00, Shaft Diameter 17.00, Length 237.00, Remarks Regulator: HC-CARGO 235781. Solenoid: HC-CARGO 133695.

F032110112 - AlternatorTrade number 110112

Terminal W, Voltage 28, Amp 40, Fan EF, Radius 2 90.00, B+ M6, Regulator type IR, Belt Adjustment Bracket Hole 1 8.20, Radius 90.00, Prod. info BN, Pulley w/o, W plug type M5, Bracket Hole Size 1 11.50, Servicing Volvo, Holder Arm Width 51.00, D+ Size M4, D+ Position 55, Belt Adjustment Bracket Hole Position 57, Total Length 175.50, Position 25, B+ Position 10

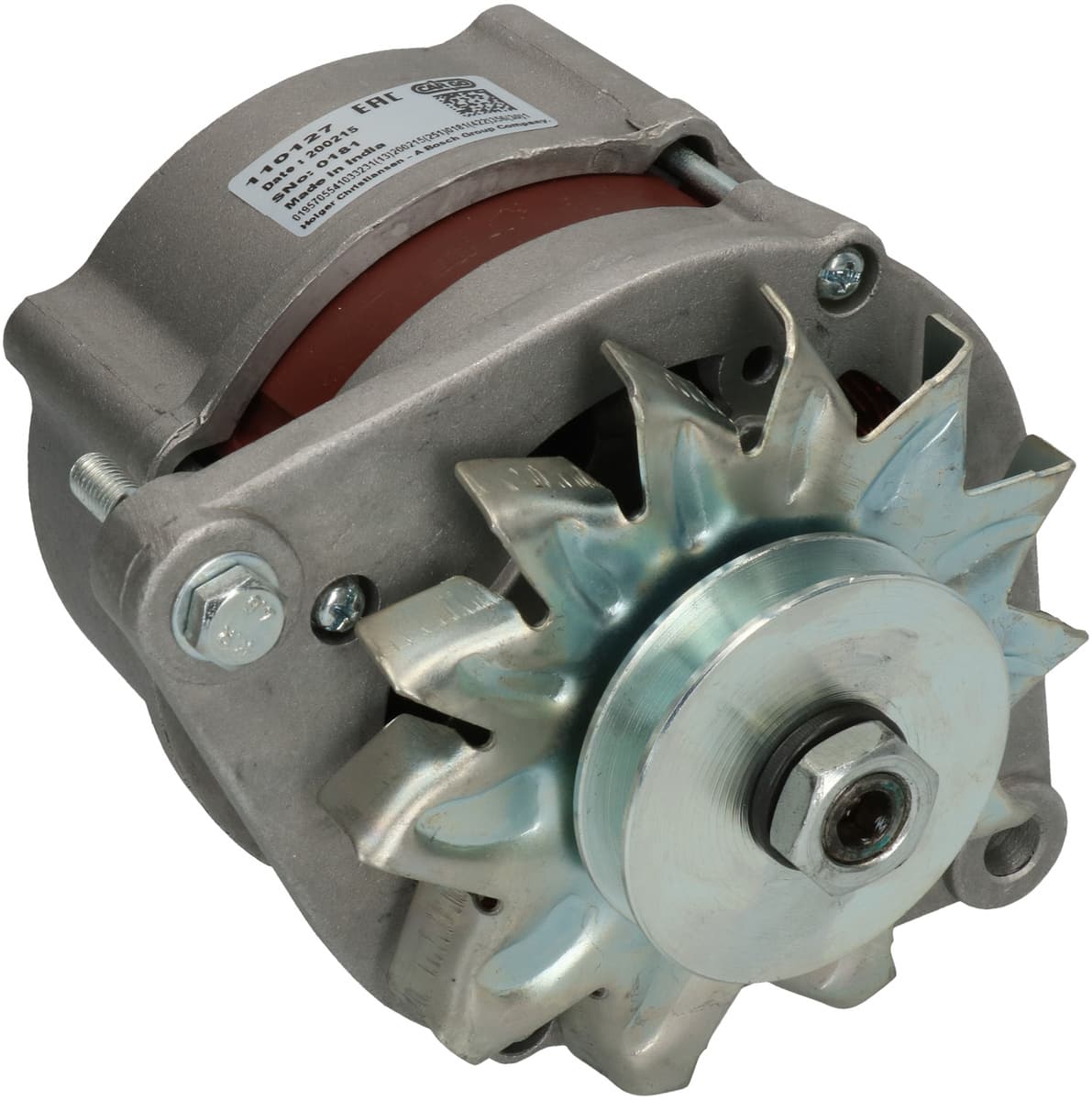

F032110127 - AlternatorTrade number 110127

Insulated return Yes, Terminal W, Voltage 14, Amp 70, Grooves/pulley 1, Regulator type IR, Belt Adjustment Bracket Hole 1 8.00, Radius 85.00, Pulley Diameter 64.00, Prod. info BN, Pulley P, W plug type 6.30, Pulley Distance 79.00, Servicing Volvo Penta, D+ Position 50, Fan EF, Radius 2 86.50, B+ M6, Rotation CW, Bracket Hole Size 1 11.00, Holder Arm Width 51.00, D+ Size M5, Belt Adjustment Bracket Hole Position 57, Total Length 179.00, Position 14, B+ Position 58

F032110160 - StarterTrade number 110160

kW 1.2, Voltage 12, Mounting Flange 82.50, Terminal 50 6.30, B+ M8, Terminal 15a 6.30, Rotation CW, Distance 103.00, Oil sealed No, Prod. info BN, Drive type Steel, No./mount. holes 2 (2), Rear Distance 158.00, Drive Distance 35.00, Waterproof No, Front Distance 71.00, Amount of Mounting Holes 2, Total Length 240.50, Position 45;15, Gear type DD;GR, Mounting Holes with Thread 2, No./teeth 9

F032110173 - AlternatorTrade number 110173

Voltage 28, Amp 75, Radius 2 107.00, B+ M8, Rotation CW, Regulator type IR, Belt Adjustment Bracket Hole 1 1/2" UNC, Info NOTE! NOT with insulated return, Mounting Bracket Distance 101.50, Radius 105.00, Prod. info BN, Bracket Hole Size Rear 12.50, Pulley w/o, Bracket Hole Size 1 12.50, Servicing DAF, Clark, Holder Arm Width 14.50, D+ Size M6, D+ Position 45, Belt Adjustment Bracket Hole Position 60, Total Length 246.00, Position 60, B+ Position 15

F032110175 - AlternatorTrade number 110175

Insulated return Yes, Voltage 28, Amp 100, Belt Adjustment Bracket Hole 3 1/2" UNC, Radius 3 106.50, Regulator type IR, Belt Adjustment Bracket Hole 1 1/2" UNC, Mounting Bracket Distance 103.00, Radius 108.00, Prod. info BN, Bracket Hole Size Rear 13.00, Pulley w/o, Radius 4 107.50, Servicing Volvo, D+ Position 5, Fan EF, Radius 2 107.00, B+ M8, Rotation CW, Belt Adjustment Bracket Hole 2 1/2" UNC, Bracket Hole Size 1 13.00, Holder Arm Width 14.70, D+ Size M5, Belt Adjustment Bracket Hole Position 56;60;4, Total Length 249.00, Position 60, B+ Position 30, Remarks Fan: HC-CARGO 134317. Pulley: HC-CARGO 131176.

F032110176 - AlternatorTrade number 110176

Insulated return Yes, Terminal W, Voltage 28, Amp 175, Belt Adjustment Bracket Hole 3 1/2" UNC, Radius 3 100.00, Regulator type IR, Belt Adjustment Bracket Hole 1 1/2" UNC, Mounting Bracket Distance 101.50, Radius 108.00, Prod. info BN, Bracket Hole Size Rear 13.00, Pulley w/o, W plug type M5, Radius 4 104.00, Servicing Volvo Penta, D+ Position 15, Fan EF, Radius 2 107.00, B+ 5/16" UNC, Rotation CW, Belt Adjustment Bracket Hole 2 1/2" UNC, Bracket Hole Size 1 13.00, Holder Arm Width 14.70, D+ Size 10-24 UNC, Belt Adjustment Bracket Hole Position 55;60;5, Total Length 278.00, Position 60, B+ Position 30

F032110210 - StarterTrade number 110210

kW 6.6, Voltage 24, Mounting Flange 92.00, Mounting Hole 3 13.50, Distance 126.50, Oil sealed No, Prod. info BN, Drive type Steel, Mounting Hole 2 13.50, Rear Distance 343.00, Distance 2 126.50, Distance 3 126.50, Drive Distance 47.50, Waterproof No, Terminal 50 M6, B+ M12, Rotation CW, B- M10, No./mount. holes 3 (0), Front Distance 61.00, Total Length 407.00, Position 60, Mounting Hole 1 13.50, Mounting Holes with Thread 0, Amount of Mounting Holes 3, Gear type DD, Remarks Not suitable for biogas plants., No./teeth 11

F032110212 - StarterTrade number 110212

kW 6.6, Voltage 24, Mounting Flange 92.00, Mounting Hole 3 13.50, Distance 126.00, Oil sealed No, Prod. info BN, Drive type Steel, Mounting Hole 2 13.50, Rear Distance 338.00, Distance 2 126.00, Distance 3 126.00, Drive Distance 48.00, Waterproof No, Terminal 50 M6, B+ M10, Rotation CW, B- M10, No./mount. holes 3 (0), Front Distance 64.00, Total Length 407.00, Position 60, Mounting Hole 1 13.50, Mounting Holes with Thread 0, Amount of Mounting Holes 3, Gear type DD, No./teeth 11

Marine

Need parts and spares for your boat or ship? We offer DC motor parts, jet starter, alternator, generator, alternator spare parts, starter, starter spare parts, tilt and trim motors and universal spare parts for e.g. honda, suzuki, yamaha. HONDA, SUZUKI, YAMAHA. Read more about the marine product groups below or click on your desired product for further product information.
