Dynamo Parts

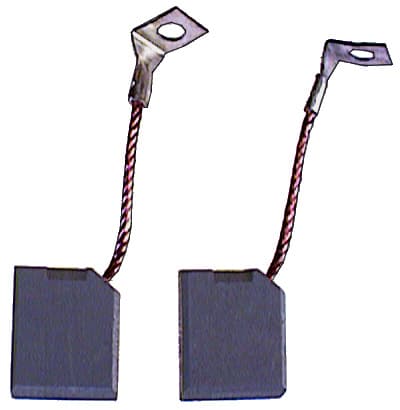

F0320JX222 - Carbon-Brush SetTrade number JX222
Voltage 14, Conductor w/, Spring w/o, Lead Length 32.00, Cable lugs w/, No./brushes 2, Length 20.50, Thickness 6.00, Height 16.00

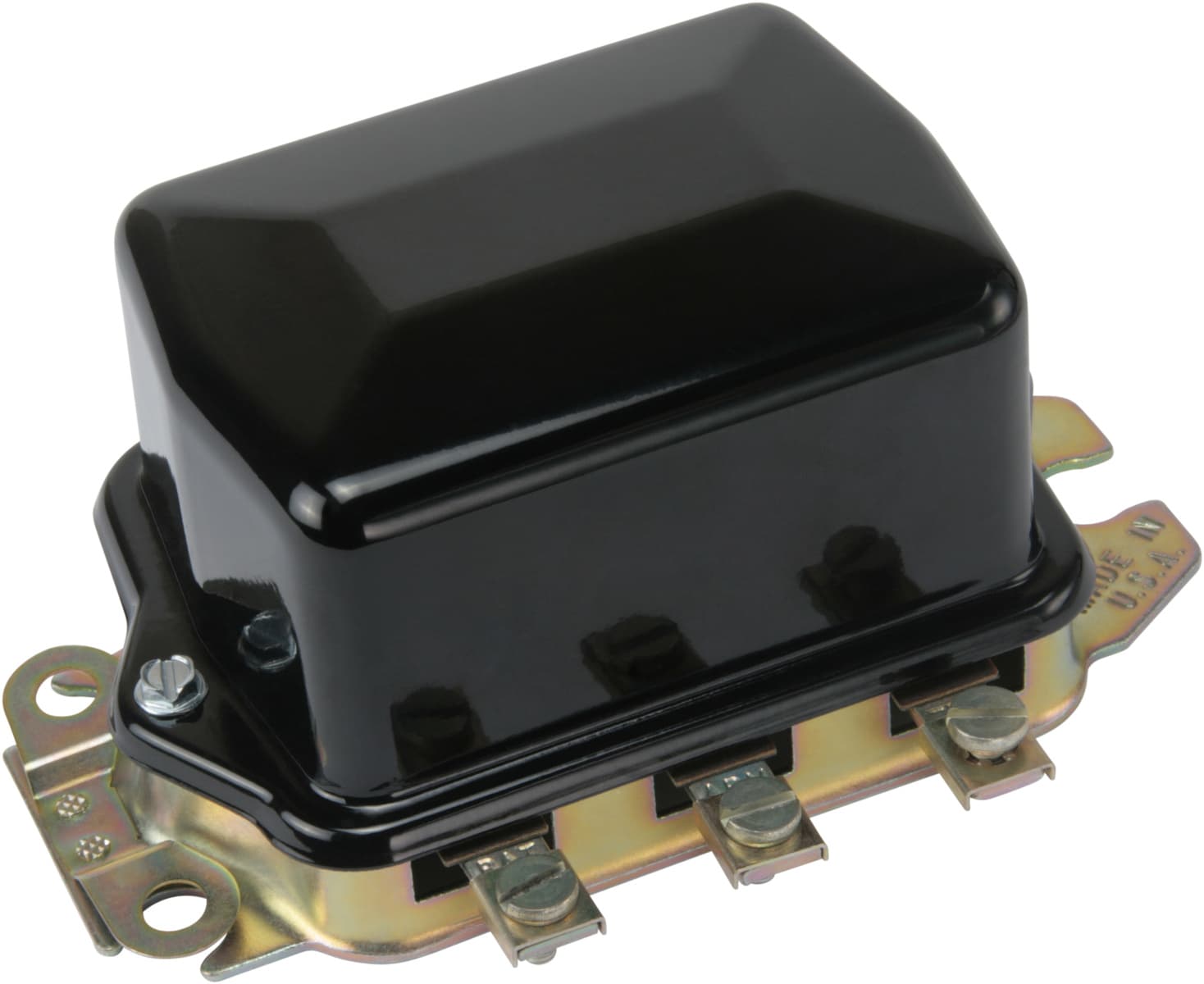

F032130032 - EL Field RegulatorTrade number 130032
Voltage 14, Watt 360, Amp 30, D+ thread size M6, Terminal type D+ - DF-B+, D+ type Screw, Regulator type Mechanical, D+ Length 10.00, Distance Between Mounting Holes 125.00

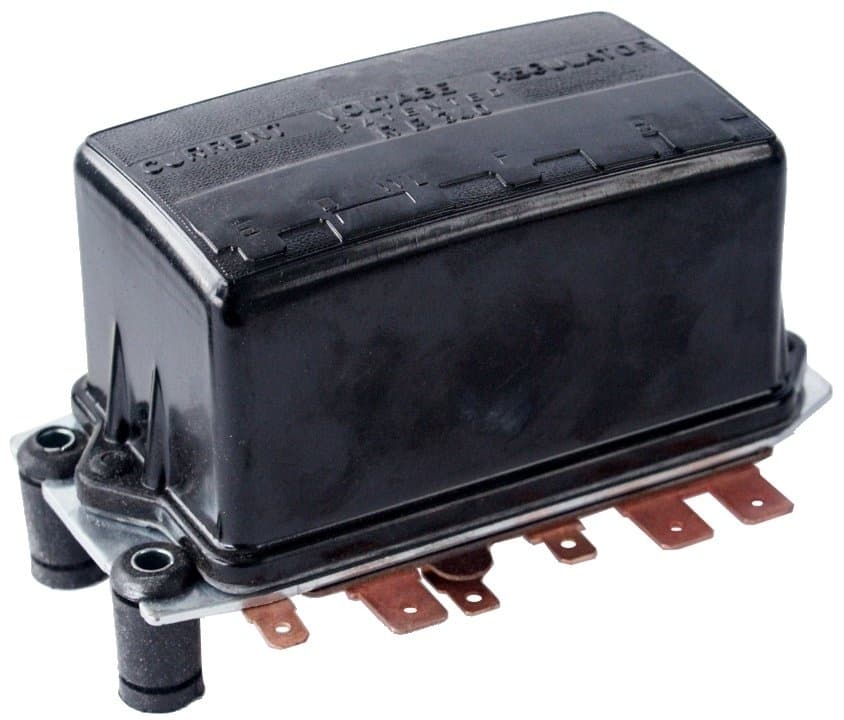

F032130033 - EL Field RegulatorTrade number 130033
Voltage 14, Amp 11, Terminal type E-D-WL-F-B, D+ type Spade, Regulator type Mechanical, Distance Between Mounting Holes 119.00

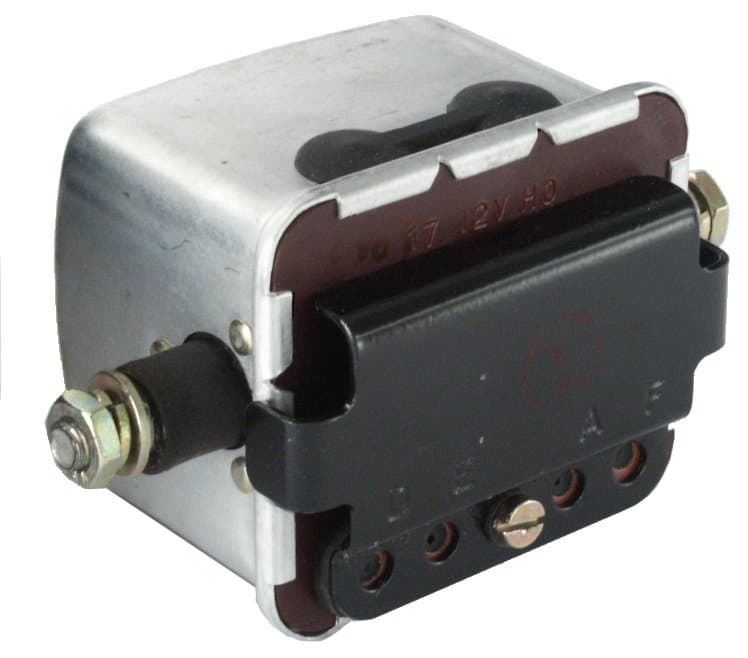

F032130039 - EL Field RegulatorTrade number 130039
Voltage 14, Amp 9-12, Mount. Yes, Regulator type Mechanical, Remarks Mounting bolts: 5/16" UNC.

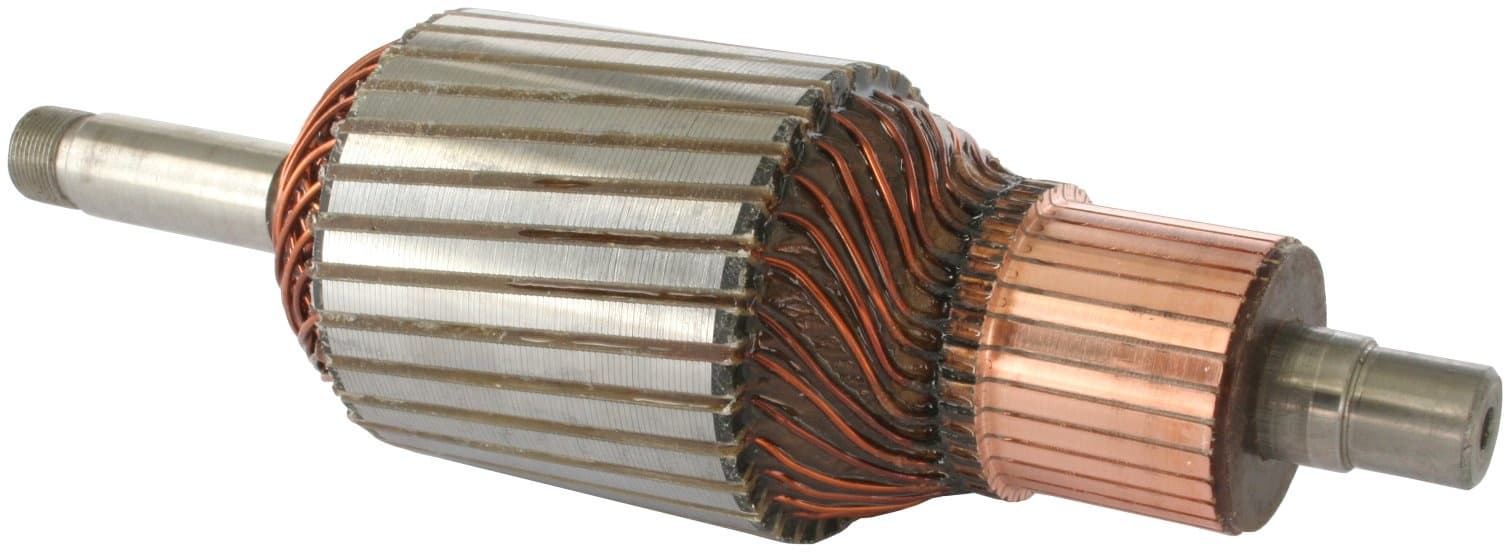

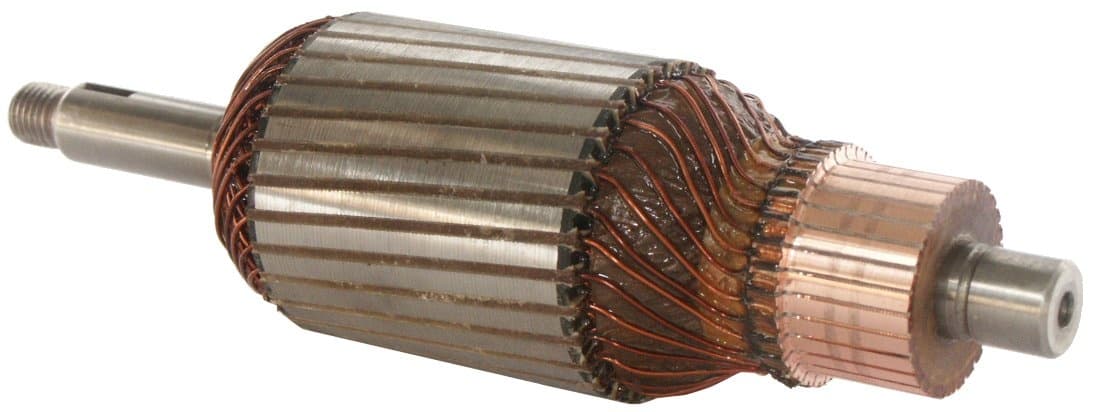

F032130071 - ArmatureTrade number 130071
Voltage 12, Commutator Diameter 33.70, Commutator Distance 17.50, No./bars 30, Commutator Height 25.70, Core Diameter 56.00, Shaft length 206.00, Commutator End Shaft Diameter 15.00, Bar Lane Height 20.30, Drive End Inside Shaft Diameter Outside M12-1.50, Commutator Outer Diameter 38.40, Drive End Inside Shaft Diameter 15.00, Remarks 11 A., Shaft Diameter 17.15

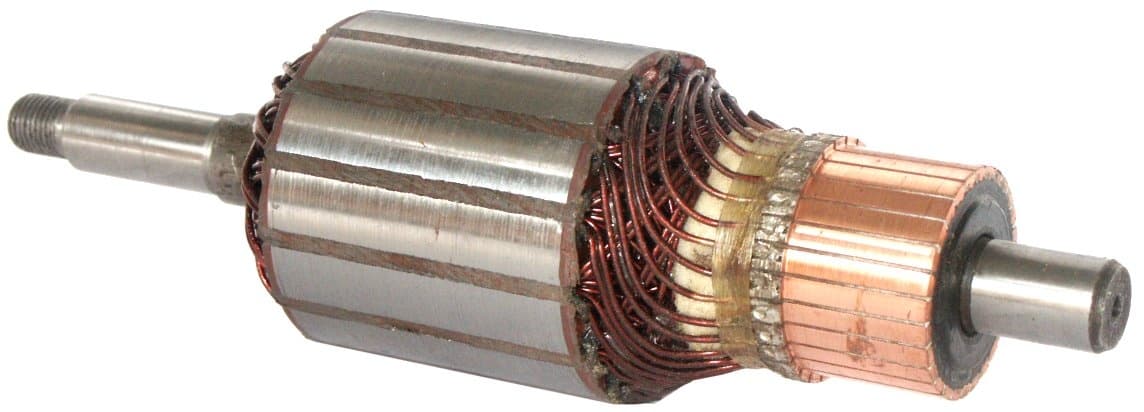

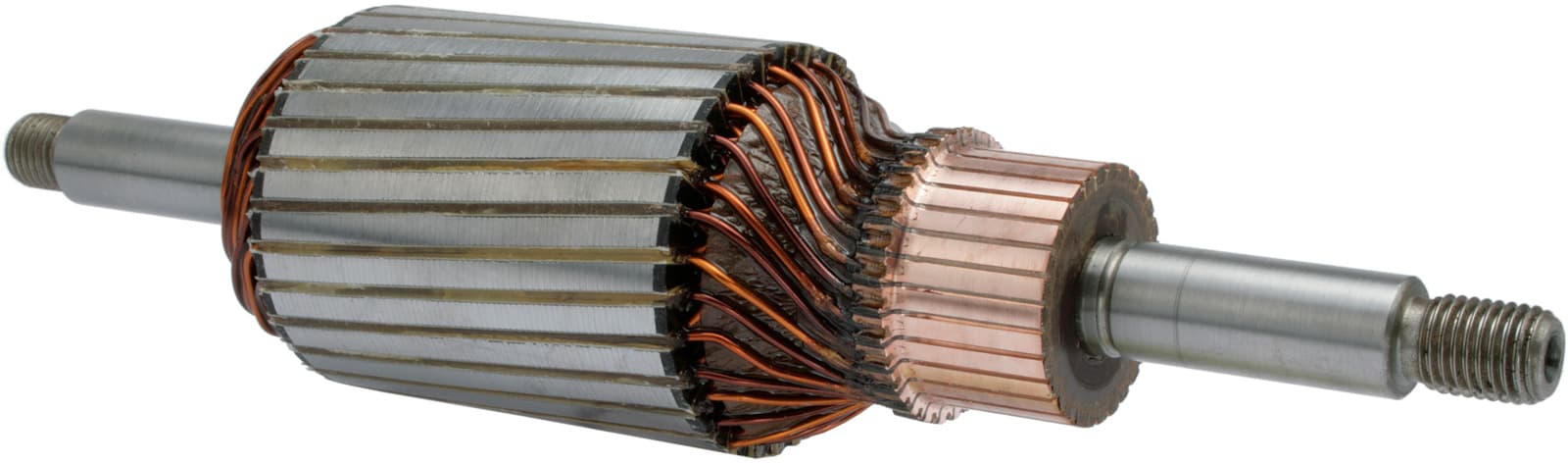

F032130309 - ArmatureTrade number 130309
Voltage 12, Commutator Diameter 37.50, Commutator Distance 28.00, No./bars 30, Commutator Height 34.00, Core Diameter 65.00, Shaft length 233.00, Commutator End Shaft Diameter 15.00, Bar Lane Height 28.00, Drive End Inside Shaft Diameter Outside 16.00, Commutator Outer Diameter 43.40, Drive End Inside Shaft Diameter 17.00, Remarks 30 A.
F032130824 - ArmatureTrade number 130824
Voltage 12, Commutator Diameter 37.20, Commutator End Shaft Diameter 15.00, No./bars 27, Bar Lane Height 23.00, Commutator Height 29.50, Commutator Outer Diameter 38.00, Core Diameter 60.00, Shaft length 216.00, Servicing C40, Remarks 22 A.

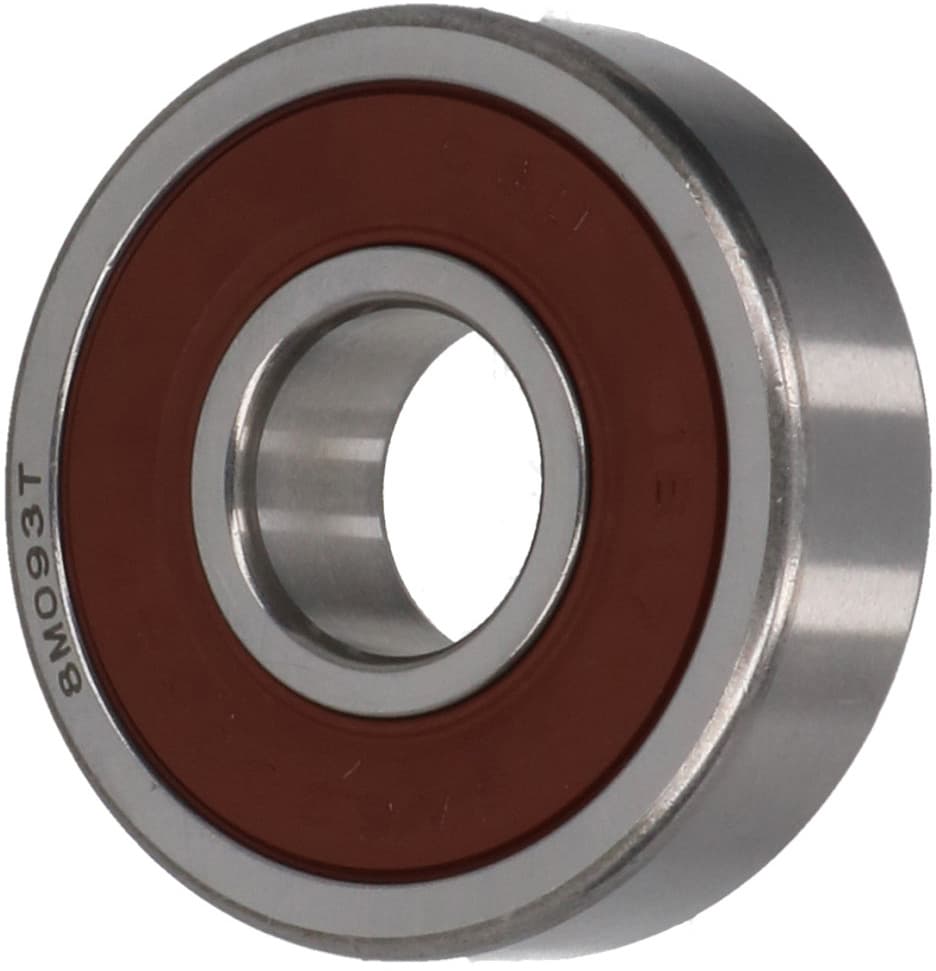

F032142204 - Ball BearingTrade number 142204
Bearing type Ball bearing, Inner Diameter 17.00, Outer Diameter 47.00, Height 14.00

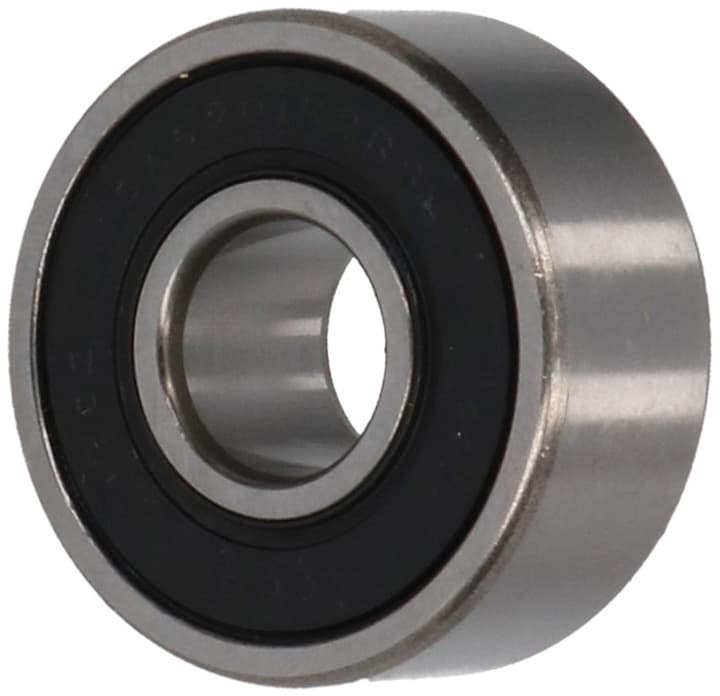

F032142206 - Ball BearingTrade number 142206
Bearing type Ball bearing, Inner Diameter 12.00, Outer Diameter 32.00, Height 14.00
F032233502 - ArmatureTrade number 233502
Voltage 12, Commutator Diameter 34.00, Commutator End Shaft Diameter 15.00, No./bars 30, Drive End Inside Shaft Diameter Outside 15.00, Core Diameter 56.00, Shaft length 246.50, Remarks 38 A. Threads: M12x1.50.
