Dynastarter Parts

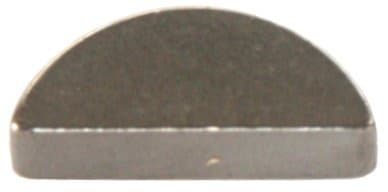

F032132324 - WedgeTrade number 132324
Width 1 6.50,Length 16.00,Thickness 4.00

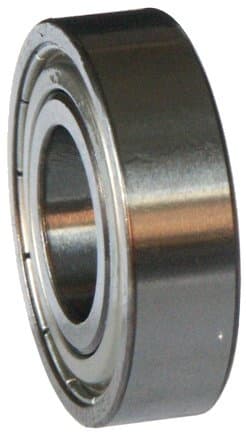

F032140086 - Ball BearingTrade number 140086
Bearing type Ball bearing,Inner Diameter 15.00,Outer Diameter 35.00,Remarks 6202-2Z.,Height 11.00

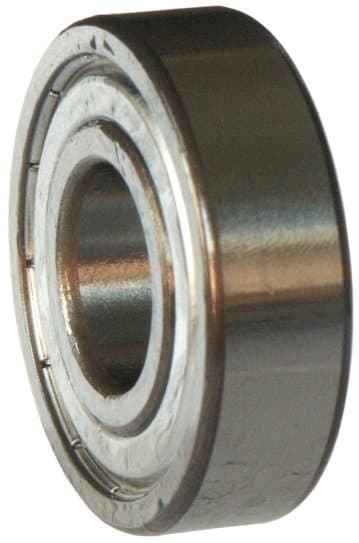

F032140088 - Ball BearingTrade number 140088
Bearing type Ball bearing,Inner Diameter 17.00,Outer Diameter 40.00,Remarks 6203-2Z.,Height 12.00

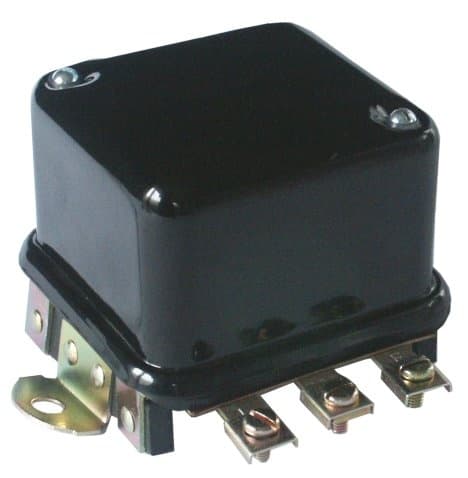

F032233623 - EL Field RegulatorTrade number 233623
Voltage setting 14.2,Voltage 14,Amp 18,Terminal type L-B+-F(A),Regulator type Mechanical,Servicing 10DN,Distance Between Mounting Holes 97.00
F032233625 - EL Field RegulatorTrade number 233625
Voltage 14,Terminal type D-DF-D+,Regulator type Mechanical,Distance Between Mounting Holes 98.00

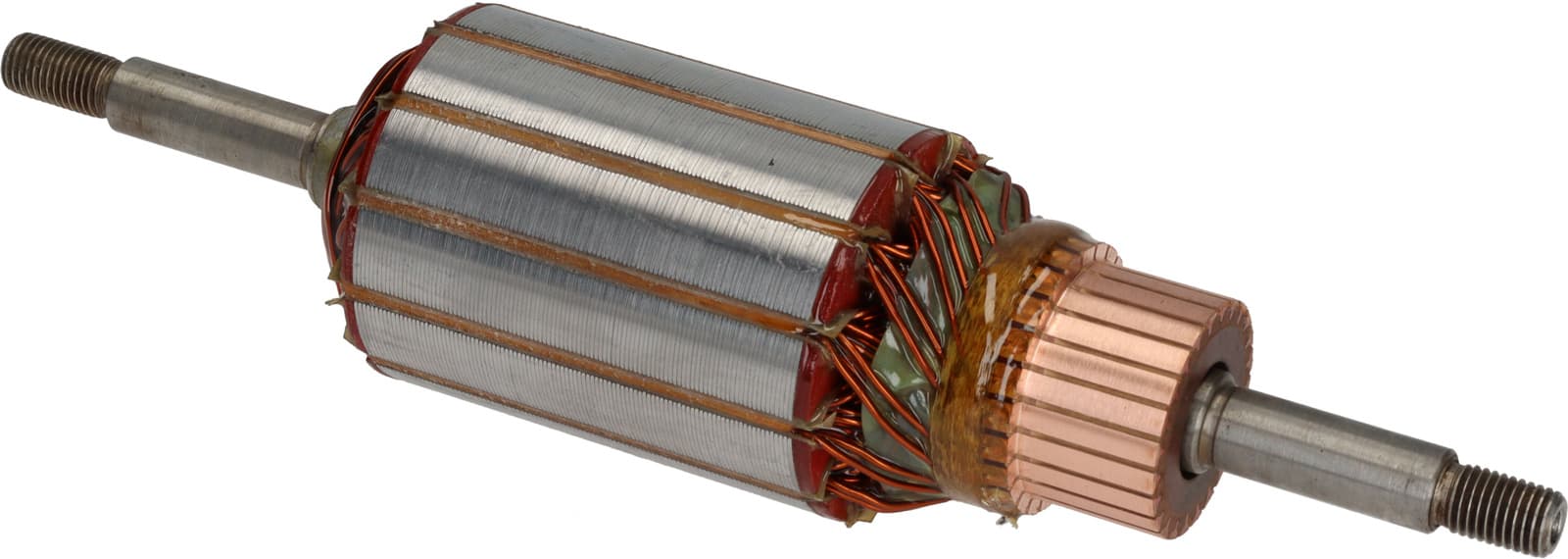

F032335584 - ArmatureTrade number 335584
Commutator Diameter 34.60,Commutator End Shaft Diameter 12.00,No./bars 24,Bar Lane Height 20.60,Drive End Inside Shaft Diameter Outside 12.00,Core Diameter 57.60,Shaft length 249.00,Remarks Threads: M10-1.25.

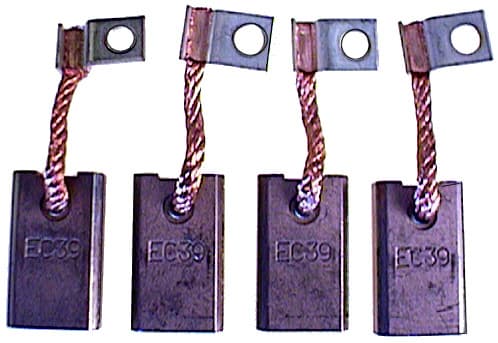

F032902648 - Carbon-Brush SetTrade number BX1884
Voltage 14,Conductor w/,Spring w/o,Lead Length 31.00,Cable lugs w/,No./brushes 4,Length 23.40,Thickness 6.00,Height 14.00
