Starter Components

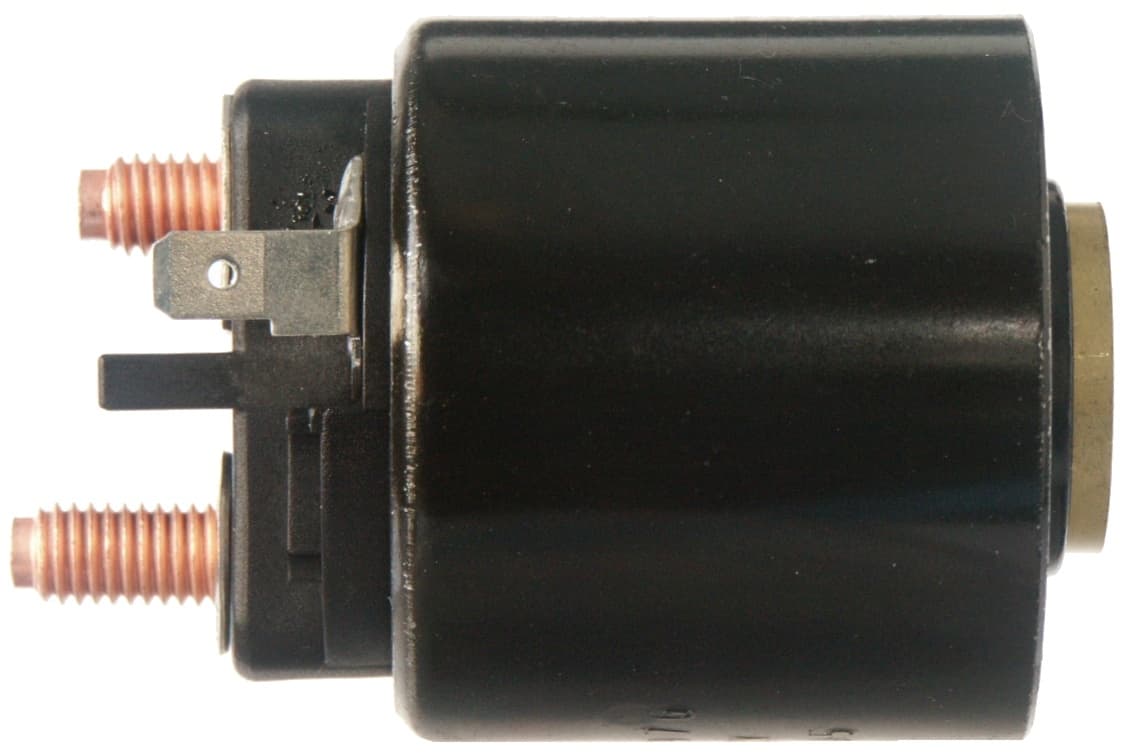

F032131794 - Solenoid SwitchTrade number 131794
Voltage 12,No./mount. holes 2,No./terminals 4,Terminal 50/mm 6.30,Coil Bolt Length 9.50,Terminal 15A/mm 6.30,Eye Outer Diameter 11.60,Plunger Outer Diameter 20.70,Eye Inner Diameter 4.70,B+ M8,Terminal 15a Spade,Terminal 50 Spade,B+ Height 15.50,Coil Bolt Diameter M8,Outer Diameter 49.80,Remarks Cap: HC-CARGO 130479.,Amount of Mounting Holes 2,Total Length 116.00

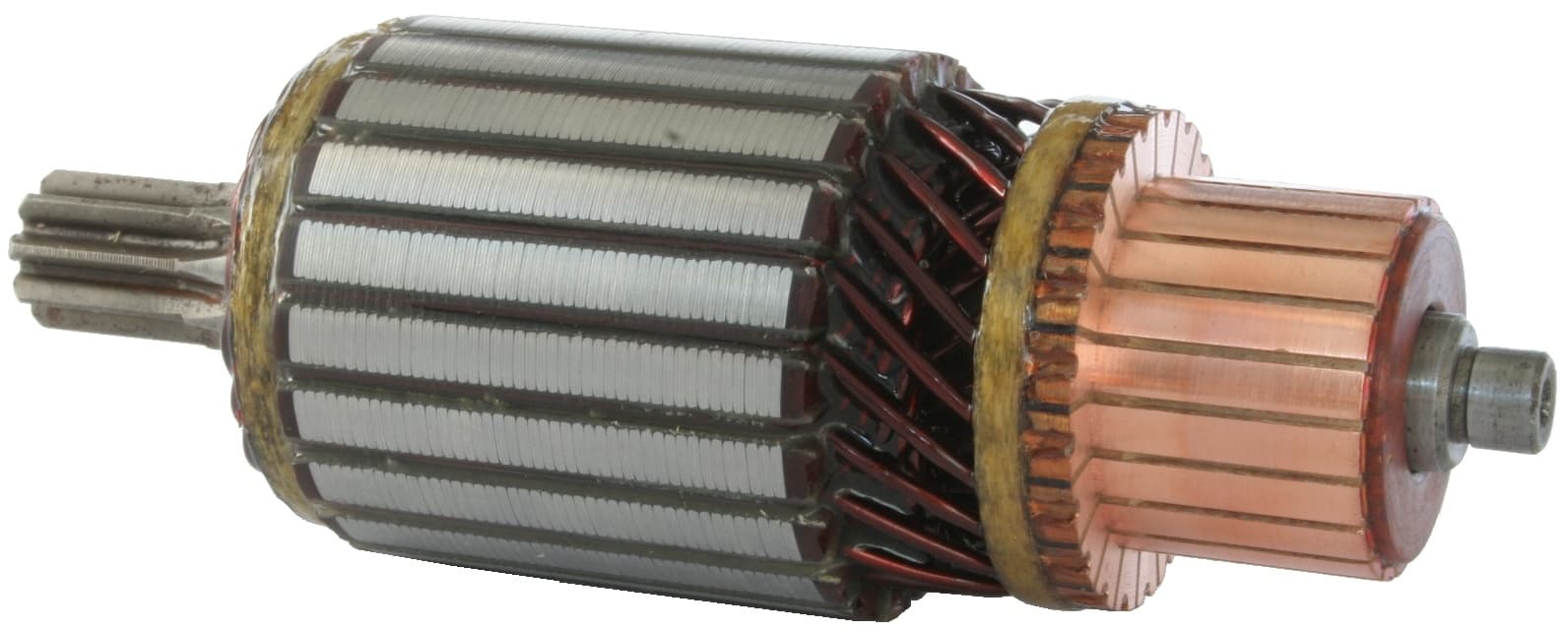

F032132796 - ArmatureTrade number 132796
kW 0.9/1.0/1.2,Voltage 12,Commutator Diameter 30.20,Commutator Distance 8.90,OD/spline/teeth 14.20,No./bars 21,Commutator Height 31.70,Bar length 4.40,Commutator Inner Diameter 11.80,Bar Distance 1.80,No./teeth 9,Core Diameter 47.00,Shaft length 135.00,Bar Cross Distance 31.20,Commutator End Shaft Diameter 8.00,Bar Lane Height 21.30,Spline Teeth Length 24.00,Commutator Outer Diameter 40.20,Drive End Inside Shaft Diameter 15.00,Rotation CW

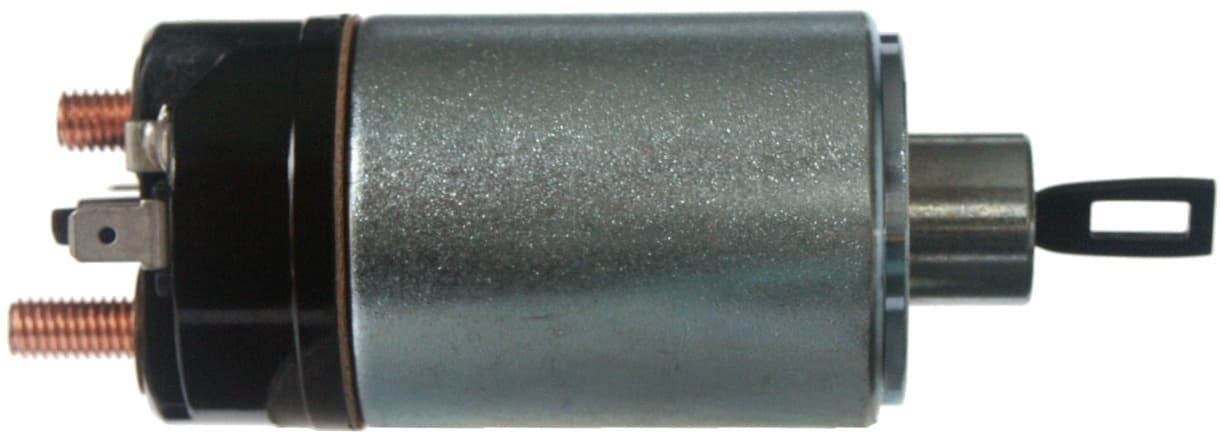

F032132976 - Solenoid SwitchTrade number 132976
Voltage 12,No./mount. holes 3,No./terminals 3,Terminal 50/mm 6.30,Coil Bolt Length 11.00,B+ M8,Terminal 50 Spade,B+ Height 16.00,Coil Bolt Diameter M8,Outer Diameter 54.20,Remarks Cap: HC-CARGO 132826.,Amount of Mounting Holes 3,Total Length 80.50

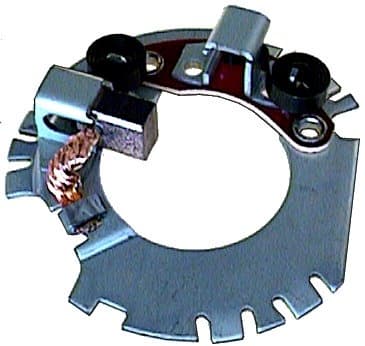

F032133646 - Brush HolderTrade number 133646
Brush w/o,Spring w/o,Inner Diameter 15.50,Outer Diameter 62.50,Remarks Spring and brush set: HC-CARGO PSX146-147K.,Height 18.50

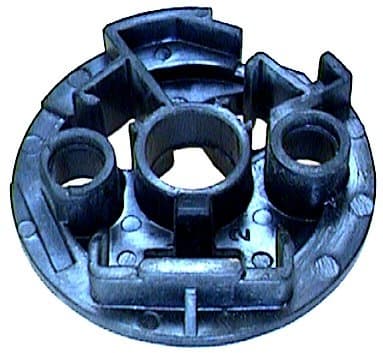

F032133647 - Brush HolderTrade number 133647
Brush w/o,Spring w/o,Inner Diameter 15.50,Outer Diameter 62.00,Remarks Spring and brush set: HC-CARGO PSX144-145K.,Height 16.50
F032133661 - Brush HolderTrade number 133661
Voltage 12,Inner Diameter 32.00,No./brushes 2,Brush w/,Spring w/,Source Denso,Brush Gear Width 10.00,Outer Diameter 63.50,Remarks Neg. brushes. Brush set: HC-CARGO 140362.,Height 20.20,Brush Thickness 7.00,Brush Height 15.40
F032133715 - Brush HolderTrade number 133715
Voltage 12,Brush w/,Spring w/,Inner Diameter 31.00,Brush Gear Width 8.60,No./brushes 1,Outer Diameter 63.00,Remarks Neg. brushes. Brush set: HC-CARGO 140566.,Height 13.50,Brush Thickness 6.00,Brush Height 9.00

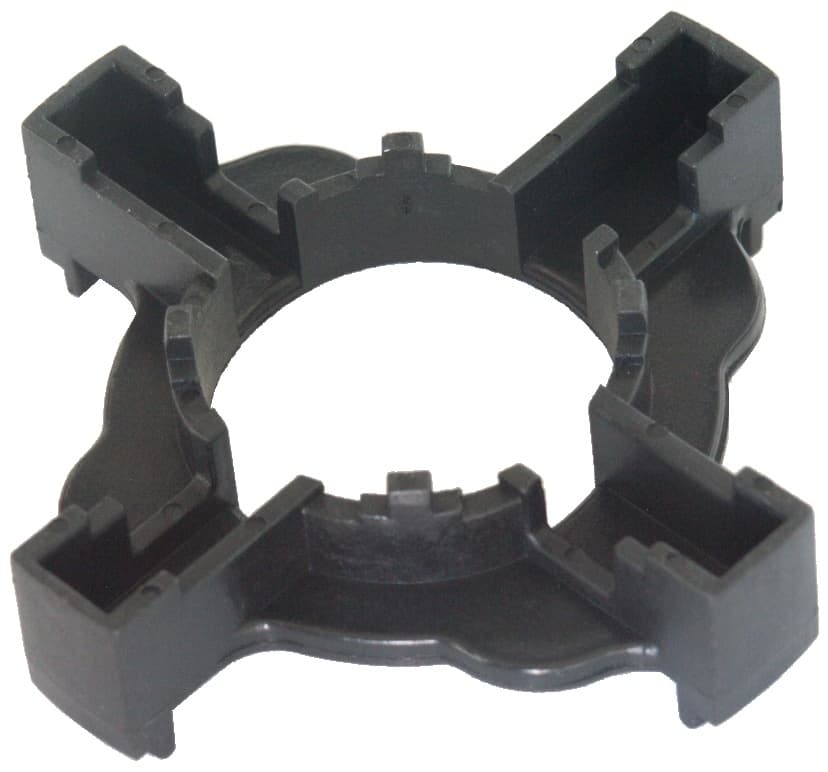

F032133808 - Brush HolderTrade number 133808
Voltage 12,Brush w/o,Spring w/o,Inner Diameter 29.50,Outer Diameter 69.00,Remarks Brush set: HC-CARGO 140602. Brush springs: HC-CARGO 133810.,Height 16.60

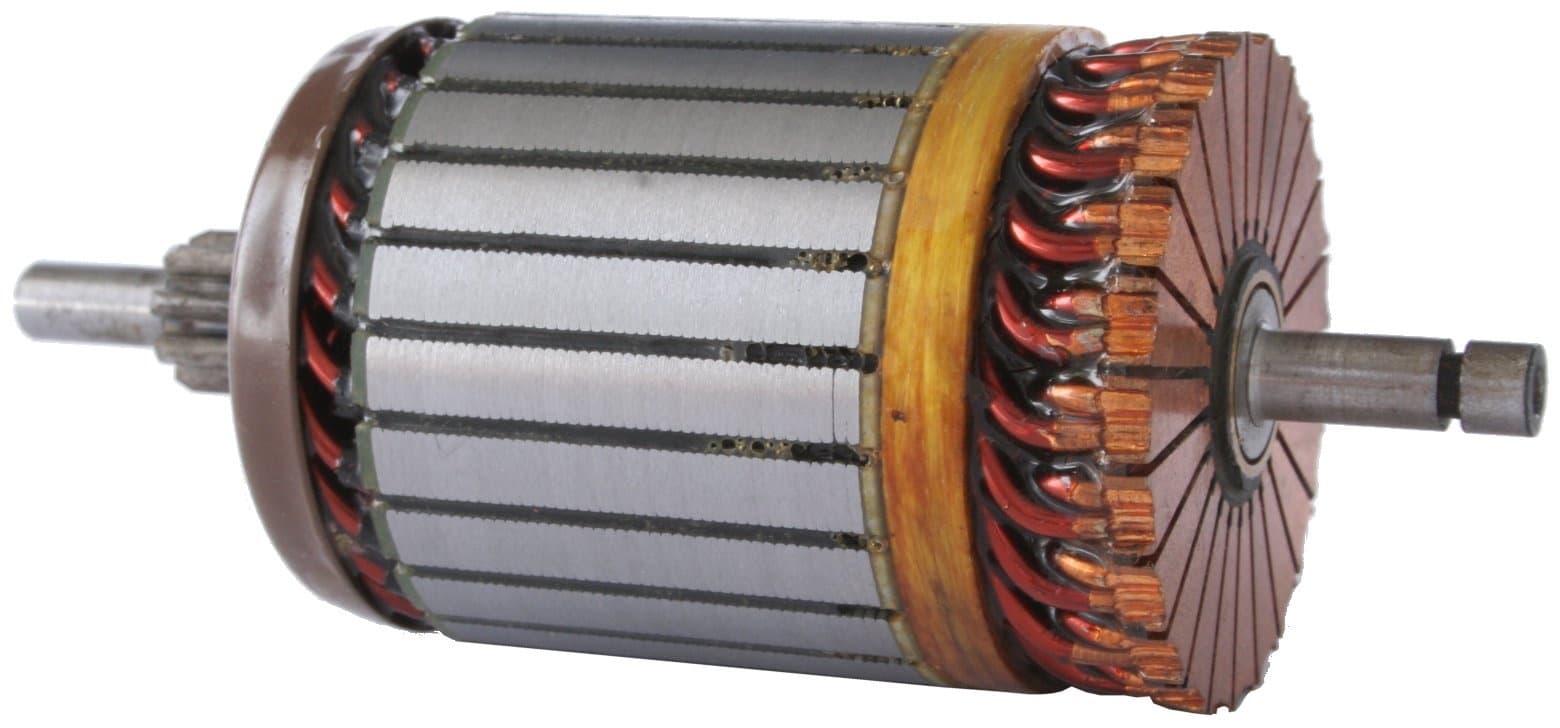

F032134513 - ArmatureTrade number 134513
kW 1.1,Voltage 12,Commutator Distance 18.10,OD/spline/teeth 11.80,No./bars 23,Commutator Height 13.30,Bar length 3.20,Commutator Inner Diameter 8.30,Bar Distance 3.30,No./teeth 13,Core Diameter 44.20,Shaft length 112.00,Bar Cross Distance 38.60,Commutator End Shaft Diameter 6.00,Spline Teeth Length 10.20,Drive End Inside Shaft Diameter Outside 6.00,Commutator Outer Diameter 44.50,Rotation CW/CCW
F032139593 - ArmatureTrade number 139593
kW 1.1,Voltage 12,Commutator Distance 18.20,OD/spline/teeth 11.70,No./bars 23,Commutator Height 13.50,Bar length 3.20,Commutator Inner Diameter 8.30,Bar Distance 3.30,No./teeth 8,Core Diameter 44.30,Shaft length 112.00,Bar Cross Distance 38.60,Commutator End Shaft Diameter 6.00,Spline Teeth Length 17.00,Drive End Inside Shaft Diameter Outside 6.00,Commutator Outer Diameter 44.50,Rotation CW
