DC Motor Parts
F032133695 - Solenoid SwitchTrade number 133695
Intermittent load 500 Amp.,Voltage 12,Amp 100,Seconds 5,No./mount. holes 2,No./terminals 4,Outer Diameter 47.70,Amount of Mounting Holes 2,Remarks Universal. N.O. Terminals: M8. Coil Terminals: M5.,Total Length 105.50

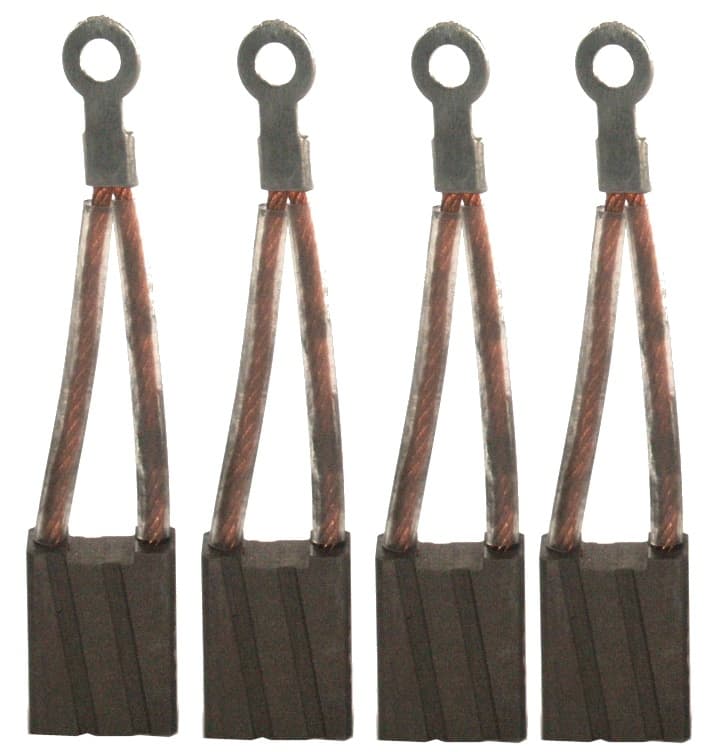

F032140408 - Carbon-Brush SetTrade number 140408
Voltage 12/24,Conductor w/,Spring w/o,Lead Length 37.50,Solder hole w/,Cable lugs w/,No./brushes 4,Remarks 2 kW.,Length 26.05,Thickness 8.92,Height 12.78

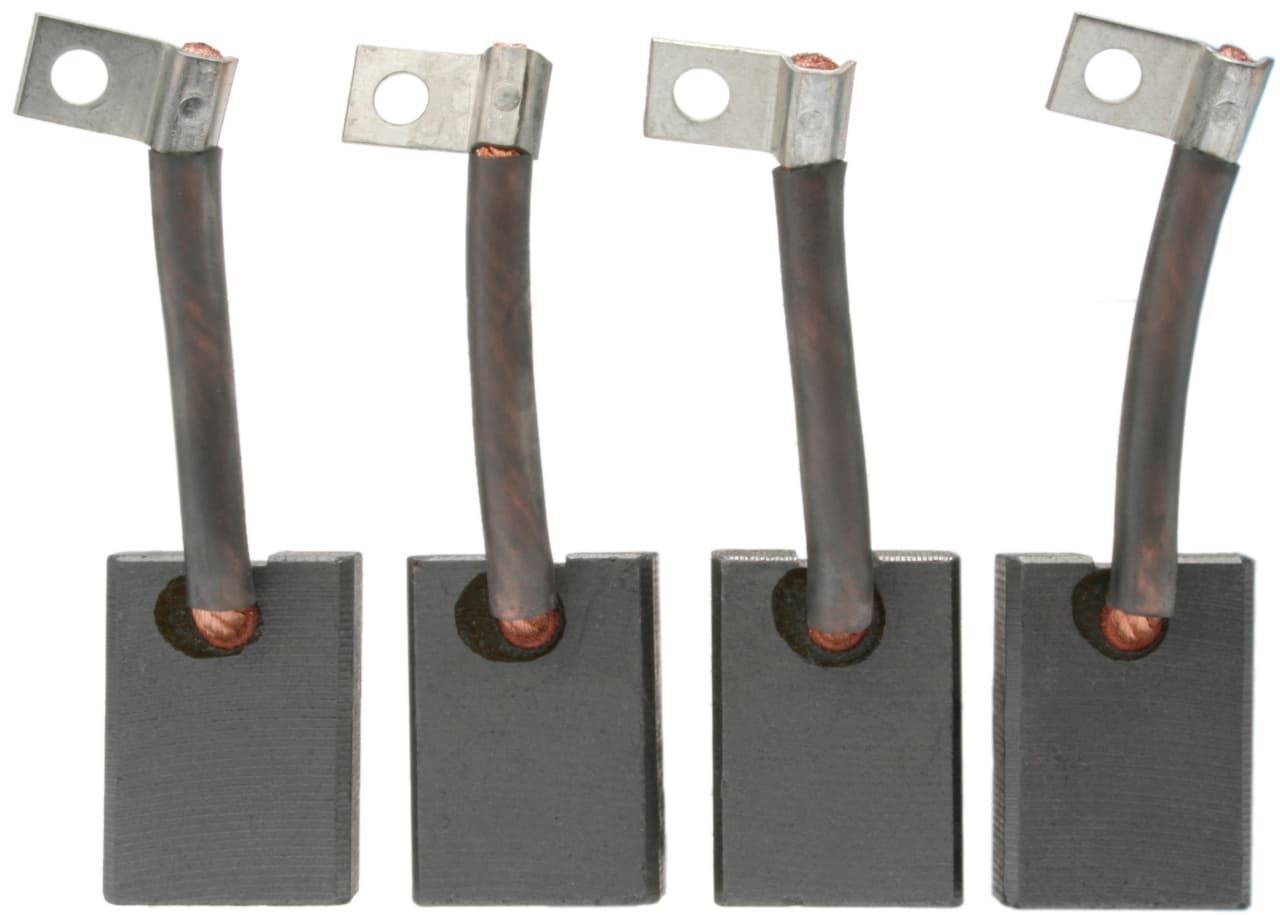

F032140410 - Carbon-Brush SetTrade number 140410
Voltage 12/24,Conductor w/,Spring w/o,Lead Length 47.50,Solder hole w/,Cable lugs w/,No./brushes 4,Remarks 3 kW.,Length 27.96,Thickness 8.90,Height 19.86

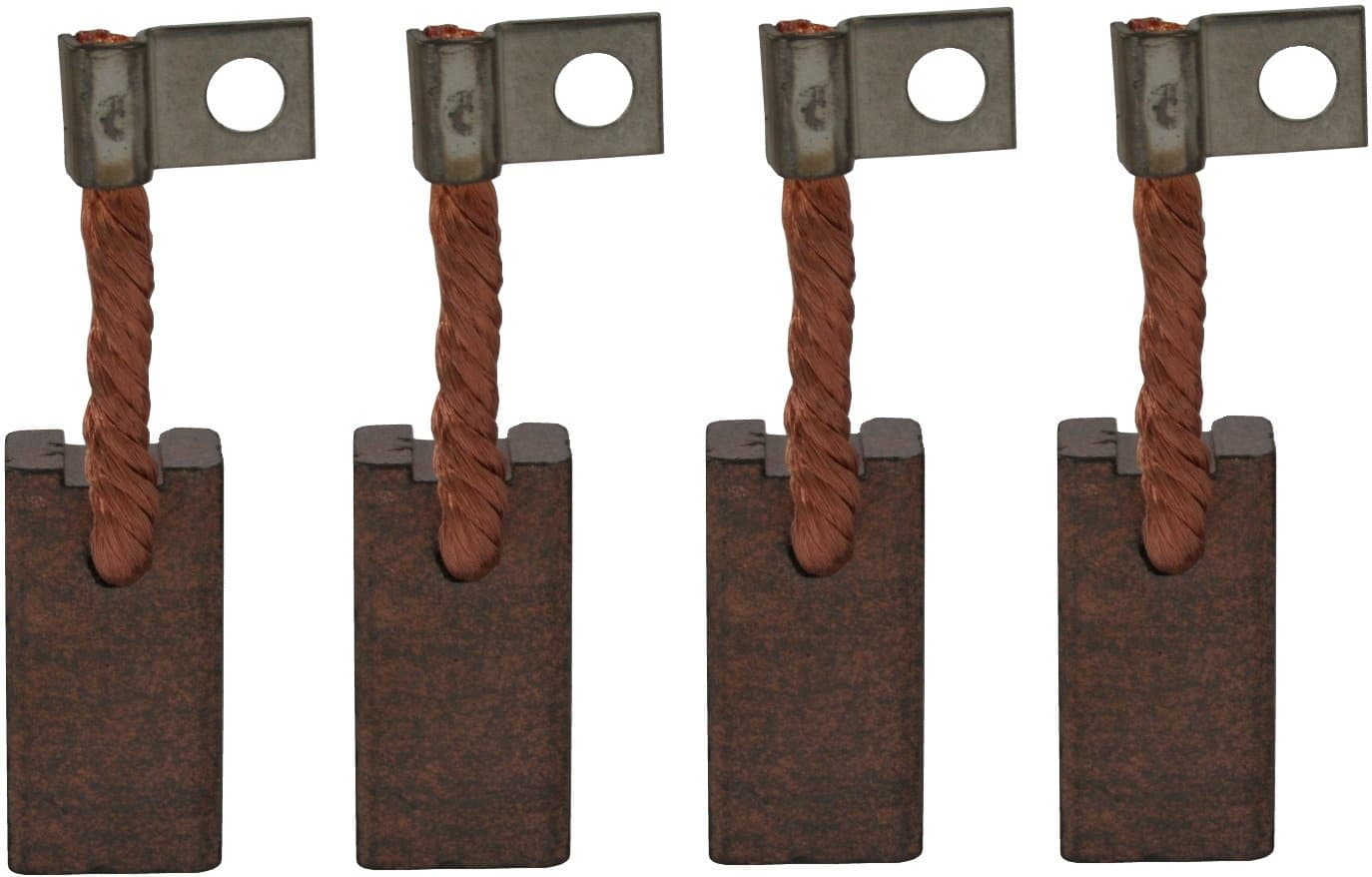

F032141193 - Carbon-Brush SetTrade number 141193
Voltage 24,Conductor w/,Spring w/o,Lead Length 55.00,Solder hole w/,Cable lugs w/,No./brushes 4,Length 26.50,Thickness 9.95,Height 19.80
