- Catalogue
- Starter Components
- Universal Parts
Universal Parts

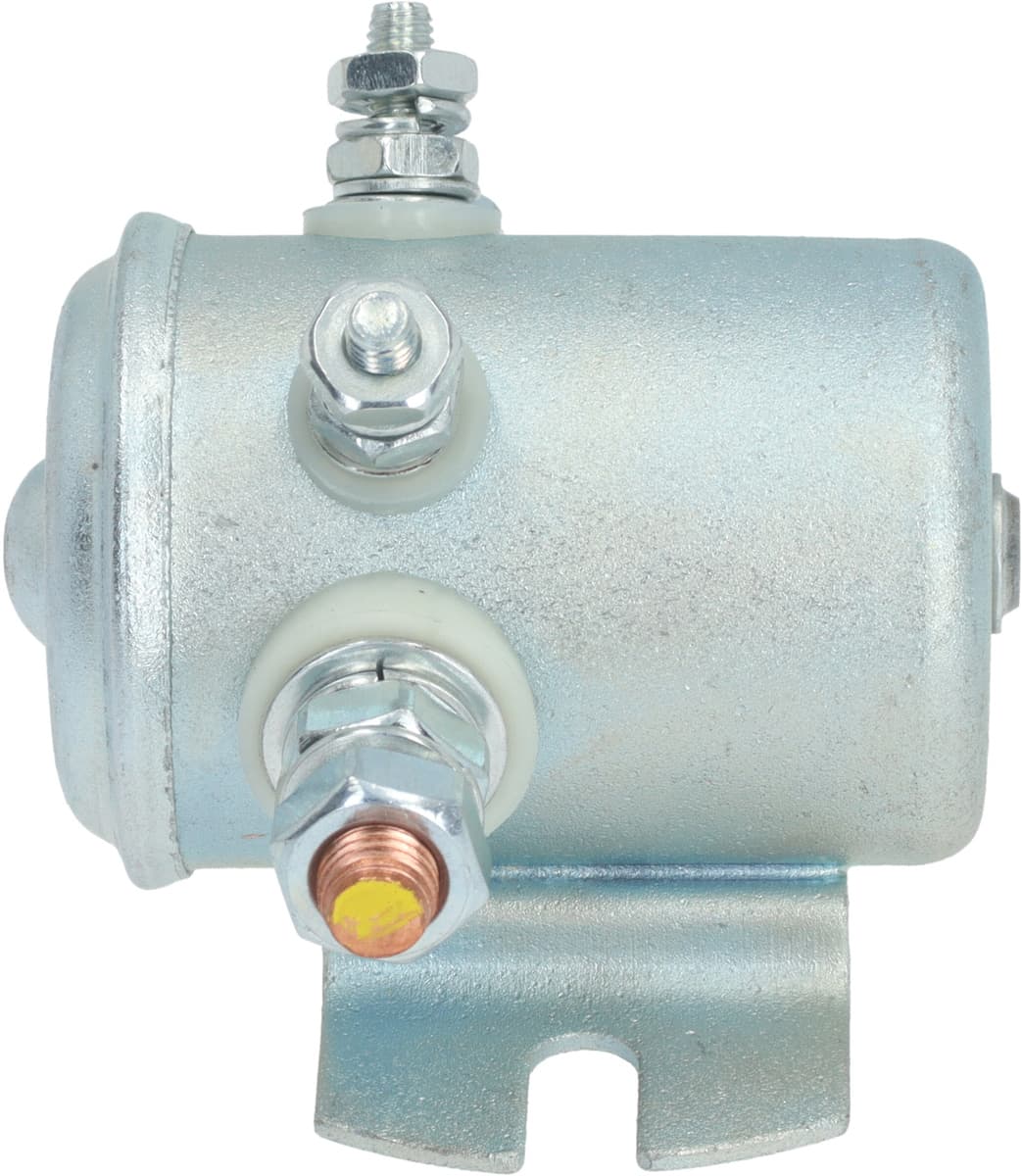

F032130493 - Solenoid SwitchTrade number 130493
Intermittent load 150 Amp, Voltage 12, No./mount. holes 2, No./terminals 4, Outer Diameter 42.30, Amount of Mounting Holes 2, Remarks N.O. Terminals: 5/16" UNF. Coil Terminals: 10-32 UNF., Total Length 62.50

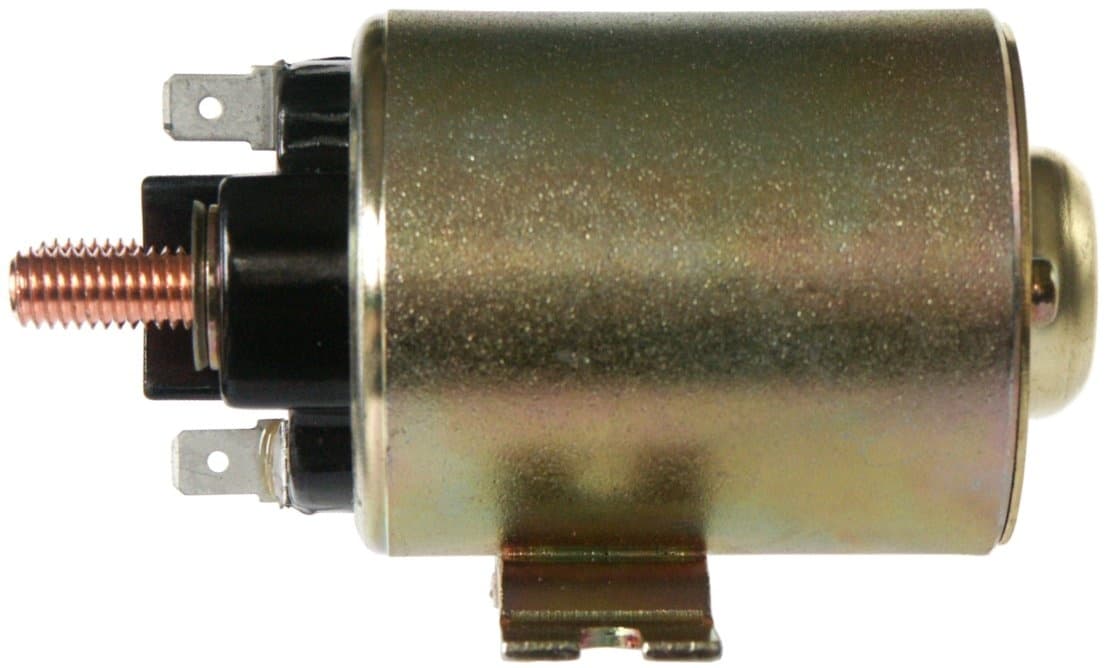

F032131370 - Solenoid SwitchTrade number 131370
Intermittent load 500 Amp, Voltage 12, Amp 80, Seconds 5, No./terminals 4, Outer Diameter 52.00, Remarks Water proof. Silver contact. Insulated return. N.O. Terminals: M8. Coil Terminals: 6.30 mm., Total Length 102.00

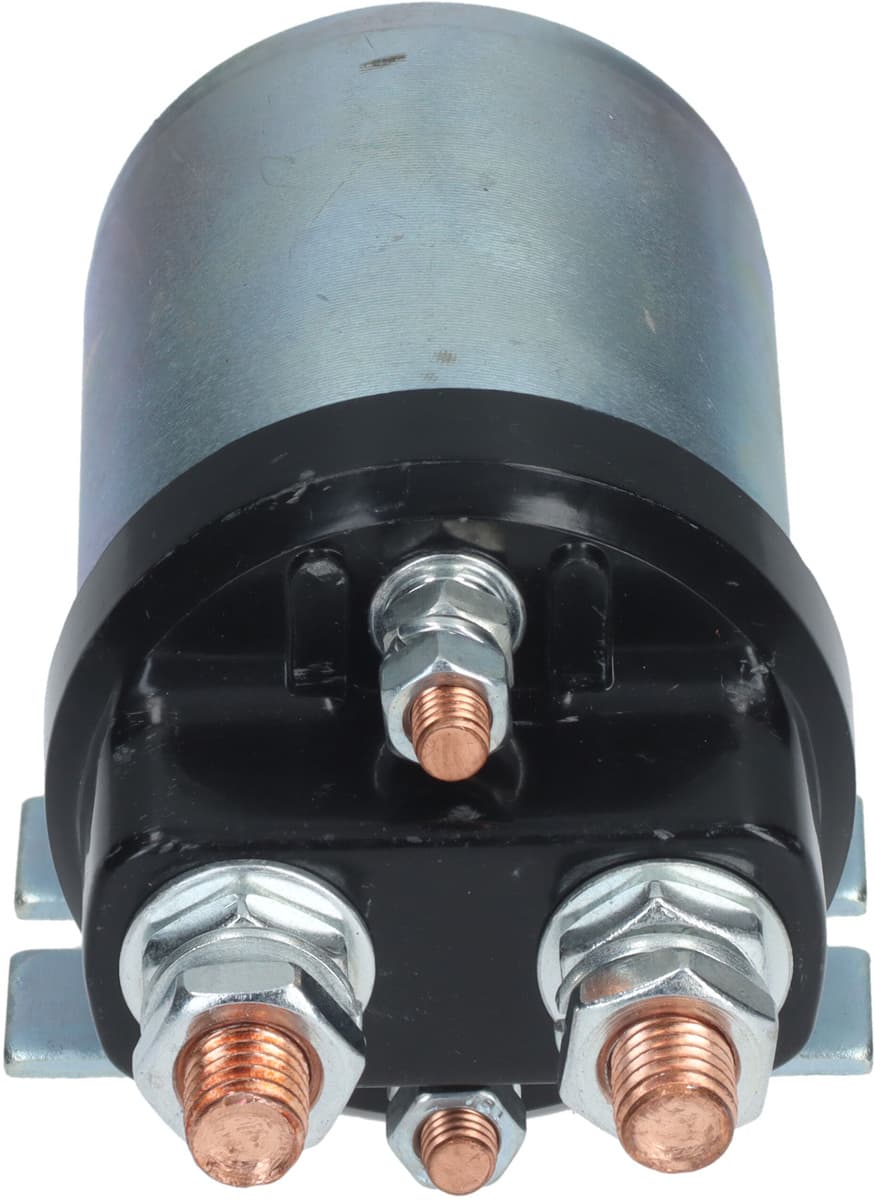

F032131371 - Solenoid SwitchTrade number 131371
Intermittent load 500 Amp., Voltage 24, Amp 80, Seconds 5, No./mount. holes 2, No./terminals 4, Outer Diameter 51.70, Amount of Mounting Holes 2, Remarks Silver contact. Insulated return. N.O. terminals: M8. Coil Terminals: 6.30 mm., Total Length 99.50

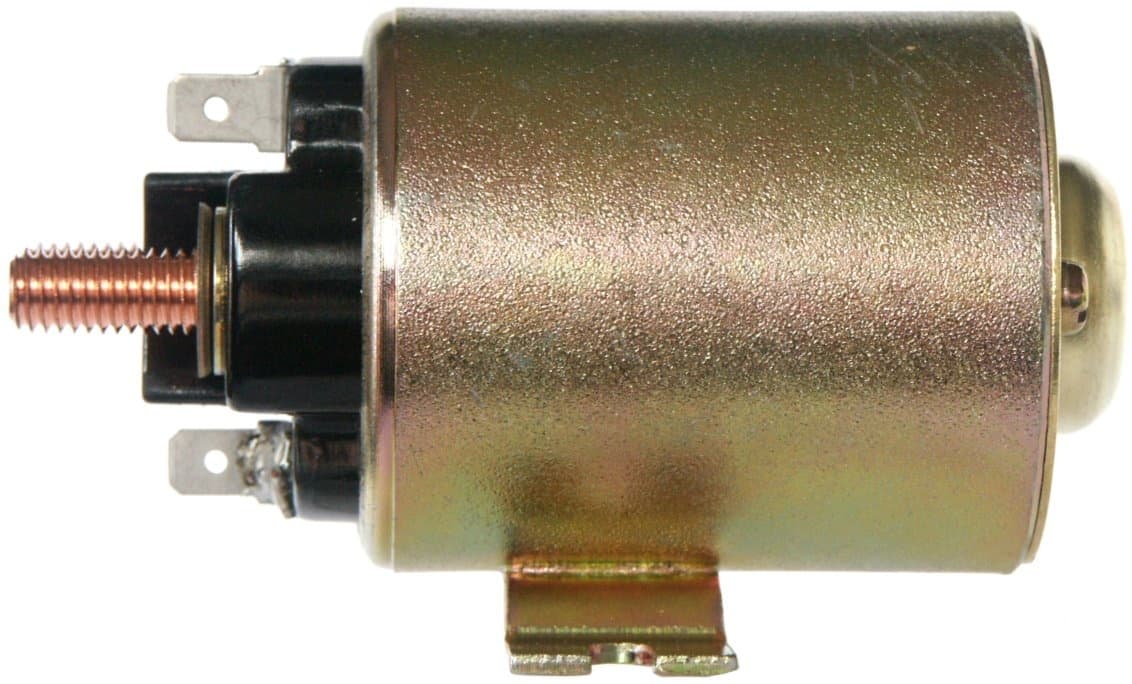

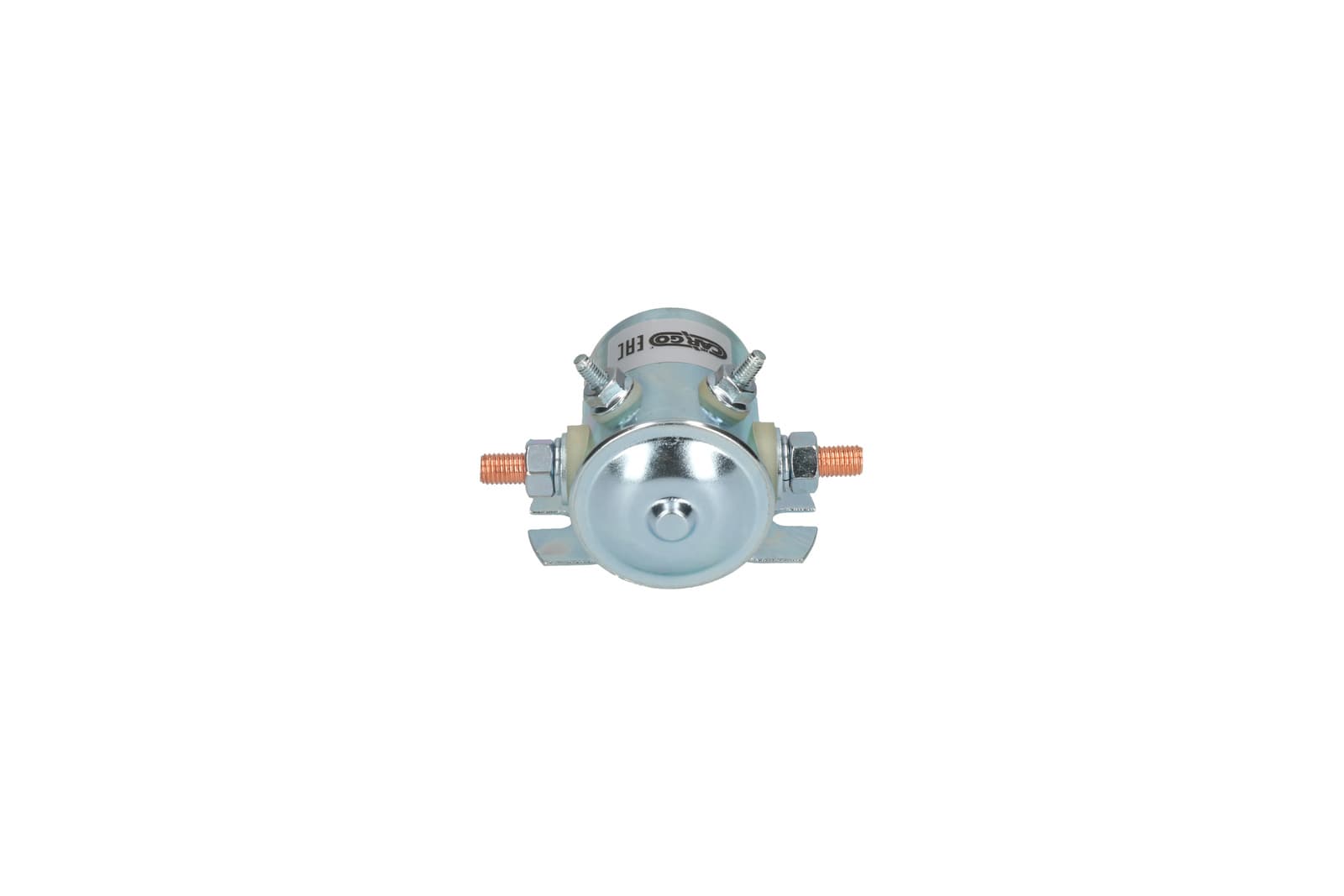

F032132939 - Solenoid SwitchTrade number 132939
Intermittent load 150 Amp., Voltage 12, Amp 80, Seconds 5, No./mount. holes 2, No./terminals 4, Outer Diameter 41.80, Amount of Mounting Holes 2, Remarks Insulated. Delivered with nuts. N.O. Terminals: 5/16" UNF. Coil Terminals: 10-32 UNF., Total Length 67.50

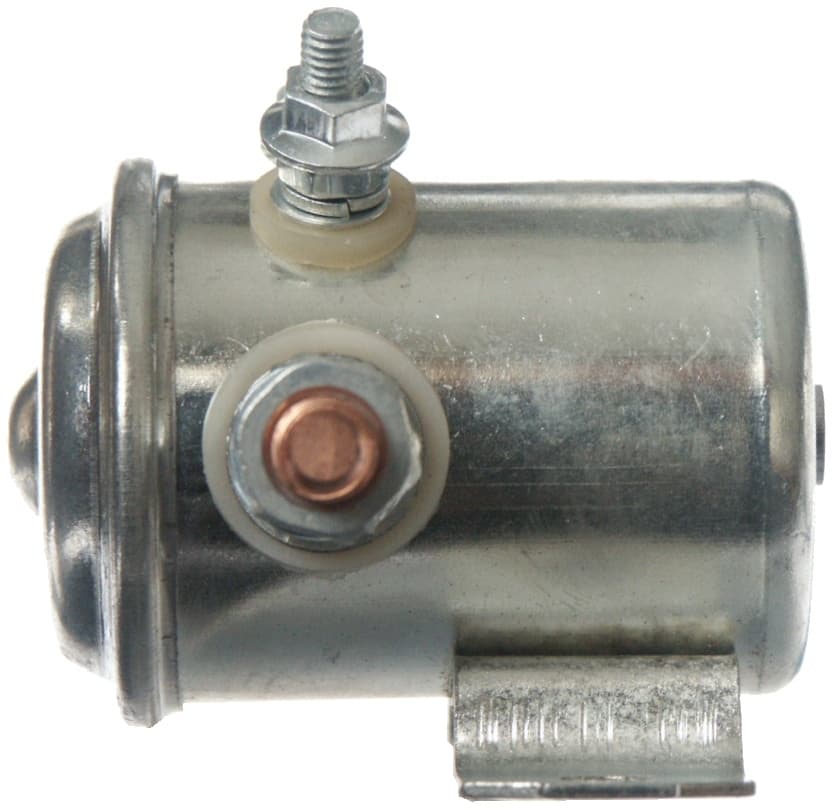

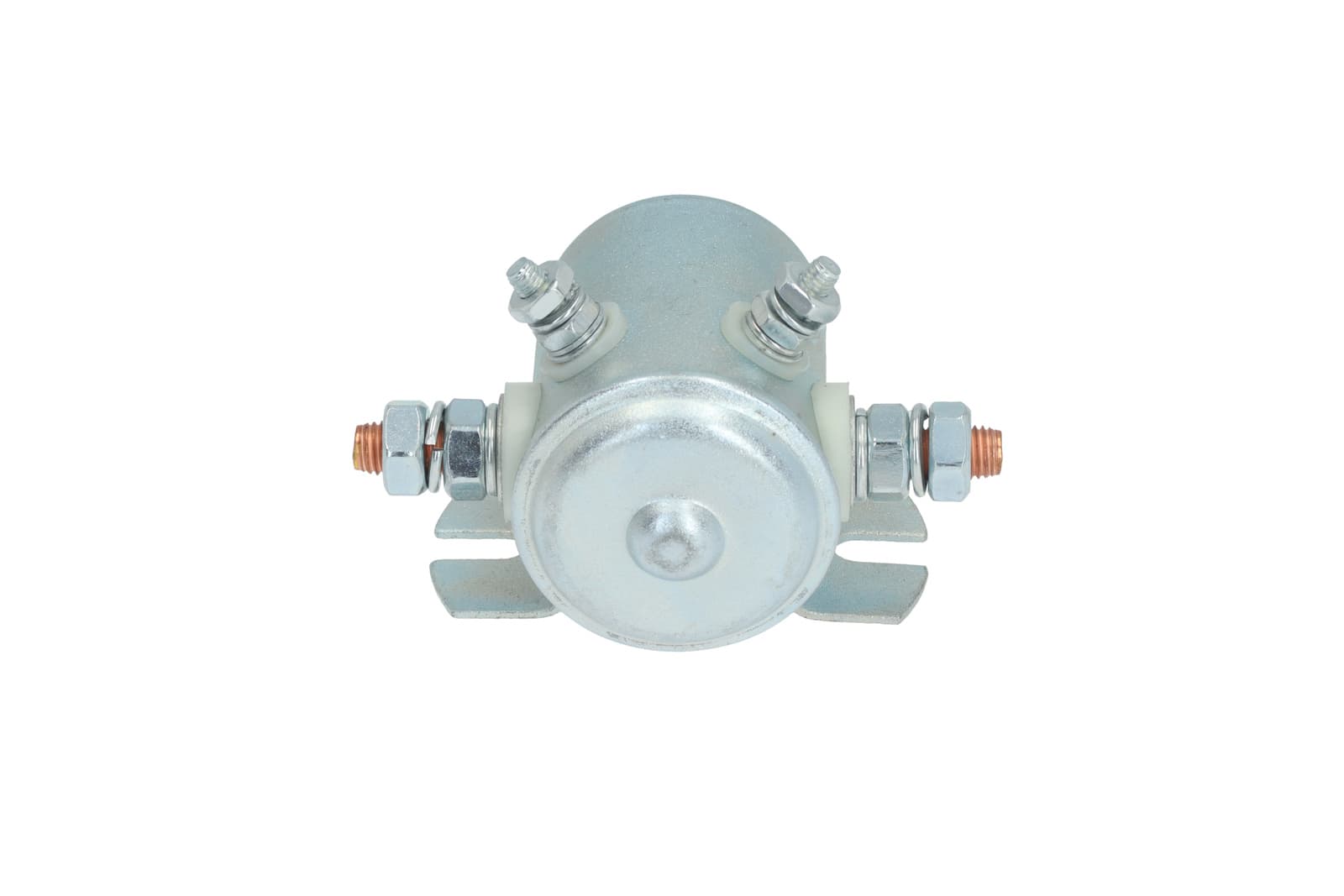

F032132940 - Solenoid SwitchTrade number 132940
Intermittent load 100 Amp., Voltage 24, Amp 60, Seconds 5, No./mount. holes 2, No./terminals 4, Outer Diameter 42.00, Amount of Mounting Holes 2, Remarks Insulated. N.O. Terminals: 5/16" UNF. Coil Terminals: 10-32 UNF., Total Length 66.50

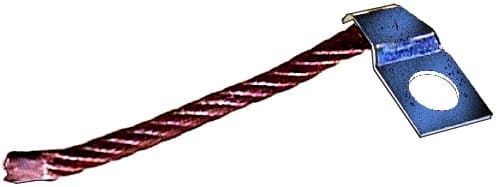

F032133372 - Connection PartTrade number 133372
Lead Length 106.75, Inner Diameter 8.45, Width 1 14.10, Remarks M8., Length 23.40

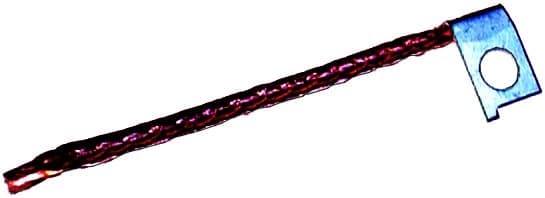

F032133390 - Terminal lugTrade number 133390
Lead Length 60.00, Inner Diameter 8.50, Width 1 14.65, Servicing M8, Length 26.45
F032133506 - Connection PartTrade number 133506
Lead Length 52.65, Inner Diameter 8.50, Width 1 14.65, Remarks M8., Length 26.55

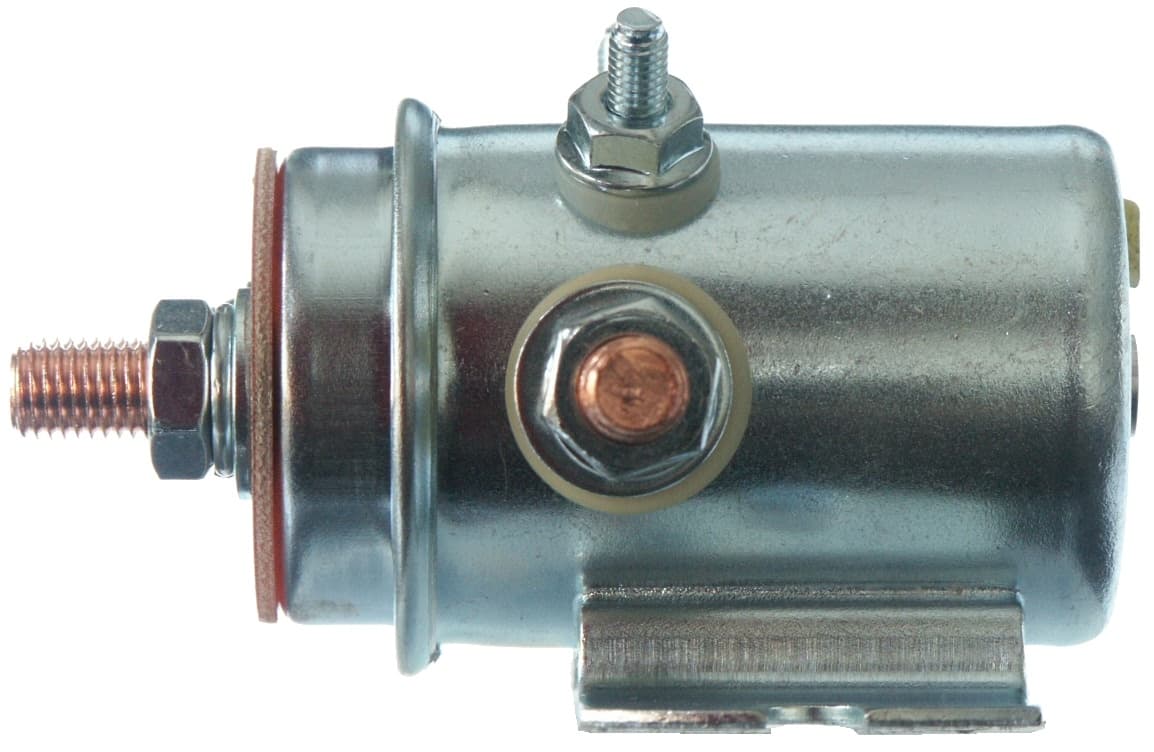

F032133617 - Solenoid SwitchTrade number 133617
Intermittent load 50 Amp., Voltage 24, Amp 50, Seconds 5, No./mount. holes 2, Outer Diameter 41.70, Amount of Mounting Holes 2, Remarks Insulated return. Terminals: 5/16" UNF. Coil Terminals: 10-32 UNF., Total Length 89.00

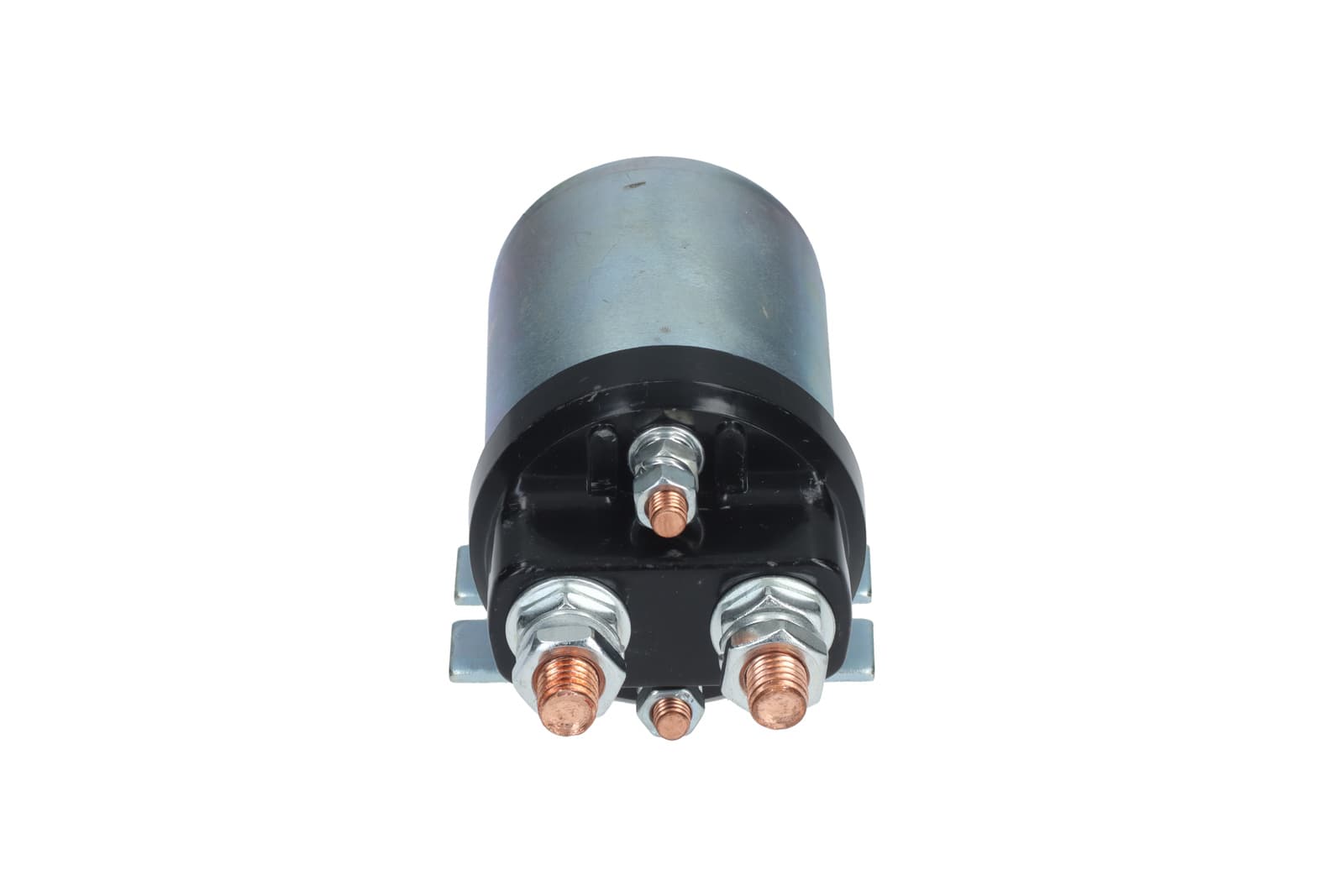

F032133695 - Solenoid SwitchTrade number 133695
Intermittent load 500 Amp., Voltage 12, Amp 100, Seconds 5, No./mount. holes 2, No./terminals 4, Outer Diameter 47.70, Amount of Mounting Holes 2, Remarks Universal. N.O. Terminals: M8. Coil Terminals: M5., Total Length 105.50
