Field Cases

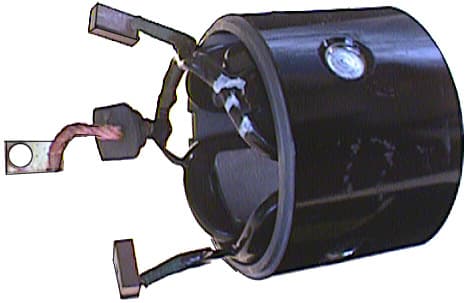

F032135392 - Parts SetTrade number 135392
kW 1.4/1.7,Voltage 12,Lead Length 51.50,Inner Diameter 51.00,Brush gear w/,No./brushes 4,Outer Diameter Middle 76.30,Coil w/,Magnets w/o,Source Valeo,Remarks Field coil: HC-CARGO 138857.,Length 119.40

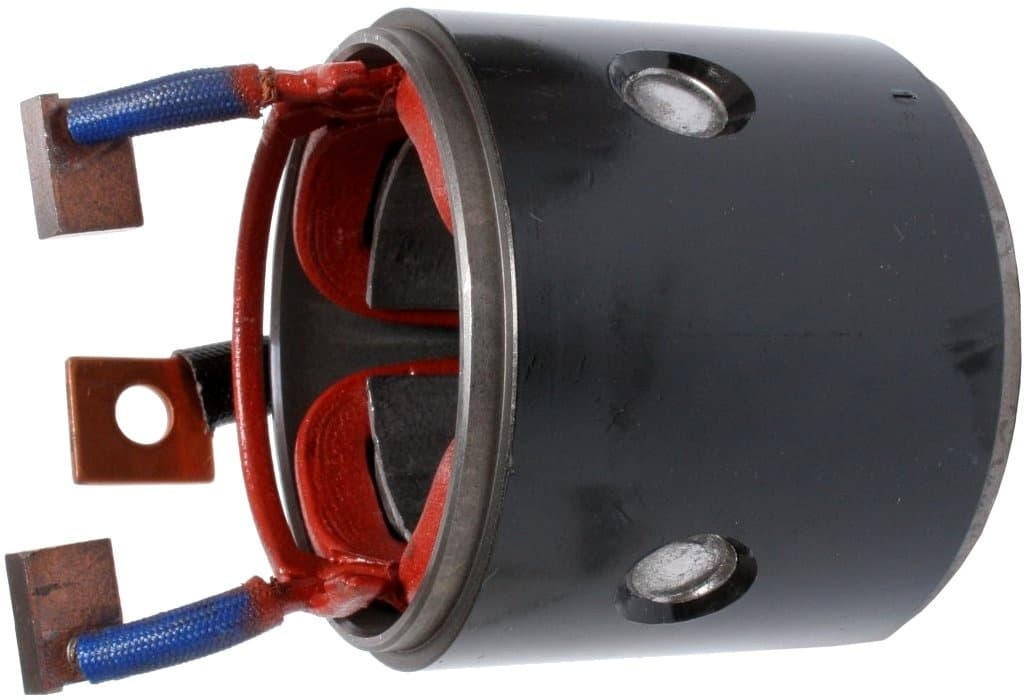

F032135784 - Pole housingTrade number 135784
kW 2.0,Voltage 12,Lead Length 99.00,O-ring w/,Inner Diameter 53.85,No./brushes 2,No./magnets 4,Outer Diameter Middle 81.50,Brush Length 18.00,Coil w/,Length 75.60,Brush Thickness 6.70,Brush Height 17.80
F032136135 - Pole housingTrade number 136135
kW 0.8,Voltage 12,Lead Length 48.00,O-ring w/o,Inner Diameter 60.70,No./brushes 2,No./magnets 4,Outer Diameter Middle 89.50,Brush Length 17.45,Coil w/,Length 62.00,Brush Thickness 6.70,Brush Height 10.00
F032136885 - Pole housingTrade number 136885
kW 0.8,Voltage 12,Lead Length 42.00,Inner Diameter 45.00,Brush gear w/o,No./brushes 2,Outer Diameter Middle 68.00,Brush Length 14.25,Coil w/,Magnets w/o,Source Denso,Length 52.40,Brush Thickness 6.25,Brush Height 12.85
F032136897 - Pole housingTrade number 136897
kW 1.4,Voltage 12,Lead Length 55.50,Inner Diameter 50.00,Brush gear w/o,No./brushes 2,No./magnets 4,Outer Diameter Middle 75.80,Brush Length 15.60,Coil w/,Magnets w/o,Length 62.60,Brush Thickness 6.80,Brush Height 16.00
F032136938 - Parts SetTrade number 136938
kW 3.2,Voltage 24,Lead Length 115.00,Inner Diameter 53.00,No./brushes 2,Outer Diameter Middle 81.00,Brush Length 18.00,Coil w/,Remarks Brush set: HC-CARGO 141273.,Length 85.00,Brush Thickness 7.0,Brush Height 18.00
F032139361 - Pole housingTrade number 139361
kW 2.0,Voltage 12,Lead Length 70.00,Inner Diameter 54.20,Brush gear w/o,No./brushes 2,Outer Diameter Middle 77.00,Brush Length 17.60,Coil w/,Magnets w/o,Remarks Brush set: HC-CARGO 140347.,Length 63.00,Brush Thickness 6.60,Brush Height 11.80
F032139697 - Parts SetTrade number 139697
kW 4.0,Voltage 24,Lead Length 48.00,O-ring w/o,Inner Diameter 61.10,Brush gear w/,No./brushes 4,Outer Diameter Middle 95.00,Brush Length 18.00,Coil w/,Length 120.50,Brush Thickness 5.40,Brush Height 27.80
F032139985 - Parts SetTrade number 139985
kW 2.0/2.2,Voltage 12,Lead Length 59.00,Inner Diameter 48.00,Brush gear w/,No./brushes 4,Outer Diameter Middle 76.20,Coil w/,Magnets w/o,Source Valeo,Remarks Field coil: HC-CARGO 233853.,Length 116.20
F032231476 - Parts SetTrade number 231476
kW 0.85/1.0,Voltage 12,Lead Length 32.00,Inner Diameter 51.00,Brush gear w/,No./brushes 4,Outer Diameter Middle 78.30,Brush Length 11.00,Coil w/,Magnets w/o,Remarks Brush gear: HC-CARGO 139224. Brush set: HC-CARGO PSX1554.,Length 44.50,Brush Thickness 6.40,Brush Height 8.00
