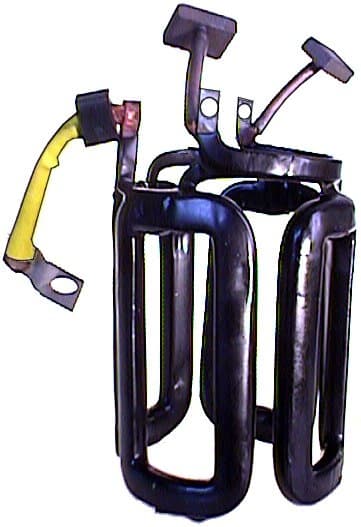

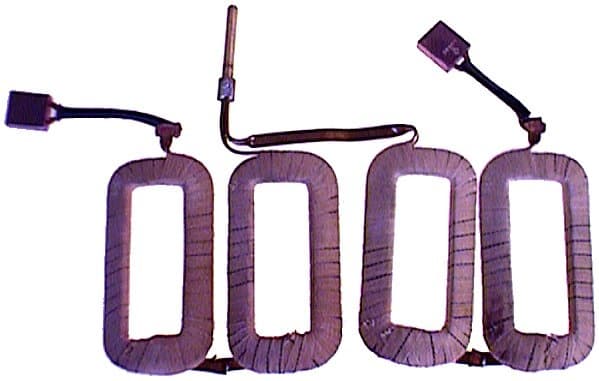

Field Coils

12 V

24 V

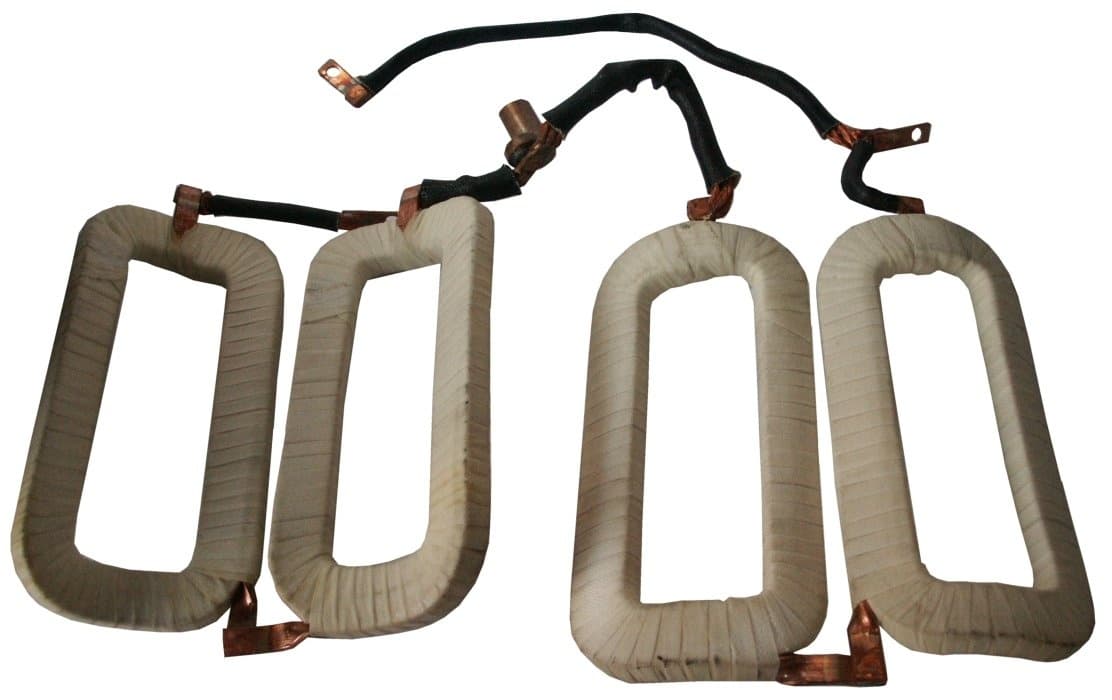

F032130131 - Parts SetTrade number 130131

Voltage 24,kW 5.0,Housing w/o,Internal Height 65.70,Width 1 307.50,Lead Length 89.00,Brush gear w/o,Inner Width 28.40,Remarks Short.,Height 120.50

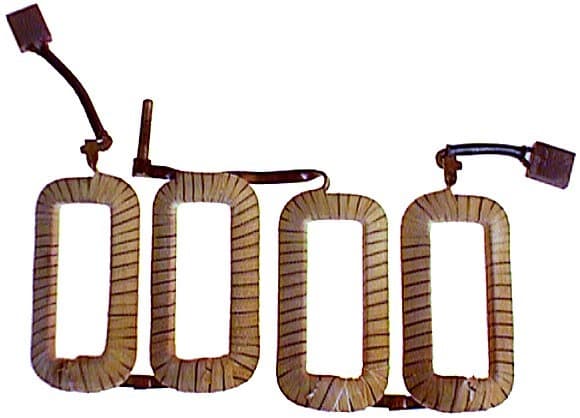

F032130194 - Excitation WindingTrade number 130194

Voltage 12,kW 2.1,Housing w/o,Internal Height 75.40,Width 1 246.65,Lead Length 79.40,Brush gear w/o,No./brushes 2,Inner Width 27.90,Servicing M45G,Height 119.25

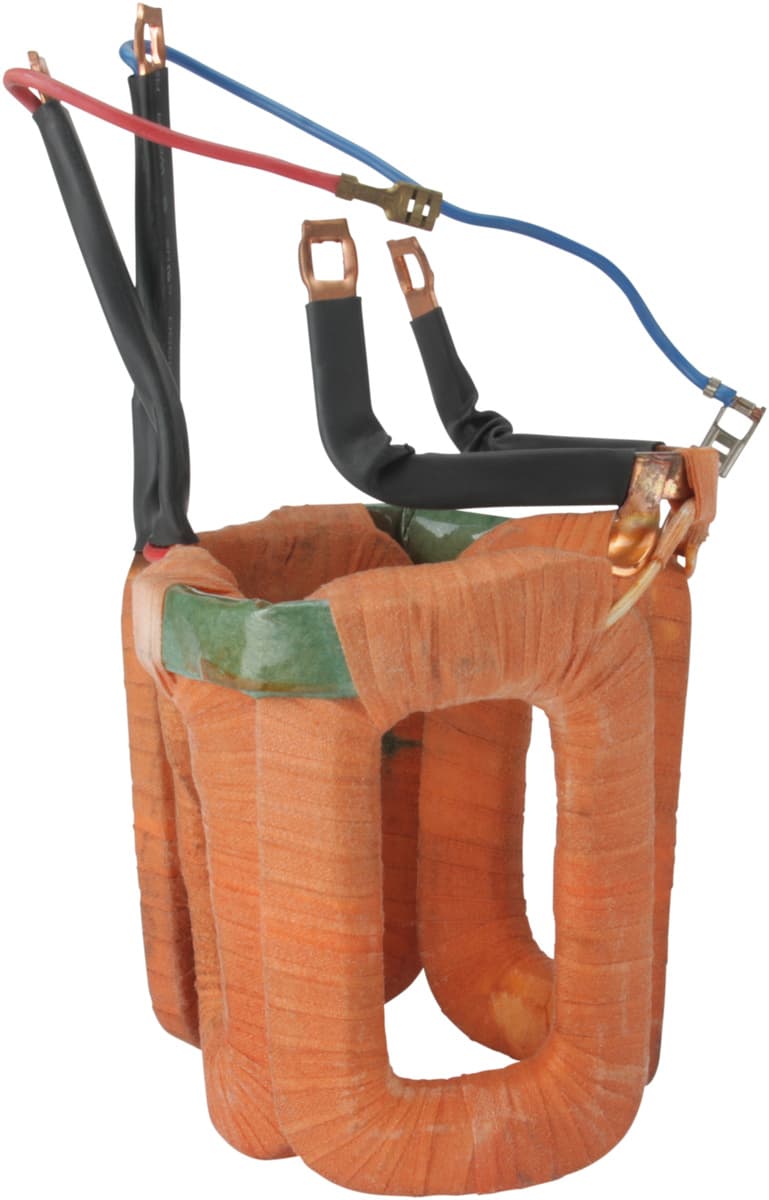

F032130196 - Excitation WindingTrade number 130196

Voltage 12,kW 2.1,Housing w/o,Internal Height 75.65,Width 1 231.55,Lead Length 39.00,Brush gear w/o,No./brushes 2,Inner Width 28.00,Servicing M45G,Height 118.00

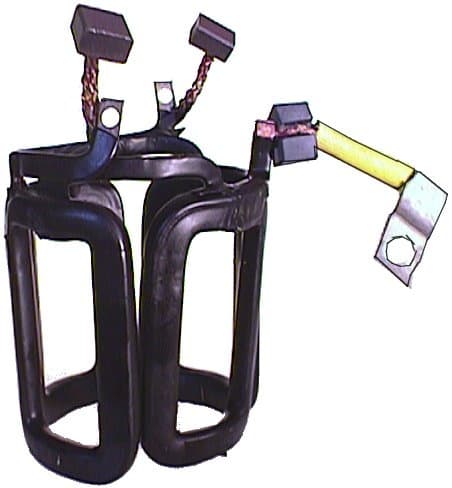

F032130201 - Excitation WindingTrade number 130201

Voltage 12,kW 2.8,Housing w/o,Internal Height 74.80,Width 1 289.45,Brush gear w/o,No./brushes 2,Inner Width 31.00,Servicing M50,Height 126.00

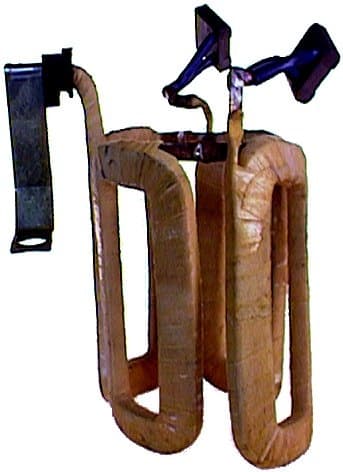

F032131074 - Parts SetTrade number 131074

Voltage 24,kW 4.0,Housing w/o,Internal Height 86.75,Lead Length 75.00,Brush gear w/o,No./brushes 2,Inner Width 33.30,Height 127.60

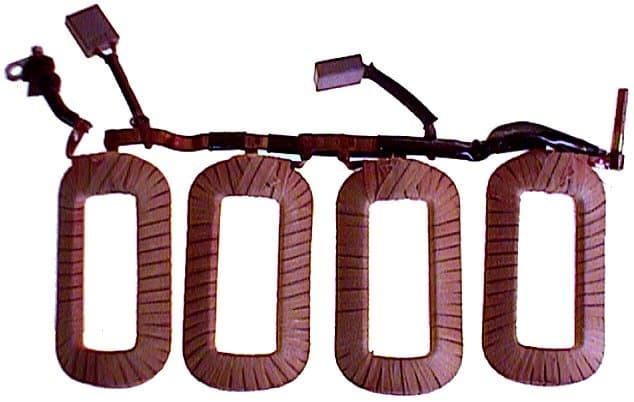

F032131312 - Excitation WindingTrade number 131312

Voltage 24,kW 5.4/6.6,Housing w/o,Internal Height 85.20,Lead Length 90.25,Brush gear w/o,Inner Width 29.40,Height 138.25

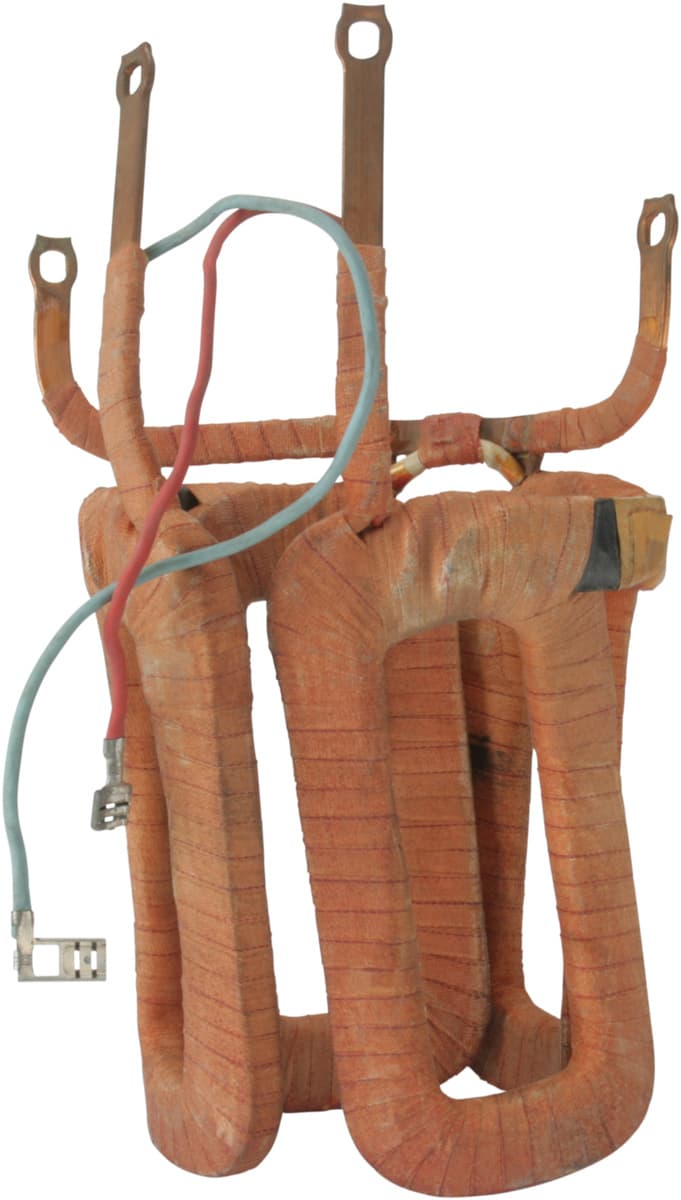

F032131313 - Excitation WindingTrade number 131313

Voltage 12,kW 1.9/2/2.2/2.4,Housing w/o,Internal Height 71.65,Lead Length 43.80,Brush gear w/o,No./brushes 2,Inner Width 32.60,Height 112.25

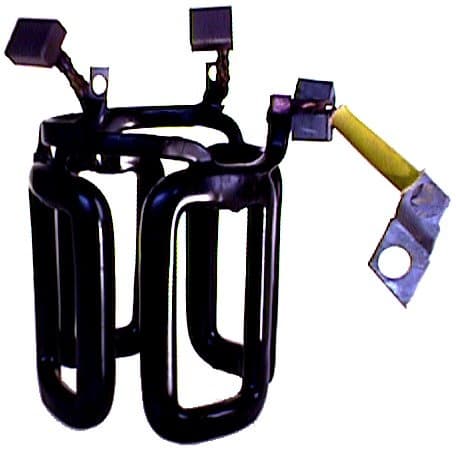

F032131314 - Excitation WindingTrade number 131314

Voltage 12,kW 2.3/2.7,Housing w/o,Internal Height 71.00,Lead Length 97.00,Rotation CW,Brush gear w/o,No./brushes 2,Inner Width 32.00,Height 109.5

F032131351 - Parts SetTrade number 131351

Voltage 24,Housing w/o,Internal Height 111.00,Inner Width 2 1 5/16",Width 1 281.00,Internal Height 2 4 1/4",Brush gear w/o,Inner Width 33.50,Servicing 42MT,Height 144.50

F032131473 - Excitation WindingTrade number 131473

Voltage 24,kW 4.0,Housing w/o,Internal Height 88.40,Brush gear w/o,No./brushes 2,Inner Width 28.65,Height 122.55
