Dynamos

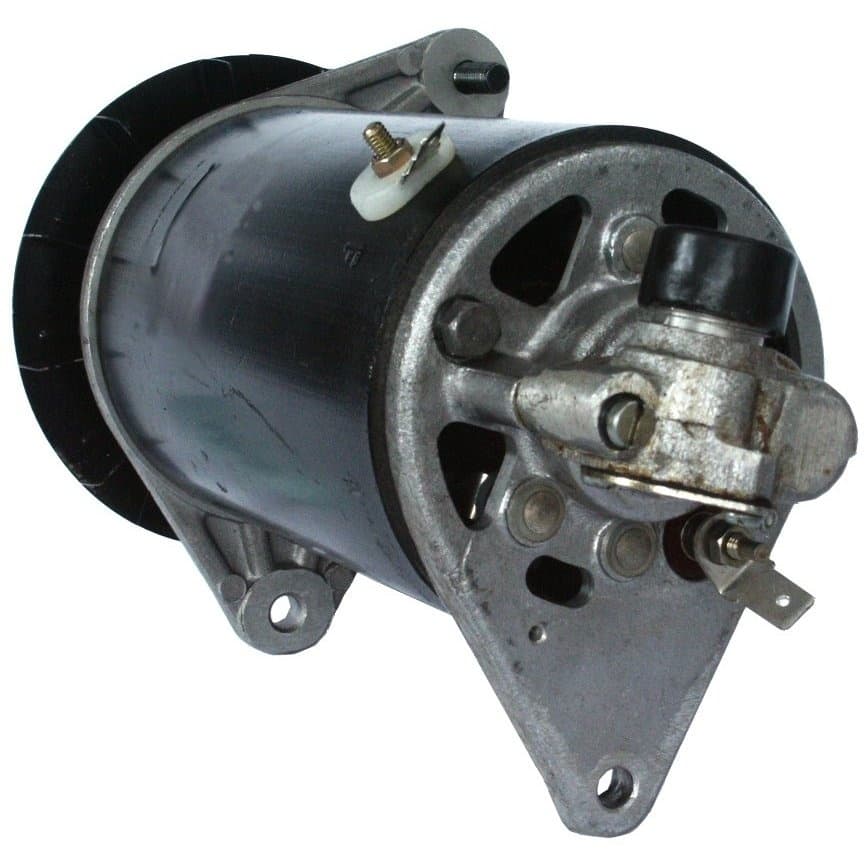

F032110482 - Direct-Current GeneratorTrade number 110482

Voltage 12,Amp 22,Pulley w/o,Prod. info BN/OE,Distance E2 55.00,Mounting Hole D3 8.00,Blower w/o,Distance E1 9.50,Mounting Hole D1 8.00,Source Lucas,Mounting Hole D2 M8,Rotation CW,Length 230.00

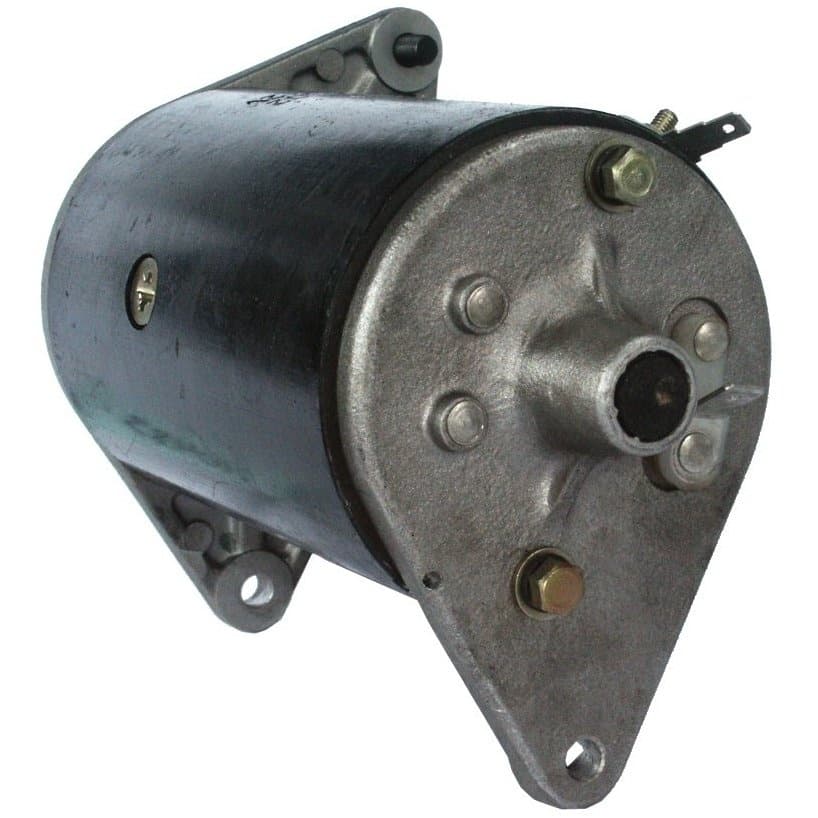

F032110483 - Direct-Current GeneratorTrade number 110483

Voltage 12,Amp 11,Prod. info BN/OE,Distance E2 50.00,Mounting Hole D3 8.00,Blower w/o,Distance E1 10.00,Mounting Hole D1 8.00,Source Lucas,Mounting Hole D2 M8,Outer Diameter 102.00,Length 229.00

F032110484 - Direct-Current GeneratorTrade number 110484

Insulated return No,Voltage 12,Amp 22,Regulator plug w/o,Pulley w/o,Prod. info BN/OE,Blower w/,Mounting Hole D1 8.00,Source Lucas,Mounting Hole D2 M8,Outer Diameter 144.00,Length 238.00

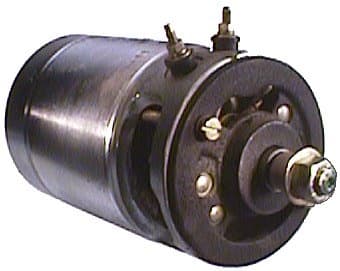

F032111225 - Direct-Current GeneratorTrade number 111225

Voltage 12,Amp 30,Pulley w/o,Prod. info BN,Blower w/o,Outer Diameter 103.00,Length 160.00

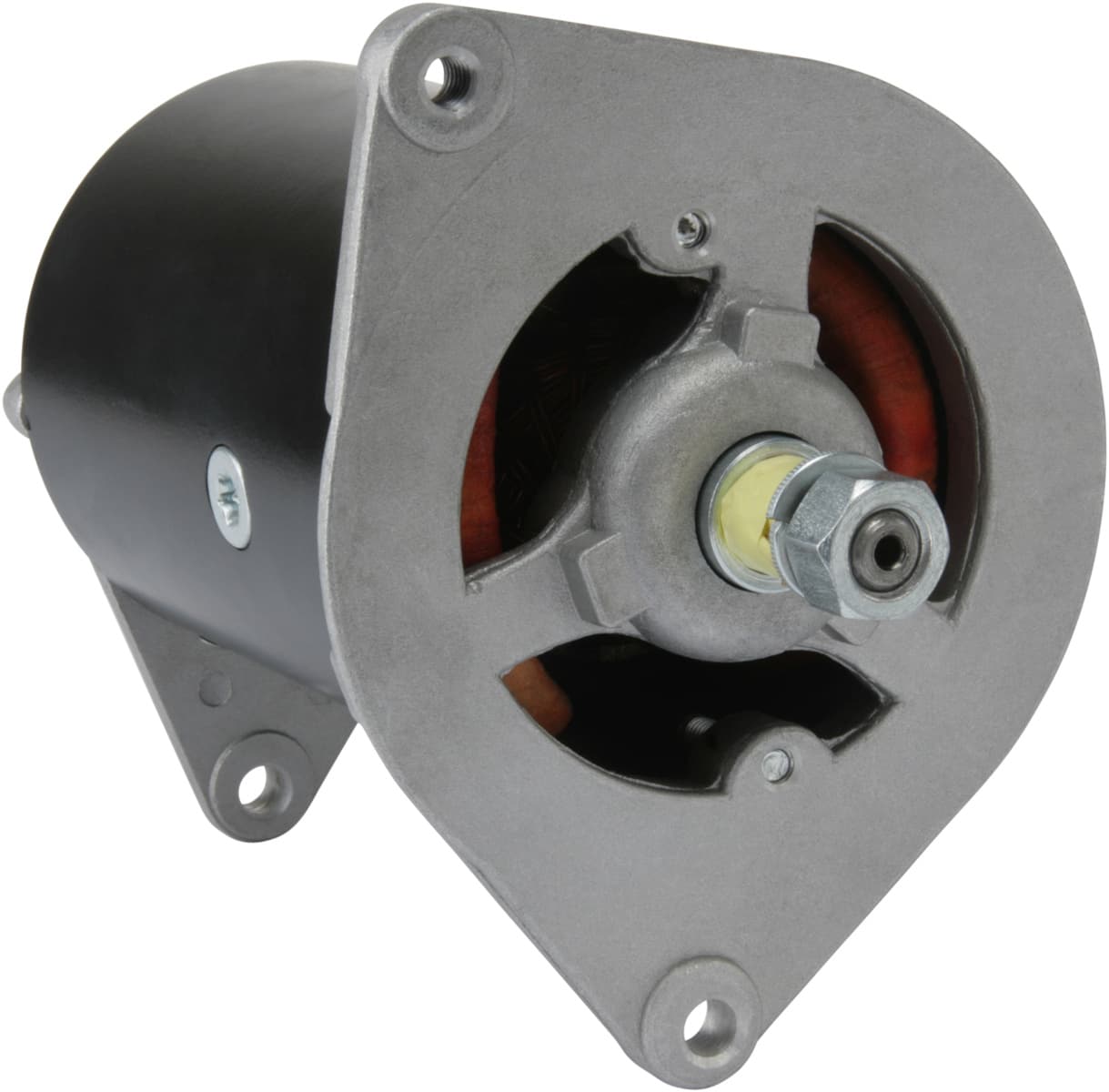

F032111919 - Direct-Current GeneratorTrade number 111919

Voltage 12,Amp 11,Pulley w/o,Prod. info BN,Blower w/o,Mounting Hole D1 M8,Mounting Hole D2 M8,Rotation CCW,Outer Diameter 96.00,Remarks Regulator: HC-CARGO 235781.,Length 235.00

F032116801 - AlternatorTrade number 116801

Voltage 28,Amp 200,Bracket Hole Size 1 12.30,Pulley Diameter 74.80,Prod. info BN/OE,Bracket Hole Size Rear 12.30,D+ Size M5,D+ Position 7,Holder Arm Width 15.30,Pulley Distance 51.00,B+ M8,Fan EF,Radius 2 120.00,Source Mahle Letrika,Mounting Bracket Distance 182.00,Radius 120.00,Rotation CW,Belt Adjustment Bracket Hole 1 12.30,Grooves/pulley 8,Regulator type IR,B+ Position 30,Total Length 302.00
