Drives

F032130027 - Overrunning-Clutch DriveTrade number 130027

Splines internal 10,No./teeth 9,Rotation CCW,Inner Diameter 11.00,Outer Diameter 26.00,Shaft Distance 3.50,Total Length 67.00,Housing Outer Diameter 46.20

F032130390 - Overrunning-Clutch DriveTrade number 130390

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 29.60,Shaft Distance 2.90,Total Length 68.00,Housing Outer Diameter 46.30

F032130393 - Overrunning-Clutch DriveTrade number 130393

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 25.80,Shaft Distance 6.50,Total Length 68.50,Housing Outer Diameter 46.20

F032130396 - Overrunning-Clutch DriveTrade number 130396

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 25.80,Shaft Distance 4.30,Total Length 64.50,Housing Outer Diameter 46.30

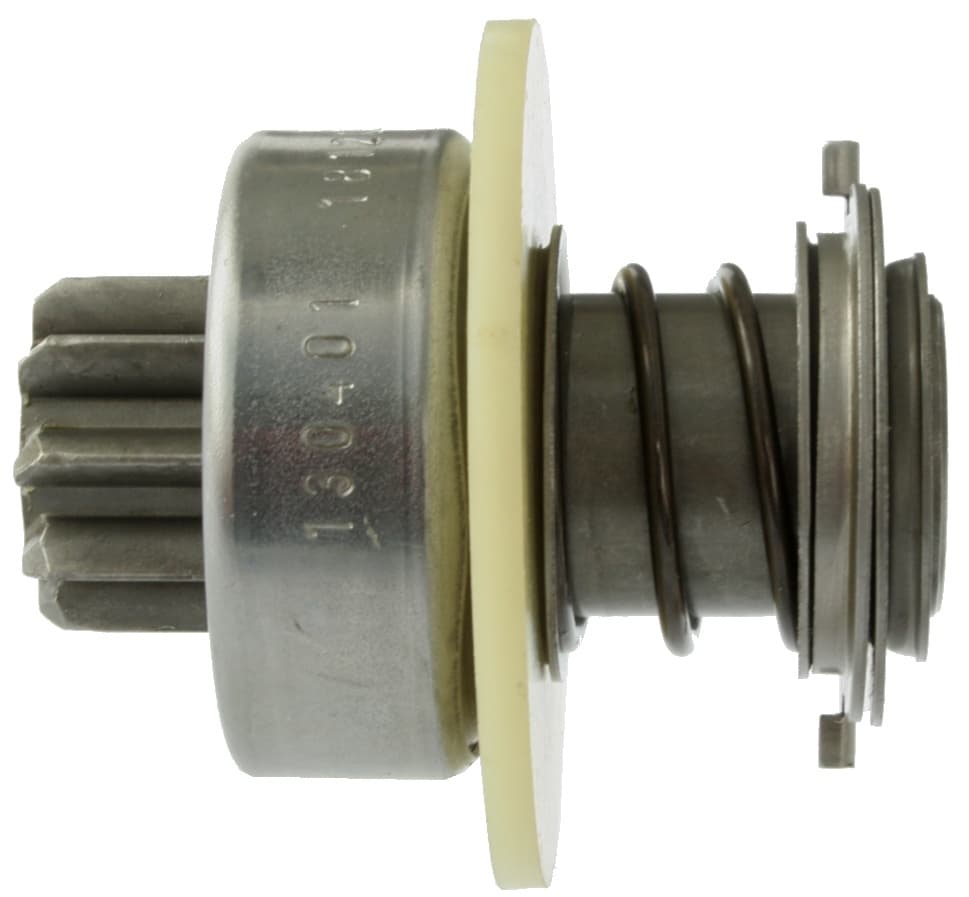

F032130401 - Overrunning-Clutch DriveTrade number 130401

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 25.80,Shaft Distance 4.60,Total Length 63.50,Housing Outer Diameter 46.20

F032130402 - Overrunning-Clutch DriveTrade number 130402

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 29.60,Shaft Distance 4.60,Total Length 64.00,Housing Outer Diameter 46.20

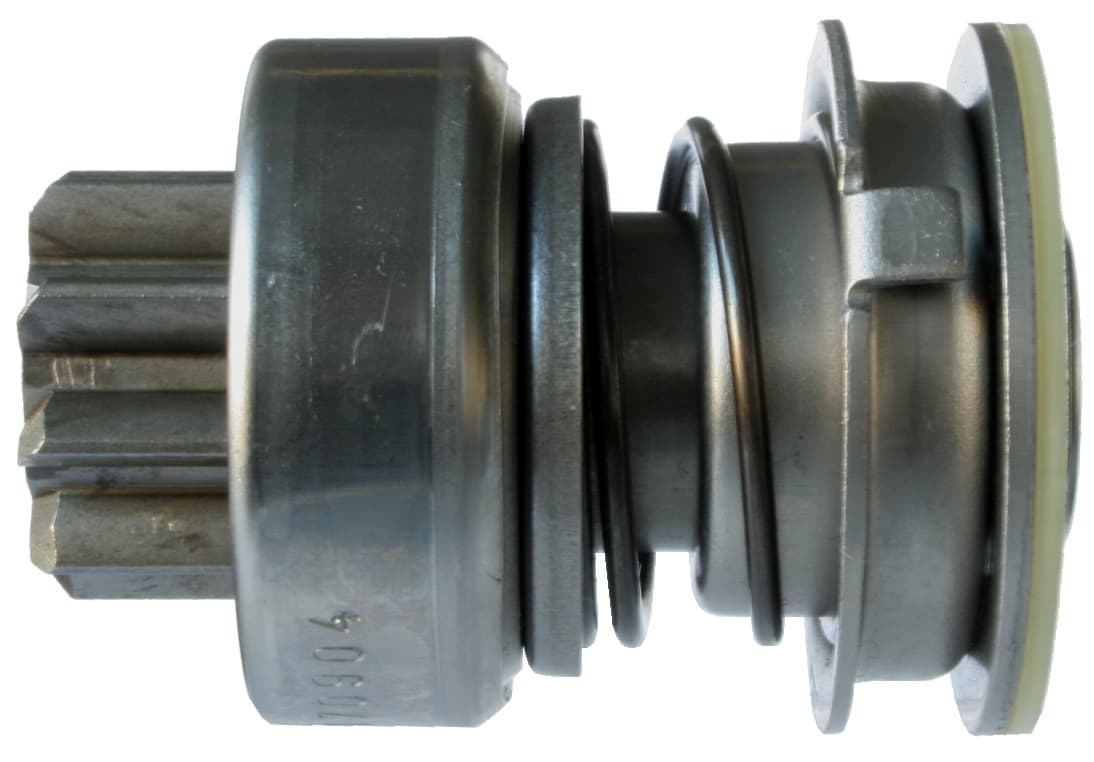

F032130404 - Overrunning-Clutch DriveTrade number 130404

Splines internal 10,No./teeth 9,Rotation CCW,Inner Diameter 11.00,Outer Diameter 25.80,Shaft Distance 4.50,Total Length 63.00,Housing Outer Diameter 46.10

F032130405 - Overrunning-Clutch DriveTrade number 130405

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 25.80,Shaft Distance 4.30,Total Length 63.50,Housing Outer Diameter 46.20

F032130406 - Overrunning-Clutch DriveTrade number 130406

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 26.00,Shaft Distance 2.50,Total Length 68.50,Housing Outer Diameter 46.20

F032130409 - Overrunning-Clutch DriveTrade number 130409

Splines internal 10,No./teeth 9,Rotation CW,Inner Diameter 12.00,Outer Diameter 25.80,Shaft Distance 4.30,Total Length 73.00,Housing Outer Diameter 54.20
