F032130281 - Solenoid SwitchTrade number 130281

Voltage 12,B+ Cable,No./mount. holes 2,Outer Diameter 86.00,Amount of Mounting Holes 2,Total Length 94.00

F032130282 - Solenoid SwitchTrade number 130282

Voltage 24,B+ Cable,No./mount. holes 2,Outer Diameter 69.30,Amount of Mounting Holes 2,Mounting Hole 1 15,Total Length 91.00

F032130283 - Solenoid SwitchTrade number 130283

Voltage 24,B+ Cable,No./mount. holes 4,Outer Diameter 85.50,Amount of Mounting Holes 4,Remarks Insulated return.,Total Length 93.50

F032130293 - Solenoid SwitchTrade number 130293

Voltage 12,No./mount. holes 2,No./terminals 4,Terminal 50/mm 6.30,Coil Bolt Length 13.00,Terminal 15A/mm 6.30,Eye Outer Diameter 7.60,Plunger Outer Diameter 20.75,Eye Inner Diameter 4.80,B+ M8,Terminal 15a Spade,Terminal 50 Spade,B+ Height 12.00,Coil Bolt Diameter M8,Outer Diameter 50.30,Remarks Cap: HC-CARGO 131334.,Amount of Mounting Holes 2,Total Length 111.00

F032130296 - Solenoid SwitchTrade number 130296

Voltage 12,No./mount. holes 2,No./terminals 3,Terminal 50/mm M4,Coil Bolt Length 17.00,Plunger Inner Diameter 11.40,Plunger Outer Diameter 29.80,B+ M10,Terminal 50 Screw,B+ Height 23.50,Coil Bolt Diameter M10,Outer Diameter 61.00,Remarks Cap: HC-CARGO 131317.,Length 111.70,Mounting Hole 1 30,Amount of Mounting Holes 2,Total Length 102.00

F032130297 - Solenoid SwitchTrade number 130297

Voltage 12,No./mount. holes 3,No./terminals 3,Terminal 50/mm M4,Coil Bolt Length 16.50,Plunger Inner Diameter 12.20,Eye Outer Diameter 20.50,Plunger Outer Diameter 29.90,Eye Inner Diameter 5.70,B+ M10,Terminal 50 Screw,B+ Height 23.50,Coil Bolt Diameter M10,Outer Diameter 61.00,Remarks Cap: HC-CARGO 131318.,Length 86.20,Mounting Hole 1 14,Amount of Mounting Holes 3

F032130300 - Solenoid SwitchTrade number 130300

Voltage 12,No./mount. holes 3,No./terminals 3,Terminal 50/mm M4,Coil Bolt Length 17.00,Plunger Inner Diameter 11.00,Eye Outer Diameter 22.70,Plunger Outer Diameter 29.75,Eye Inner Diameter 5.70,B+ M10,Terminal 50 Screw,B+ Height 24.50,Coil Bolt Diameter M10,Outer Diameter 61.00,Remarks Cap: HC-CARGO 131318.,Length 93.00,Amount of Mounting Holes 3,Total Length 117.50

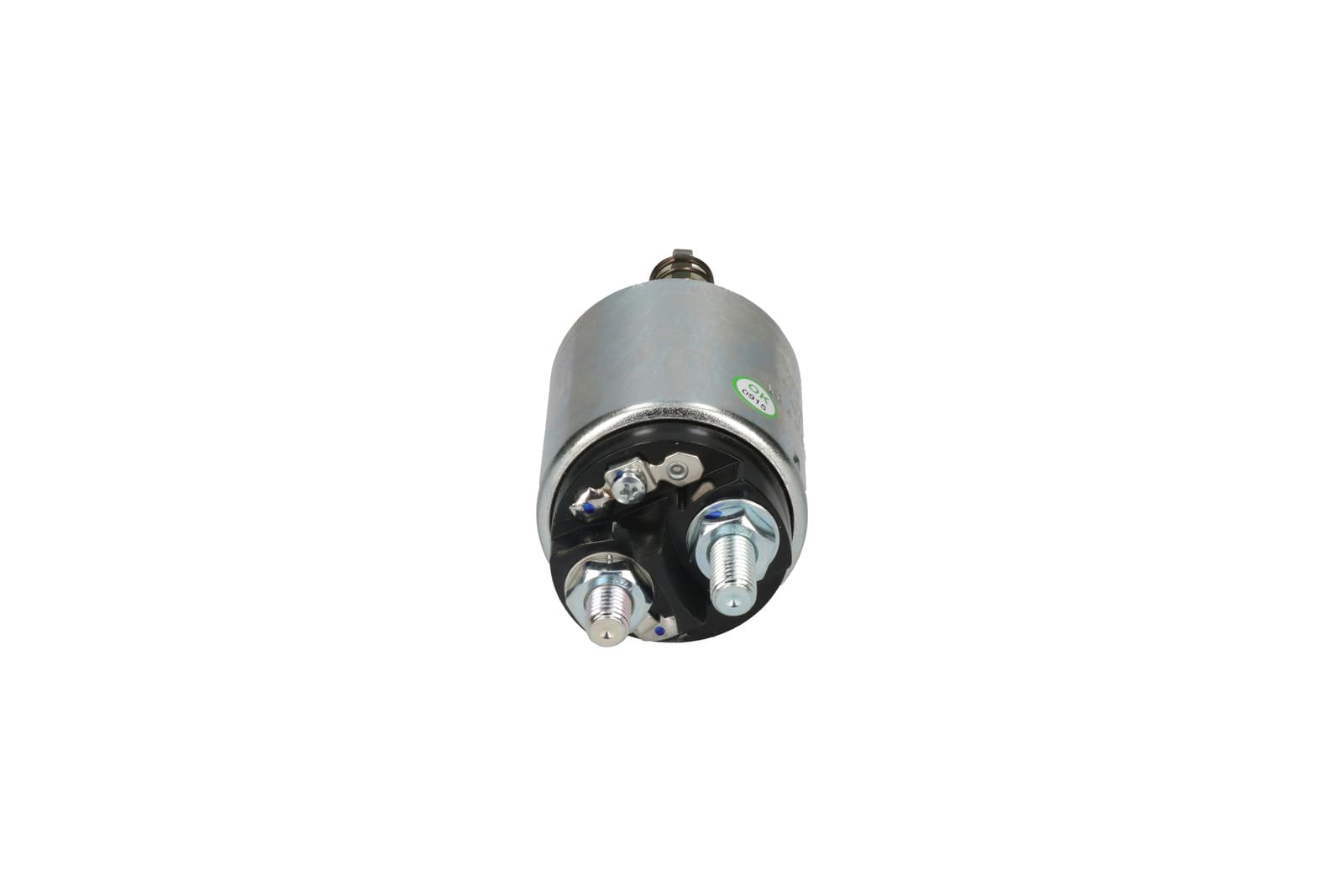

F032130301 - Solenoid SwitchTrade number 130301

Voltage 12,No./mount. holes 3,No./terminals 3,Terminal 50/mm M4,Coil Bolt Length 17.00,Plunger Inner Diameter 11.00,Eye Outer Diameter 19.50,Plunger Outer Diameter 29.80,Eye Inner Diameter 5.60,B+ M10,Terminal 50 Screw,B+ Height 24.00,Coil Bolt Diameter M10,Outer Diameter 61.30,Remarks Cap: HC-CARGO 131318.,Length 82.90,Amount of Mounting Holes 3,Total Length 108.00

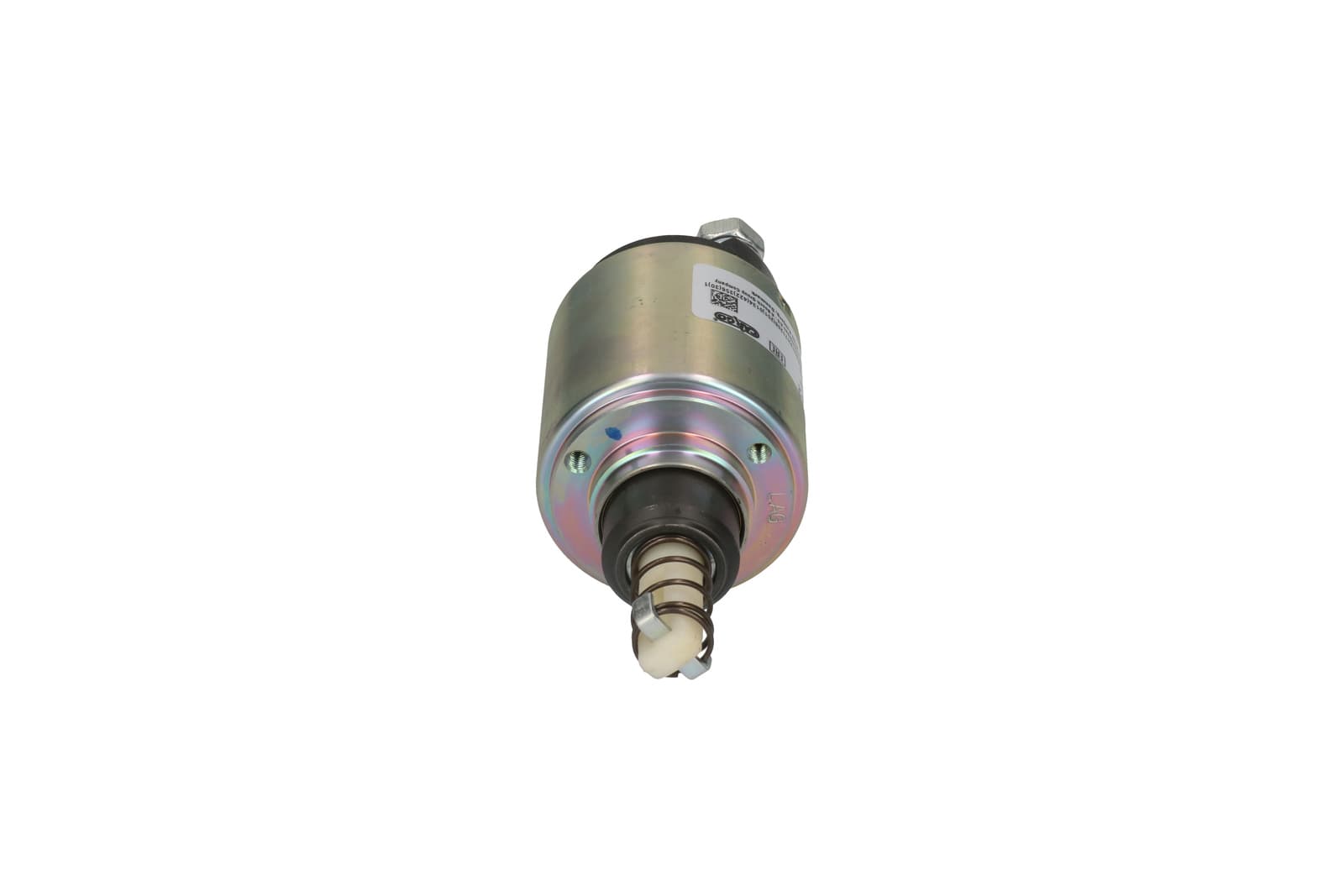

F032130302 - Solenoid SwitchTrade number 130302

Voltage 12,No./mount. holes 3,No./terminals 3,Terminal 50/mm M4,Coil Bolt Length 10.00,Plunger Inner Diameter 11.00,Eye Outer Diameter 19.30,Plunger Outer Diameter 29.80,Eye Inner Diameter 5.60,B+ M10,Terminal 50 Screw,B+ Height 15.00,Coil Bolt Diameter M10,Outer Diameter 61.00,Remarks Cap: HC-CARGO 131317.,Length 82.85,Amount of Mounting Holes 3,Total Length 105.00

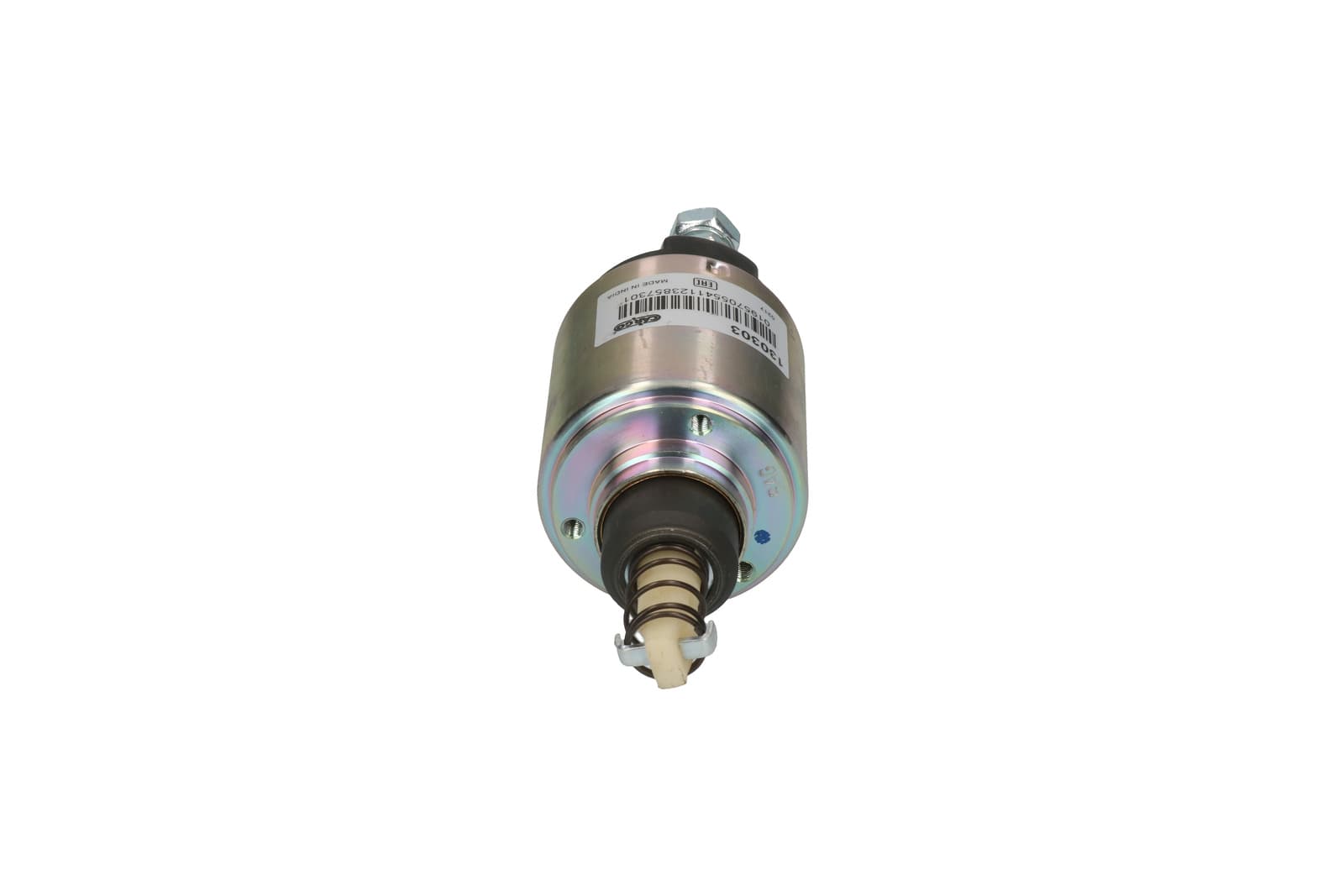

F032130303 - Solenoid SwitchTrade number 130303

Voltage 24,No./mount. holes 3,No./terminals 3,Terminal 50/mm M6,Coil Bolt Length 18.00,Plunger Inner Diameter 11.40,Eye Outer Diameter 19.40,Plunger Outer Diameter 29.80,Eye Inner Diameter 5.60,B+ M10,Terminal 50 Screw,B+ Height 24.00,Coil Bolt Diameter M10,Outer Diameter 61.00,Remarks Cap: HC-CARGO 133447.,Length 82.70,Amount of Mounting Holes 3,Total Length 108.00
