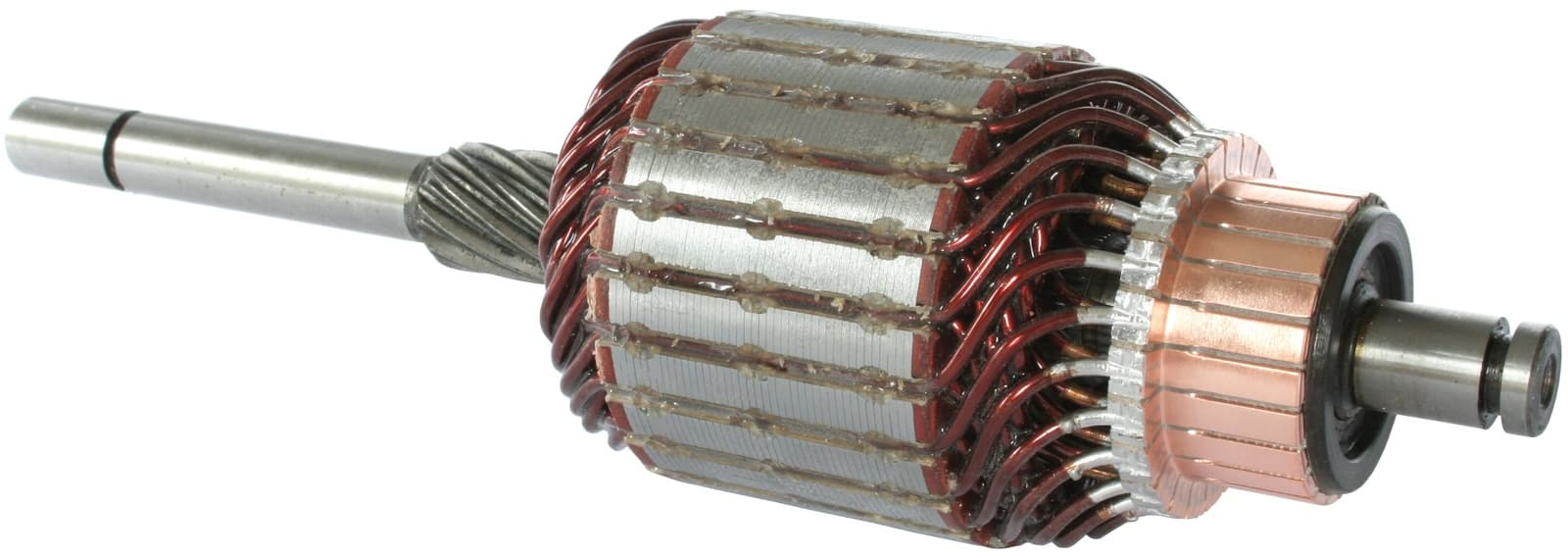

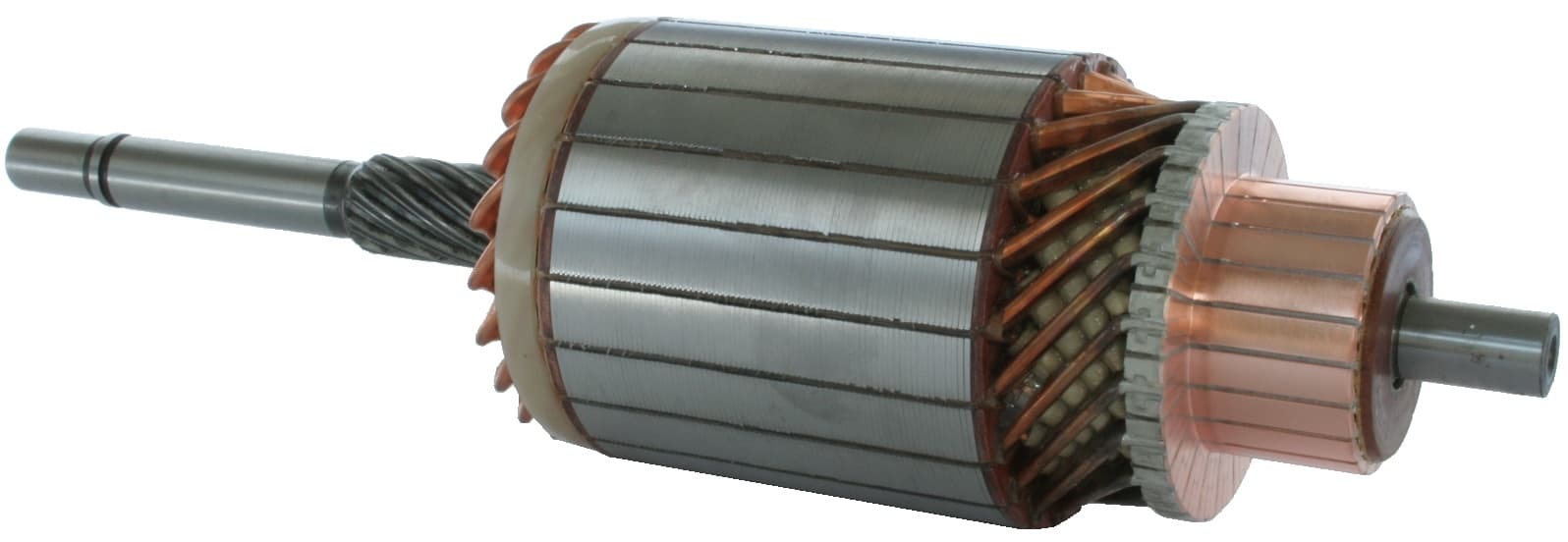

F032130061 - Armature

F032130061 - ArmatureTrade number 130061

kW 0.8,Voltage 12,Commutator Diameter 36.00,Commutator Distance 20.20,OD/spline/teeth 17.00,No./bars 23,Commutator Height 23.50,Bar length 4.00,Commutator Inner Diameter 16.00,Bar Distance 2.60,Core Diameter 60.00,Shaft length 222.00,Bar Cross Distance 36.80,Commutator End Shaft Diameter 12.40,Bar Lane Height 16.60,Spline Teeth Length 25.50,No./splines 10,Drive End Inside Shaft Diameter Outside 11.90,Commutator Outer Diameter 44.50,Rotation CW

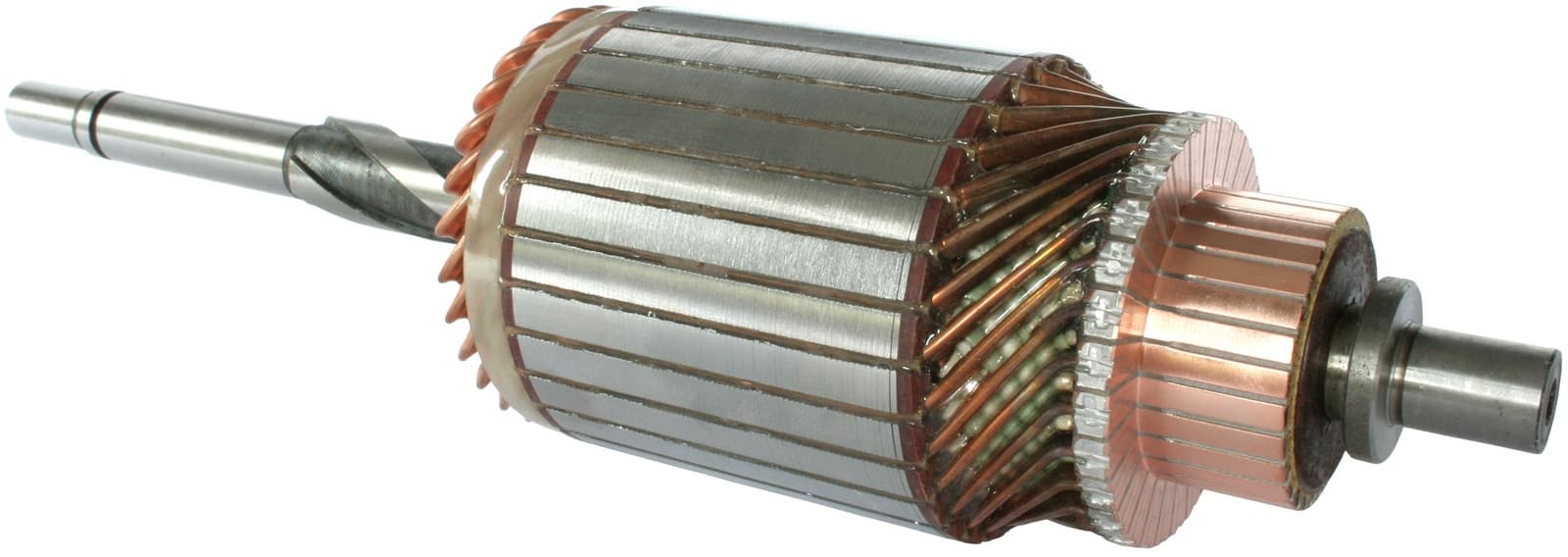

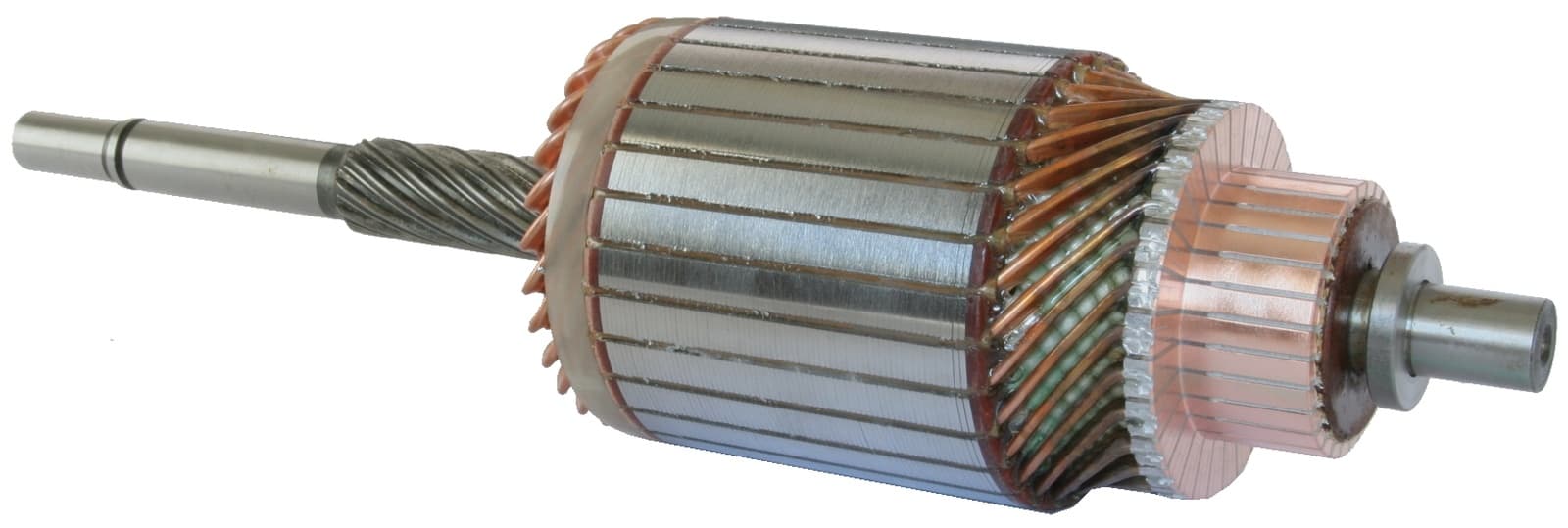

F032130109 - Armature

F032130109 - ArmatureTrade number 130109

kW 1.4,Voltage 12,Commutator Diameter 42.00,Commutator Distance 27.40,OD/spline/teeth 18.30,No./bars 29,Commutator Height 26.50,Core Diameter 73.00,Shaft length 300.00,Commutator End Shaft Diameter 14.00,Bar Lane Height 21.70,Spline Teeth Length 56.80,No./splines 3,Drive End Inside Shaft Diameter Outside 12.50,Commutator Outer Diameter 61.80,Drive End Inside Shaft Diameter 14.15,Remarks 9 V: HC-CARGO 133084.,Shaft Diameter 18.85

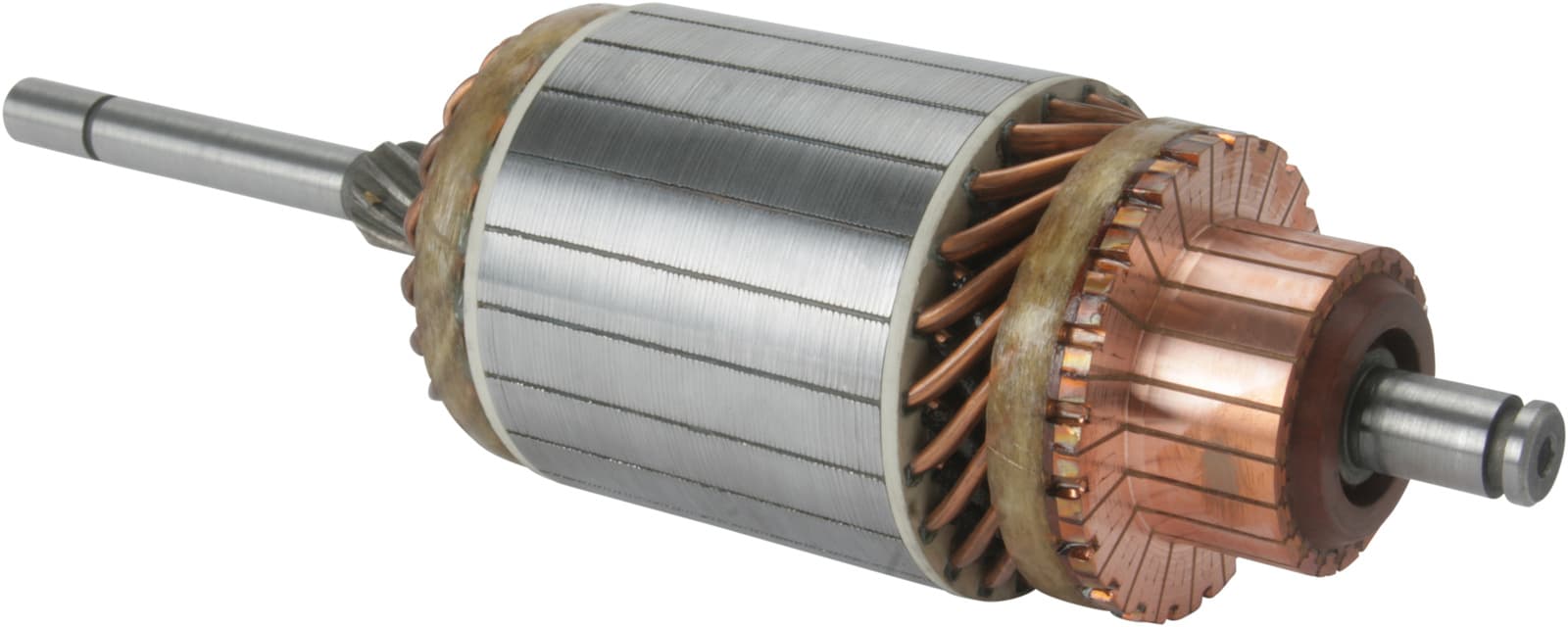

F032130110 - Armature

F032130110 - ArmatureTrade number 130110

kW 1.8,Voltage 12,Commutator Diameter 42.20,Commutator Distance 26.90,OD/spline/teeth 18.20,No./bars 29,Commutator Height 26.00,Core Diameter 73.00,Shaft length 300.00,Commutator End Shaft Diameter 14.00,Bar Lane Height 19.60,Spline Teeth Length 48.80,No./splines 10,Drive End Inside Shaft Diameter Outside 12.50,Commutator Outer Diameter 61.90,Drive End Inside Shaft Diameter 14.15,Rotation CW,Remarks 9 V: HC-CARGO 133085.,Shaft Diameter 18.85

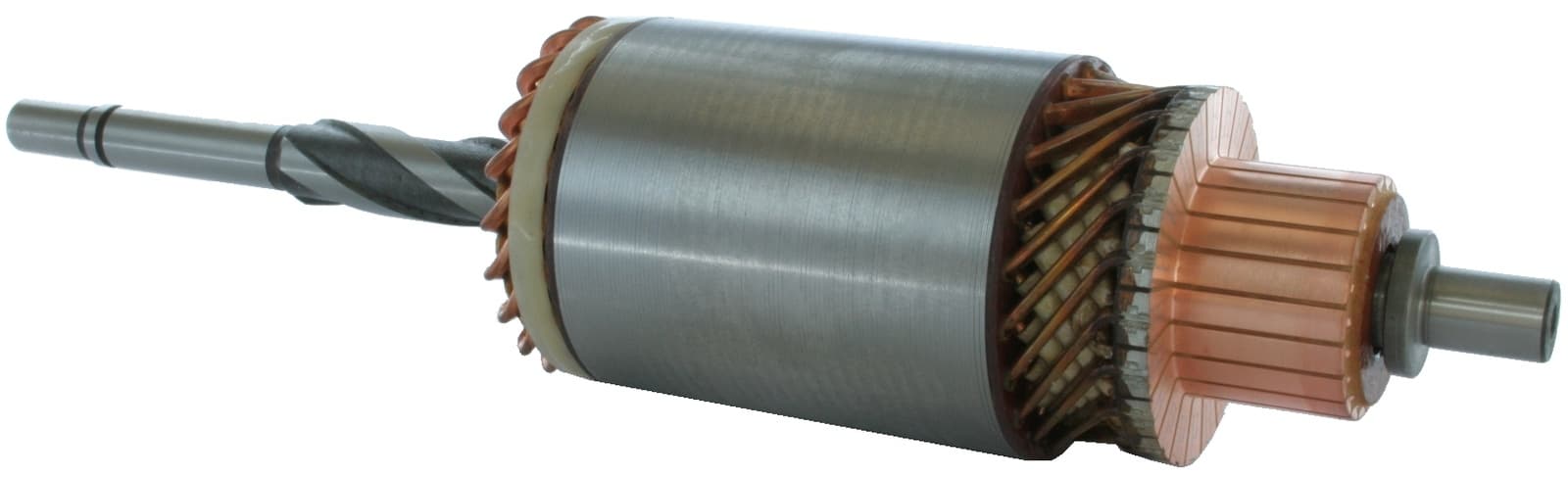

F032130113 - Armature

F032130113 - ArmatureTrade number 130113

kW 2.4,Voltage 12,Commutator Diameter 43.00,Commutator Distance 22.40,OD/spline/teeth 18.00,No./bars 21,Commutator Height 33.00,Bar length 10.50,Commutator Inner Diameter 15.80,Bar Distance 3.45,Core Diameter 75.00,Shaft length 282.00,Bar Cross Distance 42.50,Commutator End Shaft Diameter 12.50,Bar Lane Height 23.00,No./splines 10,Drive End Inside Shaft Diameter Outside 12.00,Commutator Outer Diameter 63.20,Drive End Inside Shaft Diameter 12.00,Rotation CW,Remarks 9 V: HC-CARGO 131933.,Shaft Diameter 18.90

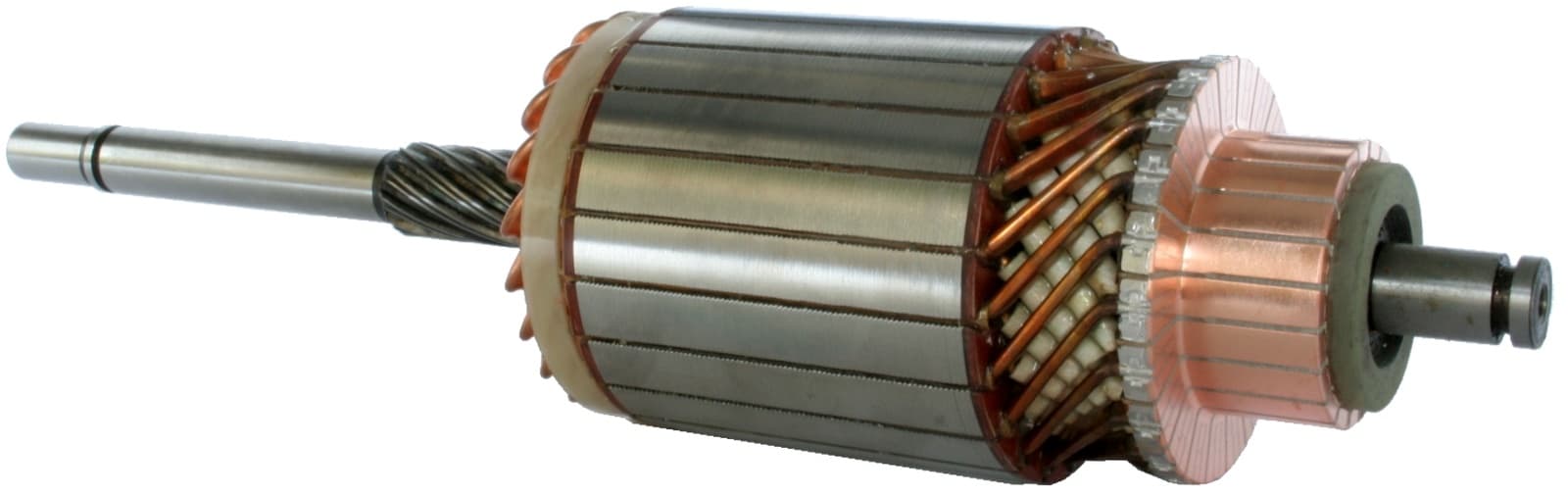

F032130114 - Armature

F032130114 - ArmatureTrade number 130114

kW 2.4,Voltage 12,Commutator Diameter 43.00,Commutator Distance 21.40,OD/spline/teeth 18.00,No./bars 21,Commutator Height 33.00,Bar length 10.50,Commutator Inner Diameter 15.80,Bar Distance 3.45,Core Diameter 75.00,Shaft length 288.00,Bar Cross Distance 42.50,Commutator End Shaft Diameter 12.50,Bar Lane Height 23.00,Spline Teeth Length 40.00,No./splines 10,Drive End Inside Shaft Diameter Outside 12.40,Commutator Outer Diameter 63.20,Drive End Inside Shaft Diameter 14.10,Rotation CW,Remarks 9 V: HC-CARGO 133086.,Shaft Diameter 18.85

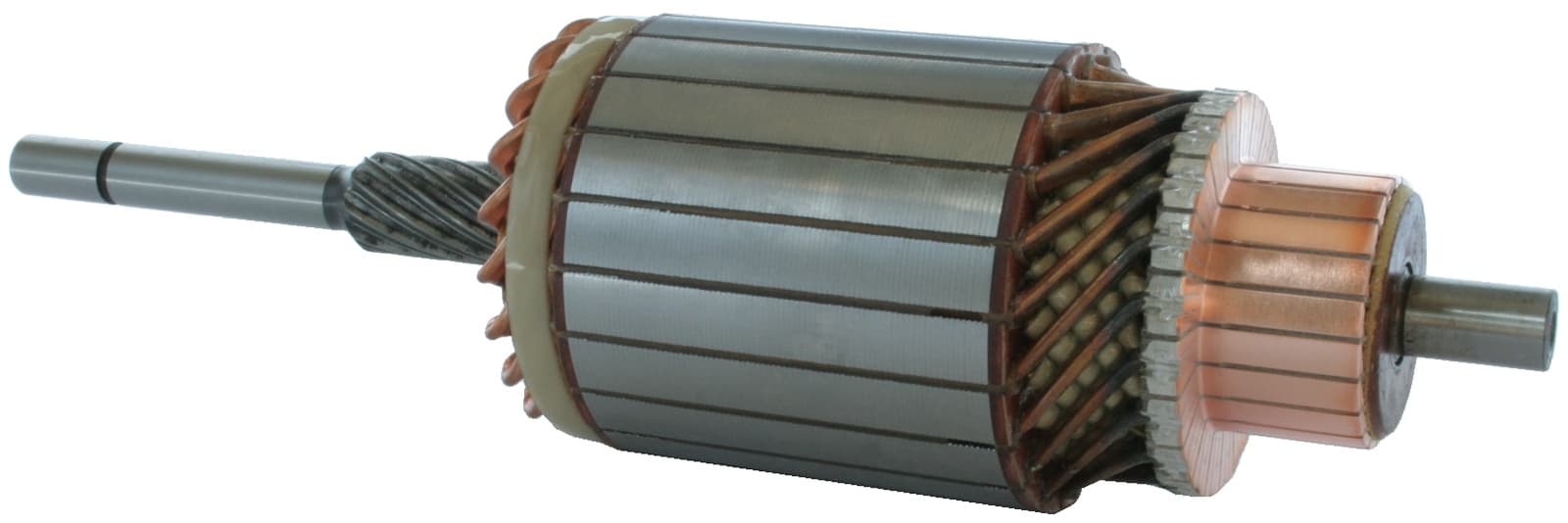

F032130115 - Armature

F032130115 - ArmatureTrade number 130115

Voltage 12,kW 2.4,Commutator Diameter 42.80,Commutator Distance 23.40,OD/spline/teeth 18.00,No./bars 21,Commutator Height 35.70,Bar length 10.00,Bar Distance 3.60,Shaft length 290.00,Bar Cross Distance 42.30,Bar Lane Height 22.50,Spline Teeth Length 25.50,Commutator Inner Diameter 16.00,Core Diameter 75.00,Commutator End Shaft Diameter 14.00,No./splines 10,Drive End Inside Shaft Diameter Outside 12.50,Commutator Outer Diameter 63.00,Drive End Inside Shaft Diameter 14.10,Rotation CW,Remarks 9 V: HC-CARGO 133087.,Shaft Diameter 18.85

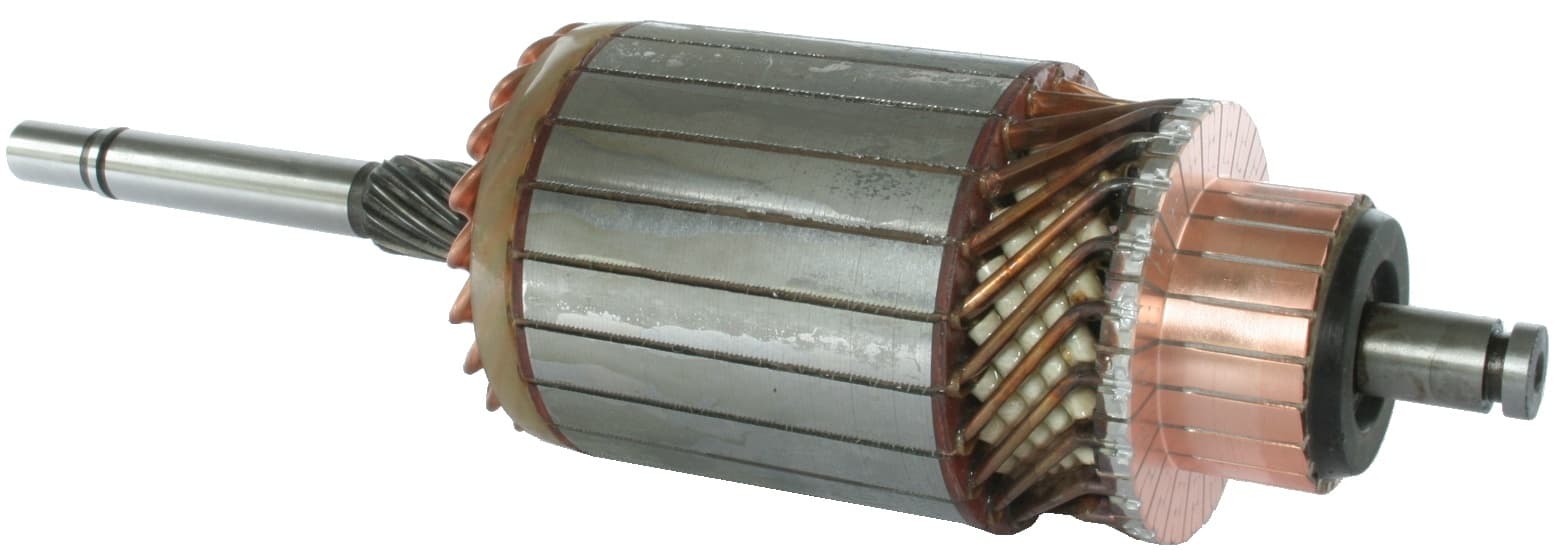

F032130116 - Armature

F032130116 - ArmatureTrade number 130116

kW 2.0,Voltage 12,Commutator Diameter 42.80,Commutator Distance 23.30,OD/spline/teeth 18.00,No./bars 21,Commutator Height 35.70,Bar length 10.00,Bar Distance 3.60,Core Diameter 75.00,Shaft length 285.00,Bar Cross Distance 42.30,Commutator End Shaft Diameter 14.00,Bar Lane Height 22.50,Spline Teeth Length 24.50,No./splines 10,Drive End Inside Shaft Diameter Outside 12.00,Commutator Outer Diameter 63.00,Drive End Inside Shaft Diameter 12.00,Rotation CW,Remarks 9 V: HC-CARGO 131934.,Shaft Diameter 18.85

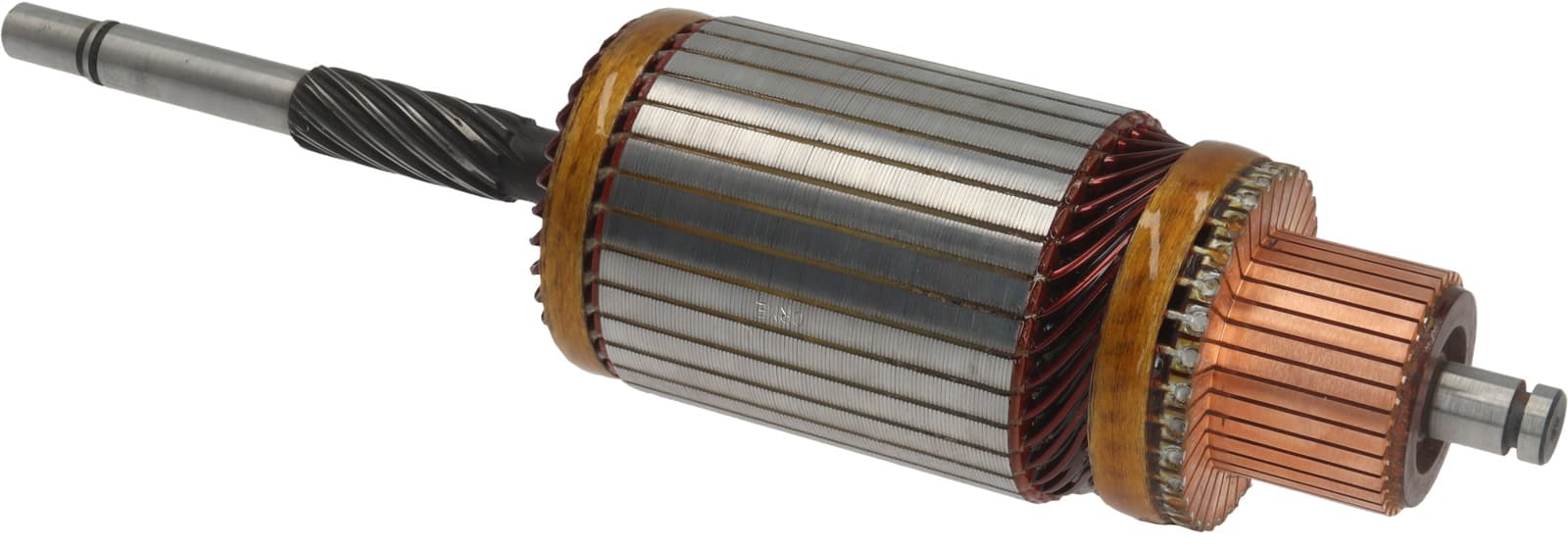

F032130117 - Armature

F032130117 - ArmatureTrade number 130117

Voltage 12,kW 2.4/2.7,Commutator Diameter 42.80,Commutator Distance 23.30,OD/spline/teeth 18.10,No./bars 21,Commutator Height 35.70,Bar length 10.00,Bar Distance 3.60,Shaft length 312.00,Bar Cross Distance 42.30,Bar Lane Height 22.50,Spline Teeth Length 36.00,Commutator Inner Diameter 16.00,Core Diameter 75.00,Commutator End Shaft Diameter 14.00,No./splines 10,Drive End Inside Shaft Diameter Outside 12.50,Commutator Outer Diameter 63.00,Drive End Inside Shaft Diameter 14.15,Rotation CW,Remarks 9 V: HC-CARGO 133088.,Shaft Diameter 18.85
F032130118 - Armature

F032130118 - ArmatureTrade number 130118

kW 2.3,Voltage 12,Commutator Diameter 43.20,Commutator Distance 28.00,OD/spline/teeth 18.50,No./bars 21,Commutator Height 36.50,Bar length 9.00,Commutator Inner Diameter 16.00,Bar Distance 2.55,Core Diameter 73.00,Shaft length 335.00,Bar Cross Distance 48.00,Commutator End Shaft Diameter 14.00,Bar Lane Height 27.20,Spline Teeth Length 64.00,No./splines 3,Drive End Inside Shaft Diameter Outside 12.50,Commutator Outer Diameter 66.20,Drive End Inside Shaft Diameter 14.15,Rotation CW,Remarks 9 V: HC-CARGO 133089.,Shaft Diameter 18.85
F032130119 - Armature

F032130119 - ArmatureTrade number 130119

kW 4.0,Voltage 24,Commutator Diameter 46.10,Commutator Distance 23.30,OD/spline/teeth 17.90,No./bars 33,Commutator Height 43.60,Bar length 10.50,Commutator Inner Diameter 18.90,Bar Distance 2.30,Core Diameter 75.00,Shaft length 333.00,Bar Cross Distance 46.20,Commutator End Shaft Diameter 14.00,Bar Lane Height 30.30,Spline Teeth Length 67.00,No./splines 10,Drive End Inside Shaft Diameter Outside 12.50,Commutator Outer Diameter 68.10,Drive End Inside Shaft Diameter 14.15,Rotation CW,Remarks 18 V: HC-CARGO 137286.,Shaft Diameter 18.75
